INSTALLATION INSTRUCTIONS

69-1706

TH8320U and TH8321U Touch Screen

Programmable Thermostats

APPLICATION

The TH8320U and TH8321U Touch Screen Universal Programmable Thermostats provide electronic control of 24 Vac

heating and cooling systems or 750 mV heating system. See Table 1 for a general description.

MERCURY NOTICE

If this control is replacing a control that contains

mercury in a sealed tube, do not place your old

control in the trash. Dispose of properly.

Contact your local waste management authority

for instructions regarding recycling and the

proper disposal of the old control.

INSTALLATION

When Installing this Product...

1. Read these instructions carefully. Failure to follow

the instructions can damage the product or cause

a hazardous condition.

2. Check the ratings given in the instructions to make

sure the product is suitable for your application.

3. Installer must be a trained, experienced service

technician.

4. After completing installation, use these instructions

to check out the product operation.

Selecting Location

Install the thermostat about 5 ft. (1.5m) above the floor in

an area with good air circulation at average temperature.

See Fig. 1.

Fig. 1. Selecting thermostat location.

Table 1. TH832 Thermostats Description.

Model

Power

Method Changeover System Selection Fan Selection Comments

TH8320U Batteries or

common wire

Automatic or

manual

selectable

Heat-Off-Cool-

Auto (Em. Heat for

heat pumps)

On-Auto-Circ System and Fan selection

vary based on system type

TH8321U System and Fan selection

vary based on System type.

Humidity sensor to control

dehumidification.

5 FEET

[1.5 METERS]

YES NO

M19925

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

69-1706 2

Do not install the thermostat where it can be affected by:

— Drafts or dead spots behind doors and in corners.

— Hot or cold air from ducts.

— Radiant heat from sun or appliances.

— Concealed pipes and chimneys.

— Unheated (uncooled) areas such as an outside wall

behind the thermostat.

Installing Wallplate

CAUTION

Electrical Hazard.

Can cause electrical shock or equipment

damage.

Disconnect power before wiring.

The thermostat can be mounted horizontally on the wall

or on a 4 in. x 2 in. (101.6 mm x 50.8 mm) wiring box.

1. Position and level the wallplate (for appearance

only).

2. Use a pencil to mark the mounting holes.

Fig. 2. Mounting wallplate.

3. Remove the wallplate from the wall and, if drywall,

drill two 3/16-in. holes in the wall, as marked. For

firmer material such as plaster, drill two 7/32-in.

holes. Gently tap anchors (provided) into the drilled

holes until flush with the wall.

4. Position the wallplate over the holes, pulling wires

through the wiring opening. See Fig. 2.

5. Insert the mounting screws into the holes and

tighten.

WIRING (FIG. 5-16)

All wiring must comply with local electrical codes and

ordinances.

1. Select set of terminal identifications (Table 2) that

corresponds with system type (conventional or

heat pump in Fig. 3).

2. Loosen the screws for the appropriate system type

selected; see Table 2. Insert wires in the terminal

block under the loosened screw. See Fig. 4.

3. Securely tighten each screw.

4. Push excess wire back into the hole.

5. Plug the hole with nonflammable insulation to

prevent drafts from affecting the thermostat.

Fig. 3. Selecting terminal identifications for

system type.

Fig. 4. Inserting wires in terminal block.

IMPORTANT

Use 18 gauge thermostat wire.

WALL

MOUNTING

HOLES (2)

M19916

MOUNTING

SCREWS (2)

WALL ANCHORS (2)

WIRES THROUGH WALL

AND WIRE SLOT

Table 2. Selecting Terminal Identifications for

System Type.

System Type

Wallplate

Terminal

Identifications

Wiring

Diagram

Reference

Standard Heat/Cool Conventional 5, 6

Heat Only Conventional 7

Heat Only with Fan Conventional 8

Heat Only Series 20 Conventional 9

Cool Only Conventional 10

Standard Multistage

up to 2 Heat/2 Cool

Conventional 11, 12

Heat Pump with No

Auxiliary Heat

Heat Pump 13, 14

Heat Pump with

Auxiliary Heat

Heat Pump 15, 16

NVENTI

REW TERMINAL

EAT P

UMP

M19951

AUX

O/B

M19917

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

3 69-1706

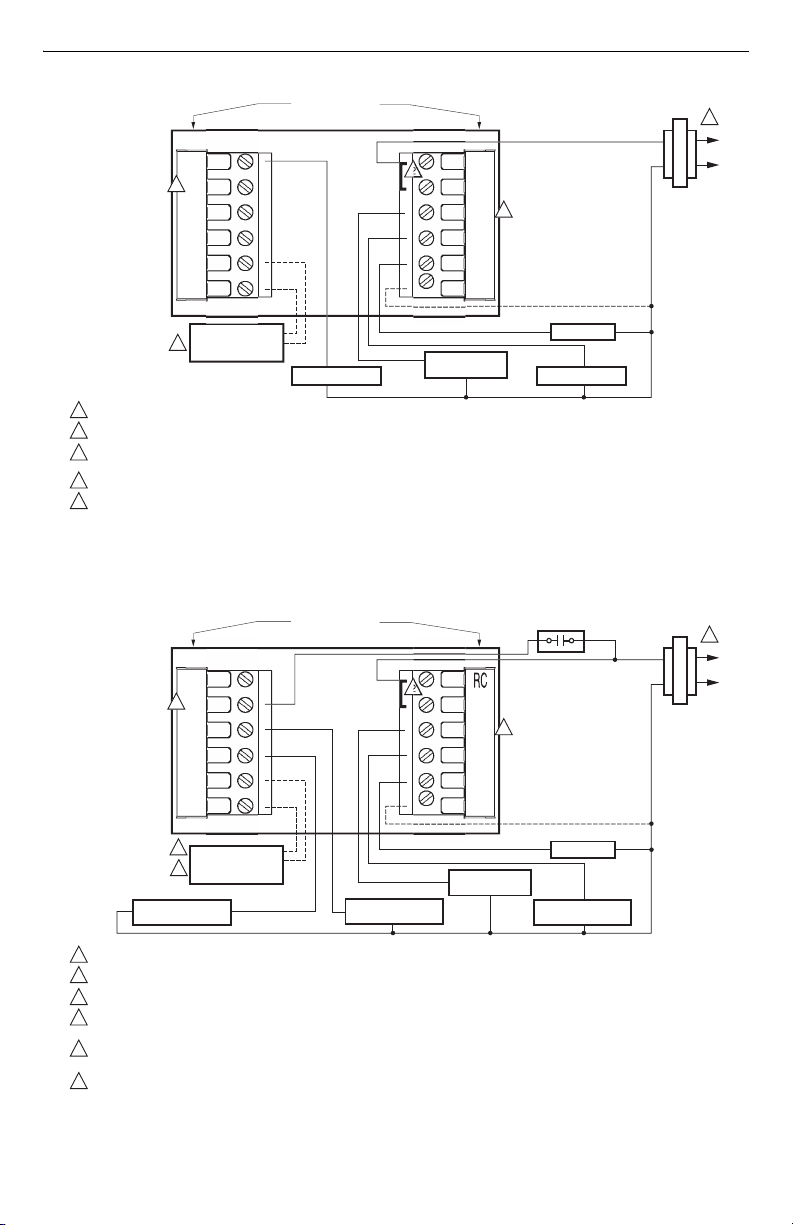

Fig. 5. Typical hookup of conventional single-stage

heat and cool system with single transformer

(1H/1C conventional).

Fig. 6. Typical hookup of conventional single-stage

heat and cool system with two transformers

(1H/1C conventional).

Fig. 7. Typical hookup of heat-only system

(1H conventional).

Fig. 8. Typical hookup of heat only system with fan

(1H conventional).

COMPRESSOR

CONTACTOR

M19895

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT RELAY

FAN

RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y2 RC

W2 Y

CONVENTIONAL

COMPRESSOR

CONTACTOR

M19896

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT RELAY

FAN

RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

REMOVE FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y2 RC

W2 Y

CONVENTIONAL

M19897

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y2 RC

W2 Y

CONVENTIONAL

M19898

OUTDOOR/INDOOR

TEMPERATURE

SENSOR HEAT RELAY

FAN

RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y2 RC

W2 Y

CONVENTIONAL

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

69-1706 4

Fig. 9. Typical hookup of heat only Series 20 system.

Fig. 10. Typical hookup of cool only system

(1C conventional).

Fig. 11. Typical hookup of conventional multistage two-stage heating and two-stage cooling

in a single transformer system (2H/2C or 2H/1C or 1H/2C conventional).

M19899

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

Y2 RC

W2 Y

CONVENTIONAL

WBR

SERIES 20

MOTOR OR

VALVE

M19900

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

FAN

RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y2 RC

W2 Y

CONVENTIONAL

COMPRESSOR

CONTACTOR

NVENTI

COOL RELAY 2 COOL RELAY 1

M19901

HEAT RELAY 1

FAN RELAY

HEAT RELAY 2

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST

HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

OPTIONAL 24 VAC

COMMON CONNECTION

MUST COME FROM

THE COOLING

TRANSFORMER.

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

5 69-1706

Fig. 12. Typical hookup of conventional multistage two-stage heating and two-stage cooling

in a two-transformer system (2H/2C or 2H/1C or 1H/2C conventional).

Fig. 13. Typical hookup of single-stage heat pump with no auxiliary/backup heat (1H/1C heat pump).

NVENTI

COOL RELAY 2 COOL RELAY 1

M19902

HEAT RELAY 1

FAN RELAY

HEAT RELAY 2

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER REMOVED.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABL

SEPARATE FROM THE THERMOSTAT CABLE.

OPTIONAL 24 VAC

COMMON CONNECTION

MUST COME FROM

THE COOLING

TRANSFORMER.

3OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT P

COMPRESSOR

M19903

CHANGEOVER

VALVE

FAN RELAY

OPTIONAL 24 VAC

NNE

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

69-1706 6

Fig. 14. Typical hookup of multistage heat pump with no auxiliary/backup heat (2H/2C heat pump).

Fig. 15. Typical hookup of single-stage heat pump with auxiliary/backup heat (2H/1C heat pump).

HEAT P

COMPRESSOR 1COMPRESSOR 2

M19904

CHANGEOVER

VALVE

FAN RELAY

OPTIONAL 24 VAC

NNE

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

MUST CONNECT THE 24 VAC COMMON WHEN USING L. THE TERMINAL IS SHOWN AS EQUIPMENT MONITOR, CAN ALSO BE USED AS A 24 VAC

OUTPUT. SEE "L TERMINAL" SECTION FOR MORE INFORMATION.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE

THERMOSTAT CABLE.

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT P

COMPRESSOR

RELAY

M19905

CHANGEOVER

VALVE

FAN RELAY

HEAT 2 RELAY

(AUXILIARY HEAT)

OPTIONAL 24 VAC

NNE

EQUIPMENT

MONITOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OUTDOOR SENSOR REQUIRED IN SYSTEM WITH FOSSIL FUEL BACKUP HEAT THAT IS NOT USING AN EXTERNAL FOSSIL FUEL KIT.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

MUST CONNECT THE 24 VAC COMMON WHEN USING L. THE TERMINAL IS SHOWN AS EQUIPMENT MONITOR, CAN ALSO BE USED AS

A 24 VAC OUTPUT. SEE "L TERMINAL" SECTION FOR MORE INFORMATION.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

EMERGENCY

HEAT RELAY

3OUTDOOR/INDOOR

TEMPERATURE

SENSOR

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

7 69-1706

Fig. 16. Typical hookup of multistage heat pump with auxiliary/backup heat (3H/2C heat pump).

Powering the Thermostat

There are two different ways to power the thermostat:

• Batteries (three AAA alkaline).

• 24 Vac Common wire.

Wiring 24 Vac Common

Wire the common side of the transformer to the C screw

of the thermostat wallplate. When installing in a single

transformer system, keep jumper wire between the R

and Rc screws. When installed in a two-transformer

system, use the common from the cooling transformer to

connect to C screw and remove the jumper wire between

the R and Rc screws.

Inserting Batteries (Optional)

If not using a 24 Vac Common to power the thermostat,

install three AAA alkaline batteries (included) in the back

of the thermostat. Make sure the positive and negative

terminals are oriented correctly, as marked on the device.

See Fig.17.

Fig. 17. Installing batteries on thermostat back.

Mounting the Thermostat

1. Align the terminal screw blocks with the pins on the

back of the thermostat.

2. Push the thermostat straight onto the wallplate.

See Fig. 18.

HEAT P

COMPRESSOR 2 COMPRESSOR 1

M19906

CHANGEOVER

VALVE

FAN RELAY

HEAT 2 RELAY

(AUXILIARY HEAT)

OPTIONAL 24 VAC

NNE

EQUIPMENT

MONITOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OUTDOOR SENSOR REQUIRED IN SYSTEM WITH FOSSIL FUEL BACKUP HEAT THAT IS NOT USING AN EXTERNAL FOSSIL FUEL KIT.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

MUST CONNECT THE 24 VAC COMMON WHEN USING L. THE TERMINAL IS SHOWN AS EQUIPMENT MONITOR, CAN ALSO BE USED AS

A 24 VAC OUTPUT. SEE "L TERMINAL" SECTION FOR MORE INFORMATION.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

EMERGENCY

HEAT RELAY

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

M19918

BATTERIES (3)

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

69-1706 8

Fig. 18. Mounting thermostat on wallplate.

Adjusting Real-Time Clock

Setting Calendar and Time

Locate and remove the tab labeled Remove in the lower

left corner on the thermostat back. The tab must be

removed to activate the real-time clock. See Fig. 19.

Fig. 19. Removing tab to activate real-time clock.

This thermostat is designed to automatically keep the

current time and day in memory for up to ten years under

normal use once the calendar is set. When the

thermostat is first powered, the display is ready for the

calendar date to be entered. See Fig. 20.

Fig. 20. Setting calendar and time after initial

powerup.

IMPORTANT

The tab on the back of the thermostat in the

lower left corner must be removed for this

feature to be active.

Using the Thermostat

The thermostat has a touch screen interface. Words or

symbols appear, highlighting the keys, as necessary, to

complete tasks. Always press the keys with your finger-

tips. Sharp instruments like a pen or pencil point can

damage the thermostat.

1. Use the arrow keys to set the Year, Month and Day,

as shown in Fig. 20.

2. Press the Done key.

3. Use the arrow keys to set the current time. See

Fig. 20.

4. Press the Done key.

WALL

M19919

REMOVE DURING

INSTALLATION

REMOVE DURING

INSTALLATION

M19920

REMOVE DURING

INSTALLATION

REMOVE TAB TO ACTIVATE REAL TIME CLOCK

MON

WED

THU

FRI

SUN

MON

WED

THU

FRI

SUN

CHANGE FILTER UV LAMP HUMIDIFIER PAD

OK TO PICK MULTIPLE DAYS SCREEN LOCKED

SET CURRENT DAY

SET MONTH

USE ARROWS TO SET YEAR AND TIME

M19921

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

9 69-1706

OPERATION

System and Fan Settings

The System default setting is Heat and the Fan default

setting is Auto.

SYSTEM SETTINGS

Heat: Thermostat controls heating system.

Off: Both heating and cooling are off.

Cool: Thermostat controls cooling system.

Auto: Thermostat automatically changes between

heating and cooling systems, depending on indoor

temperature. (See Installer Setup section.)

Em Heat: Emergency heat cycles to maintain

temperature. Compressor is locked out. (Used only for

heat pump systems with backup heat.)

FAN SETTINGS

The Fan setting can be programmed into the thermostat

schedule for each period (Wake, Leave, Return, Sleep).

See the Owners’ Guide for additional information.

LED Indication (Requires 24 Vac Common

Connection)

An LED indicator is located in the upper right corner of

the thermostat. It is only visible when lighted:

• It indicates when the thermostat is in the Emergency

Heat mode. When in Em. Ht. mode, the L terminal is

continuously energized and the LED is on.

• When the L terminal is wired to an equipment monitor,

the LED signals when a check or fail signal is sent to

the thermostat from the system. See Fig. 21. (This

can occur only when the thermostat is not in Em. Ht.

mode.)

Fig. 21. L terminal switch to R (power) side of system

transformer.

Preprogrammed Settings

Table 3 shows the default program settings. See Owners’

Guide for complete instructions on changing the

program.

INSTALLER SETUP

This Universal Thermostat works with many different

system types. To operate correctly, the thermostat must

be set up to operate the installed heating and/or cooling

system.

Installer Setup Menus

Main Menu: Offers the most commonly used options.

It is necessary to enter this menu to set the

thermostat to the type of system it is operating. Many

applications use only the Main Menu.

Regional Menu: Offers choices often changed due to a

particular area or region. For example, temperature

display in Fahrenheit or Celsius is offered in this menu.

Advanced Settings Menu: Offers more settings to fully

customize the thermostat. Many of these settings do not

require changing from the factory settings.

Entering Installer Setup

1. Thermostat must be powered either with Alkaline

AAA batteries or with 24 Vac Common wire.

2. From the home screen, press System key. (Press

Done or Cancel key to return to home screen.)

3. Five blank touch keys show on the bottom of the

screen between the Done and Cancel keys. Press

and hold the two blank keys on either side of the

center blank key for approximately five seconds

until screen changes. See Fig. 22.

Fig. 22. Entering Installer Setup.

Table 3. Default Program Settings.

Schedule

Period Time

Setpoints Fan

SettingHeat Cool

Wake 6:00AM 70°F

(21°C)

78°F

(25.5°C)

Auto

Leave 8:00AM 62°F

(16.50C)

85°F

(29.50C)

Auto

Return 6:00PM 70°F

(21°C)

78°F

(25.5°C)

Auto

Sleep 10:00PM 62°F

(16.5°C)

82°F

(28°C)

Auto

M19907

EQUIPMENT

MONITOR

L TO R

TO C

CANCEL

MON

WED

THU

FRI

SUN

EM HEAT

COOL

Followin

edu

t T

M19923

TH8320U AND TH8321U TOUCH SCREEN PROGRAMMABLE THERMOSTATS

69-1706 10

4. The Installer Setup Number is displayed in the

lower left. It is a four-digit code beginning with zero.

The factory setting or other choice selection is dis-

played in the lower right. See Fig. 23. This is a two-

digit code shown in the Option column of Table 4.

Fig. 23. Installer Setup Number and factory setting

selection locations.

Changing Installer Setup Selections

1. Advance to the next Installer Setup Number by

pressing the up and down arrow keys to the right of

the four-digit Installer Setup Number. See Fig. 23.

2. Change the factory Setting Options by pressing the

up and down arrow keys to the right of the two-digit

code selection. See Fig. 23.

Exiting Installer Setup

1. Press the Done key to exit the Installer Setup

screen.

IMPORTANT

The three Installer Setup Menus (Tables 4-6)

show all the available options. These options

customize themselves as you make selections

to the Installer Setup. Therefore, not all Installer

Setup Selections are shown or are available to

change.

DONE

MON

WED

THU

FRI

SUN

INSTALLER

SETUP NUMBER FACTORY

SETTING

ADVANCE TO NEXT

INSTALLER SETUP

PRESS TO EXIT

INSTALLER SETUP

CHANGE THE

FACTORY

SETTING M19922

Table 4. Main Installer Setup Menu.

Select

Installer

Setup

Number

Factory Setting Other Choices

CommentsOption Description Options Description

Not used. 1 thru 0099 — — — — —

Date (Year

Upper)

0120 20 Set first two digits of

current calendar year

(20 for year 2005, etc)

21 21 —first two digits of

current calendar year

(21xx)

2000 -2178

available

Date (Year

Lower)

0130 04 Represents last two

digits of current

calendar year (2004).

00 -99 Select last two digits of

current calendar year.

2001-2178

available

Date (Month) 0140 6 Digit(s) represents

current calendar

month.

1-12 Select number that

represents current

calendar month.

—

Date

(Day)

0150 15 Digit(s) represents

current calendar date.

1-31 Select number that

represents current

calendar date.

—

Schedule

Options

0160 4 7-day programming 0 0 —nonprogrammable —

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termostato de Honeywell

Honeywell

Honeywell T8602C Manual de usuario

Honeywell

Honeywell TH6220WF2 Manual de usuario

Honeywell

Honeywell Prestige THX9321R01 Manual de usuario

Honeywell

Honeywell FocusPRO TH5000 Series Manual de usuario

Honeywell

Honeywell T410A Manual de usuario

Honeywell

Honeywell 8161 Manual de usuario

Honeywell

Honeywell Y87RF Manual de usuario

Honeywell

Honeywell TH114-AF-GA Manual de usuario

Honeywell

Honeywell RTH3100C Manual de usuario

Honeywell

Honeywell T7300E Series Manual de usuario

Honeywell

Honeywell CT50 Manual de usuario

Honeywell

Honeywell RTH7460D1018/E 5-1-1 Manual de usuario

Honeywell

Honeywell VisionPRO TH8000 Series Manual de usuario

Honeywell

Honeywell CHRONOTHERM IV T8665A Manual de usuario

Honeywell

Honeywell Lyric T6 Pro Wi-Fi Manual de usuario

Honeywell

Honeywell RTHL221 series Manual de usuario

Honeywell

Honeywell PRO TH3210D Manual de usuario

Honeywell

Honeywell RTH2310 Manual de usuario

Honeywell

Honeywell RF CM61NG Manual de usuario

Honeywell

Honeywell INTELLIGUARD 9000 Manual de usuario

Honeywell

Honeywell RTH7600D Manual de usuario

Honeywell

Honeywell T8600 Manual de usuario

Honeywell

Honeywell Prestige 2.0 IAQ Manual de usuario

Honeywell

Honeywell INNCOM E528.4G Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario

Aube Technologies

Aube Technologies TH305 Manual de usuario

Powtier Controls

Powtier Controls 505MST Manual de usuario

Kanmor

Kanmor Zone Control 369e Manual de usuario
