Dolphin™ CT40

Quick Start Guide

CT40-A7-EN-QS Rev B

10/18

Out of the Box

Make sure that your shipping box contains these items:

• Dolphin CT40 mobile computer

(Model CT40-L0N or CT40-L1N)

• Rechargeable 3.8 VDC Li-ion battery

•HandStrap

• Product documentation

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Note: CT40-L0N models do not include a WWAN radio.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ or microSDHC™ memory cards with

Dolphin mobile computers for maximum performance and

durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

Mobile Computer Features

Microphone

Power Button

Battery Status/

Notification LED

Speaker

Touch Panel Scan Button

Microphone

Speaker

Scan Status LED

Scan Button

Imager Window

(LED/Laser Aperture)

Note: Hand strap not shown.

Battery

Camera Lens

and Flash

Battery Latch

SIM

Card Door

microSD

Card Door

Laser Safety

Label Location

I/O Connector

Volume Buttons

Scan Button

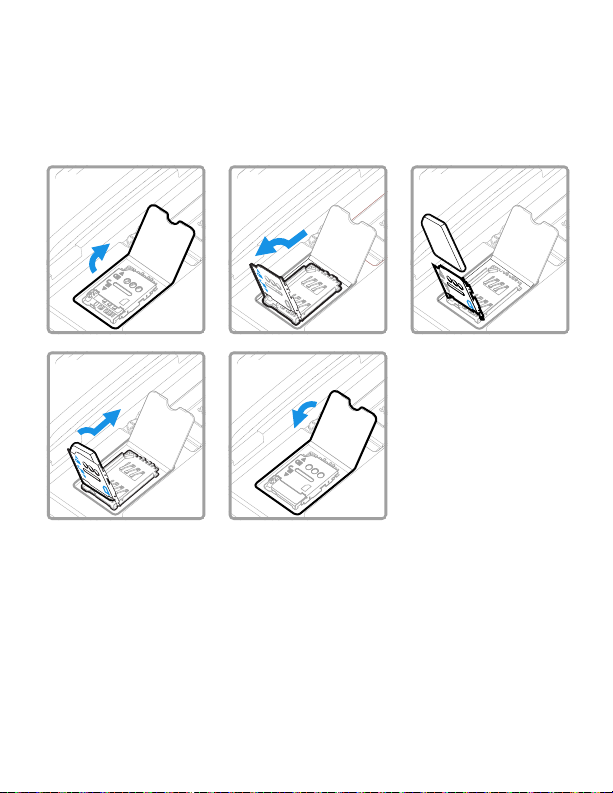

Install a microSD Card

Note: Format the microSD card before initial use.

Note: Always power off the computer before attempting to install or

remove a card.

Install a microSIM Card

Note: Phone feature is only available on CT40-L1N models.

SIM slot supports use of a UICC card for NFC Secure Element NFC

link encryption on all models.

Note: Always power off the computer before attempting to install or

remove a card.

Install the Battery

The CT40 mobile computer ships with a Li-ion 3.8 VDC,

15.5 watt-hour battery manufactured for Honeywell

International Inc.

We recommend use of Honeywell Li-ion battery

packs. Use of any non-Honeywell battery may result

in damage not covered by the warranty.

Ensure all components are dry prior to placing the

battery in the computer. Mating wet components

may cause damage not covered by the warranty.

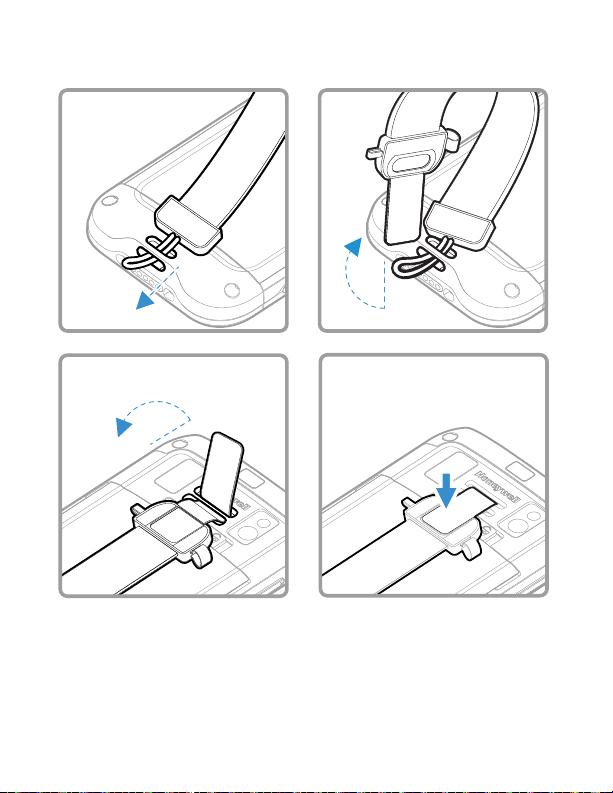

Install the Hand Strap

3 4

1 2

Charge the Mobile Computer

The CT40 mobile computer ships with a partially charged

battery. Charge the battery with a CT40 Series charging device

for a minimum of 4 hours. Using the computer while charging

the battery increases the time required to reach a full charge.

CT40 mobile computers are designed for use with the following

CT40 charging accessories: HomeBase, Ethernet

HomeBase, ChargeBase, NetBase, Quad Battery Charger,

Vehicle Power Adapter, Vehicle Dock, and USB Adapter.

We recommend the use of Honeywell accessories and

power adapters. Use of any non-Honeywell

accessories or power adapters may cause damage not

covered by the warranty.

Ensure all components are dry prior to mating the

computers and batteries with peripheral devices.

Mating wet components may cause damage not

covered by the warranty.

Turn Power On/Off

The first time you power on the computer, a Welcome screen

appears. You can either scan a configuration bar code or use the

Wizard to manually set up the computer. Once setup is

complete, the Welcome screen no longer appears on startup

and Provisioning mode is automatically turned off (disabled).

To turn the computer on:

•PressandholdthePower button for approximately 3 seconds,

and then release.

To turn the computer off:

1. Press and hold the Power button until the options menu

appears.

2. Touch Power Off.

3. When prompted to shut down the computer, touch OK.

Note: You should always power off the computer before removing the

battery.

Sleep Mode

Sleep mode automatically turns the touch panel display off and

locks the computer to save battery power when the computer is

inactive for a programmed period of time.

1. Press and release the Power button to wake the computer.

2. Drag the toward the top of the display to unlock the

computer.
