Dolphin™ CT50 Non-Incendive
powered by Android ™ 6.0
Quick Start Guide
CT50NI-AN6-EN-QS Rev B
6/18
2
Introduction
This document is for the Dolphin CT50 NI. This is the non-
incendive version of the Dolphin CT50. The Dolphin CT50 NI can
be identified by the yellow scan buttons and a device label veri-
fying non-incendive certification.
Out of the Box
Make sure that your shipping box contains these items:
• Dolphin CT50 NI mobile computer (Models CT50L0N,
CT50LFN)
• Rechargeable 3.8 VDC Li-ion battery
• Product documentation
If you ordered accessories for your mobile computer, verify that
they are also included with the order. Be sure to keep the original
packaging in case you need to return the mobile computer for
service.
Memory Card Specifications
Honeywell recommends the use of Single Level Cell (SLC)
industrial grade microSD™ or microSDHC™ memory cards with
Dolphin mobile computers for maximum performance and
durability. Contact a Honeywell sales representative for addi-
tional information on qualified memory card options.
Warning: Explosion Hazard - Substitution of
components may impair suitability for Division 2
Class I, II, III locations.
Avertissement: Risque d’explosion - Le remplacement
de composants risque de compromettre l’adaptation
du produit aux sites de division 2 catégorie I, II, III.
3
Accessories for the Dolphin CT50 NI
These accessories are available for the CT50:
• HomeBase (Model CT50-HB)
• Ethernet HomeBase (Model CT50-EB)
• ChargeBase (Model CT50-CB)
• NetBase (Model CT50-NB)
• Quad Battery Charger (Model CT50-QBC)
• Vehicle Power Adapter (Model CT50-MC)
• Vehicle Dock (Model CT50-MB)
• USB Adapter (Model CT50-USB)
•ScanHandle
•Holster
4
Front Features
Speaker Good Read LED
Volume buttons
Battery status /
Notification LED
Navigation panel
Microphone
Touch panel
Power
button
Scan buttons
5
Back Features
Camera
button
Camera lens
Battery door
latch
microSIM and microSD door
Battery
6

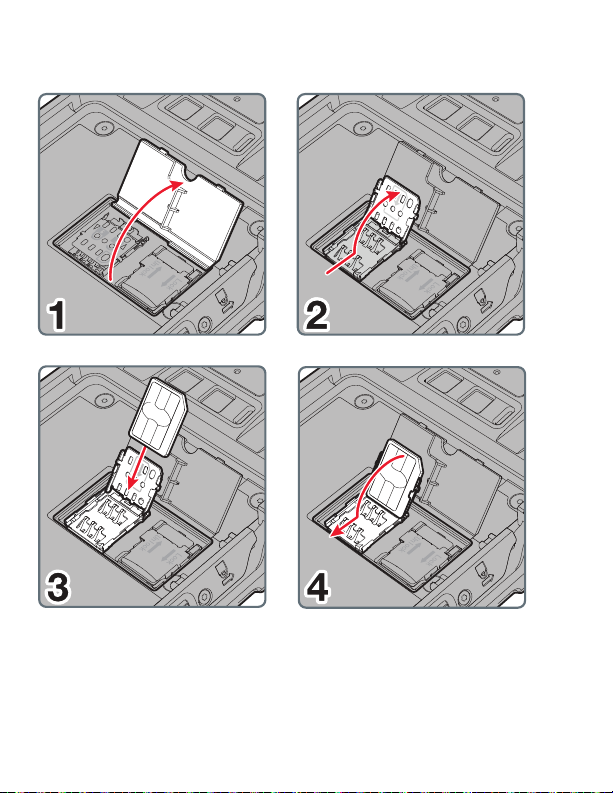

Install a microSIM Card
7
Install a microSD Card
Note: Format the microSD card before initial use.
8
Install the Battery
The Dolphin CT50 NI mobile computers ship with a Li-ion
3.8 VDC, 15.5 watt-hour battery manufactured for Honeywell
International Inc.
32
9
Charge the Computer
The Dolphin CT50 NI mobile computer ships with a partially
charged battery. Charge the battery with a CT50 charging
device for a minimum of 4 hours. Using the computer while
charging the battery increases the time required to reach a full
charge.
The Dolphin CT50 NI mobile computers are designed for use
with the following charging accessories: HomeBase, Ethernet
HomeBase, ChargeBase, NetBase, Quad Battery Charger, Vehi-
cle Power Adapter, Vehicle Dock, and USB Adapter.
Warning: Explosion Hazard - Batteries must only be
changed or charged in an area known to be non-
hazardous. Use ONLY Honeywell CT50 NI battery part
number 318-055-009.
Risque d’explosion - Les batteries doivent
uniquement être remplacées ou rechargées dans un
endroit non dangereux. Utilisez UNIQUEMENT
Honeywell CT50 NI batterie P/N 318-055-009.
Caution: We recommend the use of Honeywell
accessories and power adapters. Use of any non-
Honeywell accessories or power adapters may cause
damage not covered by the warranty.
Mise en garde: Il est recommandé d'utiliser les
périphériques, les cordons d'alimentation et les
adaptateurs secteur conçus par Honeywell.
L'utilisation de tout périphérique, cordon
d'alimentation ou adaptateur secteur d'une autre
marque est susceptible de provoquer des dommages
non couverts par la garantie.
10
Turn Power On/Off
To turn the computer on:
• Press and release the Power button.
To turn the computer off:
1. Press and hold the Power button until the options menu
appears.
2. Touch Power Off.
3. When prompted to shut down the phone, touch OK.
Note: You should always power off the computer before
removing the battery.
Sleep Mode (Suspend Mode)
Sleep mode automatically turns the touch panel display off and
locks the computer to save battery power when the computer is
inactive for a programmed period of time.
1. Press and release the Power button to wake the computer.
2. Drag the toward the top of the display to unlock the
computer.
Caution: Make sure that all components are dry prior
to using the computers and batteries with
accessories. Using wet components may cause
damage not covered by the warranty.
Mise en garde: Assurez-vous que tous les composants
sont secs avant de connecter les terminaux/batteries
à des périphériques. L'insertion de composants
humides risque de provoquer des dommages non
couverts par la garantie.
