Honeywell Dolphin CN80 NI Manual de usuario

Dolphin CN80 NI/CN80G

Quick Start Guide

CN80NI-A7-EN-QS Rev D

02/20

Introduction

This document is only for Dolphin CN80 NI and CN80G mobile

computers marked as certified for use in non-incendive (NI)

environments. CN80/CN80G models can be identified by NI

markings on the device label verifying non-incendive certifica-

tion.

Out of the Box

Make sure that your shipping box contains these items:

• Dolphin CN80 NI or CN80G mobile computer

• Dust Cover

• Rechargeable 3.85 VDC Li-ion battery*

• Hand strap, stylus and tether

• Product documentation

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ or microSDHC™ memory cards with

CN80 mobile computers for maximum performance and

durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

* Battery shipped separately for all Dolphin CN80G models.

Warning: Explosion Hazard -Substitution of components

may impair suitability for Division 2 Class I, II, III locations.

Avertissement: Risque d’ explosion - Le remplacement de

composants risque de compromettre l’adaptation du produit

aux sites de division 2 catégorie I, II, III.

Mobile Computer Features

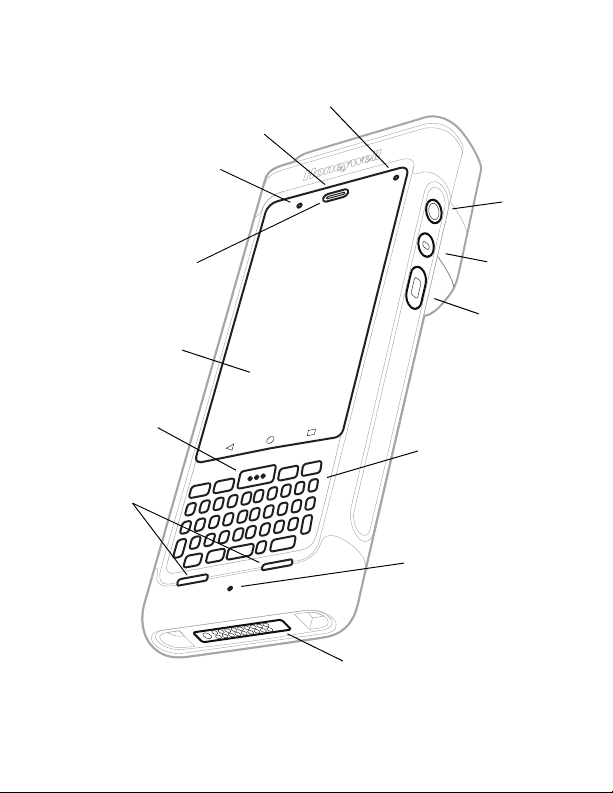

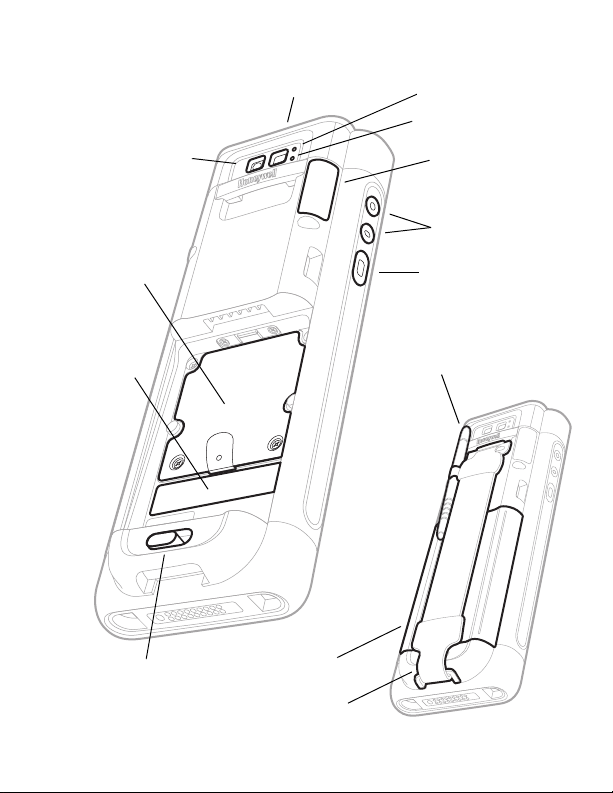

CN80/CN80G Models with 6603ER Imager

Scan

Button

Microphone

Power

Button

Battery Status /Notification LED

Microphone

Speaker

Touch Panel

Scan Button

I/O Connector

Aux

Button

Keyboard

(model dependent)

Speakers

Scan Status LED

Camera Lens and

Flash

Battery

Scan Button

Battery Latch

Imager Window

(LED/Laser Aperture)

microSIM/

microSD Card

Door

Laser Safety

Label Location

Volume Buttons

Stylus

Hand Strap

Microphone

IMEI Label

Location,

(model

dependent)

Pressure Sensor

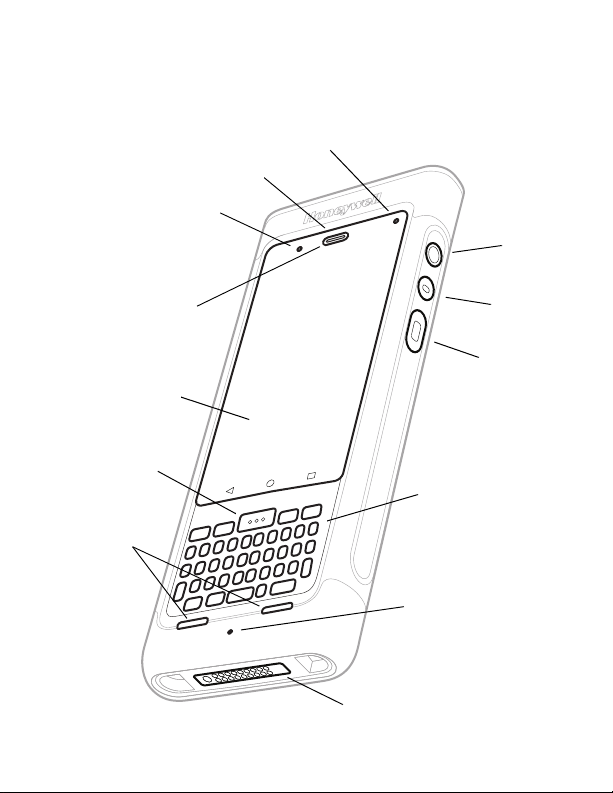

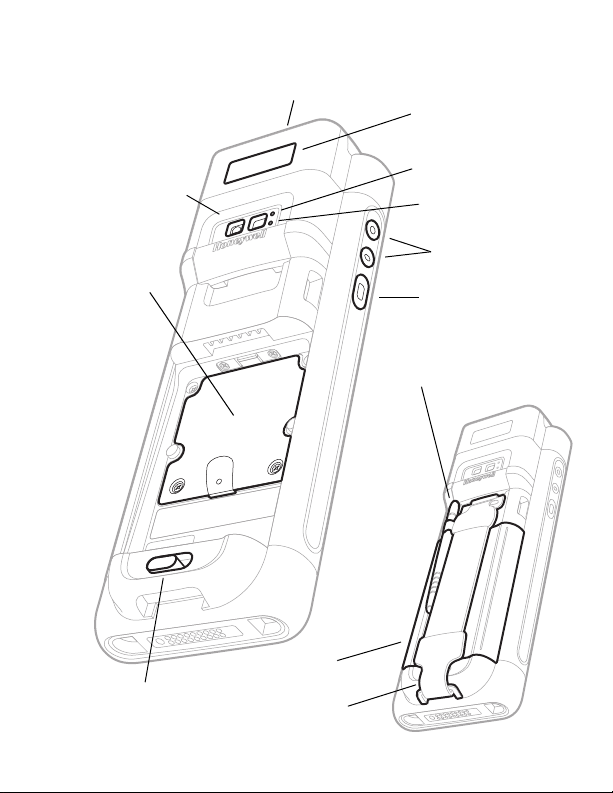

CN80/CN80G Models with EX20 Near/Far Imager

Scan

Button

Microphone

Power

Button

Battery Status/Notification LED

Microphone

Speaker

Touch Panel

Scan Button

I/O Connector

Aux

Button

Keyboard

(model dependent)

Speakers

Scan Status LED

Camera Lens and

Flash

Battery

Scan Button

Battery Latch

Imager Window

(LED/Laser Aperture)

Laser Safety

Label Location

Volume Buttons

microSIM/

microSD Card

Door

Stylus

Hand Strap

Microphone

Pressure Sensor

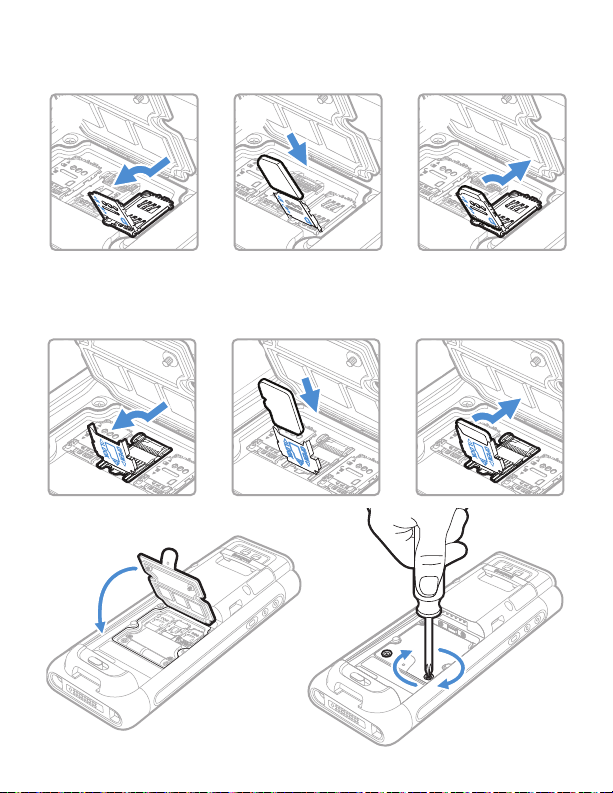

Install a microSIM Card / Install a microSD Card

SIM 1

Phone feature is available only on CN80L1N models.

On all models, when using a UICC card for NFC Secure Element

link encryption, install the card in SIM slot 1.

Always power off the computer before attempting to install

or remove a card.

3 4 5

SIM 2

SIM 2 feature is available only on CN80L1N models.

microSD

Format the microSD card before initial use.

3 4 5

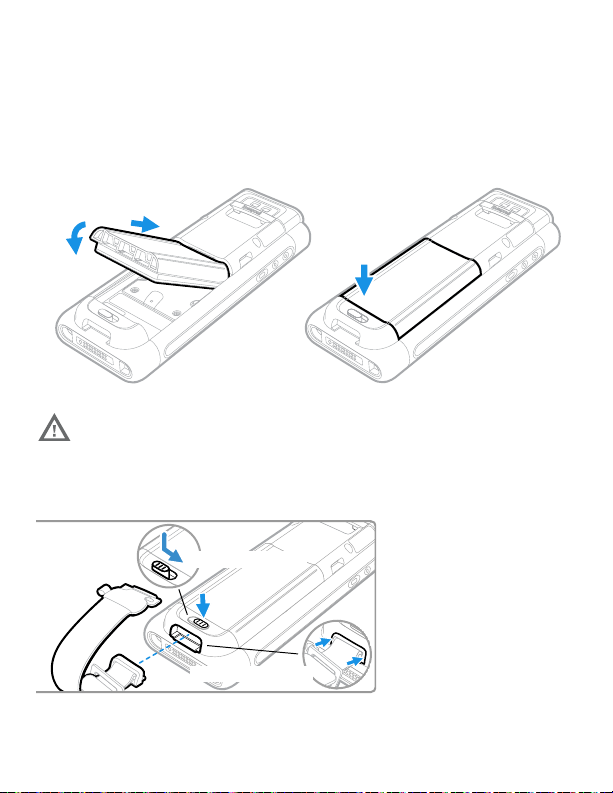

Install the Battery

CN80 and CN80G mobile computers use a Li-ion 3.85 VDC,

22.3 watt-hour battery manufactured for Honeywell

International Inc. The CN80G battery is packaged and shipped

separately from the mobile computer. The CN80 NI battery ships

with the mobile computer.

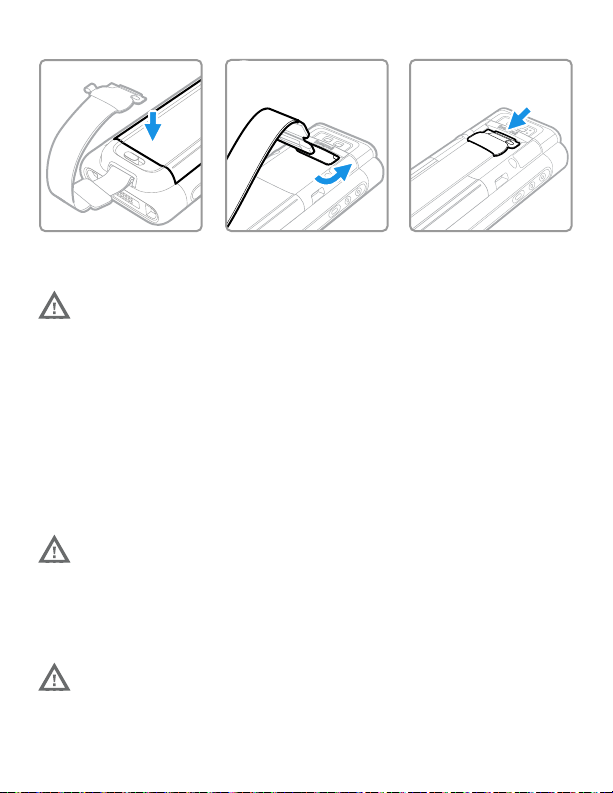

Install the Hand Strap

Ensure all components are dry prior to placing the battery in

the computer. Mating wet components may cause damage

not covered by the warranty.

Hold

Insert and Press

Press and Slide

Charge the Mobile Computer

The battery ships with only a partial charge. Before initial use,

charge the battery with a Honeywell charging device for a

minimum of 4 hours. Using the computer while charging the

battery increases the time required to reach a full charge.

CN80 mobile computers are designed for use with CX80 Series

charging accessories. CN80G models are designed for use with

CN80G charging accessories.

Warning: Explosion Hazard - Batteries must only be changed

or charged in an area known to be non-hazardous. Use ONLY

Honeywell battery part number CX80-BAT-EXT-WRLS1 for

CN80 NI models or CX80G-BAT-EXT-WRLS for CN80G

models.

Risqued’explosion-Les batteries doivent uniquement être

remplacées ou rechargées dans un endroit non dangereux.

Utilisez UNIQUEMENT Honeywell batterie

P/N CX80-BAT-EXT-WRLS1 pour les modèles CN80 ou

P/N CX80G-BAT-EXT-WRLS pour les modèles CN80G.

We recommend the use of Honeywell accessories and power

adapters. Use of any non-Honeywell accessories or power

adapters may cause damage not covered by the warranty.

Ensure all components are dry prior to mating the computers

and batteries with peripheral devices. Mating wet

components may cause damage not covered by the warranty.

24Snap
