Honeywell S8600A Manual de usuario

2 I511

2: [671 b

Lh ONLY ON MODELS WITH VENT DAMPER PLUG.

M1123 ._ ____ --.._--.__-__-_-~.- ___. _ _

FIG. l-APPROXIMATE IGNITION MODULE DIMENSIONS IN In. [mm].

ELECTRICAL RATINGS:

Voltage and frequency: 20.5 to 28.5 V (24 V nom.), 60

HZ.

CANADIAN GAS ASSOCIATION CERTIFIED: 1029-ABI-

6269.

Current rating: 0.2 A. AMERICAN GAS ASSOCIATION DESIGN CERTIFIED:

20-l 4D3.

Valve contact ratings (at 24 Vat):

S8600, S8660 S8610, S8670

Run 1 Inrush Run 1 Inrush

Pilot l.OA 1 lO.OA 1.0 A 1 lO.OA

Main 1 l.OA 1 lOoA I 2.0A t 20.0A

SPARKGENERATOROUTPUT: 13 kVpeakat25 pf load.

THERMOSTAT ANTICIPATOR SETTING: 0.2 A plus pilot

valve rating plus main valve rating.

AMBIENT TEMPERATURE RATING:

S8600,58660: -40” F to +175” F [-40° C to +79O C].

S8610, S8670: -40” F to +175” F [-40° C to +79” C] with

main valve rated 1.OA or less; -40” F to +165’ F [-40°

C to +74” C] with main valve rated over 1.OA to 2.0 A.

RELATIVE HUMIDITY RATING: 5 to 90 percent RH at

95” F.

FLAME FAILURE RESPONSE TIME: 0.8 sec. at 1.OuA

flame current.

CONTINUOUS RETRY TIMING (SSSOOMonly): 5 minute

min., 6 minute nom. off time between trials for ignition.

TERMINALS:

SENSE (S8600A,B; S8610A,B only): 3/16 in. male

quick connect.

All otherterminals, including ignition: l/4 in. male quick

connects. Models available with Molex plug forconnec-

tion to Honeywell D80D Vent Damper.

FLAME CURRENT: 1 ).LA,min.

MOUNTING: Mounts in any position except with terminals

up. However, recommended mounting position is with

terminals down to provide maximum protection from

dripping water or dust accumulation. Fasten with No. 6-

32 machine or No. 8 sheetmetal screws of appropriate

length.

UNDERWRITERS LABORATORIES INC. COMPONENT

RECOGNIZED: File No. MH15564, Guide No. MCCZ2.

OTHER SYSTEM COMPONENTS

These modules provide operating control of an intermit-

tent pilot system. Additional components required to

complete the system must be ordered separately. They

include:

Dual valve combination gas control designed for

intermittent pilot

Combination pilot burner/igniter-sensor

(S8600F,H,M; S8610F,H; and S8670D)

Separate igniter and sensor on pilot burner bracket

(S8600A,B)

Ignition cable

Transformer

24V thermostat

High limit and other auxiliary controls as required

DUAL VALVE COMBINATION GAS CONTROL: Any that

meets current ratings listed below. VR8204, VR8440 or

VR8520 recommended.

S8600, S8660: 1.OA pilot, 1.O A main valve.

S8610, S8670: 1.OA pilot, 2.0 A main valve.

PILOT BURNER/IGNITER-SENSOR: See Table 2.

TABLE 2-PILOT BURNER/IGNITER-SENSORS.

PILOT BURNEW FLOW RATE*

MODULE IGNITER-SENSOR cfh 1 m3/hr

S8600F.H.M: Q345 0.8 1 0.02

S8610F;H; Q346 1.0 0.03

S8660D; Q348 1.5 0.04

S8670D Q362 0.5 0.014

Q381 0.5 0.014

S8600A,B Q179C ) 1.8 1 0.05

Q354 with Q345. Q346. Q348. Q362 or

‘With natural gas at 7.0 in. WC[1.7 kPa].

3 68-0085-2

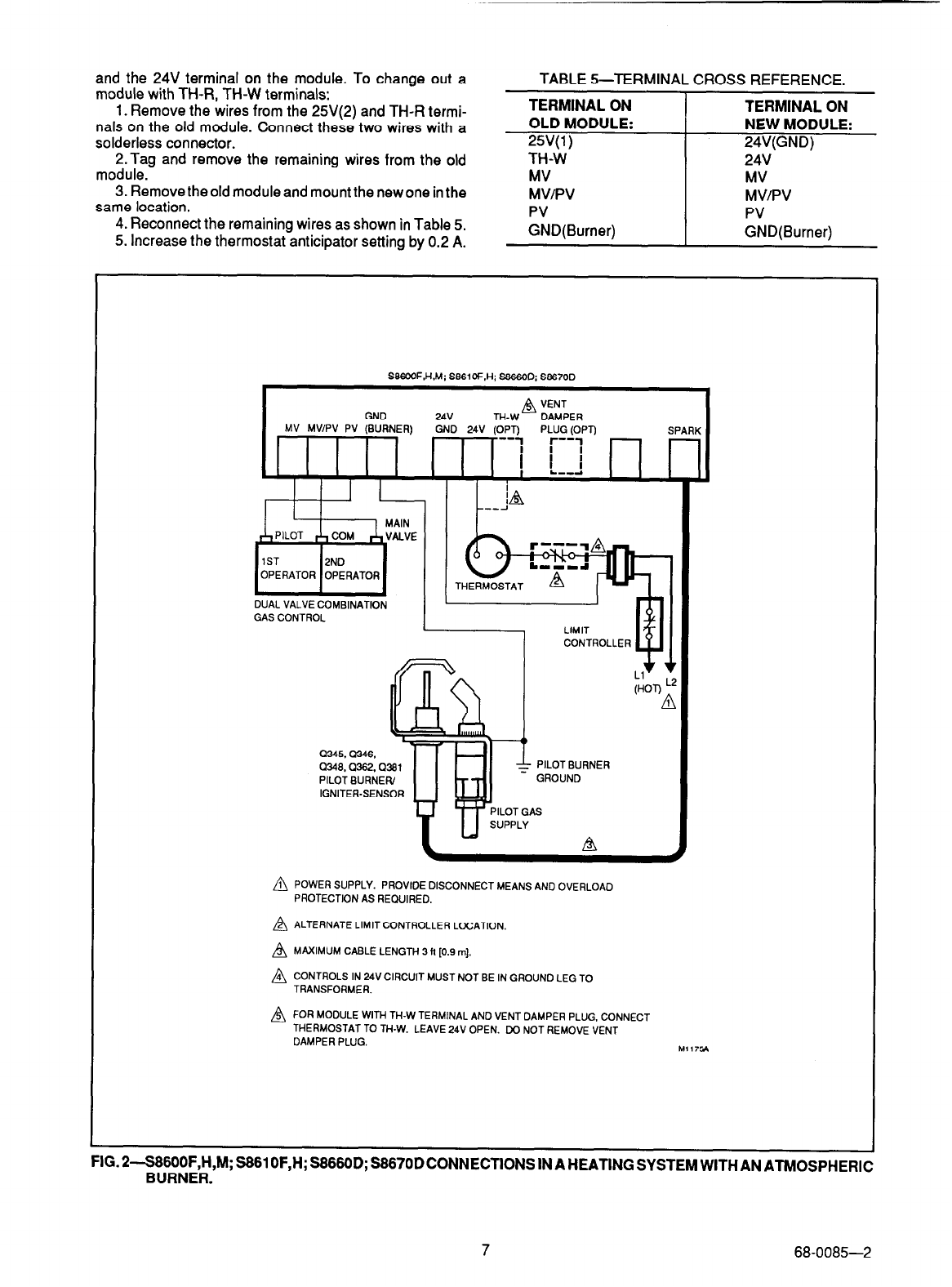

and the 24V terminal on the module. To change out a

module with TH-R, TH-W terminals:

1. Remove the wires from the 25V(2) and TH-R termi-

nals on the old module. Connect these two wires with a

solderless connector.

2.Tag and remove the remaining wires from the old

module.

3. Remove the old module and mount the new one in the

same location.

4. Reconnect the remaining wires as shown in Table 5.

5. Increase the thermostat anticipator setting by 0.2 A.

TABLE 5-TERMINAL CROSS REFERENCE.

TERMINAL ON TERMINAL ON

OLD MODULE: NEW MODULE:

25V(l) 24V(GND)

TH-W 24V

MV MV

MVIPV MVIPV

PV PV

GND(Burner) GND(Burner)

r S66CvX.H.M; S8610F.H; S866OD; Sffi70D

GND 24V TH-W A VENT

DAMPER

1 - MAIN

DUAL VALVE COMBINATION

GAS CONTROL

FIG. 2-S8600F,H,M; S661 OF,H; S6666D; S8670DCONNECTlONS INA HEATING SYSTEM WITHAN ATMOSPHERIC

BURNER.

0345. 0346,

0346. Q3is. a361

PILOT BURNER/

IGNITER-SENSOR

PILOT BURNER

A POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

& ALTERNATE LIMIT CONTROLLER LOCATION.

A MAXIMUM CABLE LENGTH 3 fi [0.9 m],

)& CONTROLS IN 24VClRCUlT MUST NOT BE IN GROUND LEG TO

TRANSFORMER.

h FOR MODULE WITH TH-W TERMINAL AND VENT DAMPER PLUG, CONNECT

THERMOSTAT TO TH-W. LEAVE 24V OPEN. DD NOT REMOVE VENT

DAMPER PLUG. Ml175A

7 68-0085-2

S8600F.H.M: S6610F.H

I A VENT

GND 24V DAMPER

MV MWPV PV (BURNER) GND 24V TH-W PLUG SPARK

I I I I I

DUAL VALVE COMBINATION

GASCONTROL

A POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

A ALTERNATE LIMIT CONTROLLER LOCATION.

A MAXIMUM CABLE LENGTH 3 ft lo.9 ml.

A CONTROLS IN 24V CIRCUIT MUST NOT BE IN GROUND LEG TO

TRANSFORMER.

& REMOVE PLUG ONLY IF USING VENT DAMPER. FUSE BLOWS

ON STARTUP WHEN PLUG IS REMOVED; THEN MODULE

WILL OPERATE ONLY WHEN VENT DAMPER IS CONNECTED.

l-lA”NLDD

D60D VENl

DAMPER

Q345. Q346.

D346. Q362. Q361

BURNER

GROUND

FIG. 3--S8600F,H,M; S8610F,H WITH VENT DAMPER PLUG IN A HEATING SYSTEM WITH AN ATMOSPHERIC

BURNER AND A D80D VENT DAMPER.

S86WA.B; S66104B

A VENT

GND 24V TH-W DAMPER

MV MV/PV PV (BURNER) GND 24V (OPT) PLUG (OPT) SENSE SPARK

--1 l---1

I I I

I L__,!

THERMOSTAT

A POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REOUIRED.

A ALTERNATE LIMIT CONTROLLER LOCATION.

A MAXIMUM CABLE LENGTH 311[0.9 ml.

A CONTROLS IN 24V CIRCUIT MUST NOT BE IN GROUND LEG TO

TRANSFORMER.

A FOR MODULE WITH TH-W TERMINAL AND VENT DAMPER PLUG,

CONNECT THERMOSTAT TO TH-W. LEAVE 24V OPEN. DO NOT

REMOVE VENT DAMPER PLUG.

.^. ..___uw

u PILOTGAS

- SUPPLY

FIG. 4--S8600A,B; S861OA,B CONNECTIONS IN A HEATING SYSTEM.

S66OOA.B:S6610AB

DUAL VALVE COMBINATION

GAS CONTROL

A POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED.

A ALTERNATE LIMIT CONTROLLER LOCATION. LIMIT

GND

Mb’ MV/PV PV (BURNER) 24V DAMPER

GND 24V TH-W PLUG kh SENSE SPARK

/!?J MAXIMUM CABLE LENGTH 3 ft IO.9 m].

A CONTROLS IN 24V CIRCUIT MUST NOT BE IN GROUND

LEG TO TRANSFORMER. I

A REMOVE PLUG ONLY IF USING VENT DAMPER. (HOT) --

A DEOD.ViNT DAbiPER.

POWER SUPPLY. PROVIDE DISCONNECT MEANS

AND OVERLOAD PROTECTION AS REQUIRED.

ALTERNATE LIMIT CONTROLLER LOCATION.

MAXIMUM CABLE LENGTH 3 11(0.9 m].

CONTROLS IN 24V CIRCUIT MUST NOT BE IN

GROUND LEG TO TRANSFORMER.

FOR MODULE WITH TH-W TERMINAL AND VENT

DAMPER PLUG, CONNECT THERMOSTAT TO TH-W.

LEAVE 24V OPEN. DO NOT REMOVE VENT DAMPER

PLUG.

OPERATOR OPERATOR

DUAL VALVE COMBINATION

GASCONTROL

FIG. 6-S8600F,H,M; S8610F,H; S8660D OR S8670D CONNECTIONS IN A HEATING SYSTEM WITH A FAN-

ASSISTED COMBUSTION BURNER.

0345.0346,

0346, Q362. Q361

PILOT BURNER/

IGNITER-SENSOR

S6600F,H.M; S6610F.H; S6660D; S6670D

GND

MV MVlPV PV (BURNER)

A VENT

24V TH-W DAMPER

GND 24V (OPT) PLUG (OPT) SPARK

IT BURNER L2 Ll

.LER

9 68-0085-2

S66CQF.H.M; S661ff.H; S866QD; S6670D

GND 24V A VENT

TH-W DAMPER

COMBINATION GAS CONTROL

MV MVlPV PV (BURNER] GND 24V (OPT) PLUG (OPT) SPARK

CONTROLLER

A POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

A ALTERNATE LIMIT CONTROLLER LOCATION

A MAXIMUM CABLE LENGTH 3 fi [0.9 m]

0 CONTROLS IN 24V CIRCUIT MUST NOT BE IN GROUND LEG TO

TRANSFORMER.

A FOR MODULE WITH TH-W TERMINAL AND VENT DAMPER PLUG, CONNECT

THERMOSTAT TO TH-W. LEAVE 24V OPEN. W NOT REMOVE VENT

DAMPER PLUG.

FIG. 7-S8600F,H,M; S8610F,H; S8660D OR S8670D CONNECTIONS IN A HEATING SYSTEM WITH ATWO STAGI

GAS CONTROL AND A FAN-ASSISTED COMBUSTION BURNER.

S66CQF.H.M; S861w.~; ~6660~; ~8670~

GND /& VENT

24V M-W DAMPER

MV MV/PV PV (BURNER) GND 24V (OPT) PLUG (OPT) SPARK

“1 r--i

i I I

, !-_A

I I I I l__la D80B

END SWITCH

N.O. N.C.

r-t-t--

I - MAIN

DUAL VALVE COMBINATION

GAS CONTROL

FIG. &S8600F,H,M; S8610F,H; S8660D OR S8670D IN A HEATING SYSTEM WITH A D80B VENT DAMPER.

1THERii?iSTAT 1

0345.0346,

0346.0362.0361

PILOT BURNER/

IGNITER-SENSOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS

REQUIRED.

ALTERNATE LIMIT CONTROLLER LOCATION.

MAXIMUM CABLE LENGTH 3 Ii [O.Q m].

CONTROLS IN 24V CIRCUIT MUST NOT BE IN GROUND LEG TO TRANSFORMER.

FOR MODULE WITH TH-W TERMINAL AND VENT DAMPER PLUG, CONNECT

THERMOSTAT TO TH-W. LEAVE 24V OPEN. 00 NOT REMOVE VENT DAMPER PLUG.

COLORS REFER TO WIRE HARNESS, IF USED.

11 68-0085-2

LIMIT

CON- 1

TROLLEF

S96QOF.H.M; S9610F.H; S966OD; S8670D

A VENT

GND 24V TH-W DAMPER

MV MViPV PV IBURNER) GND 24V (OPT) PLUG (OPT) SPARK

DUAL VALVE COMBINATION

GAS CONTROL

THERMOSTAT (HOT)

dOT) L2

R9239

FAN

CENTER

FAN

CONTROL

COMBUSTION

MOTOR

COMBUSTION

AIR BLOWER

RELAY

AIR

PROVING

SWITCH

CONTROLLER

G. 9-S8600F,H,M; S8610F,H; S8660D; OR S8670D CONNECTIONS IN A HEATING-COOLING SYSTEM WITH A

FAN-ASSISTED COMBUSTION BURNER.

SENSOR

A POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS

REOUIRED.

8 ALTERNATE LIMIT CONTROLLER LOCATION.

A MAXIMUM CABLE LENGTH 3 fl[O.9 m].

A CONTROLS IN 24V CIRCUIT MUST NOT BE IN GROUND LEG TO TRANSFORMER

A FOR MODULE WITH TH-W TERMINAL AND VENT DAMPER PLUG, CONNECT

Ml1824 THERMOSTAT TO TH-W. LEAVE 24V OPEN. DO NOT REMOVE VENT DAMPER PLUG.

CABLE :

SS6CQF.H.M; SS610F.H; S966OD; S9670D

GND 24V TH-W /& VENT

DAMPER

MV MWPV PV (BURNER) GND 24V (OPT) PLUG (OPT) SPARK

ll-ri-l --i

F-T!f r--i

I I

! .

I-H-I I

DUAL VALVE COMBINATION

GAS CONTROL

FIG. lO-S86OOF,H,M; S861OF,H; S8660D; OR S8670D CONNECTIONS IN A HYDRONIC HEATING SYSTEM WITI

A D80D VENT DAMPER.

ISLACK 1

ORANGE LB148J

THERMOSTAT

A POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS

REQUIRED.

A CUT PLUG OFF MODULE END OF DSOD WIRE HARNESS, CONNECT LEADWIRE

COLORS AS SHOWN.

A MAXIMUM CABLE LENGTH 3 It IO.9 m].

A FOR MODULE WITH TH-W TERMINAL AND VENT DAMPER PLUG, CONNECT

THERMOSTAT TO TH-W. LEAVE 24V OPEN. DO NOT REMOVE VENT DAMPER PLUG

/& LEAVE TP-Z AND Z-W JUMPERS IN PLACE M118lA

13 68-0085-2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Honeywell

Honeywell

Honeywell L6190A Manual de usuario

Honeywell

Honeywell TrueZONE ARD Series Manual de usuario

Honeywell

Honeywell 7800 SERIES Manual de usuario

Honeywell

Honeywell VC Series Manual de usuario

Honeywell

Honeywell DIAL-SET DS05C Manual de operación

Honeywell

Honeywell IDENT KEY 3 Manual de usuario

Honeywell

Honeywell PRO4200 Manual de usuario

Honeywell

Honeywell 010690.02 Manual de instrucciones

Honeywell

Honeywell R4795A Manual de usuario

Honeywell

Honeywell ScanDome ll HTX-3000 Manual de usuario

Honeywell

Honeywell VR4920Z 1000 Manual de usuario

Honeywell

Honeywell CR7075 Manual de operación

Honeywell

Honeywell V800 Manual de usuario

Honeywell

Honeywell S8600 Manual de usuario

Honeywell

Honeywell V5004TF Manual de usuario

Honeywell

Honeywell VGF Manual de usuario

Honeywell

Honeywell FF-SRE6029 Manual de usuario

Honeywell

Honeywell NOTIFIER FCM-1 Manual de usuario

Honeywell

Honeywell DirectLine DL423 Manual de usuario

Honeywell

Honeywell Satronic TFI 812 Series Manual de usuario

Honeywell

Honeywell HumidiPRO H6062A1000/U Manual de usuario

Honeywell

Honeywell LTE-L57A Manual de usuario

Honeywell

Honeywell CENTRALINE CLCM1H112 Manual de usuario

Honeywell

Honeywell V4073A Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
