Honeywell YJ-HF5000 Manual de usuario

YJ-HF500

Corded Area-Imaging Scanner

Quick Start Guide

Rev B 11/15

Aller à www.youjieaidc.com/en pour le français.

Para Português, acesse www.youjieaidc.com/en.

Ir a www.youjieaidc.com/en para español.

Перейти на русскоязычный сайт www.youjieaidc.com/en.

Türkçe için www.youjieaidc.com/en.

如要到中国 www.youjieaidc.com/en（简体）。

ǀƸŮǍƯŽȚǀưƴŽwww.youjieaidc.com/en ǟŽȘǚƲƄſȚ

Note: Refer to your user’s guide for information about cleaning your

device.

Getting Started

Turn off computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

Power Supply Assembly (if included)

Connecting the Scanner

USB:

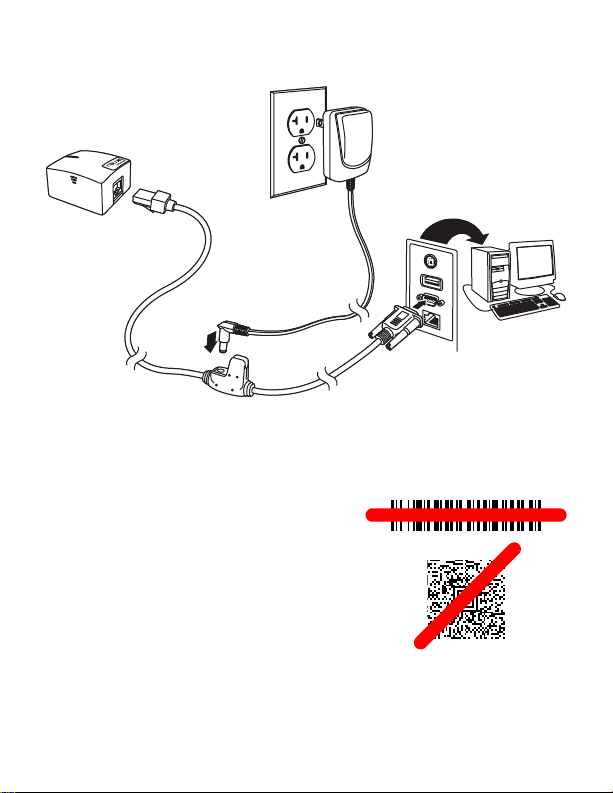

RS232 Serial Port:

Reading Techniques

The view finder projects an aiming

beam that should be centered over the

bar code, but it can be positioned in any

direction for a good read.

Hold the scanner over the bar code and

center the aiming beam on the bar

code.

The aiming beam is smaller when the

scanner is closer to the code and larger

when it is farther from the code. Hold

the scanner close to smaller bar codes,

and farther away from large bar codes

to get a proper read.

If the bar code is highly reflective (e.g., laminated), you may need to

tilt the scanner at an angle so the bar code can be scanned.

Standard Product Defaults

The following bar code resets all standard product default settings.

USB Serial Interface

Scan the following code to program the scanner to emulate a regular

RS232-based COM Port. If you are using a Microsoft® Windows®

PC, you will need to download a driver from the Youjie website

(www.youjieaidc.com). The driver will use the next available COM

Port number. Apple® Macintosh computers recognize the scanner

as a USB CDC class device and automatically uses a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

Keyboard Country

If your interface is USB Keyboard or Keyboard Wedge, your

keyboard layout default is a US keyboard. To change this layout,

refer to the chart below for your keyboard country. Scan the Program

Keyboard Country bar code below, then scan the numeric bar

code(s) for the appropriate Country Code from page 11, then scan

the Save bar code.

Standard Product Defaults

USB Serial Interface

By default, national character replacements are used for the

following characters: #$@[\]^‘{|}~ Refer to the ISO 646 Character

Replacements chart in your User’s Guide to view the character

replacements for each country..

Note: For a complete list of country codes, see the User’s Guide for

your product at our website, ,www.youjieaidc.com.

Country Code Scan Country Code Scan

Belgium 1Italy 5

Brazil 16 Japan 28

Czechoslovakia 15 Latin America 14

Denmark 8Russia 26

Finland 2Slovakia 22

France 3Spain 10

Germany/Austria 4Switzerland 6

Great Britain 7USA (Default) 0

Norway 9

Program Keyboard Country

Save

Scan Mode

When in Presentation mode, the scanner is activated when it “sees”

a bar code. After the bar code is read, the scanner continuously

searches for bar codes for 5 seconds. After 5 seconds and no bar

code is read, the scan illumination will turn off. When in

Presentation - Mobile Phone mode, your scanner is optimized to

read bar codes from mobile phone or other LED displays.

Suffix

If you want a carriage return after the bar code, scan the Add CR

Suffix bar code. To add a tab after the bar code, scan the Add Tab

Suffix bar code. Otherwise, scan the Remove Suffix bar code to

remove the suffixes.

Presentation Mode

Presentation Scanning - Mobile

Phone

Add CR Suffix

Remove Suffix

Add Tab Suffix

Add Code ID Prefix to All Symbologies

Scan the following bar code if you wish to add a Code ID prefix to all

symbologies at once.

Note: For a complete list of Code IDs, see the User’s Guide for your

product at our website, www.youjieaidc.com.

Function Code Transmit

When this selection is enabled and function codes are contained

within the scanned data, the scanner transmits the function code to

the terminal. Charts of these function codes are provided in your

User’s Guide. When the scanner is in keyboard mode, the scan code

is converted to a key code before it is transmitted.

Add Code ID Prefix To All Symbologies

(Temporary)

Enable

(Default)

Disable

Programming the Interface

Scan one of the following bar codes to program your interface.

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB Keyboard (PC)

USB IBM SurePos

(USB Tabletop Scanner)

Interface

USB Keyboard (Mac)

USB Japanese Keyboard (PC)

USB HID Bar Code Scanner

USB Serial Port Emulation

Data Format Editor Instructions

The following are abbreviated instructions for entering a data format.

For complete instructions refer to your User’s Guide, available at our

website, www.youjieaidc.com.

1. Scan the Enter Data Format symbol.

2. Primary/Alternate Format: scan 0for Primary Format

3. Terminal Type: scan 099 for any terminal type

4. Code I.D.: scan 99 for any bar code type

5. Length: scan 9999 for any length bar code.

6. Editor commands: use the Programming Chart that follows.

7. Scan Save to save your entries.

Enter Data Format

Clear All Data Formats

Save
