Hogtunes RGRM4CH Manual de usuario

HOGTUNES

Audio Solutions For The Great American Cruiser

Designed and Engineered in North America

RGRM4CH

Installation Manual

Rev 1.2

This Kit Allows For The Installation

Of Hogtunes NCA 450-RM Amp Into

Rushmore Road Glides Models

Not For Use On CVO Models With Factory Amplifiers Installed

Congratulations and Thank-you for your purchase of Hogtunes RGRM4CH kit

made to install Hogtunes REV 450-RM or NCA 450-RM amp into Rushmore

model Road Glides! If you have any questions or concerns, we are here to

help. Email info@hogtunes.com or call us during regular business hours

(EST) at (705)-719-6361. If you still need help, then please consider a

Professional installation by your dealer.

Getting Started:

Step #1: Make sure your ignition switch stays in the “OFF” position. Remove

your outer fairing and headlamp assembly and set aside. Refer to a service

manual if you need help with this. NOTE: Placing a towel on the front fender

can help prevent scratches or “dings” from dropped tools or fasteners, etc.

Colorful expletives will also be kept to a minimum!

Step#2: NCA 450-RM amp comes with a silver mounting plate attached that

needs to be removed. Undo the 4 screws that attach the amp to the plate,

separate the plate from the amp, and re-install the 4 screws back into the

amplifier.

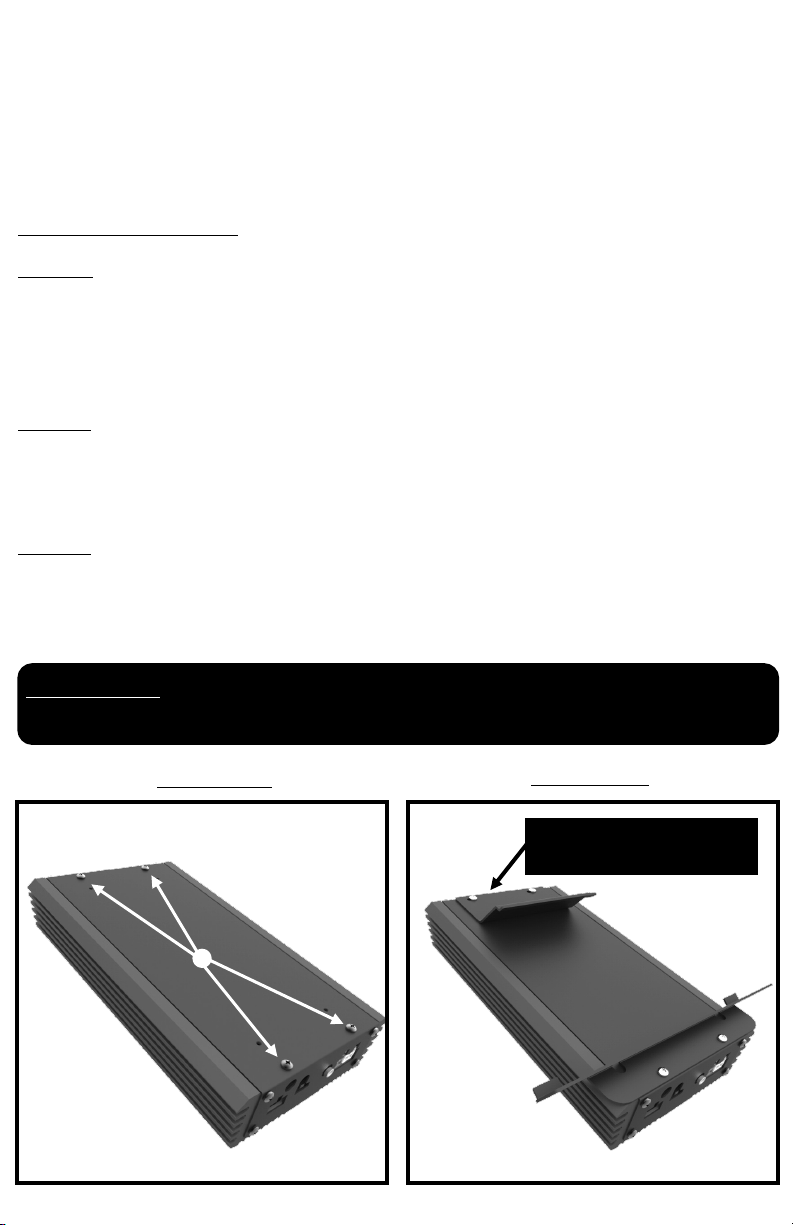

Step#3: Remove the 4 black screws highlighted by the white arrows as shown

in Diagram 1.1 below. Install the plates onto the amp using the factory screws

just removed as shown in Diagram 1.2 below.

End Of Amp With Fuse And

Power Connector

Diagram 1.2

Diagram 1.1

IMPORTANT: Please note the plate that goes on the fuse end of the amp!

The amp will not install properly if you affix plates in wrong location!

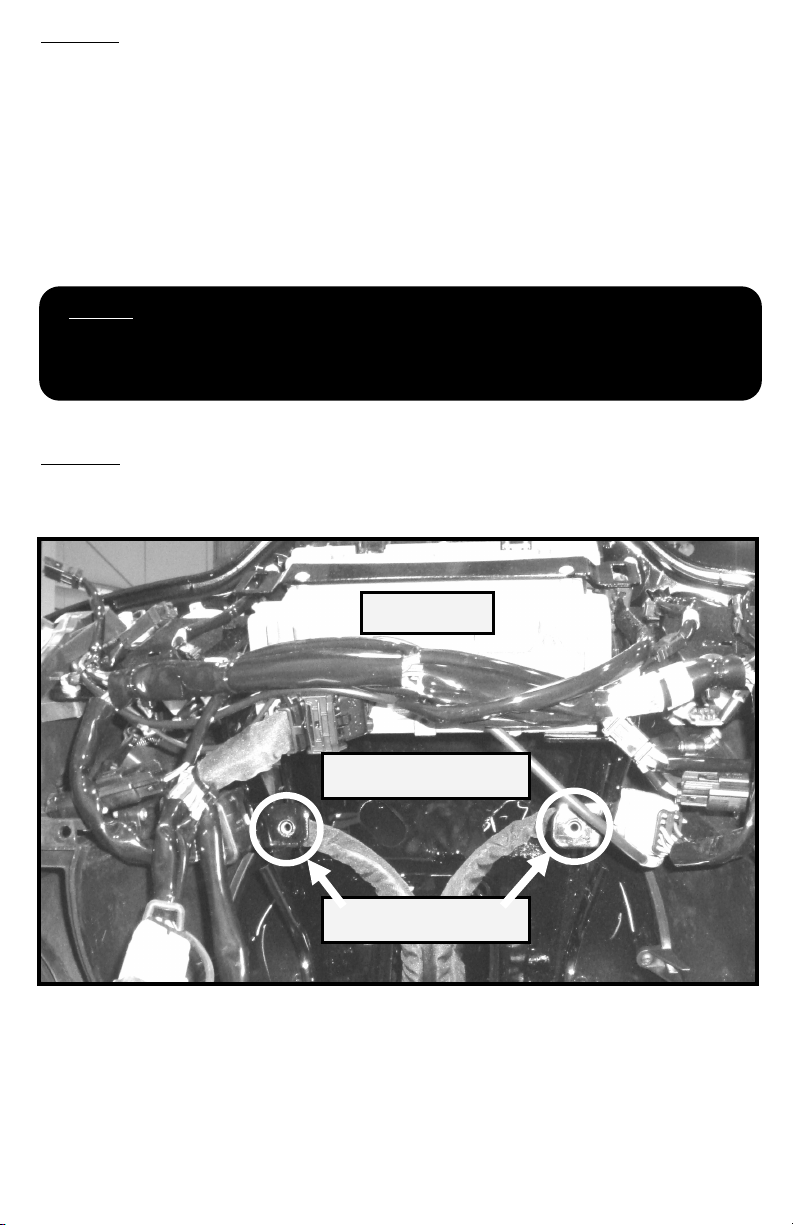

Step #5: Locate the main power harness that came with your amplifier

and plug it into the amp. The amplifier will now slide into the fairing

“power end” first with the chrome badge in the upright position. The

amp will be in the correct position when the holes on the amp’s plate

match up with the holes in the fairing shown by the white circles shown

below. The holes in the circles are where the headlight assembly bolts

back in. The “power end” of the amplifier plate rests on the main inner

fairing structural bracket. You will see the amp can really only go in one

way.

Step #6: Its now time to wire the amp into your bike. Refer to the NCA

450-RM Amplifier manual for wiring starting at “Option 2” on page 3.

Radio

Amplifier Sits Here

Headlight Bolts

NOTE: It’s a good idea to use the factory headlamp assembly bolts

to hold the amp in place while you are wiring the amp and

ready to reinstall the headlamp/outer fairing.

Harley-Davidson and Road Glide are Trademarks, and/or Registered Trademarks of Harley-Davidson, Inc.,

and if Used or Implied are for Reference Only. There is No Affiliation Between

Harley-Davidson, Inc., and Hogtunes Inc.

www.hogtunes.com

Any audio system can be a distraction to the rider

and/or passenger. Please use caution when

playing your stereo, especially in traffic.
