Thank you for choosing Hogtunes HT LID-RM lids for 2014+ bikes. Since

positive word of mouth is the best way to grow our business, we want your

new parts to work as well as they were designed to. If you have any questions

or concerns, we are here to help. Email techsuppor[email protected], or call us

during regular business hours (EST) at 705-719-6361. If you still need help,

please consider a professional install.

Hogtunes Contact Information

Email: [email protected]

USA Tel: 608-554-7631 - Canada Tel: 705-719-6361

IMPORTANT NOTES

The factory saddlebag hinges limit the size of speaker magnet that can

be used and allow the lids to open and close without issue. Hogtunes assumes

ZERO RESPONSIBILITY for ﬁtment issues, or water leaks when any

speaker brand other than Hogtunes are used.

Please be sure of all clearances and inspect

the parts carefully BEFORE paint!

DO NOT USE “THREAD LOCK” OR “SCREW GLUE” OF

ANY KIND AS IT DESTROYS PLASTIC AND WILL CAUSE

PART FAILURE NOT COVERED BY WARRANTY!

GETTING STARTEDGETTING STARTED

Step #1: Remove the saddlebag from the bike, and put on a stable working

surface. For obvious reasons, blankets etc. on your work surface will

help protect the paint.

The white circle in Fig 1.1 is where a 3/4”

(19mm) hole will be drilled. This hole is

where the supplied Hogtunes rubber grommet

will go to allow the lids speaker wire to pass

from the saddlebag. We strongly suggest

putting masking tape over the painted area

to be drilled. We also suggest starting with a

small bit, and gradually working your way

up to the 3/4” (19mm) hole. Drilling the hole with the lid still on is recommended!

GETTING STARTED

Figure 1.1

DISASSEMBLING THEDISASSEMBLING THE

FACTORY LIDFACTORY LID

DISASSEMBLING THE

FACTORY LID

Figure 1.2

The supplied grommet in Fig 1.2 is “split” to make

the install much easier once the wire is in the bag.

The white circle in the picture shows a “plug” that

can easily be removed. If the only wire you have

going into your saddlebag is the speaker wire,

leave the plug in place. If you have a second wire

for such things as lighting etc., removing the plug

from the grommet will allow the second wire to also

pass without having to drill additional holes in your

saddlebag.

As you disassemble your factory lid, please make note of what screws came from

where as they will be re-used. Open the factory lid and you will see 2 “T15” torx

screws on the “bag side” of the cloth tether that holds the lid to the bag. Remove

these 2 screws, move the cloth tether out of the way, and you will see 2 more of

the same screws which also need to be removed. The lid is now free from the bag.

Remove the 2 screws that hold the “key lock” to the factory lid. The chrome panel

with the reﬂector built in comes off the factory lid by removing the 3 screws right

next to the key lock. At its seam, the factory foam gasket needs to be peeled up

enough to allow the rest of the hinge mechanism to be removed from the factory

lid. There are 2x “T20” torx screws that hold the balance of the hinge mechanism

to the plastic of the lid. Remove these screws and put hinge mechanism aside.

Figure 1.3

Remove the T15 screw that holds the opening handle in place and pull the handle

away from the factory lid. Remove the last 4x T15 screws securing the large

latching mechanism to the underside of the factory lid. This entire mechanism is

now removed. Put your factory lid aside.

IMPORTANT: Do not use power tools of any kind

while reassembling the lids! All fasteners should be

installed with HAND TOOLS ONLY!

The large latching mechanism just removed will now be installed into the Hogtunes

lid using the factory screws just removed. You will need to jostle the mechanism

gently to get it in place. As shown in Fig 1.3, the 4 main screws on the mechanism

are the ones to do ﬁrst. Install the factory handle to the new lid using the factory

screw. Next, the 2 screws will go back in on the hinge side followed by 3 screws

that secure the chrome cover with reﬂector. Do not put in the 2 screws that hold the

lock in place just yet.

Before applying the supplied rubber gasket you will need to clean the area the

gasket will stick to. Use a mild cleaner such as 99% Isopropyl alcohol, but nothing

aggressive like Acetone as Acetone will destroy the lid.

See gasket prole. The gasket needs to be applied

so the at side is adjacent to the outside of the lid!

Once the cleaner is completely dry, start applying the gasket so the seam will be

at the same point the factory gasket had as shown in Fig 1.3 on previous page.

Minor stretching may be needed to get the gasket around the corners but don’t

over do it, as over stretched areas may become a place water can enter! When all

the way around, you can expect a bit of gasket left over which can be cut off using

a sharp razor knife. Make sure the adhesive portion of the gasket is stuck to the

bottom portion of the trough all the way around. Once the gasket is applied and

cut to size, re install the 2 factory screws that hold the key lock in place.

With the lid painted side up, sit the metal mesh grill into place using the tongue on

the grill and the groove on the lid. USING A HAND TOOL, install the black Phillips

screw as shown in Fig 1.3 on previous page.

With the grill in place, ﬂip the lid back over

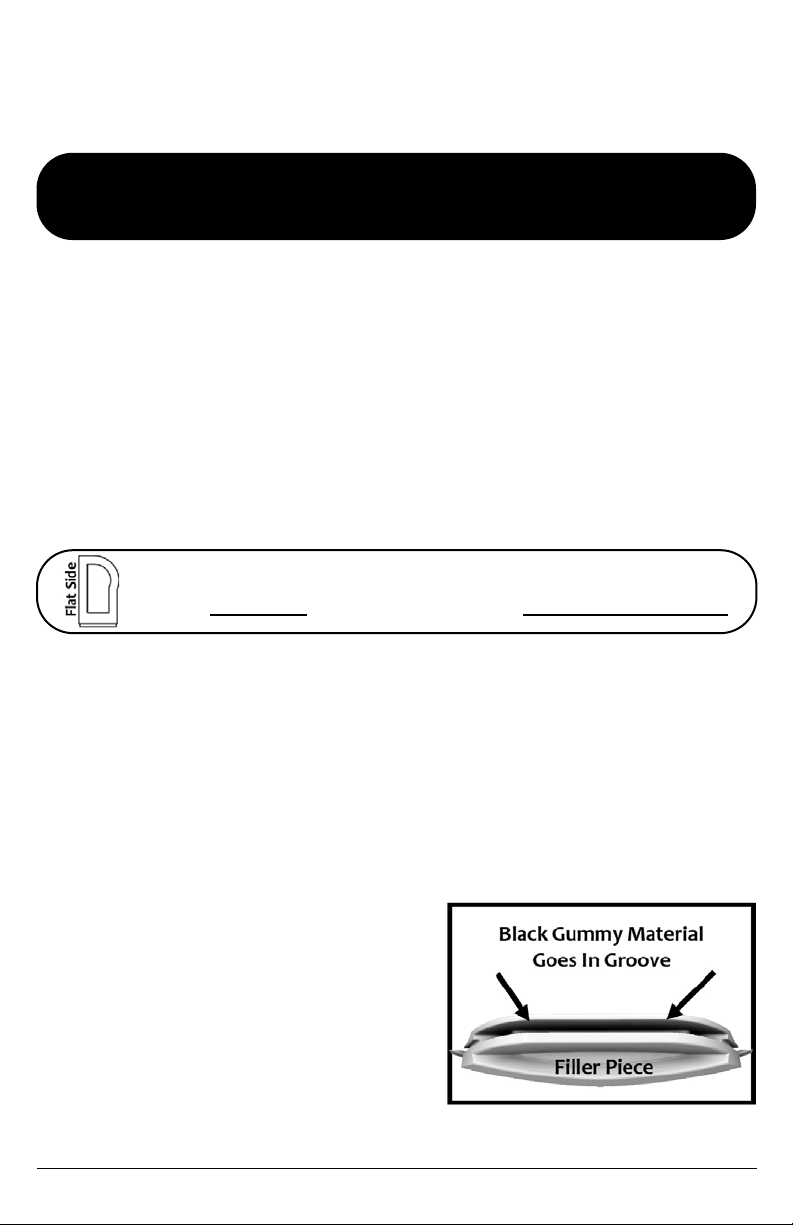

and locate one of the black plastic ﬁller pieces

(shown in Fig 1.4). You will see a groove on

the ﬁller piece that mates to the lid. Locate the

black gummy material that came in the kit and

take one strip, roll it in your ﬁngers so its close

to uniform thickness and apply across entire

groove. The groove is highlighted by arrows in Fig 1.4. Figure 1.4

MOUNTING THE SPEAKERSMOUNTING THE SPEAKERSMOUNTING THE SPEAKERS

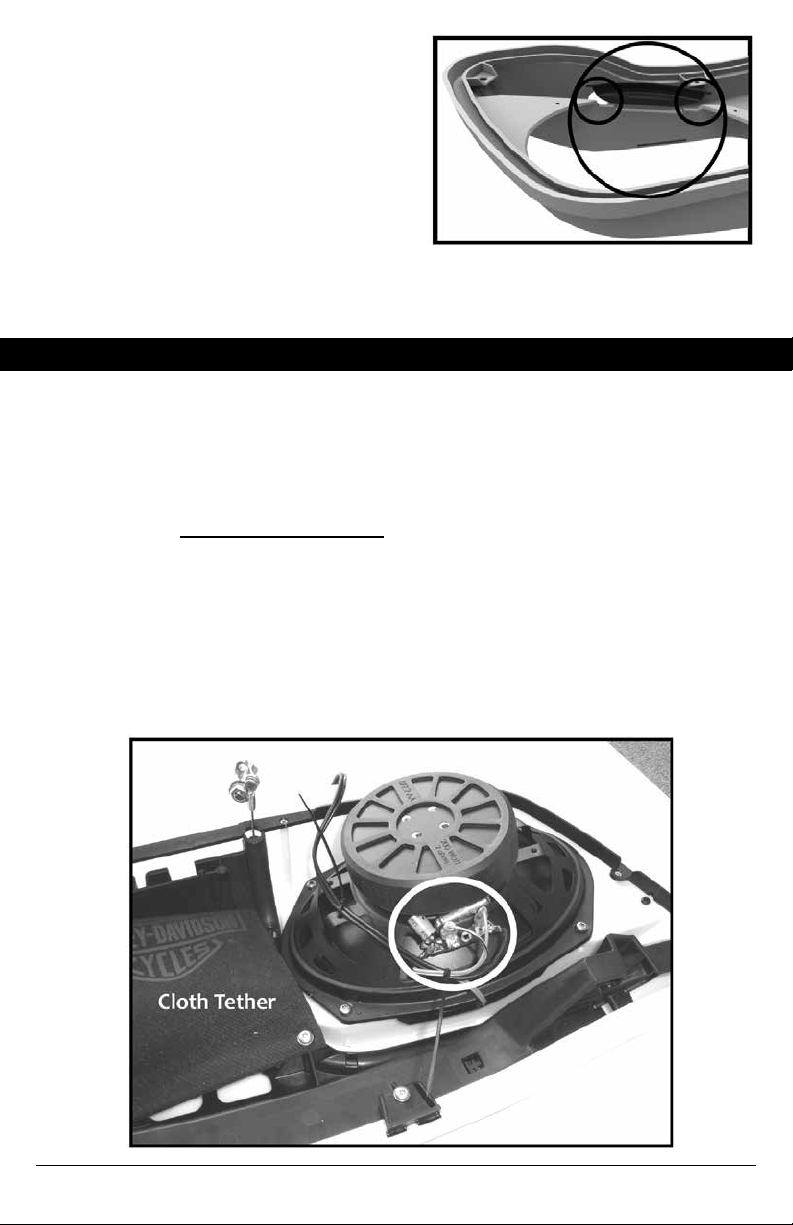

Press the ﬁller piece into the lid as shown

by the large circle in Fig 1.5. With the ﬁller

piece in place, take another black gummy

strip and tear off 2 short strips about 3/8”

(9mm) each. Squish each piece across the

small seam where the ﬁller piece meets the

lid on the plane the speaker will sit on as

shown by the small circles in Fig 1.5.

Adding the gummy material between ﬁller

piece and lid is an added failsafe for helping with water. Figure 1.5

Most car speakers have the connectors on one side as shown by the white circle

in Fig 1.6 (below). If yours are like this, sit the speaker in place so it is oriented as

shown below . If your speakers connectors are on an “end”, sit the speaker on the

lid so the connectors sit closest to the factory cloth tether. The lids come supplied

with silver #8 coarse thread screws, with 5/8” thread which will secure many

speakers nicely. USING A HAND TOOL, attach your speaker to the lid noting it’s

a good idea to get each screw “started” before securing in place. Depending on

the speaker you are using ,you may need to use longer screws. Do not use too

long a screw as you may pierce the top side of the lid! Also, you will see that 2 of

the speaker screws also go up into bosses and secure the grill to the bike. Do not

use wider screws as you may destroy the grills bosses and your grills will not be

secured. PIERCING THE LID OR DESTROYING THE GRILL BOSSES

IS NOT COVERED BY WARRANTY.

ROUTE THE WIRESROUTE THE WIRES

IN THE SADDLEBAGIN THE SADDLEBAG

ROUTE THE WIRES

IN THE SADDLEBAG

With your speaker installed, take the lid to the saddle bag, and using the factory

screws, secure the hinge on your lid to the bag. When done, the other half of the

cloth tether will attach to the saddlebag using the factory screws.

Included in the kit are adhesive “pads” that when attached, have a provision to

secure the wires in place using the supplied zip-ties. Split the adhesive pads into 2

equal groups—one group per bag.

Please do a “ghost run” of placing the wires before applying any adhesives. This

will help, trust us! Locate the long supplied wire harnesses noting they are labeled

brake side and clutch side. Attach the “wire end” to your 6x9 using your own

connectors that ﬁt correctly-noting the wire that comes from us with the smaller con-

nector is the positive. For the ghost run, have the wire from your 6x9 go straight to

the bag, and “fold” the wire so it will naturally want to go straight down. Leave a

little slack between the lid and bag to give a little “wiggle room” for when the lid

opens and closes. Have the wire go straight down to the bottom of the bag and

do another fold so the wire wants to point to the outside back of the saddlebag.

Once there, do another fold to point the wire to the inside back of the saddle bag.

Another fold to point the wire forward along the bottom of the bag, and directly

below the point where you drilled the hole for the grommet, do another fold so the

wire goes straight up to the hole. When done correctly, the black 2 pin plug can

go through the grommet hole, and hang out approximately 4” (10cm).

Once you’re satisﬁed the wires are ghost run as instructed, you will want to plan

where the adhesive pads will go, so that zip ties can secure the wires inside the

bag. Note: Before applying the pads, you need to clean the plastic well using

99% isopropyl alcohol, or similar cleaner. DO NOT use Acetone (It will eat plas-

tic). Do not apply pads until cleaner is completely evaporated. With the pads in

place, secure the wires in place using supplied zip ties.

WIRING THE LIDS TO AMPWIRING THE LIDS TO AMPWIRING THE LIDS TO AMP

The 4 pin connector will plug into any Hogtunes “REV” series amp, or any

Hogtunes 4 Channel amp. If your using another brand of amp, you will see that

the wires near the 4 plug are labeled. Simply cut the plug off and wire the lids to

your amp using the labels to identify each wire.

ROUTING THE SPEAKERROUTING THE SPEAKER

WIRE HARNESSWIRE HARNESS

ROUTING THE SPEAKER

WIRE HARNESS

The long supplied harness with 4 wires has 2-2 pin plugs on one end, and a single

4 pin plug on the other. In all cases, the end with the 4 pin plug will go nearest the

amp you’re using which typically will be your fairing.

For FLH (Batwing) Models. The harness will pass under the inner fairing where the

main wire harness passes through on the brake side of the bike. For FLTR (Road

Glide) Models, the harness will pass through the inner fairing where the factory

wires pass. Loosen the tank console and run wires up and over the gas tank, but

under the tank console. There is a provision on the front of the tank console for

wires to pass. NOTE: You “can” lift the tank if you want but it is not required.

Once past the battery, the harness will continue towards the back of the bike along

the frame, and when correctly installed, the 2-2pin plugs will be beside the back

seat on the brake side of the bike. Secure the harness to the bikes factory harness’

using zip ties. Plug the brake side lid in. Run the clutch side under the seat and

plug it in.

NOTES REGARDING MAGNETS

Most speakers magnets are large and powerful. Credit cards and electronics

can be sensitive to magnets, so please exercise caution in how you pack your

saddlebags. Metal objects packed into your bags may end up stuck to the

magnet, so please use caution when opening the lids. Magnets can also get hot

when speakers are being played, especially at higher volumes. Please consider

this when packing your saddlebags.

Harley-Davidson, Electra Glide, Road Glide, Street Glide, Ultra Classic, Tri Glide, CVO, Screamin

Eagle and Tour-Pak® are Trademarks, and/or Registered Trademarks of Harley-Davidson, Inc.,

Milwaukee, Wisconsin, USA, and if Used or Implied are for Reference Only. There is No Afﬁliation

Between Harley-Davidson, Inc., and Hogtunes Inc.

Accidents happen, and we receive a lot of calls and emails for replacement parts

for our lids. If you ﬁnd yourself needing grills, striker plates, foam gaskets or any

other parts for these lids, please visit the “Parts and Accessories” section of our site

at www.hogtunes.com or call us!

REPLACEMENT PARTSREPLACEMENT PARTSREPLACEMENT PARTS

WARRANTY INFOWARRANTY INFO

Hogtunes HT LID-RM are warranted against defects out of the box only. Proof of

purchase is required for all warranty claims. The warranty applies to the original

retail customer, and is not transferable. Please visit www.hogtunes.com for more

information or to start a warranty claim. Products found to be defective during the

warranty period will be repaired or replaced (with a product deemed to be equiv-

alent) at Hogtunes sole discretion

What Is Not Covered:

1) Any expense related to the removal or re-installation of Hogtunes products.

2) Paint applied to any part, for any reason.

3) Damage from fasteners piercing through or being over tightened.

4) Repairs to these products performed by anyone other than Hogtunes.

5) Subsequent damage to any other components.

6) Any product purchased from a non-authorized Hogtunes dealer.

7) Damage to Hogtunes products due to an accident or collision.

8) Damage from use of Thread lock/Screw Glue materials of any kind.

9) Water leaks of any kind when speakers other than Hogtunes are installed.

10) Lids that do not close properly when any other brand of speaker besides

Hogtunes are used.

IMPORTANT: In the event of a warranty claim, please ll out the

form in the Warranty section of our website, or contact us by

email or by phone. Valid claims will have a Return Authorization

Number (RA#) generated which MUST appear on the outside of

the box when it arrives to our oces.

Goods Arriving Without An RA# Will Be Refused!

WARRANTY INFO

Version 1.1

www.hogtunes.com

Tabla de contenidos

Otros manuales de Accesorios para motocicletas de Hogtunes

Hogtunes

Hogtunes 902.2 REV Manual de usuario

Hogtunes

Hogtunes Wild Boar AUDIO WBAEL Manual de usuario

Hogtunes

Hogtunes REV 450 RGU Kit-AA Manual de usuario

Hogtunes

Hogtunes 692 XL LID-AA Manual de usuario

Hogtunes

Hogtunes WS-BAG Manual de usuario

Hogtunes

Hogtunes REV 225-AA Manual de usuario

Hogtunes

Hogtunes 692 XL LID-RM Manual de usuario

Hogtunes

Hogtunes HF-1 HOG POD Manual de usuario

Hogtunes

Hogtunes Wild Boar Audio WBA LC LWR ADA Manual de usuario

Hogtunes

Hogtunes FLSK 225-AA Manual de usuario

Hogtunes

Hogtunes rev 225-RM Manual de usuario

Hogtunes

Hogtunes SG RM Grill Manual de usuario

Hogtunes

Hogtunes G4 LC LOWER-RM Manual de usuario

Hogtunes

Hogtunes 692Lid-RM Kit Manual de usuario

Hogtunes

Hogtunes 362F-RM Manual de usuario

Hogtunes

Hogtunes Big RG Manual de usuario

Hogtunes

Hogtunes RGRM4CH Manual de usuario

Hogtunes

Hogtunes REV 450U KIT-AA Manual de usuario

Manuales populares de Accesorios para motocicletas de otras marcas

SRC

SRC B-TRK502-01-01-SL Manual de usuario

3M Speedglas 9100 MP Manual de usuario

hepco & becker

hepco & becker 6307520 00 01 Manual de usuario

HOMCOM

HOMCOM AA0-077 Manual de usuario

hepco & becker

hepco & becker 6307558 00 01 Manual de usuario

Wunderkind Custom

Wunderkind Custom 106503-F15 Guía del usuario

Dräger

Dräger HPS 3500 Manual de usuario

M-WAVE

M-WAVE SKI Manual de usuario

Kuryakyn

Kuryakyn 6212 Manual de usuario

hepco & becker

hepco & becker 6507504 00 01 Manual de usuario

Tool it

Tool it PROMAX LCD 9.13G Manual de usuario

Custom Dynamics

Custom Dynamics TruWrapz Manual de usuario

Roof

Roof RO200 CARBON Manual de usuario

Kabuto

Kabuto Japan IBUKI Manual de usuario

PUIG

PUIG 5051 Manual de usuario

rizoma

rizoma ZTH050 Manual de usuario

Joubert

Joubert 10001711 Manual de usuario

Sperian

Sperian Optrel p420 Manual de usuario
