Hobby King Aether 3700 EP Manual de usuario

SPECIFICATIONS：

WingSpan: 3715mm/146.26in

Wing Area: 96.55Sqdm/1496.5Sqin

Weight: 2300g less battery

Fuselage Length 1861.5mm/73.29in

RECOMMENDED EQUIPMENT：

Motor: Jeti Phasor 2014G

Battery: 4S/5S 3300mah-5000mah

ESC: 60A~80A

Radio: 5 channels 6servos

Warning! This model is not a toy.

It is designed for maximum performance. Please seek advice if

one us not familiar

With this kind of engine powered precision model. Operating this

model without

Prior preparation may cause injuries .Remember, safety is the

most important thing. Always keep this instruction manual at hand

for quick reference.

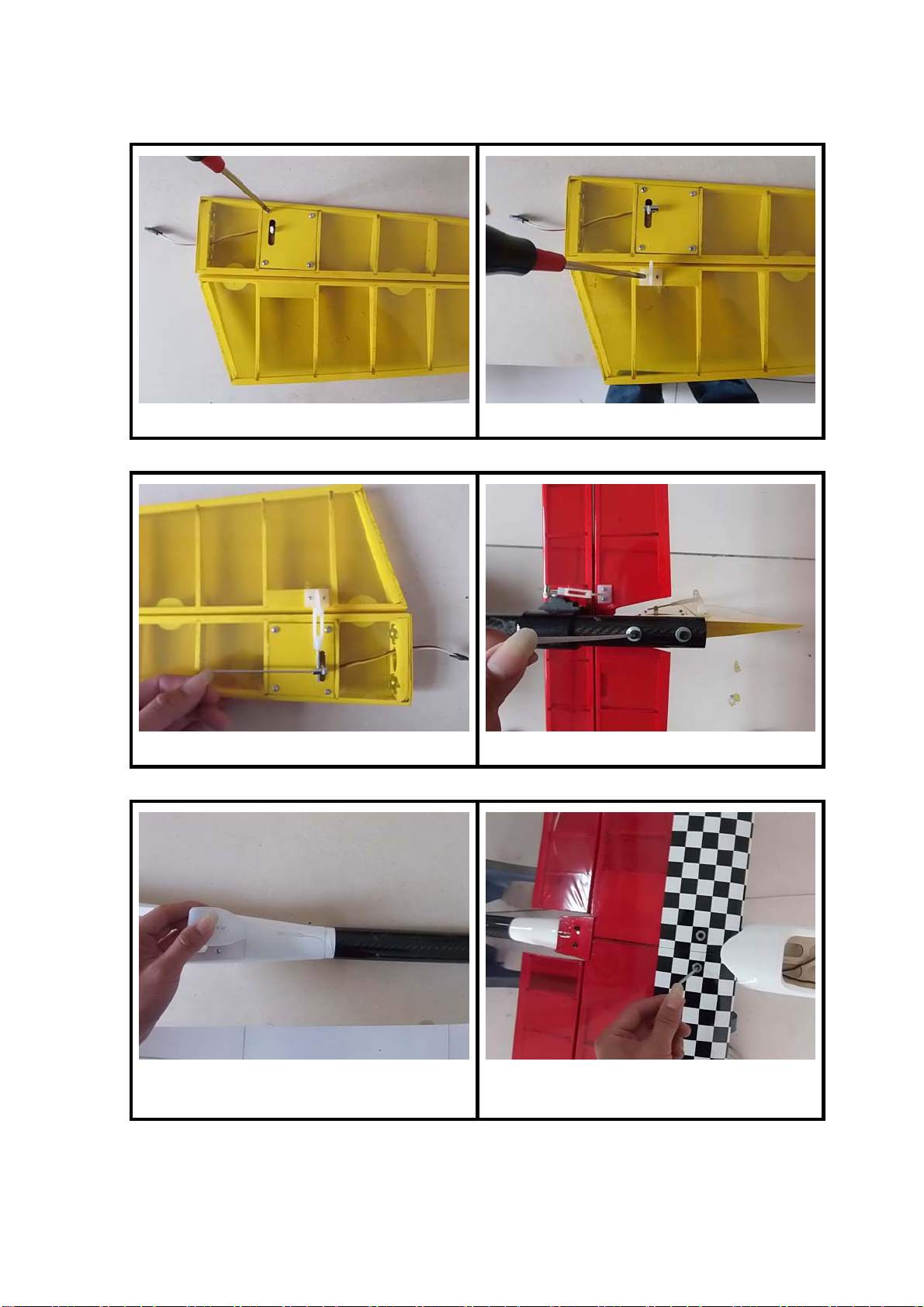

1. Wing Part

Wing Part List Apply instant glue to fix the flap’s hinge

Apply epoxy glue to fix the stringy tube Apply instant glue to fix the aileron’s hinge

Cut the covering away for installing flap’s

servos Cut a hole to passing the servo’s extend

line

Cut the covering away for installing

aileron’s servos Pass through the aileron’s servos extend

line

Apply epoxy glue to bond the aileron’s

servo installing wood Fixed the aileron’s servos

Fixed the servo mounting plate Fixed the aileron’s horn

Completed the aileron’s servos installing

and install the flap’s servos like this way Scuffed the wing latchplate with sand paper

to ensuring a good glue bond

Apply epoxy glue to fix the wing latchplate

and wing tube Passed the aileron’s servos extend line

through the middle wing

Apply epoxy glue to bond the middle wing

and the second wing

2. Stabilizer/Vertical

Stabilizer/Vertical Part List Apply epoxy glue to bond the stabilizer’s

installing mounting

Apply instant glue to fix the elevator’s

hinge Installed the elevator’s servo

Fixed the stabilizer Fixed the elevator’s horn

Completed the elevator’s servo installing Cut the covering away for installing the

rudder’s servo

Apply instant glue to fix the hinge Cut the covering away for installing the

rudder’s servo

Apply epoxy glue to bond the servo

installing wood Installed the rudder’s servo

Fixed the servo mounting plate Fixed the rudder’s horn

Complete the rudder’s servo installing Installed the rudder

Apply epoxy glue to bond the fuselage and

carbon fibre tube Installed the main wings

Installed the canopy
