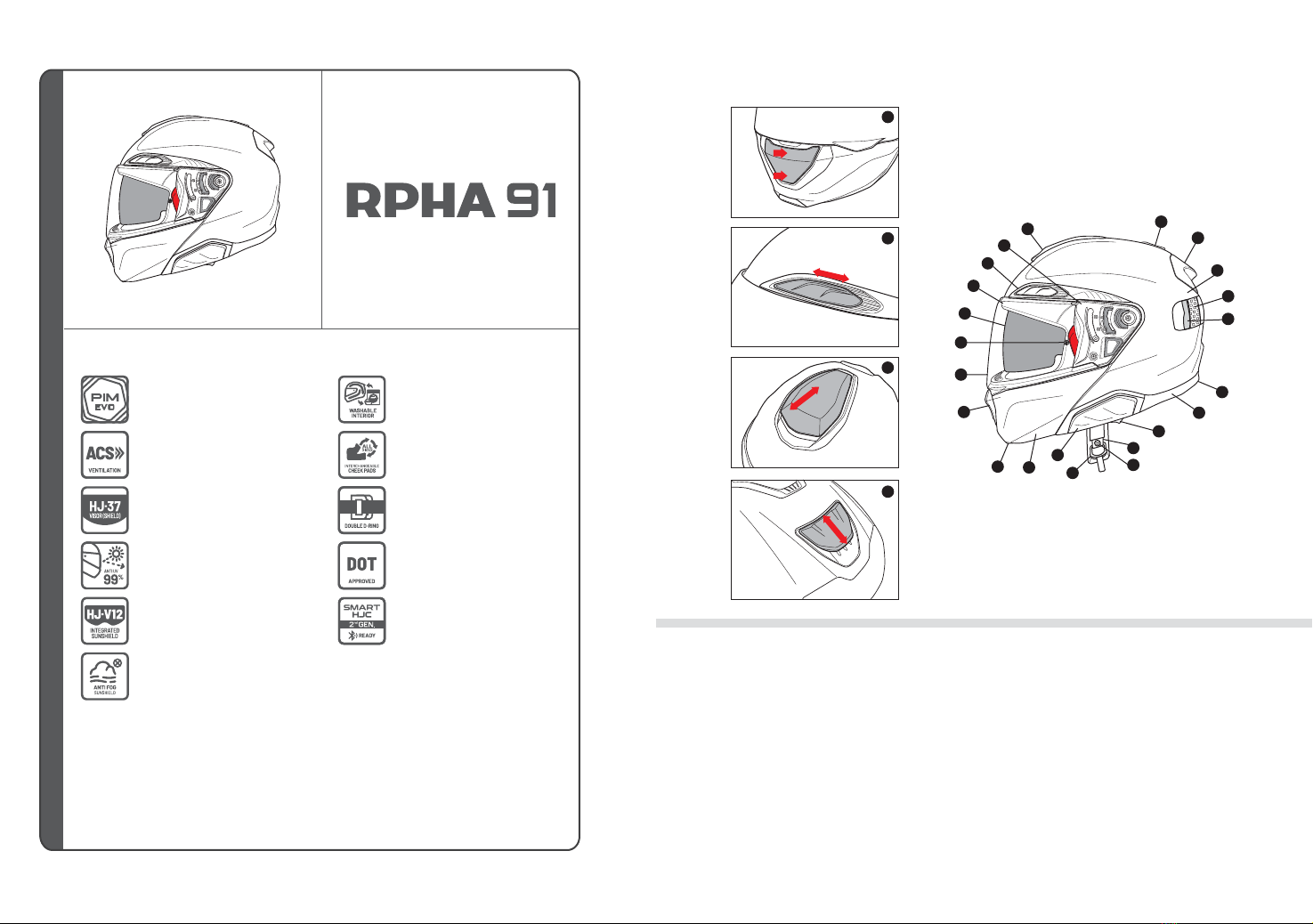

HJC RPHA 91 Manual de usuario

/US

※Please visit www.hjchelmets.com for more information about HJC helmets.

PIM EVO Shell

Advanced Channeling

Ventilation System

Pinlock ready

HJ-37 visor(shield)

Provides 99% UV protection

HJ-V12 Internal sunshield

Removable and

washable interior

Inerchangeable cheek pads

throughout all sizes

Anti-fog sunshield

Double D-ring

DOT APPROVED

Smart HJC 21B & 50B

Install ready

Specications

1. Outer shell

2. Impact absorbent liner(EPS)

3. Comfort liner

4. Bluetooth cover

5. Rubber edge trim

6. Sun shield lever

7. Chin strap

8. Chin strap snap

9. Double "D" ring

10. Bluetooth UI cover

11. Modular chin bar

12. Chin bar lever

13. Front chin vent

14. HJ-37 Visor(Shield)

15. Anti fog lens pins

16. HJ-V12 Sun shield

17. Eyeport gasket

18. Forehead vents

19. Visor(Shield) ratchet

20. Top vent

21. Rear venturi exhausts

22. Rear exhaust venturi spoiler

20 21

OPEN

3 4

Open visor(shield) to the maximum open position.

Pull the handle-locker to the open position, then pull out the visor(shield) from ratchet mechanism.

Align and insert the top of the visor(shield) guide into the plate-gear guide.

2. With the guides properly aligned, press the lower section of the visor(shield) into the plate-gear

mechanism. The locking tab should pop into position, locking the visor(shield) into place.

Visor (Shield) Installation

Always check to make sure helmet pads are installed before using the helmet. A helmet with

missing or improperly installed pads may increase your risk of serious injury or death in an accident.

Visor (Shield) Removal Warning!

1. Grasp the crown pad fabric as close as possible to its plastic base and pull/pry away from the helmet.

Notice how the crown pad plastic section aligns with the shell plastic sleeve. This will help orient you

with the reinstallation.

2. Repeat same at rear.

1. Install the front section rst by aligning the plastic shell base and the crown pad plastic sleeve, ensuring

that the center and side holes are properly aligned. Press the crown pad plastic sleeve (center portion)

into the center of the channel which is built into the plasticshell base, working your way outward to each

side.

2. Align and snap the two rear snaps into place.

Crown Pad Installation

Crown Pad Removal

Handle-locker

OPEN

5 6

1. Feed the chin strap through the opening in the cheek pad.

2. Clip the cheek pad’s 3 small male snaps to the 3 female snaps xed on the shell interior.

3. Install Snap between Cheek pad and neck roll.

Cheek Pad Installation

Cheek Pad Removal

1. Remove Snap between the Cheek pad and neck roll.

2. Gently pry the cheek pad away from the interior, releasing the snaps.

Grasp the cheek pad near its center and gently pull it free from the chin strap.

1. Remove Snap between the Cheek pad and neck roll.

2. Pull out the Neck roll to remove.

Neck Roll Removal

1. Assemble the neck roll plastic plate between the shell and the EPS.

2. Install Snap between Cheek pad and neck roll.

Neck Roll Installation

※Slide tab 'A' from the cheek pad into the holder 'B'.

(Repeat same

on opposite side)

7 8

Above illustration shows raised sun shield position.

Above illustration shows lowered sun shield position.

Warning!

■Try not to operate the sun shield while riding as this may impair your vision and may lead to an accident.

■DO NOT pull on the sun shield when it is already down. The sun shield may be ejected and this will

increase the risk of serious injury or death in the event of an accident.

■DO NOT attempt to adjust the sun shield itself with your hands. Always use the sun shield lever.

■DO NOT use sun shield at night time. The sun shield is only for day time use. The sun shield does not

provide eye protection. When you use the sun shield be sure that the clear visor(shield) is also in closed

position.

Sun shield Operation

Lever

Sun shield Removal

Sun shield Installation

1. Place the stopper in stage 3.

2. Push the sun shield lever in the direction of the arrow to lower the sun shield as much as possible.

3. Gently pull one side of the sun shield as arrow indicates (repeat same for other side).

1. Insert sun shield tab 'A' into 'B' position.(Repeat same on opposite side)

※When installing the

sun shield

be sure to have it slided behind

the tap ‘B’ holder.

There are three positions for the sun shield sliding lever.

Stage 1 -

Standard position

Stage 2 -

Lower position

Stage 3 -

Lowest position

Lever

Stopper

Stage 1

Stage 2

Stage 3

Stopper

Stage 3

Lever /

Lever

9 10

Wearing Mode Operation

Chin Curtain Removal

1. Grasp the chin curtain fabric at the bottom corners

and gently pull the sleeve down and away

from the chin bar.

Chin Curtain Installation

1. Push and insert the A part of the Chin curtain into the Chin bar groove.

2. Align the chin curtain groove with the protrusion of the chin curtain and press it in.

A1 2

If you install communication system speakers, please do not use the speaker pocket cover.

How to install speaker pocket cover

※Helmet can be put on and removed easily when both chin bar and visor(shield) are in the open position.

1. When operating the chinbar in the direction of the arrow in the wearing mode, it becomes P mode

(chin Bar close state).

2. When operating the chinbar visor(shield) in the direction of the arrow in the wearing mode, it becomes

the J mode (Chin bar open state).

Wearing Mode

J Mode

P Mode

1. To open the chin bar, simply pull the lever forward and push the entire bar upward.

Speaker Pocket

Speaker

Speaker Pocket Cover

Opening Chin Bar

11 12

When the shield is open and the chin bar is raised and lowered to a lock position, the shield may not

be in a latched position with the chin bar. Before riding, please make sure that the shield is latched

with the chin bar securely. (Center closure system)

Warning!

Pull the chin bar downward to completely cover your face and chin. Listen for“click” sound to ensure that

the chin bar has locked into its full closed position.

HJC Intercom Placement Guide

Mounting the Intercom

Unscrew and remove the base cover at the back of the helmet to begin mounting process

of the intercom. Please refer to the manual of the current intercom you are using for directions

on mounting and unmounting the intercom unit.

Base Cover Detachment

1. Remove the screws from the base cover. (picture1)

2. While lifting the base cover(direction A) detach it by pushing toward direction B. (Picture 2)

Bluetooth UI Cover Detachment

1. Push the Bluetooth UI cover in the direction of the arrow while pressing down on A.

Mounting the Bluetooth UI Cover

1. After aligning the hook of the Bluetooth UI cover with the groove of the body, and push

and attach.

Mounting the Base Cover

Push the base cover underneath the gasket at the bottom of the helmet until the base cover

and the bracket screw holes match. Using the screw, fixate the base cover onto the helmet.

Screw

Base cove

Base cover /

Base cover

Bracke

Bracket

Screw

Closing Chin Bar

2. The chin bar is in the full open position when you hear

“click” sound.

To maximize helmet’s ability to protect, we highly recommend to ride with the chin bar in closed position.

In the event a rider rides with the chin bar open, there is an increased risk of injury to the frontal area.

Do not raise or lower the chin bar while riding. This may interrupt rider’s ability to control the motorcycle

and may lead to an accident. Please use care when opening or closing the chin bar as it may scratch the

helmet. Damage caused by this is not subject to manufacturer’s warranty.(＊Do not disassemble.)

Warning!
