Hitachi RU-1500JY Manual de instalación



HD COLOR CAMERA SYSTEM

REMOTE



CONTROL UNIT

RU-1500JY R1

OPERATING INSTRUCTIONS

Please read this operating instruction carefully for proper operation,

and keep it for future reference.

Note: The model and serial numbers of your product are important for you to keep for your

convenience and protection. These numbers appear on the nameplate located on bottom of

the product. Please record these numbers in the spaces provided below, and retain this

manual for future reference.

ModelNo.  SerialNo.

Additional information

All manuals and user guides at all-guides.com

all-guides.com

Procedure for Ethernet connection

Connection Diagram

Procedure

No Operations Related items on manual

1 TAKEN switch OFF

2 ETHERNET ON 5.4.6

3 LOCAL ADDRESS setting 5.4.6 (2)

4 REMOTE SELECT setting 5.4.6 (6)

5 CONNECT ON

TAKEN switch ON

5.4.6 (7)

CU-HD1000

+12V

Supply

Control cable(C-102RH)

L2 SW HUB

LAN cable LAN cable

Power cable(C-101ET)

LAN cable

The power of RU-1500 is supplied thorough the control

cable. Therefore the control cable should be connected to

the CCU even on Ethernet connection.

The power cable(C-101ET) services the power of XLR4pin.

(NOTE)

The version for CCU supporting Ethernet connection is

CU-HD1000: V 2.00 or later

TU-HD1000: V 1.00 or later

All manuals and user guides at all-guides.com

LCD menu

5.4.6 ETHERNET menu (CONFIG) & description.

5.4.6 (2) ETHERNET(LOCAL ADDRESS) menu (CONFIG) & description.

5.4.6 (3) ETHERNET(LOCAL.IP ADDRESS) menu (CONFIG) & description.

Note

Set to ETHERNET ON at setting of the LOCAL ADDRESS and

the REMOTE SELECT.

Item Setting RU-1500

Initialize

Description

ETHERNET ON/OFF OFF

OFF OFF:Remote control mode

ON:ETHERNETmode

LOCAL ADDRESS - Move to local address setting

REMOTE SELECT - Move to a menu that an

address setting of the

connected CCU.

This is the local address information. Press CONFIG button to set

the IP Address, the Netmask, and the Gateway. But the TAKEN must

be OFF.

To go back to previous page, press the BACK button.

Note

The MAC address is not be changed.

DISCONNECT

DATE/TIME

PREV OTHERS

LOCAL

ADDRESS

ETHERNET

REMOTE

SELECT

Item Setting RU-1500

Initialize

Description

SET - Store the new setting, and

then move to previous page.

CANCEL - Cancel the new setting, and

then move to previous page.

Set the local IP address by the Rotary encoder 1 to 4.

All manuals and user guides at all-guides.com

LCD menu

5.4.6 (4) ETHERNET(LOCAL.Netmask) menu (CONFIG) & description.

DISCONNECT

DATE/TIME

PREV OTHERS

Netmask

255 255 255 0

Netmask SETCANCEL

5.4.6 (5) ETHERNET(LOCAL.Gateway) menu (CONFIG) & description.

DISCONNECT

DATE/TIME

PREV OTHERS

Gateway

172 16 1 1

Gateway SETCANCEL

5.4.6 (6) ETHERNET(REMOTE.IP ADDRESS) menu (CONFIG) & description.

DISCONNECT

DATE/TIME

PREV OTHERS

IPAddress

172 16 1 1

CONFIG

SelectNo.

<<BACK

Item Setting RU-1500

Initialize

Description

SET - Store the new setting, and

then move to previous page.

CANCEL - Cancel the new setting, and

then move to previous page.

Item Setting RU-1500

Initialize

Description

SET - Store the new setting, and

then move to previous page.

CANCEL - Cancel the new setting, and

then move to previous page.

Item Setting RU-1500

Initialize

Description

Select No 1-128 - Select number by the Rotary

encoder1. (see Note)

CONNECT ON(Yellow):

OFF(Gray):

- ON(Yellow):

Connecting to the Address.

OFF(Gray):

Disconnected to the Address.

CONFIG - Set the IP address of the

Select No. (see Note)

BACK - Go back to previous page.

Note

It is not able to set when the CONNECT button is ON.

Set the local Gateway by the Rotary encoder 1 to 4.

Set the local Netmask by the Rotary encoder 1 to 4.

All manuals and user guides at all-guides.com

LCD menu

5.4.6 (7) ETHERNET(REMOTE.IP ADDRESS.CONNECT) menu (CONFIG) & description.

DISCONNECT

DATE/TIME

PREV OTHERS

IPAddress

172 16 1 1

CONFIG

SelectNo.

<<BACK

Connect?

YES NO

A disconnection message will be displayed to press the CONNECT

button at CONNECT ON.

YES: Disconnected from the network.

NO: Connecting to the network is continued.

A fail message will be displayed at fail to connect.

Press OK button, then go back to previous page.

A connection message will be displayed to press the CONNECT

button at CONNECT OFF.

YES: Connected to the network.

NO: Quit to connect.

All manuals and user guides at all-guides.com

LCD menu

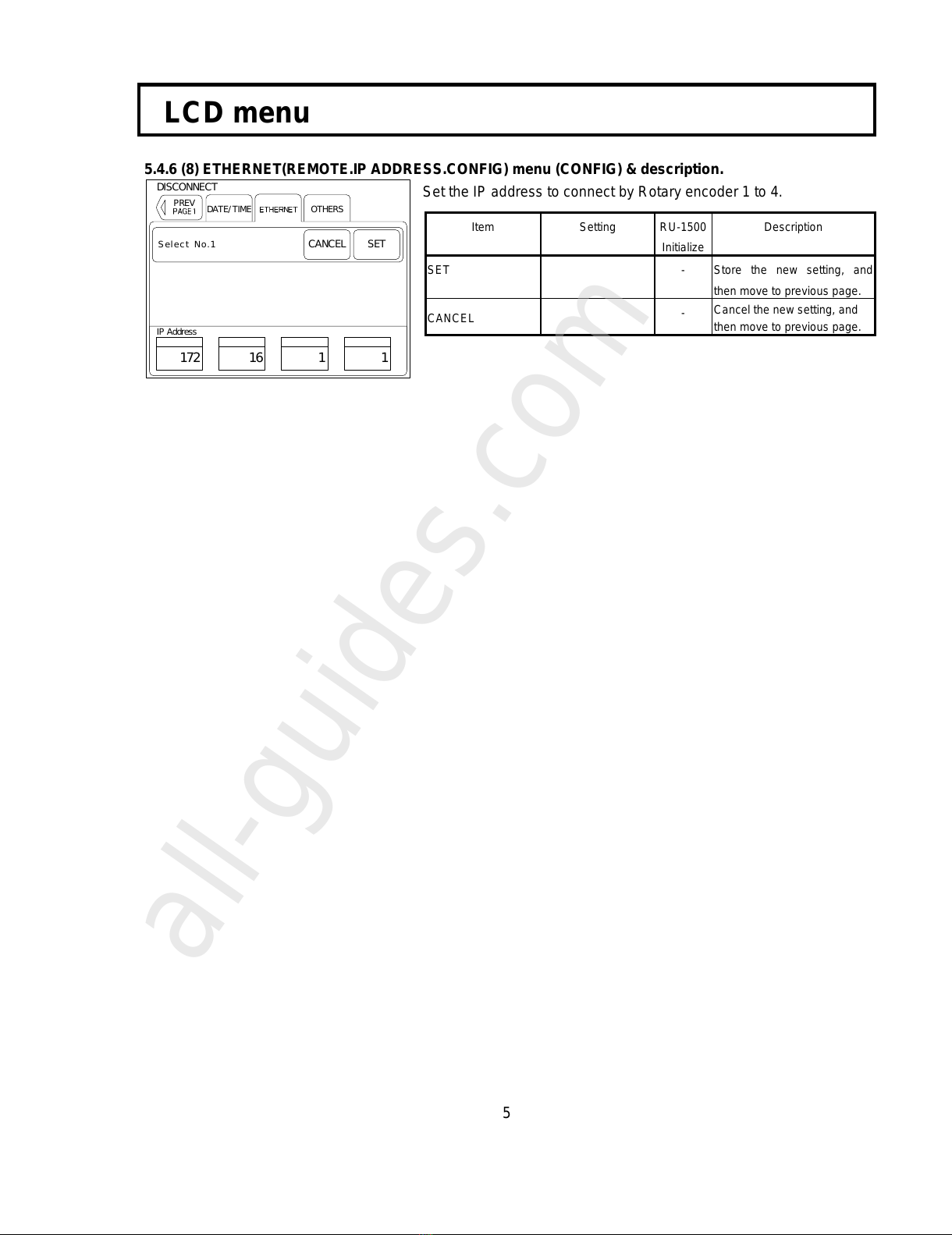

5.4.6 (8) ETHERNET(REMOTE.IP ADDRESS.CONFIG) menu (CONFIG) & description.

DISCONNECT

DATE/TIME

PREV OTHERS

SelectNo.1 SETCANCEL

IPAddress

172 16 1 1

Set the IP address to connect by Rotary encoder 1 to 4.

Item Setting RU-1500

Initialize

Description

SET - Store the new setting, and

then move to previous page.

CANCEL - Cancel the new setting, and

then move to previous page.

All manuals and user guides at all-guides.com
