Names and Functions of Remote Controller

This controls the operation function and timer setting of the room air conditioner.The range of control

is about 7 meters. lf indoor lighting is controlled electronically, the range of control may be shorter.

Backlight function

• Backlight is to see the LCD readings in the dark.

• On Pressing any key, the LCD panel lights up for a period of approx. 10 seconds. After approx. 10

seconds the light automatically switches off.

• The function is independent of all other functions of the air conditioner.

• The backlight color is white.

Precautions for Use

• Do not put the remote controller under direct sunlight and high temperature.

• Do not drop it on the ﬂoor, and protect it from water.

• If you press the FUNCTION button during operation, the air conditioner may stop for about 3 minutes

for protection before you can start it again.

Signal Transmission

Off Mode Sign

Mode Selector Button

Use this button to select the

operation mode. Every time

you press this button the

mode will change from (Heat)

( Page )

Filter Sign Reset Button

( Page 18)

Eco Button

Use this button to set the

Eco mode.

( Page 10)

On Timer Button

Select the turn ON time.

( Page )

Off Timer Button

Select the turn OFF time.

( Page )

LeaveHome Button

( Page 8)

My Mode Button

(

Invalid Operation Sign

Shown at invalid setting or

operation

Transmission Sign

The transmission sign blinks

when a signal has been sent.

Fan Speed Button

Select the fan speed.

( Page 3)

On/Off Button

Press this button to start

operation.

Press it again to stop

operation.

( Page 3)

Powerful Button

( Page )

(Auto) 　(Cool)

(Dry)　(Fan) cyclically.

(

Page 3)

- 2 -

GoodSleep Button

( Page 12)

FrostWash Button

Silent Button

( Page 11)

Temperature Button

Room temperature setting.

Value will change quicker

when keep pressing.

( Page 3)

Reset Button

( Page 18)

Up/Down Button

Control the angle of the

horizontal air deflector.

( Page 13)

Page 14)

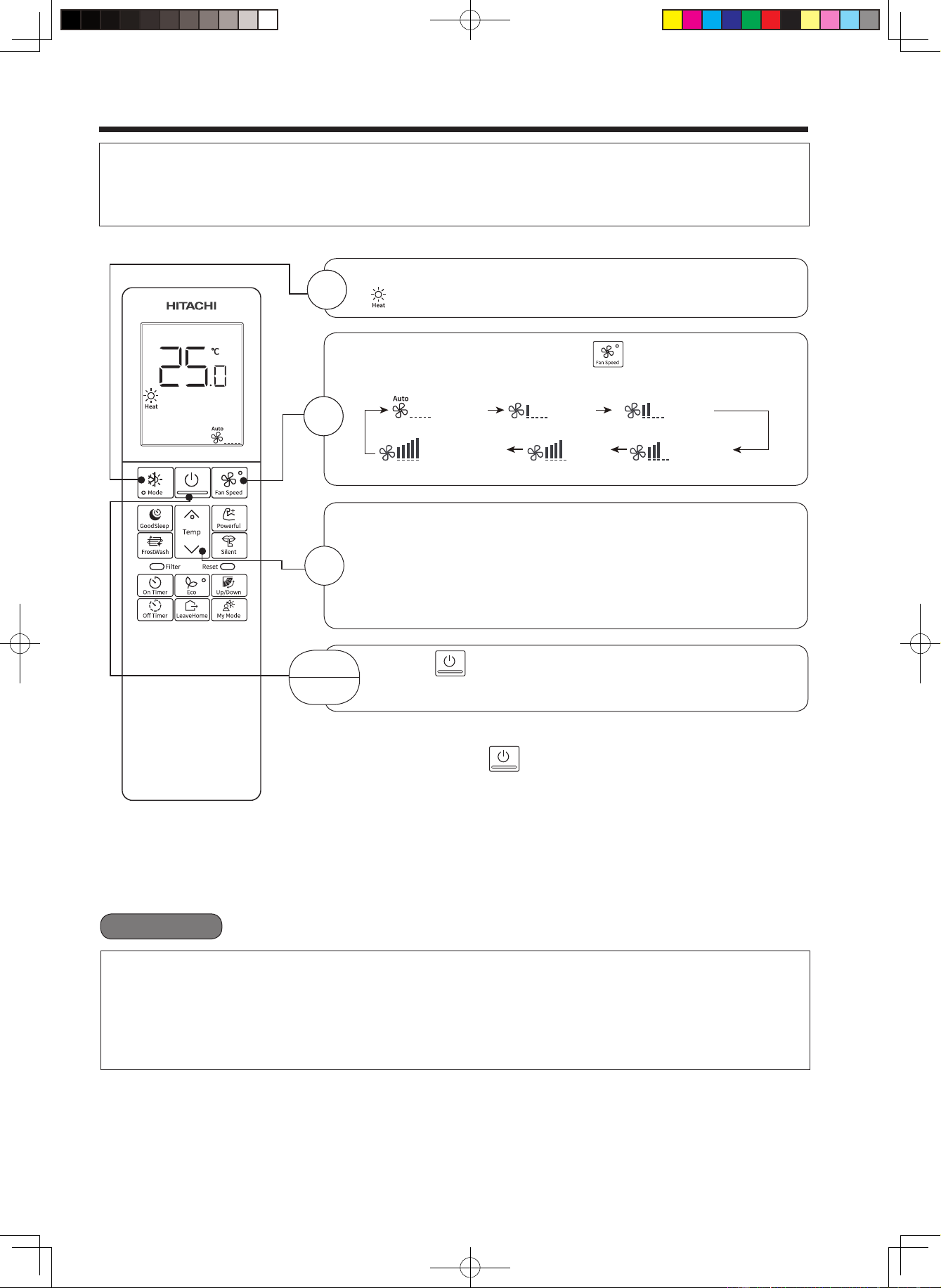

Auto Mode

The device will automatically determine the mode of operation, Heat Mode or Cool Mode depending on the

current room temperature. The selected mode of operation will change when the room temperature varies.

Various Functions

■Auto Restart Control

●If there is a power failure, operation will be automatically restarted when the power is resumed with previous

operation mode and airﬂow direction.

(As the operation is not stopped by remote controller.)

●If you intend not to continue the operation when the power is resumed, switch off the power supply.

When you switch on the circuit breaker, the operation will be automatically restarted with previous operation

mode and airﬂow direction.

Note: 1. If you do not require Auto Restart Control, please consult your sales agent.

2. Auto Restart Control is not available when Timer or GoodSleep Timer is set.

■As the settings are stored in the memory of the remote controller,

you only have to press the (On/Off) button next time.

Press the Mode Selector Button so that the display indicates

the (Auto) mode of operation.

●When Auto has been selected, the device will automatically

determine the mode of operation, Heat or Cool depending

on the current room temperature.

●If the mode automatically selected by the unit is not

satisfactory, manually change the mode setting (Heat, Dry,

Cool or Fan).

Press the (Fan Speed) button to select Auto, Silent, Low,

Medium, High or Super High.

Press the (On/Off) button.

Operation starts with a beep.

Press the button again to stop operation.

Set the desired room temperature with the Temperature buttons

(the display indicates the setting).

The temperature setting and the actual room temperature may

vary depending on conditions.

Set the desired Fan Speed with the (Fan Speed) button

(the display indicates the setting).

67$57

6723

Temperature range can be set between 16.0°C and 32.0°C.

(Auto) (Silent) (Low)

(High) (Medium)(Super High)

- 3 -

ENGLISH

Heat Mode

●Use the device for heating when the outdoor temperature is under 24°C.

When it is too warm (over 24°C), the heating function may not work in order to protect the device.

●In order to keep reliability of the device, please use this device above –15°C of the outdoor

temperature.

Defrosting will be performed about once an hour when frost forms on the heat exchange of the

outdoor unit, for 5~10 minutes each time.

During defrosting operation, the operation lamp blinks in cycle of 2 seconds on and 1 second off.

The maximum time for defrosting is 20 minutes.

(If the piping length used is longer than usual, frost will likely to form.)

Defrosting■

Press the Mode Selector Button so that the display indicates

(Heat).

Set the desired Fan Speed with the (Fan Speed) button

(the display indicates the setting).

Set the desired room temperature with the Temperature buttons

(the display indicates the setting).

The temperature setting and the actual room temperature may

vary depending on conditions.

Temperature range can be set between 16.0°C and 32.0°C.

Press the (On/Off) button. Heating operation starts with

a beep. Press the button again to stop operation.

■As the settings are stored in the memory of the remote controller, you

only have to press the (On/Off) button next time.

■During Auto fan, the fan speed automatically changes as below:

●When the difference between room temperature and setting temperature

is large, fan starts to run at Super High speed.

●After room temperature reaches the preset temperature, fan speed

will be changed to lower speed to obtain optimum room temperature

condition for natural healthy heating.

START

STOP

(Auto) (Silent) (Low)

(High) (Medium)(Super High)

- 4 -

Dry Mode

■Dehumidifying Function

Use the device for dehumidifying when the room temperature is over 16°C.

When it is under 15°C, the dehumidifying function will not work.

●When the room temperature is higher than the temperature setting: The device will dehumidify the room,

reducing the room temperature to the preset level.

When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the

temperature setting slightly lower than the current room temperature, regardless of the temperature setting.

●The preset room temperature may not be reached depending on the number of people present in the room

or other room conditions.

Set the desired room temperature with the Temperature Buttons

(the display indicates the setting).

The range of 20.0˚C to 26.0˚C is recommended as

the room temperature for dehumidifying.

Temperature range can be set between 16.0°C and

32.0°C.

Press the (On/Off) button. Dehumidifying operation

starts with a beep. Press the button again to stop operation.

■As the settings are stored in the memory of the remote controller, you

only have to press the (On/Off) button next time.

START

STOP

Press the Mode Selector Button so that the display

indicates (Dry).

The fan speed is set at Auto.

Press (Fan Speed) button to select Silent, Low or Auto fan

speed.

- 5 -

ENGLISH

Cool Mode

Use the device for cooling when the outdoor temperature is -10 to 46°C.

If humidity is very high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit.

Press the Mode Selector Button so that the display indicates

(Cool).

Set the desired Fan Speed with the (Fan Speed) button (the

display indicates the setting).

Set the desired room temperature with the Temperature Buttons

(the display indicates the setting).

The temperature setting and the actual room temperature may vary

depending on conditions.

Press the (On/Off) button. Cooling operation starts with a

beep. Press the button again to stop operation. The cooling function

does not start if the temperature setting is higher than the current

room temperature (even though the (Operation) lamp lights).

The cooling function will start as soon as you set the temperature

below the current room temperature.

START

STOP

■As the settings are stored in memory in the remote controller, you only

have to press the (On/Off) button next time.

■During Auto fan, the fan speed automatically changes as below:

● When the difference between room temperature and setting tem-

perature is large, fan starts to run at Super High speed.

● After room temperature reaches the preset temperature, fan speed

will be changed to lower speed to obtain optimum room temperature

condition for natural healthy cooling.

Temperature range can be set between 16.0°C and 32.0°C.

(Auto) (Silent) (Low)

(High) (Medium)(Super High)

- 6 -

User can use the device simply as an air circulator.

START

STOP

Press the M selector button so that the display indicates

(F ).

Press the button. Fan operation starts with a beep.

Press the button again to stop operation.

Press the button.

Timer Reservation

• Select the Off Time by pressing the

Button.

• Setting time will change according to the below

sequence when you press the button.

Timer and Timer are available.

On Time setting

• Select the On Time by pressing the Button.

• Setting time will change according to the below

sequence when you press the button.

Operation stop at setting time

Operation will start setting

temperature at setting time.

Fan Speed

(S ) (L ) ( )

(High)

(Super High)

On Timer

Oﬀ Timer

On Timer

Set Temp. -0.5Hr. -1.0Hr. -2.0Hr-3.0Hr.......... -10.0Hr. -11.0Hr -12.0Hr.

Off Time setting

NOTE

・During setting timer, if you do not press any button for 3 seconds then it will come out of setting timer mode

with preset time.

And On Timer icon " " or Off Timer icon " " will remain on LCD to indicate timer setting.

・During setting timer, if you press active button then it will come out immediately with timer setting.

・Timer On and Timer Off can be set simultaneously.

・When both timer set simultaneously then arrow " " mark will appear on LCD appear near " " or " "

which will execute first.

・On Timer or Off Timer can be canceled without long scrolling by pressing On Timer and Off Timer button

together for 3 seconds.

Cancel OFF Timer

Cancel ON Timer

- 7 -

ENGLISH

Powerful Operation

• During Powerful operation, cooler or warmer air will be blown out from indoor unit for Cooling or

Heating operation respectively.

NOTE

•

Press the (Powerful) button during operation.

• " " is displayed on the LCD.

Powerful operation ends in 20 minutes. Then the system

automatically operates with the previous settings used before

Powerful operation.

START

Press the

• " " disappears from the LCD.

CANCEL

•Press the (On/Off) button. or

(Powerful) button again.

•When Eco Operation, LeaveHome Operation,Silent Mode, GoodSleep Timer or My mode is selected ,

Powerful Operation will be cancelled.

• During Powerful operation, capacity of the air conditioner will not increase

– if the air conditioner is already running at maximum capacity.

– just before defrost operation (when the air conditioner is running in Heating operation).

LeaveHome Operation

NOTE

• During LeaveHome operation, fan speed and horizontal air deﬂ ector position cannot be changed.

Prevent the room temperature from falling too much when no one is at home .The initial setting

temperature is 10.0℃and the temperature range can be set between 10.0℃and 16.0℃.

Press (LeaveHome) button during stop or

operation.

Room temperature is set at 10.0℃ and heating operation

starts.

Set the desired room temperature with the Temperature

buttons.Temperature range can be set between 10.0℃

and 16.0℃.

• " ", " ", " ", "Set Temperature" is

displayed on the LCD.

Press the (On/Off) button. or

Press the (LeaveHome) button again.

Change to other Operation Mode.

START

CANCEL

performs at maximum power.

By pressing (Powerful) button during Auto, Heat, Dry, Cool, or Fan operation, the air conditioner

Powerful

- 8 -

●

The process of FrostWash

●lamp on the indoor unit lights up during FrostWash operation.

●

●In order to protect the product, FrostWash function cannot be carried out again for about 60 minutes after

FrostWash operation is completed.

" "

The dust and dirt adhering to indoor heat exchanger which is the cause of the smell. They are washed away

by freezing and thawing of the heat exchanger.

FrostWash function can work when the outdoor temperature is 1℃ to 43℃and Indoor humidity is 30% to 70%.

■ FrostWash(Manual Mode)

When the unit is off, press (FrostWash) button, manual FrostWash will start.

■ How to start and cancel FrostWash (Manual mode).

display on LCD screen.

" lamp light up on the

●After one hour, "

indoor unit will stop

" disappears from the LCD. After about two hours, the

operation.

●In order to protect the product, FrostWash function cannot be carried out

again for about 60 minutes after the FrostWash operation is completed.

●Press the FrostWash button , FrostWash

FrostWash operation start with beep sound and "

indoor unit.

●Press the (On/Off) button, the operation will stop.

" " lamp on the indoor unit turns off.

Precautions for Use

●Do not open windows or doors during operation. Water will condense on the air deflector and

drips down occasionally. This will wet your furniture.

●Do not open or remove the front panel during operation. It may cause injury or malfunction.

●FrostWash operation does not wash away all dust and dirt.

●

Hissing, fizzy or squeaking noise may generate during FrostWash operation.

●If the air conditioner is continuously running, FrostWash function is not effective.

●During FrostWash operation, if power is turned off and then power is restored, FrostWash function will not

restart.

●After turning on the power, please wait a moment if you want to start FrostWash.

●If On Timer or Off Timer is set, there is a need to cancel those timer before operating FrostWash.

Operation is started

FrostWash operation Unit remain in standby mode

120min (max)

Operation is

stopped FrostWash ends

is pressed

Normal operation

- 9 -

ENGLISH

Eco Operation

Energy saving operation by changing set temperature and by limiting the maximum power consumption

value.

Press

• "

(Eco) button during operation.

" is displayed on the LCD.

• Energy saving operation will start by changing

the set temperature higher or lower and saving

operation power consumption.

Press (On/Off) button.

• Press

• "

(Eco) button again.

" disappears from the LCD.

NOTE

• In case the power consumption is already low,Eco operation will not reduce the power

consumption.

•By Pressing Powerful button, Mode button, LeaveHome button or My mode button ,

ECO operation will be cancelled.

• After auto restart, Eco Operation is cancelled and previous operation mode shall start.

By pressing the (Eco) button during Heating,

Automatic, dehumidifying or Cooling operation,

the air conditioner performs the “Eco” operation.

- 10 -

Otros manuales para RC-AGU1EA0G

Tabla de contenidos

Otros manuales de Mando a distancia de Hitachi

Hitachi

Hitachi PC-LH3A Manual de usuario

Hitachi

Hitachi PC-ART Manual de usuario

Hitachi

Hitachi RAR-6N2 Manual de usuario

Hitachi

Hitachi SPX-WKT2 Manual de usuario

Hitachi

Hitachi PC-ARFP1E Manual de usuario

Hitachi

Hitachi RAK-70PPD Manual de usuario

Hitachi

Hitachi airPoint Room 700 Manual de usuario

Hitachi

Hitachi RAR-3R5 Manual de usuario

Hitachi

Hitachi RAR-6NE2 Manual de usuario

Hitachi

Hitachi REMOTE OPERATOR WOP Manual de usuario

Hitachi

Hitachi PC-ARFHE Manual de usuario

Hitachi

Hitachi PC-ARH1E Manual de usuario

Hitachi

Hitachi PC-ARFG2-A Manual de usuario

Hitachi

Hitachi PC-ARH Manual de usuario

Hitachi

Hitachi ECO COMPACT PC-ARC-E Manual de usuario

Hitachi

Hitachi PC-ARFH1E-03 Manual de usuario

Hitachi

Hitachi PC-ART Manual de usuario

Hitachi

Hitachi ECO COMPACT Manual de usuario

Hitachi

Hitachi PC-ARFP1E Manual de usuario

Hitachi

Hitachi PC-ARFH1E-02 Manual de usuario

Hitachi

Hitachi PC-ARFHE-02 Manual de usuario

Hitachi

Hitachi RAR-5J1 Manual de usuario

Hitachi

Hitachi PC-2H2 Manual de usuario

Hitachi

Hitachi PC-LH3A Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
