HIK VISION DS-2CC178P(N)-A(-C) Manual de usuario

Technical Manual

Box Camera

Technical Manual

Notices

The information in this documentation is subject to change without notice and does not represent any

commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data

that may appear in this documentation. The product(s) described in this documentation are furnished

subject to a license and may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for the purposes for

which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or

be used for any other purpose without prior written consent of HIKVISION and then only on the

condition that this notice is included in any such reproduction. No information as to the contents or

subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,

shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party

being an individual, firm, or company or any employee thereof without the prior written consent of

HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use

this product. HIKVISION reserves the right to make changes to its products as circumstances may

warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

overseabusiness@hikvision.com

Find out more about HIKVISION at www.hikvision.com

Technical Manual

DS-2CC178P(N)-A(-C)

Key features

1/3” inch SONY CCD

High Light Compensation

Min. Illumination: 0.1 Lux@F1.2 (Color), 0.01Lux@F1.2 (B/W)

ICR filter auto switch

Digital Noise Reduction (DNR)

OSD menu

Auto iris with DC / video driver

Auto white balance, auto gain control, electronic shutter control and backlight compensation

CS mount lens (provide adapter for C mount lens)

Internal or Power Synchronization

Specification:

Technical Manual

Model

Parameter

DS-2CC178P(N)-A(-C)

540 TVL 1/3’’ CCD HLC ICR Day&Night Box Camera

Camera

Image Sensor 1/3’’ SONY CCD

Signal System PAL / NTSC

Effective Pixels PAL: 752 (H) × 582 (V)

NTSC: 768 (H) × 494 (V)

Min. Illumination

Color : 0.1Lux @(F1.2, AGC ON),

0.0003Lux @ ( F1.2, AGC ON , sensitivity × 256)

B/W: 0.01Lux @ (F1.2, AGC ON),

0.00003Lux @ ( F1.2, AGC ON , sensitivity × 256)

Shutter Time PAL: 1/50s to 1/100,000s

NTSC: 1/60s to 1/100,000s

Lens Mount C / CS mount

Auto Iris DC / Video Drive

Day & Night IR Cut Filter Auto Switch

Horizontal Resolution 540 TVL (Color), 600 TVL (B/W)

Synchronization Internal / Power synchronization

Video Output 1Vp-p Composite Output (75Ω/BNC)

S/N Ratio More than 50dB

Camera ID On / Off (15 letters, adjusted position)

Auto Gain Low / Middle / High / Off

D / N Mode Auto1 / Auto2 / Day / Night

Auto White Balance Auto trace WB1/ Auto trace WB2 / Manual / Auto Control

Private Mask On / Off, Maximum 8 Zones

Motion Detection Mode 1 / Mode 2 / Off

Anti-Flicker On / Off

RS-485 Address / Protocol / Baud Rate

Language English / Chinese

Video Gamma Amendment, Digital Zoom, Digital Noise Reduction, POS/NEG ,Mirror,

Resolution, Sharpness, Y, C, Blemish Detection

General

Operating Conditions -10°C~60°C (14°F - 140°F), Humidity 90% or less (non-condensing)

Power Supply 24VAC / 20VA ±10%, 12VDC / 300Ma ±10%

(-C series support 100-240VAC)

Power Consumption 5W (10W MAX With ICR Working)

Dimension 68 × 57 × 144.8mm (2.68” × 2.24” × 5.70”)

Weight 500g (1.10lbs)

Technical Manual

Available Models

DS-2CC178P-A

DS-2CC178N-A

DS-2CC178P-C

DS-2CC178N-C

Dimension

Accessories

Indoor wall mount Indoor/Outdoor Wall Mount Bracket

DS-1225ZJ DS-1213ZJ

Indoor/Outdoor camera housing Indoor camera housing

DS-1311HZ (DS-1312HZ, DS-1313HZ) DS-1303HZ

Tabla de contenidos

Otros manuales de Cámara de seguridad de HIK VISION

HIK VISION

HIK VISION DS-2CE7 H0T-IT Series Manual de usuario

HIK VISION

HIK VISION DS-2CD23 Series Manual de usuario

HIK VISION

HIK VISION TURBO HD TVI DS-2CE16D0T-IT1E Manual de usuario

HIK VISION

HIK VISION TURBO HD H8T Series Manual de usuario

HIK VISION

HIK VISION UD.6L0201D1443A01 Manual de usuario

HIK VISION

HIK VISION DS-2TD2528T-7/Q Manual de usuario

HIK VISION

HIK VISION DS-2CD2546G2-IS F2.8 Manual de usuario

HIK VISION

HIK VISION DS-2DP1636Z-D Manual de usuario

HIK VISION

HIK VISION DS-2DY7236IX-A Manual de usuario

HIK VISION

HIK VISION DS-2TD95C8-190ZK2FL/W Manual de usuario

HIK VISION

HIK VISION UD.6L0201B1907A01 Manual de usuario

HIK VISION

HIK VISION HiWatch HWI-B140H-M Manual de usuario

HIK VISION

HIK VISION DS-2CD7026G0-EP-I-H Manual de usuario

HIK VISION

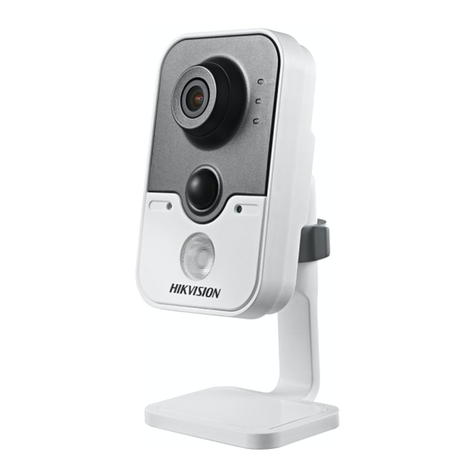

HIK VISION DS-2CD2412F-I Guía del usuario
