Hearth & Home SRV2384-070 Manual de usuario

1

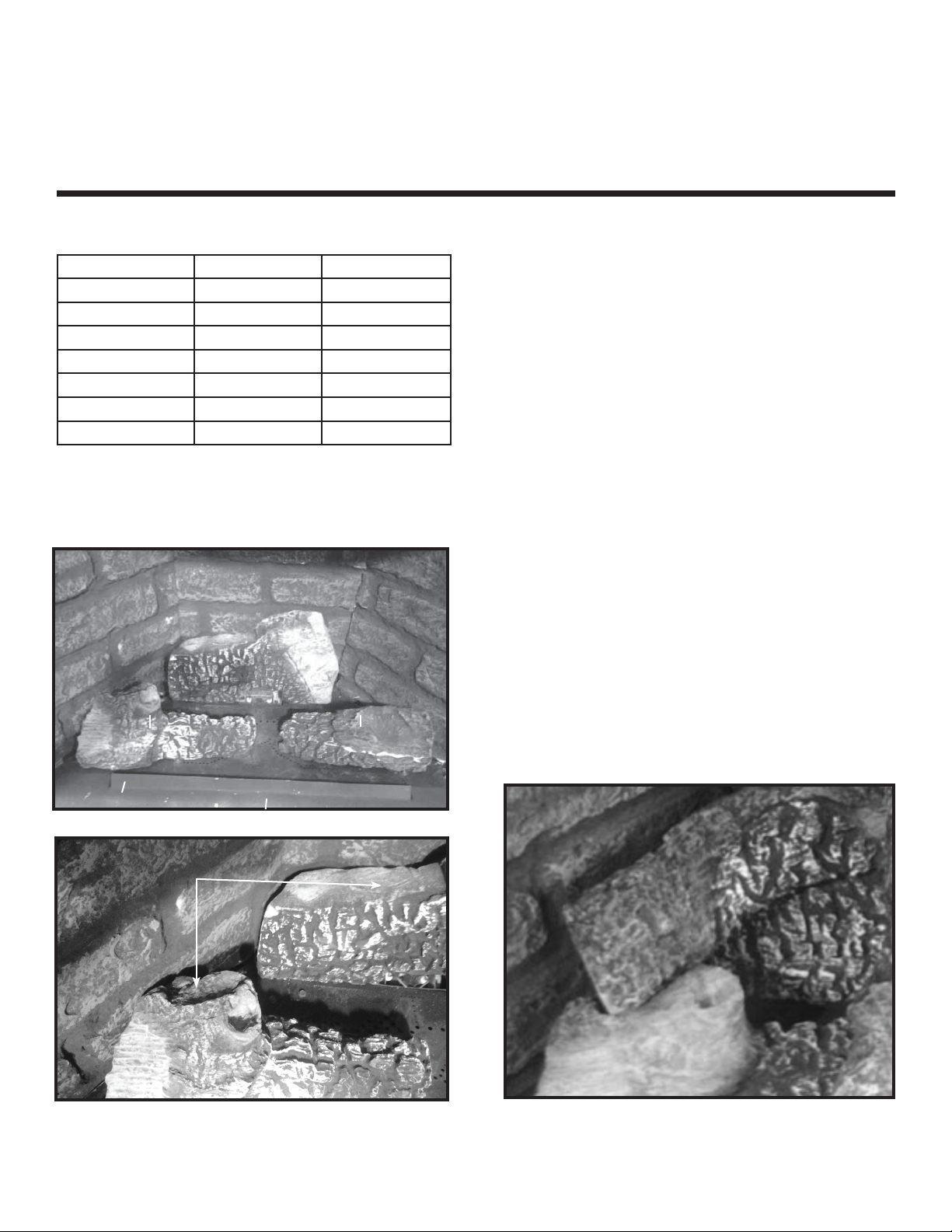

Heatilator • SRV2384-070, SRV2385-070 Log Instructions • 2384-935 Rev. B • 1/17

Figure 3. Log #4 in Position

1

1

1

1

Log Set Assembly: SRV2384-070, SRV2385-070

Models: NNXT3933IF-B, NNXT3933ILF-B

NNXT4236IF-B, NNXT4236ILF-B

LOG PLACEMENT INSTRUCTIONS

See Table 1 for corresponding log set and individual logs

for each size Novus model.

Figure 1. Log Set Shown as Shipped

Figure 2. Locations of Flat Spots for Log #4

2

2

2

2

1

1

2

2

3

3

CAUTION: Logs are fragile, handle with care.

FLAT SPOTS FOR LOG #4

FLAT SPOTS FOR LOG #4

LOG #4: Place Log #4 into position by setting the left end of Log #4 into the ﬂat spot on Log #2 and then resting the right

end, or nose, of Log #4 on the ﬂat spot on Log #1. Figure 2 shows locations of ﬂat spots. Figure 3 shows Log #4 installed.

4

4

SIZE 3933 4236

ASSEMBLY SRV2384-070 SRV2385-070

LOG 1 SRV2384-071 SRV2384-071

LOG 2 SRV2380-072 SRV2381-072

LOG 3 SRV2384-073 SRV2385-073

LOG 4 SRV2380-074 SRV2380-074

LOG 5 SRV2384-075 SRV2385-075

LOG 6 SRV2384-076 SRV2385-076

Table 1.

The log set is shipped from the factory with three logs

already in place on the hearth pan. See Figure 1.

2Heatilator • SRV2384-070, SRV2385-070 Log Instructions • 2384-935 Rev. B • 1/17

Log #5: Place Log #5 into position. The forked end of

Log #5 is positioned on the log pins as shown in Figure 5.

The back end of Log #5 will rest on Log #4, but does not

touch Log #1.

LOG PINS

LOG PINS

Figure 4. Log Pin Locations

Figure 5. Log #5 in Position

Figure 7. Log Set Installed

4

4

5

5

1

1

1

1

2

2

3

3

3

3

6

6

FLAT SPOTS FOR LOG #6

FLAT SPOTS FOR LOG #6

Figure 6. Locations of Flat Spots for Log #6

Log #6: Place Log #6 into position by setting the large

end on the ﬂat spot in Log #3 and then resting the small

end on the ﬂat spot on Log #1.

DOES NOT TOUCH LOG #1

DOES NOT TOUCH LOG #1

1

1

5

5

LOG PINS

LOG PINS
