Hearth & Home CS-36 Manual de usuario
1
Hearth & Home Technologies • CS-36, CS-42, CS-50 Operable Door Instructions • 2281-911 Rev. D • 6/12
Figure 2. Installing Door Bracket
WARNING
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Do NOT operate with protective barriers open or removed.
• The doors must remain closed if children will be present
during the operation of the fireplace.
• The doors may be made operable per these instructions.
Thismaybedoneonlyuponrequestofapersonresponsible
for the use and operation of the fireplace.
• The doors can be returned to the locked position following
these instructions.
• These instructions are to be left with a person responsible
for the use and operation of the fireplace.
CS-36, CS-42, CS-50
Installation Instructions
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed under a surround.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
CAUTION! Do not install damaged components. If you
received components that are damaged, contact your
dealer for assistance.
TOOLS REQUIRED
• Phillips Screwdriver
• 1/4 in. nut driver
NOTE: Refertotheapplianceinstallationmanualformore
information in regards to non-combustible finish material
guidelines.
DOOR INSTALLATION
1. Remove hearth warning plate from appliance by re-
moving two screws. The plate was factory-installed
to ensure that the hearth was installed to the required
clearances. See Figure 1.
2. Remove glassassembly. Theglassremoval/installation
THREADED
FASTENERS
DOOR BRACKET
NOTE: These doors are adjustable so that they can overlap
finish material 0 – 1 in. thick that has been installed on top
of the 1/2 inch factory-installed non-combustible material.
See Figure 3.
tool is located in the lower right corner of the fireplace
opening. It is held in place with one 1/4 inch screw.
3.Install left and right door brackets into the left and right
surround of the appliance. See Figure 2. Use the four
Phillips screws included with the door instruction bag
assembly.
HEARTH WARNING PLATE
GLASS CLIP
REMOVAL/INSTALLATION
TOOL LOCATION
Figure 1. Warning Plate Location
Hearth & Home Technologies • CS-36, CS-42, CS-50 Operable Door Instructions • 2281-911 Rev. D • 6/12
2
4. Locate the two pilot holes in the top front surround.
Install the top door latch assembly with two 1/2 inch
screws included in the door instruction bag assembly.
See Figure 4.
NOTE: The top door latch assembly is adjustable so that
it can overlap finish material up to 1 inch thick that has
been installed on top of the 1/2 inch factory-installed non-
combustible material. See Figure 4.
5. Reinstall glass assembly by using glass tool. Return
tool to shipping location and fasten with one 1/4 inch
screw.
6. Installleft andrightdoors byengagingthe receiverhinge
on the door to the hinge blocks on the door bracket.
See Figure 6.
7. Verify that doors are aligned properly and that there is
uniform spacing between the doors from top to bottom
as shown in Figure 7. If spacing is not uniform, refer-
ence “Door Hinge Adjustment” section on page 3.
1 INCH
ADJUSTMENT
SLOT
Figure 3. Adjustment Slot
DOOR LATCH
ASSEMBLY
PILOT HOLE PILOT HOLE
GLASS RETAINER
1 INCH SLOT
(ADJUSTABLE)
1 INCH SLOT
(ADJUSTABLE)
Figure 4. Installing Top Door Latch Assembly
Figure 5. Top Door Latch Assembly Installed
Figure 6. Installing Doors
DOOR LATCH
ASSEMBLY
Figure 7. Uniform Spacing Between Doors
3
Hearth & Home Technologies • CS-36, CS-42, CS-50 Operable Door Instructions • 2281-911 Rev. D • 6/12
Cleaning Instructions for Doors
Use a microfiber cloth and Windex® Original Glass
Cleaner or 03M003 Stove Bright® Glass Cleaner to clean
the door immediately after installation to remove acids
deposited by the installer or technician. Spray the cleaner
onto the microfiber cloth and carefully wipe the entire
surface. The door should be cleaned in this manner
annually by the homeowner to remove fingerprints or
other contaminants. Once oxidation of the paint pigment
has occurred, cleaning will not restore the original color.
Please contact your Hearth & Home Technologies dealer with any
questions or concerns.
For the location of your nearest Hearth & Home Technologies dealer,
please visit www.fireside.com.
Hearth & Home Technologies Inc.
7571 215th Street West, Lakeville, MN 55044
www.fireside.com
Figure 9. Child Safety Locking Tab - Reverse View
Figure 10. Hinge Adjustment - (Right Door Shown)
HINGE
NUTS
CHILD-RESISTANT
CHILD-RESISTANT
LATCH
LATCH
CHILD-RESISTANT LATCH
CAUTION! Glass is hot during operation and cool
down. These doors are supplied from the factory with
parts to close them for child safety.
• Toavoidburnsor clothingignitionthe doorsmustremain
closed if children will be present during the operation
and cool down of the fireplace.
• These instructions are to be left with a person
responsible for the use and operation of the fireplace.
This door was designed with a child-resistant latch that
requirestwomotionsto disengage. It is located behind the
right door handle as shown in Figure 8. When engaged,
this mechanism will prevent the doors from opening.
Toengage the“childlock”mechanism, slide thetablocated
behind the right handle to the left.
Figure 8. Child Safety Locking Tab - Front View
Todisengage the “child lock” mechanism, push tab “down”
and slide to the right.
Door Hinge Adjustment
The receiver hinges on the back side of the doors can be
adjustedto create uniform spacingbetweenthe doors from
top to bottom. Before adjusting receiver hinges, verify
that the inside threaded stud on the door is touching the
inside edge of the oval slot in the receiver hinge as shown
in Figure 10 and Figure 11.
NOTE: The nut holding the inside threaded stud in place
on the receiver hinge has been removed In Figure 11 for
illustration purposes.
CHILD-RESISTANT LATCH
CHILD-RESISTANT LATCH
CENTER OF
FIREPLACE
INSIDE EDGE OF
OVAL SLOT
OUTSIDE
THREADED
STUD
INSIDE
THREADED STUD
(NUT REMOVED)
• If the gap is larger on the top, move the top receiver
hinges on both doors slightly toward the center.
• If the gap is larger on the bottom, move the bottom
receiver hinges on both doors slightly toward the center.
Figure 11. Top Right Door Hinge - Reverse View
Este manual sirve para los siguientes modelos
2
Otros manuales de Accesorios para chimeneas de Hearth & Home
Hearth & Home
Hearth & Home MESH-RETRO1928 Manual de usuario
Hearth & Home
Hearth & Home LOGS-I30 Manual de usuario
Hearth & Home

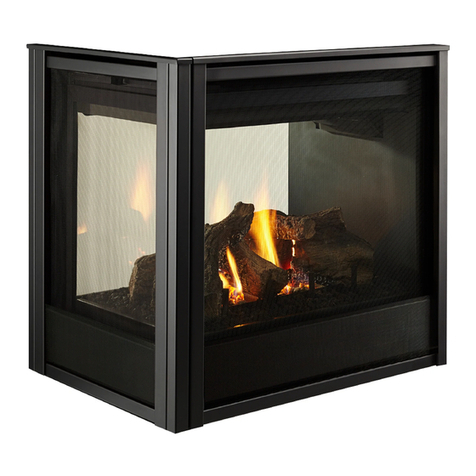

Hearth & Home PIER-DV36IN Manual de usuario
