Health O Meter 349KLXAD Manual de usuario

Model 349KLX

Remote Display Digital Scale

User Instructions

PELSTAR, LLC

9500 West 55

St. McCook, IL 60525-7110 USA www.homscales.com

P/N UM349KLX Rev 20171212_web

Model 349KLX

Thank you for your purchase of this Health o meter

Professional product. Please read this

manual carefully, and keep it for easy reference or training.

TABLE OF CONTENTS

Caution and Warning.................................................................................................3

Specifications for This Scale .....................................................................................4

Certifications / Disposal.............................................................................................5

Assembly Instructions ..............................................................................................6

Display Assembly Table Top Use Instructions ..........................................................7

Display Assembly Wall Mount Instructions................................................................8

Powering the Scale ...................................................................................................10

Transporting the Scale with Optional Carrying Case.................................................11

Operating Instructions ...............................................................................................12

Maintenance..............................................................................................................15

Calibration.................................................................................................................16

Troubleshooting ........................................................................................................17

Warranty....................................................................................................................18

Note: This scale has been factory calibrated, and does not

require calibration prior to use.

Please register your scale for warranty coverage at:

www.homscales.com/product-support/technical-support/product-warranty-registration

For the most recent version of the User Instructions please go to:

www.homscales.com

CAUTION AND WARNING

To prevent patient/caregiver injury or damage to your scale, please follow the

instructions in this user manual very carefully.

•Do not exceed the weight capacity specified for this scale.

•For accurate weighing, this scale must be placed on a flat, stable surface.

•For accurate weighing, verify before each use the proper operation according to the

procedure described in this manual.

•Do not use in the presence of flammable or explosive materials.

•If the scale becomes damaged, it should not be operated until properly serviced.

•Do not transport the scale with a patient or object on the scale.

•Ensure that the AC adapter and scale do not come in contact with liquids, excessive

temperature, or excessive humidity.

Patient/caregiver safety

•Patient should wear socks or other form of lightweight foot covering during weighing

event.

•To prevent patient injury, the patient must be attended throughout the entire weighing

event. Caregivers should ensure that the patient is stable and provide support as

needed when getting onto and off of the scale.

When operating the scale with the optional AC adapter:

•Operate this scale exclusively with the AC adapter provided by Health o meter

Professional. Use of an unspecified adapter will void the warranty and can pose a

serious safety hazard.

•For use with AC adapter model ADPT40

•Prior to using this scale, inspect the AC adapter cord for cracking / fraying, or for

broken / bent plug prongs.

•Prior to using this scale, ensure that the AC adapter is plugged into an outlet with the

rated voltage appropriate for operation.

•Ensure that the AC adapter outlet is wired to a circuit breaker or other protected power

source.

•Unplug the AC adapter, and carefully store both the adapter and adapter cord before

moving the scale.

•Operating this scale at voltages and frequencies other than specified can damage the

equipment and will void the warranty.

When operating the scale with batteries:

•For accurate weighing, if the “LO” indicator activates, replace the batteries or switch to

the AC adapter as soon as possible.

•When replacing / inserting batteries, be sure to use all new batteries.

In no event shall Pelstar, LLC be liable for damages or injuries whatsoever arising out of or

connected with the assembly, use, or misuse of its products.

SPECIFICATIONS FOR THIS SCALE

General

The Model 349KLX remote display digital scale uses highly sophisticated microprocessor

technology. Each scale is designed to provide accurate, reliable and repeatable weight

measurements. In addition, each scale is designed to provide the user with features that make

the weighing process simple, fast, and convenient.

This scale is set up to use weighing technology that is able to determine the weight of a moving

patient.

Weight can be displayed in pounds (lb) or in kilograms (kg). For privacy and convenience, the

scale features a remote display head which may be held by the operator, placed on a table or

other flat surface, or mounted on a wall. This scale can be powered using an AC adapter,

model ADPT40 (not included), or by 6 AA batteries (included).

349KLX Scale Specifications

Capacity and Resolution 400 lb x 0.2 lb (180 kg x 0.1 kg)

Power Requirements 120 VAC, 60Hz - DC adapter (model ADPT40) or 6 AA batteries.

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 32°F to 125°F (0°C to 50°C)

Maximum Humidity: 95% RH

Physical Dimensions Platform

Length: 12” (305 mm)

Width: 12.5” (318 mm)

Height: 1.875” (48 mm)

Weight: 8.8 lb (4.0 kg)

Display assembly

Length: 7.75” (197 mm)

Width: 1.5” (15 mm)

Height: 4.25” (108 mm)

Weight: 12.8 oz (0.36 kg)

CERTIFICATIONS / DISPOSAL

Certification Descriptions

349KLX Scale Disposal

This Health o meter

Professional scale must be disposed of properly as electronic waste.

Follow the national, regional or local regulations which apply to you for disposal of electronic

waste or battery. Do not dispose of this device in the domestic waste stream.

Pelstar, LLC has been officially certified as the manufacturer

of Health o meter

Professional medical devices. The Pelstar,

LLC quality assurance system covers the development,

production, sales and service of medical scales and

measuring systems.

ASSEMBLY INSTRUCTIONS

Before Assembly

Each 349KLX remote display digital scale is shipped disassembled in one carton. Carefully

inspect the carton for shipping damage before unpacking. If damage is found, contact your

shipper or a Health o meter

Professional representative immediately at 1-800-815-6615.

Claims must be filed with the shipper as soon as possible after receipt of the package. The

following information details what you will find inside the main carton as you unpack the parts for

assembly.

To prevent scratching any components, carefully remove each assembly from the carton and

unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale

parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the

protective inner packaging.

Parts List

Carton

(1) Scale platform

(1) Display assembly

(6) AA batteries

(1) User instructions

(1) Metal stand

(2) #8 Anchoring screws (4.2 mm nominal OD)

(2) Drywall mounting anchors

Tools Required

Phillips head screwdriver (not included)

RJ jack

Cable resting on

top of display

stand.

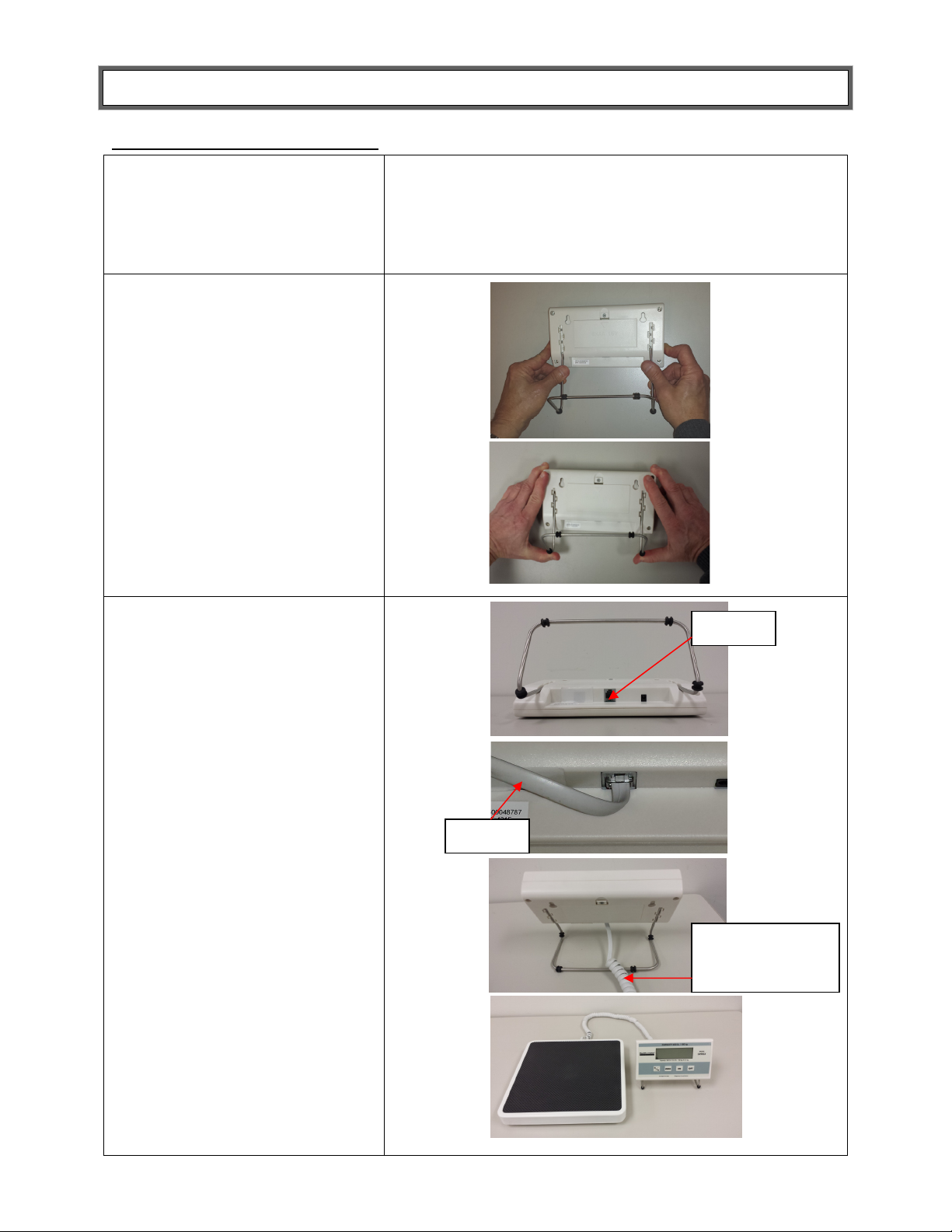

DISPLAY ASSEMBLY TABLE TOP USE INSTRUCTIONS

Assembling the 349KLX Scale

1. Carefully remove the scale

platform and display

assembly from the carton,

and place on a flat, level, and

dry surface.

2. If using the display assembly

on a desk or table, insert the

metal stand into the slots on

the back of the display.

3. Connect the cable to the RJ

Jack in the bottom of the

display assembly. Ensure that

the cable rests on top of the

metal stand so the display

assembly rests flat on the

table. If using the scale with

batteries the scale is now

ready for use. If using the

scale with the optional AC

adapter, see page 10 for set

up instructions.

Cable

DISPLAY ASSEMBLY WALL MOUNT INSTRUCTIONS

Required Parts

(1) Display assembly

(2) #8 Anchoring screws (4.2 mm nominal OD)

(2) Mounting anchors, compatible with wall construction

Caution: When wall mounting the display assembly, ensure that the mounting location is

free of electrical lines, gas pipes, and other safety hazards. Ensure that wall is of

construction that can support the display assembly.

Note:

Remote head can be mounted to a wall up to 6 feet (1.83 m) from the base or it can be

mounted on the display bracket (included) for placement on a table up to 6 feet (1.83 m) from

the base.

1. Position the display assembly

on the wall, and carefully trace

around the display.

2. Mark a level horizontal line,

3/4” (19 mm) below the top of

the display outline.

3. Mark a vertical line 1-3/8” (35

mm) from each side of the

display outline.

4. At the horizontal and vertical

intersection, carefully drill the

appropriate size holes.

¾” (19mm)

1-3/8”

(35mm)

Marked

Drill Holes

DISPLAY ASSEMBLY WALL MOUNT INSTRUCTIONS

(CONT)

5. Once the holes are marked,

use a hammer or Phillips

head screwdriver to set the 2

drywall anchors into the

holes. Use a screwdriver to

insert the drywall anchors

completely into the wall.

Screw the two mounting

screws into the anchors.

Adjust the screw head depth

so the screw heads protrude

1/8” (3.2 mm) from the wall.

Warning: Extending the

screw heads beyond 1/8”

(3.2 mm) can damage the

display assembly.

6. Position the display assembly

mounting holes onto the

mounting screws, and

carefully pull down on the

display assembly to secure.

7. Connect the cable to the RJ

jack in the bottom of the

display assembly. If using the

scale on battery power, the

scale is now ready for use. If

using the scale with the

optional AC adapter, see

page 10 for set up

instructions.

RJ Jack

Cable

POWERING THE SCALE

Powering the Scale

1. If powering the scale via the optional AC adapter, plug the adapter into the display assembly

and into a power source.

2. For battery operation, see Battery Installation below.

Battery Installation

1. Unplug the AC adapter from the power source.

2. Use a Phillips head screwdriver to remove the battery cover on the back of the display

assembly.

3. Replace or install fresh batteries. Note the orientation that is shown and ensure the batteries

are placed in the proper directon.

Note: Health o meter

Professional recommends using alkaline or lithium batteries, rated for

130°F (54°C) operation. Do not use zinc-carbon batteries.

4. Re-attach the battery cover to the display assembly.

Warning: If the scale will not be used for some time, remove the batteries to avoid a

safety hazard. Disposal of batteries must be performed in accordance with the prevailing

national, regional or local regulations that apply to you.

Battery Cover

Power Adapter

Port

Note orientation

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Escala de Health O Meter

Health O Meter

Health O Meter BFM081-63 Manual de usuario

Health O Meter

Health O Meter 2101KL Manual de usuario

Health O Meter

Health O Meter HAB917 Manual de usuario

Health O Meter

Health O Meter 499KL Manual de usuario

Health O Meter

Health O Meter PROPLUS 1100KL Instrucciones de instalación

Health O Meter

Health O Meter 2500KL Manual de operación y mantenimiento

Health O Meter

Health O Meter 522KL Manual de usuario

Health O Meter

Health O Meter Professional 502KL Manual de usuario

Health O Meter

Health O Meter 500HB Manual de usuario

Health O Meter

Health O Meter 2595KL Manual de usuario

Health O Meter

Health O Meter Professional 498KL Manual de usuario

Health O Meter

Health O Meter 2400KL Manual de usuario

Health O Meter

Health O Meter 752KL Manual de usuario

Health O Meter

Health O Meter BFM580 Manual de usuario

Health O Meter

Health O Meter Digital Scale Manual de usuario

Health O Meter

Health O Meter PROPLUS 4024 Manual de usuario

Health O Meter

Health O Meter PRO PLUS 1100KL Manual de usuario

Health O Meter

Health O Meter 3001KL-AM Manual de usuario

Health O Meter

Health O Meter 402KL Guía de referencia rápida

Health O Meter

Health O Meter HAB957 Manual de usuario

Health O Meter

Health O Meter 597KL Manual de usuario

Health O Meter

Health O Meter 500KLWA Manual de usuario

Health O Meter

Health O Meter HDM560 Manual de usuario

Health O Meter

Health O Meter Weigheasier 2650KG Manual de usuario

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
