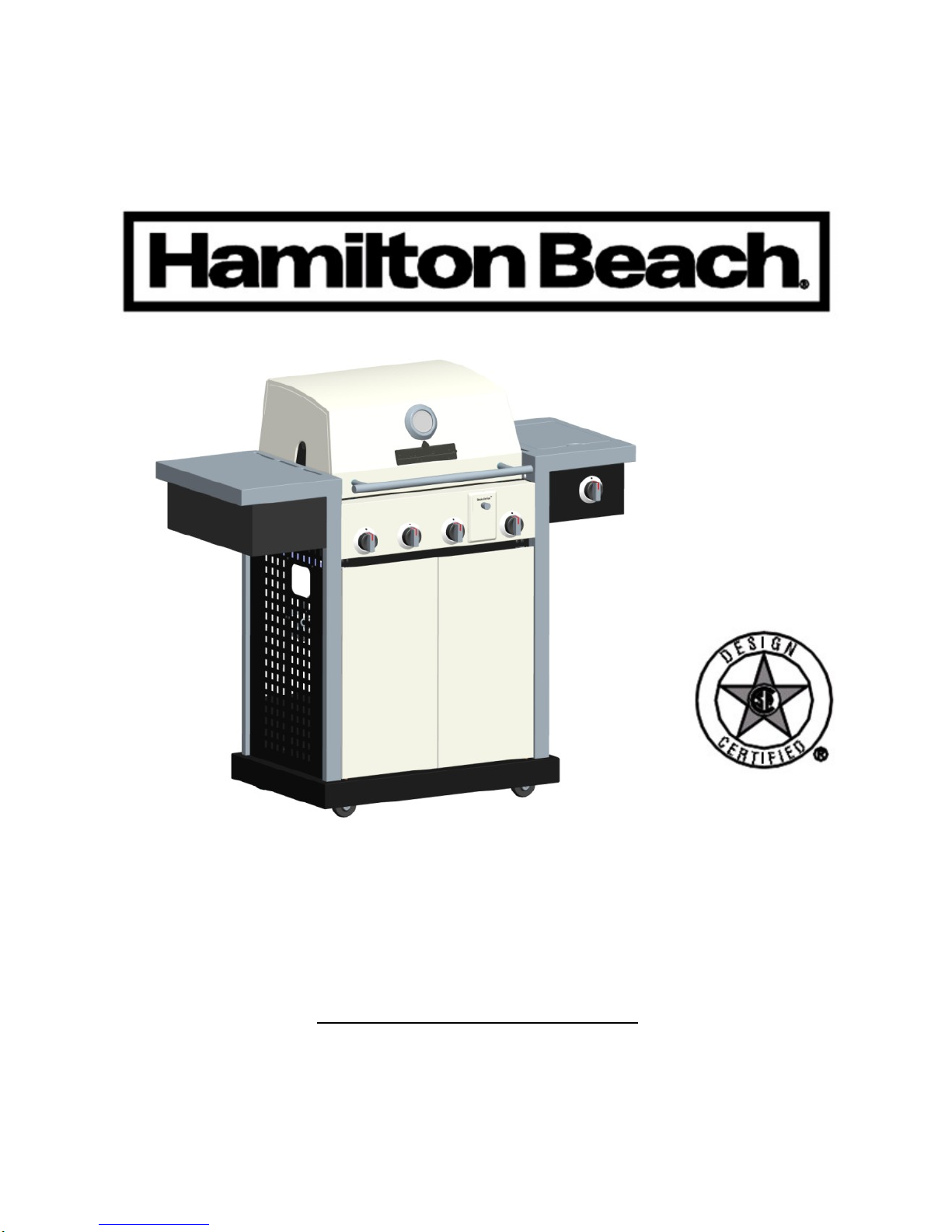

Hamilton Beach OG02 Instrucciones de instalación y funcionamiento

STOP! TO PREVENT DAMAGING YOUR GRILL,

READ THIS MANUAL FIRST FOR IMPORTANT UNPACKING AND

ASSEMBLY INSTRUCTIONS!

Type OG02 Gas Grill

Assembly and Operation Manual

Consumer Affairs: 1-800-851-8900

FOR OUTDOOR USE ONLY

Hamilton Beach Brands, Inc.

Glen Allen, Virginia 23060

840232800

TABLE OF CONTENTS

BEFORE YOU BEGIN

Message to Our Users ................................................................................................................... 3

Safety Symbols .............................................................................................................................. 3

Installation/Safety Precautions ...................................................................................................... 4

Propane and Gas Warning ............................................................................................................ 4

ASSEMBLY

Before the Assembly ... ............................................................................................................... 5

Assembly Steps ........................................................................................................................ 9

POST-ASSEMBLY

Gas Connection ........................................................................................................................... 23

Leak Testing ................................................................................................................................. 26

Final Installation Checklist ........................................................................................................... 27

Grill Lighting Instructions .............................................................................................................. 27

Operating Instruction..................................................................................................................... 29

Safety Tips ... ................................................................................................................................ 31

Care and Maintenance ................................................................................................................ 31

Troubleshooting ........................................................................................................................... 33

Food Safety .................................................................................................................................. 34

Grill Storage ... .............................................................................................................................. 34

• If you smell gas:

1. Shut off gas to the grill.

2. Extinguish any open flames immediately.

3. Open the grill lid.

4. If the odor persists, keep away from the grill and call your gas supplier or

your fire department immediately.

• Do not store or use gasoline or other flammable items in the vicinity of this grill

any other appliance.

• Any LP tank that is not connected for use should not be stored in the vicinity of

this grill or any other appliance.

BEFORE YOU BEGIN

MESSAGE TO OUR USERS

Thank you for your purchase of our Gas Grill. We sincerely wish you will enjoy using our fine

products.

• Please read this manual in its entirety before using the grill.

• Please contact Consumer Affairs if you have any questions.

• Please read this manual carefully. Failure to follow the provided instructions can result in

serious bodily injury and/or property damage.

• Some parts of this grill may have sharp edges. Please wear suitable protective gloves.

IMPORTANT: This grill is intended for outdoor use only and is not intended to be installed in or on

recreational vehicles or boats.

NOTE TO INSTALLER: Leave this manual with the customer after delivery and/or

installation.

NOTE TO CONSUMER: Leave this manual in a convenient place for future reference.

SAFETY SYMBOLS

The symbols listed here are being used throughout this manual. Please pay

special attention to them. The meaning of each of the symbols is listed here:

DANGER

WARNING

CAUTION

This symbol indicates an imminently hazardous

situation which will result in death or serious bodily injury

if instructions are not followed.

This symbol indicates serious bodily injury may

result if the instructions are not followed.

This symbol indicates a hazardous situation which

may result in minor or moderate bodily injury if the

instructions are not properly followed.

BEFORE YOU

CALIFORNIA PROPOSITION 65

1. Combustion by-products produced when using this product contain chemicals

known to the State of California to cause cancer, birth defects, and other

reproductive harm.

2. This product contains chemicals, including lead and lead compounds,

known to the State of California to cause cancer, birth defects or other

reproductive harm.

Wash your hands after handling this product.

INSTALLATION/SAFETY PRECAUTIONS

READ THIS SECTION FIRST BEFORE INSTALLING THE GRILL

• This grill is designed to use LP gas only. The regulator supplied by Hamilton Beach must be

used.

• The installation of this appliance must conform with local codes or, in the absence of local

codes, with either the

National Fuel Gas Code, ANSI Z223.1/NFPA 54,

CAN/CSA

B149.1, Natural Gas and Propane Installation Code,

CAN/CSA B149.2, Propane

Storage and Handling Code.

• The LP gas supply tank is to be constructed and marked in accordance with the

specifications for LP gas

tank

s of the

U.S. Department of Transportation (DOT)

the

National Standard of Canada, CAN/CSA-B339, Tanks, Spheres and Tubes for the

Transportation of Dangerous Goods.

• If an external electrical source is utilized, the outdoor cooking gas appliance, when

installed, must be electrically grounded in accordance with local codes or, in the absence

of local codes, with the

National Electrical Code, ANSI/NFPA 70,

or the

Canadian

Electrical Code, CSA C22.1.

Keep the power cord of the motor away from the hot

surfaces of the grill while in use. Remove and store the motor in a dry place when not

in use.

• This grill is safety-certified for use in the United States and Canada only. Never modify

to use in other places. Modification may cause serious bodily injury or property damage.

Hamilton Beach is not responsible for any modifications, and all warranties will be void.

TOTAL GAS CONSUMPTION:

Total gas consumption (per hour) of OG02 grill with all burners on HI:

Main burners 40,000 Btu/hr

Side burner 13,000 Btu/hr

Total 53,000 Btu/hr

ASSEMBLY

BEFORE THE ASSEMBLY

READ AND FOLLOW THE INSTRUCTIONS BELOW TO CORRECTLY UNPACK GRILL PARTS

FROM SHIPPING BOX.

Step 1: Open shipping box by slicing down its edges with a box cutter. Take out the four legs and bottom

shelf. Next remove the door bracket, grease cup and grease cup clip. Take two doors and two side

panels out of protective styrofoam as shown in Fig.A, but leave grill head in styrofoam until Step 2.

Remove all parts from plastic bags.

Bottom Shelf

Cardboard

Styrofoam

Cardboard

Back Panel Doors

Door Bracket

Styrofoam

Styrofoam Panels

Grill Head Grease Cup&Grease Cup Clip

Fig.A

Legs

Manual

ASSEMBLY

BEFORE THE ASSEMBLY

Step 2: With the aid of assistant, turn grill head over on its side as shown in Fig. B below,

and remove the top styrofoam piece. Lay the styrofoam piece flat on the floor. With the aid of an

assistant, lift the grill head out of the bottom styrofoam piece. Place the grill upright on the other

styrofoam piece as shown in Fig. C.

NOTICE: DO NOT place the grill head directly on the floor or the grease tray could become bent.

Grill Head

Styrofoam

Fig. B

Fig. C

ASSEMBLY

BEFORE THE ASSEMBLY

Step 3: Open grill lid as shown in Fig. D. and take out the small boxes packed within the grill head.

Remove all packing materials and remove all remove all parts from boxes as shown in Fig. E.

NOTICE: If there is any resistance during the process of opening the lid, it is mostly likely due to the

styrofoam shown in Figure D. While using one hand to open the lid, use the other hand to hold the styrofoam

in place (i.e., to keep it from wanting to move with the lid). This should make the lid easier to open.

Grill Head

Fig. D

Side Burner Assembly

Side burner Grid

Hardware Pack

Cooking Grates

Tank Baffle Bar

Tank Holder

Casters

Left&Right-side

Shelf Support

Tool Box Bracket

Towel Handle

Heat Diffuser

Left-side Shelf

Left-side Shelf Wall

Right-side Shelf Wall Warming Rack Tool box 7

Fig. E

SSEMBL Y

BEFORE THE ASSEMBLY

PLEASE READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY

STEP BY STEP

Tools Required:

• #2 Phillips screwdriver & needlenose pliers (not provided)

• The following hardware is provided in the blister pack:

M6 x 13 Screw (S.S. 2 pcs) M6 x 13 Screw (28 pcs) M6 Compression Washer (4 pcs)

M5 x 10 Screw (44 pcs) M5 x 15 Screw (4 pcs) ￠1.3x26 Cotter Pin(2 pcs)

M4 x 12 Screw (3 pcs) M4 x 10 Screw (6 pcs)

ASSEMBLY

ASSEMBLY STEPS

STEP 1: Bottom Shelf

1. Attach the tank holder to the bottom shelf with two (2) cotter pins as shown in Fig.1a.

2. Attach the casters to the bottom shelf with sixteen (16) M6 x 13 screws as shown in Fig.1b.

3. NOTE: Use care when installing each caster into the correct position.

Fig.1a

Fig.1b

ASSEMBLY

ASSEMBLY STEPS

STEP 2: Left Panel

1. To attach left panel, align left leg holes with holes on left panel (marked “L”) as shown in Fig.2.

2. Attach left-front leg (marked “Left Front”) and left-back leg (marked “Left Back”) to left panel

with eight (8) M5 x 10 screws as shown in Fig.2.

Fig.2

STEP 3: Right Panel

1. To attach right panel, align right leg holes with holes on right panel (marked “R”) as shown in Fig.3.

2. Attach right-front leg (marked “Right Front”) and right-back leg (marked “Right Back”) to

right panel with eight (8) M5 x 10 screws as shown in Fig.3.

Fig.3
