Hamilton Beach OG01 Suplemento

STOP! TO PREVENT DAMAGING YOUR GRILL, READ THiS

MANUAL FIRST FOR iMPORTANT UNPACKING AND

ASSEMBLY iNSTRUCTiONS!

Type Gas Gri

Assembly and Operation Manual

Consumer Affairs: 1-800-851-8900

FOR OUTDOOR USE ONLY

Hamilton Beach Brands, Inc.

Glen Allen, Virginia 23060

8402081 O0

BEFORE YOU BEGIN

Message to Our Users .............................................................................................................. 3

Safety Symbols ......................................................................................................................... 3

Installation/Safety Precautions ................................................................................................. 4

Propane and Gas Warning ....................................................................................................... 4

Grill Parts List ............................................................................................................................ 5

Grill Parts Diagram .................................................................................................................... 7

ASSEMBLY

Before the Assembly ................................................................................................................ 8

Assembly Steps ...................................................................................................................... 11

POST-ASSEMBLY

Gas Connection ...................................................................................................................... 19

Leak Testing ............................................................................................................................ 23

Final Installation Checklist ...................................................................................................... 24

Grill Lighting Instruction .......................................................................................................... 24

Operating Instruction .............................................................................................................. 26

Safety Tips .............................................................................................................................. 28

Care and Maintenance ........................................................................................................... 28

Troubleshooting ...................................................................................................................... 30

Food Safety ............................................................................................................................ 31

Grill Storage ............................................................................................................................ 31

,, If you smell gas:

1. Shut off gas to the grill.

2. Extinguish any open flames immediately.

3. Open the grill lid.

4. If the odor persists, keep away from the grill and call your gas supplier or your

fire department immediately.

•Do not store or use gasoline or other flammable items in the vicinity of this grill or

any other appliance.

• Any LP cylinder that is not connected for use should not be stored in the vicinity of

this grill or any other appliance.

MESSAGE TO OUR USERS

Thank you for your purchase of our Gas Grill. We sincerely wish you wilt enjoy using our fine

products.

,, Please read this user's manual in its entirety before using the grill.

,, Please contact Consumer Affairs if you have any questions.

,, Please read this user's manual carefully. Failure to follow the provided instruction can

result in serious bodily injury and/or property damage.

,, Some parts of this grill may have sharp edges. Please wear suitable protective gloves.

IMPORTANT: This grill is intended for outdoor use only and is not intended to be installed in

or on recreational vehicles or boats.

NOTE TO INSTALLER: Leave this user's manual with the customer after delivery and/or

installation.

NOTE TO CONSUMER: Leave this user's manual in a convenient place for future reference.

SAFETY SYMBOLS

The symbols listed here are being used throughout this manual. Please pay

special attention to them. The meaning of each of the symbols is listed here:

This symbol indicates an imminently hazardous

situation which wilt result in death or serious bodily

injury if not followed properly.

This symbol indicates serious bodily injury may result

if the instructions are not followed.

This symbol indicates a hazardous situation which

may result in minor or moderate bodily injury if the

instructions are not properly followed.

CALiFORNiA PROPOSiTiON 65

1. Combustion by=products produced when using this product contain chemicals

known to the State of California to cause cancer, birth defects, and other

reproductive harm.

2. This product contains chemicals, including lead and lead compounds, known to

the State of California to cause cancer, birth defects, or other reproductive harm.

Wash your hands after handling this product.

INSTALLATION/SAFETY PRECAUTIONS

READ THiS SECTION FIRST BEFORE iNSTALLiNG THE GRILL

,, This grill is designed to use LP gas only. The regulator supplied by Hamilton Beach must

be used.

,, The installation of this appliance must conform with local codes or, in the absence of local

codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CSA

B149.1, Natural Gas and Propane Installation Code, or CAN/CSA B149.2, Propane

Storage and Handling Code.

,, The LP gas supply tank is to be constructed and marked in accordance with the

specifications for LP gas tanks of the U.S. Department of Transportation (DOT} or the

National Standard of Canada, CAN/CSA=B339, Tanks, Spheres, and Tubes for the

Transportation of Dangerous Goods.

,, If an external electrical source is utilized, the outdoor cooking gas appliance, when installed,

must be electrically grounded in accordance with local codes or, in the absence of local

codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1. Keep the power cord of the motor away from the hot surfaces of the

grill while in use. Remove and store the motor in a dry place when not in use.

,, This grill is safety-certified for use in the United States and Canada only. Never modify

to use in other places. Modification may cause serious bodily injury or property damage.

Hamilton Beach is not responsible for any modifications, and all warranties wilt be void.

TOTAL GAS CONSUMPTION:

Total gas consumption (per hour) of OG01 grill with all burners on HI:

3 Main burners x 11,000 Btu/hr each: Total 33,000 Btu/h

GRILL PARTS LiST

KEY DESCRIPTION QUANTITY PART NUMBER

1 Lid 1 990130100

2 Temperature Gauge 1 990127300

3 Bezel, Temperature Gauge 1 990127400

4 Logo Plate 1 990130500

5 Lid Handle 1 990127500

6 Rotate Rod, Lid 2 990127600

7 Bezel, Rotate Rod 2 990127700

8 Firebox 1 990129900

9 Left-Side Shelf 1 990127800

10 Warming Rack 1 990127900

11 Cooking Grate 2 990128000

12 Heat Diffuser (Flame Tamer) 3 990128100

13 Main Burner 3 990128200

14 Manifold, Main Burner 1 990128300

15 Gas Valve, Main Burner 3 990128400

16 Regulator 1 990129700

17 Control Panel 1 990130200

18 Control Knob 3 990128500

19 Rear Panel 1 990139500

20 Right-Side Shelf 1 990128700

21 Grease Cup Clip 1 990135000

22 Grease Cup 1 990135100

23 Cart Frame 1 990130400

24 Tank Hold Chain 1 990128800

25 Left Panel 1 990130300

26 Match Holder Bracket (Nylon 1 990137000

Knot)

GRILL PARTS LiST

KEY DESCRIPTION QUANTITY PART NUMBER

27 Match Holder 1 990137100

28 Tank Baffle 1 990139600

29 Right Panel 1 990135600

30 Front Panel 1 990130000

31 Bottom Shelf 1 990129800

32 Standard Caster 2 990128900

33 Foot 2 990129000

GRILL PARTS DIAGRAM

BEFORE THE ASSEMBLY

READ AND FOLLOW THE iNSTRUCTiONS BELOW TO CORRECTLY UNPACK

GRILL PARTS FROM SHiPPiNG BOX.

STEP 1"

1. Open shipping box by slicing down its edges with a box cutter. Take out all the parts out of

protective styrofoam as shown in Fig. A. Remove all parts from plastic bags.

Grill Head

Bottom Shelf

Left and Right

Panels

Grill Head

Warming Rack

Front Panel

Tank Baffle _%

Cart Frame Styrofoam

Fig. A

BEFORE THE ASSEMBLY

STEP 2:

1. Open grill lid, and take out the small boxes packed within the grill head. Remove all packing

materials and remove all parts from boxes as shown in Fig. B below.

Grill Head

Cooking Grids

Left and Right

Styrofoam Shelves

Cardboard

Heat Diffusers Box

Tank Hold Chain

Grease Cup Clip _ _ ,_

and Grease Cup '_i__"_

PositioningGage _ Feet

Casters

.... _ Hardware Pack

Fig. B

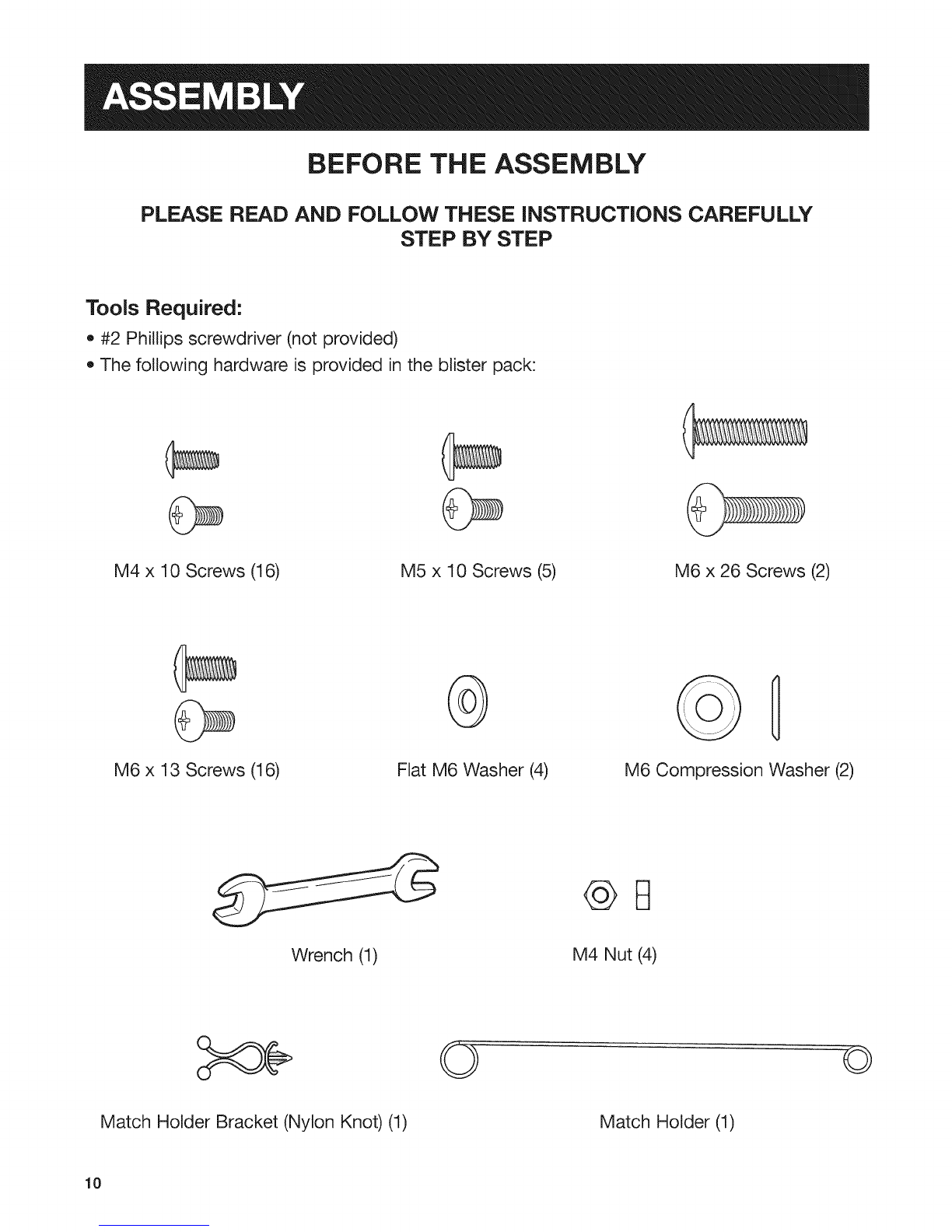

BEFORE THE ASSEMBLY

PLEASE READ AND FOLLOW THESE iNSTRUCTiONS CAREFULLY

STEP BY STEP

Tools Required:

,, #2 Phillips screwdriver (not provided)

,, The following hardware is provided in the blister pack:

M4 x 10 Screws (16) M5 x 10 Screws (5) M6 x 26 Screws (2)

M6 x 13 Screws (16)

Flat M6 Washer (4) M6 Compression Washer (2)

Wrench (1) M4 Nut (4)

Match Holder Bracket (Nylon Knot) (1) Match Holder (1)
