Desoldering Tool

Instruction Manual

Thank you for purchasing the Hakko 470B Desoldering

Tool.

Please read the manual before using the Hakko 470B.

Store the manual in a safe, easily accessible place for

future reference.

Packing List··················································

Precautions··················································

Part Names

Operation

Maintenance

Replacement Parts

Parts List

Specifications, Wiring·······························

(Desoldering Gun)··················

(Station)··································

(Preparation-

Assembly and Connection)

······

(Desoldering)························

(Cleaning during Operation)

········

(Problems during Desoldering

)

(

Post-operation Maintenance

)···

(Troubleshooting Guide)········

(Desoldering Gun)···········

(Station)···························

(Replacing Heating Element)

·····

(Station)····························

(Desoldering Gun)················

Table of Contents

5·6

7·8

12~14

15·16

17·18

19·20

SpannerStation

Iron Holder Base Spring Iron Holder Cleaning Sponge

Filter Pipe

Ceramic Paper Filter (S)

Ceramic Paper Filter (L) Spring Filter

Cleaning Pin for Ø1.0 mm (0.04 in.) Nozzle

Cleaning Drill for Ø1.0 mm (0.04 in.) Nozzle

Cleaning Pin for Heating Element

Cleaning Pin Holder

Silicone Grease Desoldering Gun

Packing List Please check to make sure that all the items listed below

are included in the Hakko 470B package.

Station····················································

Desoldering Gun····································

Iron Holder Base····································

Spring Iron Holder··································

Cleaning Sponge····································

Filter Pipe···············································

Ceramic Paper Filter (S)····································

Ceramic Paper Filter (L)····································

Spring Filter·······················································

Cleaning Pin (for Ø1.0mm [0.04 in.] nozzle)······

Cleaning Pin (for Heating Element)···················

Cleaning Pin Holder···········································

Cleaning Drill (for Ø1.0mm [0.04 in.] nozzle)······

SIlicone Grease··················································

Spanner······························································

Instruction Manual··············································

When the power is ON, the nozzle temperature is between

380˚C and 480˚C (716˚F and 896˚F).

Since mishandling may lead to burns or fire, be sure to comply with

the following precautions.

Safety Instructions

Warnings, cautions are placed at critical points in this manual to direct the operator’s

attention to significant items. They are defined as follows:

WARNING

WARNING: Failure to comply with a WARNING may result in serious injury or death.

CAUTION : Failure to comply with a CAUTION may result in injury to the operator, or

damage to the items involved.

For your own safety, be sure to comply with these precautions.

CAUTION

Remove the pump securing screws (M4x25 marked red)

from the bottom of the station.

Failure to do so may result in serious problems.

To prevent accidents and failures, be sure to take the following precautions:

·Do not use the unit for applications other than desoldering.

·Do not rap the desoldering gun against the work bench to shake off

residual solder, or otherwise subject the iron to severe shocks.

·Do not modify the unit.

·Use only genuine Hakko replacement parts.

·Do not wet the unit or use the unit with wet hands.

·Set the ceramic paper filter (S) for the filter retainer (station), and the

ceramic paper filter (L) for the filter pipe (gun).

·Maintain the desoldering gun and the station.

·While using the unit, don't do anything which may cause bodily harm

or physical damage.

·Do not touch the metal parts near the nozzle, nearby plastic parts and

the spring iron holder .

·Do not use the product near flammable items.

·Advise those in the work area that the unit can reach very high

temperatures and should be considered potentially dangerous.

·Turn the power OFF when no longer using the Hakko 470B or when

leaving it unattended.

·Before replacing parts or storing the unit, allow the unit to cool and then

turn the power OFF.

Cord Assembly

Connects to the receptacle (station).

Hose

Connects to the vacuum outlet cap (station).

Trigger

Squeeze to start absorption.

Do not pull the trigger before

fully heating the nozzle.

Heating Element

Inside requires cleaning.

Nozzle

Transmits heat for melting solder.

Entrance for melted solder.

Expendable part

Filter Pipe

Set the ceramic paper filter (L) (No. A1033).

Contains melted solder and flux using filters.

Filter are expendable parts.

Back Holder

Assembly

Secures the filter

pipe.

Release Knob

Push down to

remove the filter

pipe.

Indicator

Indicates when

nozzle and heating

element need

cleaning and when

filters need replacing.

Desoldering Gun

(Refer to p.19,20,21 for part nos.)Part Names

Station

Temperature Control Knob

Provides nozzle temperature

control. (refer to p.7)

Temperature Control Set

Screw Clamp

Prevents the temperature

control knob from being reset.

(refer to p.7)

Power Lamp

Lights up when the

power switch is

turned to ON.

Power Switch

When turned to ON,

the heating element

starts to heat up.

CAL (Calibration)

Used for calibrating

the temperature

after replacing the

Heating Element.

Receptacle

Connector for the cord

assembly.

Vacuum Outlet Cap

Set the ceramic paper filter (S)

(No, A1009).

Connects with the hose, Filter

inside vacuum outlet cap is

expendable.

Fuse Holder

·120V unit contains

250V-2A (U) fuse.

Power Cord

Operation

CAUTION

The spring iron holder becomes

extremely hot during operation of the

desoldering gun. Do not touch the

spring iron holder during and

immediately after using the gun.

CAUTION

The sponge is compressed.

It will swell when moistened with water.

Be sure to dampen the sponge with

water before use.

Be sure to remove the round portion

of the sponge.

Spring Iron Holder

(No. B1094) Cleaning Pin Holder

(No. B1095)

Securely insert the

cleaning pin holder.

Cleaning Sponge

Iron Holder Base

Tube (red)

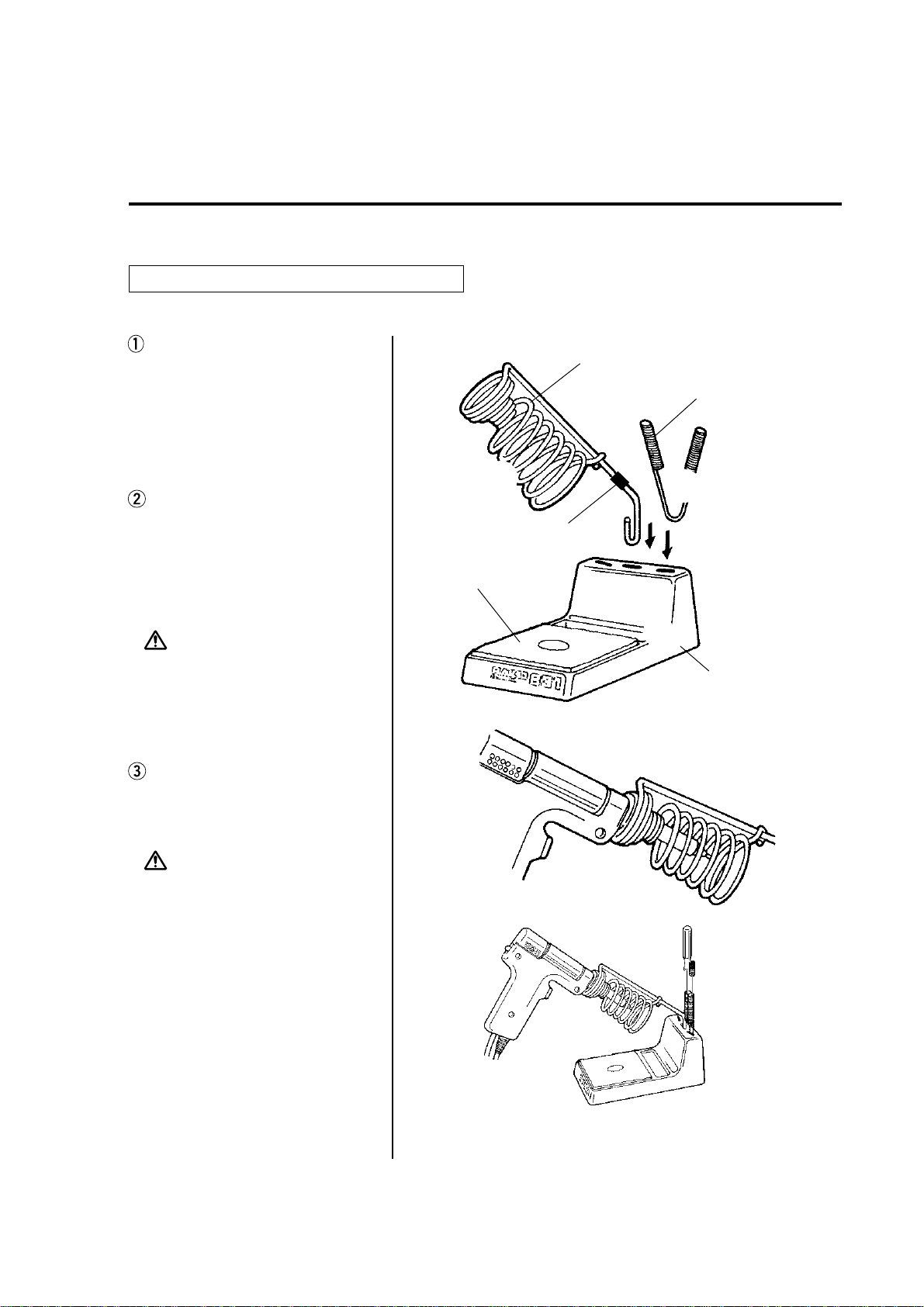

Preparation–Assembly and Connection

Assemble the Hakko 470B on a flat surface.

Remove the pump securing

screws (M4x25 marked red)

from the bottom of the station.

Assemble the iron holder.

·Set the spring iron holder and

cleaning pin holder in the iron

holder base.

·Dampen the cleaning sponge

with water and then squeeze

it dry.

Insert the desoldering gun

and cleaning pins.

·Fully insert the desoldering

gun into the spring iron holder.

CAUTION

Be sure to turn the power switch off

before connecting or disconnecting

the cord assembly and the power

plug. Failure to do so may damage

the P.W.B.

CAUTION

The entire unit is constructed of

conductive materials. Always ground

the unit.

CAUTION :

The desoldering gun must be placed in the iron

holder when not in use.

The power lamp doesn’t

light up.

1. Is the power cord properly

connected?

2. Is the fuse blown?

The nozzle doesn’t heat up.

1. Is the cord assembly

properly connected?

2. Is the heating element

broken?

Secure the plug by

turning it clockwise.

Fully insert the hose

into the vacuum

outlet cap.

Insert the cord

assembly by keying

the plug to the key

on the receptacle.

The power lamp

lights up.

The nozzle heats up.

Connections

·Connect the cord assembly to

the receptacle (marked "IRON").

·Connect the hose to the

vacuum outlet cap (marked

"VACUUM").

Power switch

·Confirm that the power switch

is set in the OFF position, then

connect the power plug to the

power source.

·Turn the power switch to ON.

The power lamp should light

up.

·The nozzle begins to heat up

as soon as the power switch

is turned to ON.

After turning the power

switch to ON, wait three (3)

minutes before beginning

desoldering operations. 6

Always set the temperature to as low

as possible for the work being done.

CAUTION

Never insert the cleaning pin in the

hole of temp. control set screw clamp.

As this may result in damage to the

unit.

CAUTION

Desoldering

·The temperature control knob

can be secured by tightening

the temperature control set

screw clamp ("+ " screw) at

the top of the Hakko 470B unit.

·To more precisely set the tem-

perature, measure the temper-

ature at the nozzle using a

soldering iron thermometer and

adjust the temperature control

knob accordingly.

Set the temperature.

Clean the tip of the nozzle.

·Keep the solder-plated section

of the nozzle a shiny white by

coating it with a small amount

of solder.

We recommend the Hakko

191 thermometer or Hakko

192 soldering tester for

measuring the nozzle tem-

perature.

If the tip of the nozzle is

coated with oxide, the

nozzle's heat conductivity

will be lowered.

Coating the tip with a small

amount of fresh solder

ensures maximum heat

conductivity.

knob P.W.B.

1 ~ 2

5 ~ 6

3 ~ 4 Single-sided P.W.B.

Through-hole P.W.B.

Multilayer P.W.B.

Please refer to the chart below, and adjust

the temperature control knob.

The temperature can be adjusted between

380˚C and 480˚C(716˚F and 896˚F)

with temperature control knob.

Operation

Lock

Unlock

Secure the temperature

control set screw clamp

with a cross point screwdriver,

Wipe away any oxide or old solder

from the nozzle using the hole in

the center of the sponge.

After turning the power switch to

ON, wait three (3) minutes before

beginning desoldering operations.

Never allow the nozzle to touch the

board itself.

CAUTION

To confirm that all the solder is melted,

observe the inside of the hole and the

backside of the P.W.B. If this is difficult

to do, try slowly moving the lead with

the nozzle-if the lead moves, the

solder is melted.

CAUTION

Never move the lead by force. If it

doesn't move easily, the solder isn't

yet fully melted.

CAUTION

Never leave any solder remaining

inside the hole in the P.W.B.

CAUTION

Absorb the solder by slowly

moving the lead back and

forth with the tip of the

nozzle.

Slowly move

the lead with

the nozzle.

Nozzle

P.W.B.

Solder

Lead

·Apply the nozzle to the soldered

part and melt the solder.

·Confirm that the solder is

melted.

Melt the solder.

Absorb the solder.

·After confirming that the solder

is completely melted, absorb

the solder by squeezing the

trigger on the gun.

·After fully absorbing all the

solder, cool the soldering junc-

tion in order to prevent it from

becoming resoldered.

·If solder remains, resolder the

component and repeat the

desoldering process.

Problems during

desoldering

The indicator will not operate accurately

if the hole of the nozzle is closed or if

the solder in the hole of the P.W.B. is

not melted.

CAUTION

The indicator on the Hakko 471 reads

in a different way.

For instructions on the reading the

Hakko 471 indicator, please refer to

the Hakko 471 instruction manual.

CAUTION

If there is a noticeable drop in suction

efficiency, clean the nozzle and heating

element with the cleaning pin.

CAUTION :

Normal Abnormal Solution

Blue or slight

amount of red

can be seen.

More than half

of the indicator

is red.

If the indicator is more

than half red, replace

the filter and clean the

nozzle and the inside

of the heating element.

(refer to p.12

Maintenance of the

Desoldering Gun)

Replace the entire filter pipe

with the provided backup filter pipe.

Cleaning during Operation

While looking at the indicator

and with the hole of the nozzle

open, pull the trigger and look

at the indicator. If it is red,

clean the nozzle and heating

element, empty the filter pipe,

and replace the filters. If the

indicator is blue, cleaning is

not necessary and operations

can be resumed.

Observing the indicator

Replacing the filter

Replace the filter as shown

. During operation, the filter pipe

is very hot. Wait until the filter pipe

is cool before replacing the filter.

We recommend keeping a second

filter pipe containing new filters

handy, and replacing the installed

filter pipe with this backup filter

pipe.

Pull

Down

Operation

Heated solder and flux can cause oxides to form and adhere

to the nozzle and the inside of the heating element. These

oxides not only lower the heat conductivity, but can also clog

the nozzle and heating element, resulting in a drop in suction

efficiency. Should there be a noticeable drop in suction efficiency

during operation, replace the filter and clean the nozzle and

heating element with the provided cleaning pin.

Tabla de contenidos

Otros manuales de Herramientas eléctricas de Hakko Electronics

Hakko Electronics

Hakko Electronics FM-204 Manual de usuario

Hakko Electronics

Hakko Electronics FM-2023 Manual de usuario

Hakko Electronics

Hakko Electronics FR-410 Manual de usuario

Hakko Electronics

Hakko Electronics FR410-52 Manual de usuario

Hakko Electronics

Hakko Electronics FM-2030 Manual de usuario

Hakko Electronics

Hakko Electronics B5166 Manual de usuario

Hakko Electronics

Hakko Electronics FR-4102 Manual de usuario

Hakko Electronics

Hakko Electronics FM-2030 Manual de usuario

Hakko Electronics

Hakko Electronics FX-888D Manual de usuario

Hakko Electronics

Hakko Electronics 951 Manual de usuario

Hakko Electronics

Hakko Electronics FX-950 Manual de usuario

Hakko Electronics

Hakko Electronics FM-204 Manual de usuario

Hakko Electronics

Hakko Electronics FX-9707 Manual de usuario

Hakko Electronics

Hakko Electronics FX-601 Manual de usuario

Hakko Electronics

Hakko Electronics FR-4103 Manual de usuario

Hakko Electronics

Hakko Electronics FR-400 Manual de usuario

Hakko Electronics

Hakko Electronics FR400-53 Manual de usuario

Hakko Electronics

Hakko Electronics FT-8004 Manual de usuario

Hakko Electronics

Hakko Electronics 815 Manual de usuario

Hakko Electronics

Hakko Electronics FM2022-05 Manual de usuario

Hakko Electronics

Hakko Electronics FX-600 Manual de usuario

Hakko Electronics

Hakko Electronics FR-4104 Manual de usuario

Hakko Electronics

Hakko Electronics FU-601 Manual de usuario

Hakko Electronics

Hakko Electronics FR-301 Manual de usuario

Manuales populares de Herramientas eléctricas de otras marcas

AEG

AEG OMNI-JS Manual de usuario

SIP

SIP 01533 Manual de usuario

Ribimex

Ribimex PRS499 Manual de usuario

3M Fiber Optic Connector Crimp Tool Manual de usuario

Ryobi

Ryobi P524 Manual de usuario

ROJEK

ROJEK FSN 300A Manual de usuario

Kemper

Kemper 1740PRO Manual de usuario

WABCO

WABCO OptiTire Manual de usuario

EINHELL

EINHELL TE-MS 18/210 Li Manual de usuario

Orgapack

Orgapack OR-T 85 Guía rápida

TOUGHCUT

TOUGHCUT Diamond 400 Manual de usuario

Yaros

Yaros PB-3603 Manual de usuario

Fein

Fein BSS 2.0 E Guía de configuración

Baileigh Industrial

Baileigh Industrial SS-2725 Manual de usuario

Milwaukee

Milwaukee 2674-20 Manual de usuario

Fein

Fein BLs 1.6 Manual de usuario

Princess

Princess Electric Multi Sharpener Manual de usuario

FOREDOM

FOREDOM K.1050 Manual
