Haier HVD036E Manual de usuario

Haier

••••••

What The World Comes Home To T_.

UserManual.

(Features and size may vary permodel)

Guidede l'UtilisateUro

(l es caracteristiqueset la taille

Peuvent Varier parle Modele)

Man.al deiUsuarieo

(tas caracteristicasy el tamano

PuedenVariarperel Modelo)

Model#

Modele

ParaModelode

IMPORTANTSAFEGUARDS

When using this appliance, always exercise basic safety

precautions, including the following:

1, Read all of the instructions before using this appliance.

2, Use this appliance only for its intended purpose as described in this use

and care guide.

3. This wine cooler must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

4. Never unplug your wine cooler by pulling on the power cord.

Always grasp the plug firmly and pull straight out from the outlet.

5. Unplug your wine cooler before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly

recommend that acertified technician performs the service.

6. Repair or replace immediately, all electric service cords that

have become frayed or otherwise damaged. Do not use a

cord that shows cracks or abrasion damage along its length,

the plug or the connector end.

7. This wine cooler should not be recessed or built-in an enclosed cabinet.

It is designed for freestanding installation only.

8. If you are replacing an old wine cooler, and it is still around the house,

be sure to remove the door. This will reduce possibility of

danger to children.

9. Do not operate your wine cooler in the presence of explosive fumes.

10. Do not store foods in wine cooler as interior temperature may

not be cool enough to prevent spoilage or may cause bacteria growth.

SAVETHESEINSTRUCTIONS

DANGER

Risk of child entrapment. Before you throw away your old

wine cooler, take off the doors. Leave the shelves in place so

that children may not easily climb inside.

Thank you for using our Haler

product. This easy-to-use manual will

guide you in getting the best use of

your wine cooler.

Remember to record the model and

serial number. They are on a label in

back of the wine cooler,

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

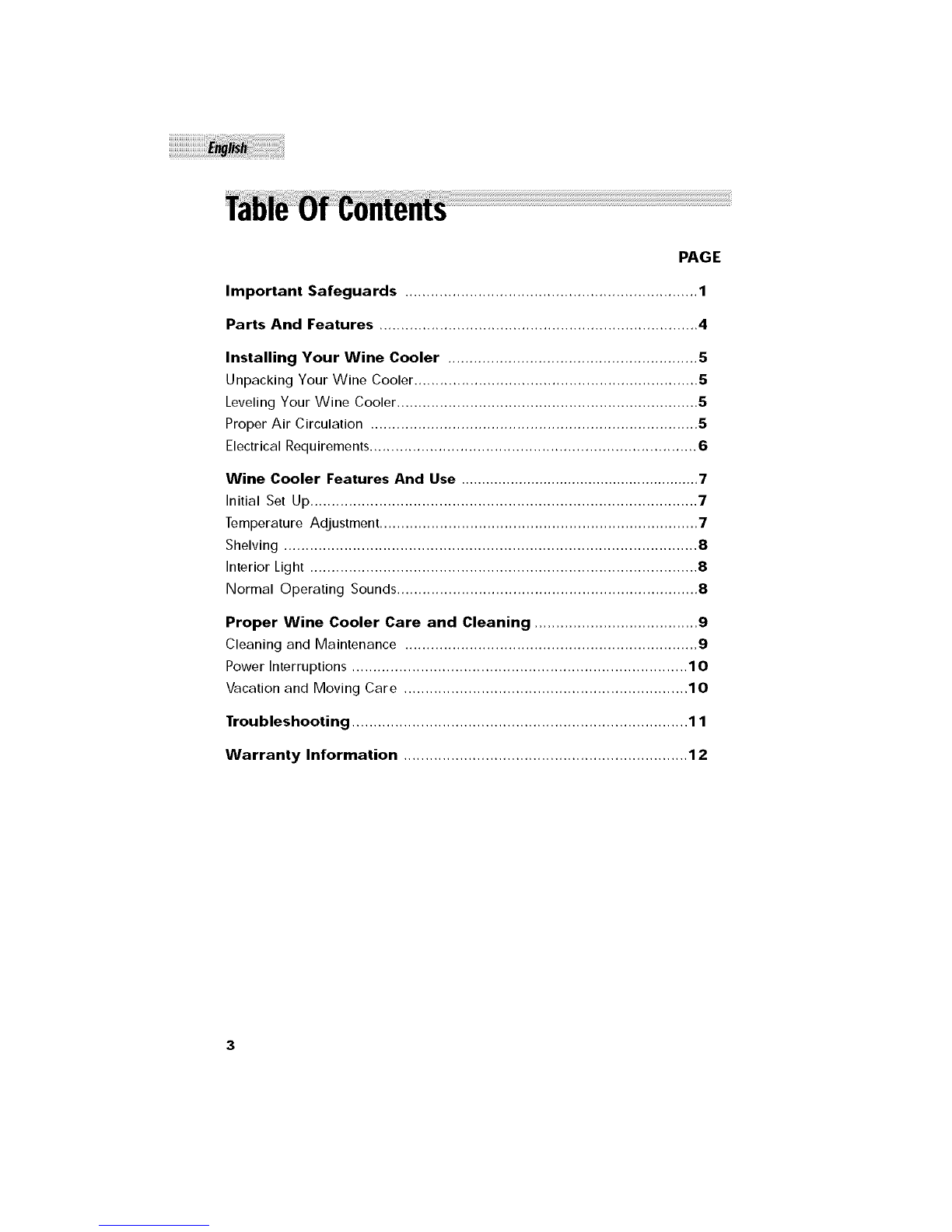

PAGE

Important Safeguards .................................................................... 1

Parts And Features .......................................................................... 4

Installing Your Wine Cooler .......................................................... 5

Unpacking Your Wine Cooler .................................................................. 5

Leveling Your Wine Cooler ...................................................................... 5

Proper Air Circulation ............................................................................ 5

Electrical Requirements ............................................................................ 6

Wine Cooler Features And Use .......................................................... 7

Initial Set Up .......................................................................................... 7

Temperature Adjustment .......................................................................... 7

Shelving ................................................................................................ 8

Interior Light .......................................................................................... 8

Normal Operating Sounds ...................................................................... 8

Proper Wine Cooler Care and Cleaning ...................................... 9

Cleaning and Maintenance .................................................................... 9

Power Interruptions .............................................................................. 10

Vacation and Moving Care .................................................................. 10

Troubleshooting .............................................................................. 11

Warranty Information .................................................................. 12

(Features may vary per model)

1. White Wine Button/

Temperature Adj, Down

2. Red Wine Button/

Temperature Adj. Up

3. Interior Light Button

4, LED Temperature Display

5, Door Handle

6. Adjustable Leveling Legs

7, Slide-Out Shelves

(Type and number of shelves will vary

per model)

8, Interior Light Bulb Compartment

Unpacking Your Wire÷ ¢oo ÷r

1, Remove all packaging material. This includes the foam base and all

adhesive tape holding the wine cooler accessories inside and outside,

Slide out and remove plastic or foam guard used to secure the

compressor from shipping damage due to vibration and shock.

2, Inspect and remove any remains of packing, tape or printed

materials before powering on the wine cooler.

Levelling Your Wine OooMer

• Your wine cooler has four leveling legs which are located in the

front and rear corners of your wine cooler. After properly placing your

wine cooler in its final position, you can level your wine cooler,

•Leveling legs can be adjusted by turning them clockwise to raise your

wine cooler or by turning them counterclockwise to lower your wine

cooler, The wine cooler door will close easier when the leveling legs are

extended.

Proper Air Circulation

• To assure your wine cooler works at the maximum efficiency it was

designed for, you should install it in a location where there is proper air

circulation, plumbing and electrical connections.

• The following are recommended clearances around the wine cooler:

Sides ............... 2" (50ram)

Top .................... 2" (50mm)

Back .................. 2" (50mm)

• Do not over fill your wine cooler for proper internal air circulation,

EJectrica_ Require_en_

• Make sure there is a suitable power Outlet (120 volts, 15 amps outlet)

with proper grounding to power the wine cooler.

• Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet. This is a dangerous practice

since it provides no effective grounding for the wine cooler and may

result in shock hazard,

Limitations

Do not install your wine cooler in any location not properly insulated or

heated e.g. garage etc. Your wine cooler was not designed to operate

in temperature settings below 55 ° Fahrenheit.

• Select a suitable location for the wine cooler on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc, Any floor unevenness

should be corrected with the leveling legs located on the front and rear

bottom corners of the wine cooler.

• Your wine cooler is designed for free-standing installation only, It is not

designed for built-in application.

lni_iaM Setup

Once you have plugged the unit into an electrical outlet, let the unit run for at least

30 minutes to acclimate itself before making any adjustments. During this time the

Red Wine light will stay on. Temperature inside the cooler, if not adjusted, will be at

55°_60°E

_e_pera_ure A_jUS_en_S: See fig. #1

The wine cooler is preset from the factory to automatically

accommodate temperature requirements for red or white wines. Jf you

store mostly white wines, press the "White Wine" button and the wine

cooler will maintain an average temperature between 45 ° to 50 ° E

Pushing the "Red Wine" button will yield an average temperature

between 55 ° to 60 ° E

The wine cooler can be set to any temperature you desire to

accommodate your wine storage requirements. To set the temperature,

press both the "White Wine" and "Red Wine" buttons simultaneously

and hold for approximately 3 seconds. Now you are in temperature set

mode, Decrease the temperature by pushing the "White Wine" button

and increase the temperature by pressing the "Red Wine" button,

Pressing the appropriate button 3 times will adjust the temperature 3

degrees, press 4 times equals 4 degrees, 5 times equals 5 degrees, and

so on. Once you have selected the temperature you desire, push the

"On/Off" button, Now the wine cooler is programmed and the LED

readout will return to current internal temperature reading.

fig. # 1

UWN

+: I

tip

°@

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiUi!i! i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i i i! !

There will be a 3 degree variance +/- between the temperature you

select and the temperature indicated on the LFD readout.

This occurs because the wine cooler activates and deactivates

trying to maintain your desired temperature, There is often a

10 ° variance between the top and bottom shelves of the wine cooler.

Therefore, if you have set the wine cooler for 50 ° and have a

mix of red and white wines, you may want to put the white wine

on the bottom shelf where the temperature will be 45 ° F, and place the

red wine on the top shelf where the temperature will be 55 ° [,

Shelving (Type and number of shelves will vary per model)

• The shelves are designed for appearance and easy cleaning. To

accommodate different sized bottles the shelves slide out and can be

moved up or down into any of the tracks molded into the cooler

cabinet. Larger bottles or Magnums can be more easily accommodated

at the cross shelves at the bottom of the cooler. You will notice that the

shelves are designed so the bottles do not line-up directly over one

another. This allows free air movement and provides more space,

_nterior Light (seef_g.#1)

• To complement the look of your wine collection, a soft light has been

built into the wine cooler. Simply push the "On/Off" button and the

light comes on, push again for off. For maximum energy efficiency,

leave light off when not viewing your collection.

• When door is open the light will go on. Upon closing the door,

the light will go off in approximately 15 seconds.

NormaM Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of

the refrigerant circulating through the cooling coils,

• The thermostat control will click when it cycles on and off.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU!ii!_!!_!_i!_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i!!_!!_!i_i!i!iiiiii!iiiii!_!ii_!_!_!!!

O ÷aning and Maint÷nanc÷

Warning: To avoid electric shock always unplug your

wine cooler before cleaning, Ignoring this warning

may result in death or injury.

Caution: Before using cleaning products, always read and

follow manufacturer's instructions and warnings to

avoid personal injury or product damage,

General:

•Prepare a cleaning solution of 3-4 tablespoons of

baking soda mixed with warm water. Use sponge or

soft cloth, dampened with the cleaning solution, to

wipe down your wine cooler.

•Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia,

chlorine bleach,concentrated detergents, solvents or

metal scouring pads. SOME or these chemicals may

dissolve, damage and/or discolor your wine cooler,

Door Gaskets: Clean door gaskets every three months according to

general instructions, Gaskets must be kept clean and

pliable to assure a proper seal,

Petroleum jelly applied lightly on the hinge side of

gaskets will keep the gasket pliable and assure a

good seal.

Tabla de contenidos

Idiomas:

Otros manuales de Enfriador de vino de Haier

Haier

Haier HWS77GDAU1 Manual de usuario

Haier

Haier HW24WF10NG Manual de usuario

Haier

Haier JQ-332A Manual de usuario

Haier

Haier GWB03FAWSSC Guía de seguridad

Haier

Haier HVD060E-4S Manual de usuario

Haier

Haier JC-298G Manual de usuario

Haier

Haier HVD036E - 01-01 Manual de usuario

Haier

Haier HVTS16ASS Manual de usuario

Haier

Haier HVZ035ABS - Capacity Extra Large Wine Cellar Manual de usuario

Haier

Haier HVTB18DABB Manual de usuario

Haier

Haier HWS79GDG Manual de usuario

Haier

Haier HWS33GG Manual de usuario

Haier

Haier JC-398G Manual de usuario

Haier

Haier HVTM18DABB Manual de usuario

Haier

Haier HVFM122A Manual de usuario

Haier

Haier HVC15A Manual de usuario

Haier

Haier HVW12ABB - Thermal Electric Wine Tower Manual de usuario

Haier

Haier HWS247FDU1 Manual de usuario

Haier

Haier HVC24B Manual de usuario

Haier

Haier HWS42GDAU1 Manual de usuario

Haier

Haier HVTS18 Manual de usuario

Haier

Haier JC-110GD Manual de usuario

Haier

Haier HVZ035AB Manual de usuario

Haier

Haier BC112G - 30 Bottles Wine Cooler Manual de usuario

Manuales populares de Enfriador de vino de otras marcas

U-Line

U-Line Echelon Wine Captain 2075WC Manual del propietario

Cavist

Cavist 62 Manual de usuario

Kenmore

Kenmore 461.99130 Manual de usuario

Miele

Miele KWT 6422 iG Manual de usuario

Danby

Danby DWC113BLSDB Manual de usuario

Caple

Caple Wi6128 Manual de usuario

Avanti

Avanti WC1001 Manual de usuario

Frigidaire

Frigidaire FFWC38F6LS Manual de usuario

Titan

Titan TT-W2454SZ Manual de instalación

Klarstein

Klarstein Botella 166 Uno Manual de usuario

Costway

Costway FP10130WL Manual de usuario

Lemair

Lemair LWC59 Manual de usuario

Caple

Caple WCi46B Manual de usuario

Climadiff

Climadiff CLI24 Guía rápida

Viking

Viking VCWB301LSS Manual de usuario

Caple

Caple WC6511 Manual de usuario

Vinvautz

Vinvautz VZ08BHK Manual de usuario

AVG

AVG PRYMO PMB76SS Manual de usuario
