Haier HVD042M Manual de usuario

What The World Comes Home To _

_er Manual° Model#

G_#d_ _ #'U_###sa_r _ Modele

Ma_# _# U$_r#_- ParaModelode

SAFETYPRECAUTIONS

Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use

and care guide.

2) This wine cooler must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

3) Never unplug your wine cooler by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or

abrasion damage along its length, the plug or the connector end.

5) Unplug your wine cooler before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

6) If your old wine cooler is not being used, we recommend that you remove

the door and leave the shelves in place. This will reduce the possibility

of danger to children.

7) This wine cooler should not be recessed or built-in an enclosed cabinet. It

is designed for freestanding installation only.

8) Do not operate your wine cooler in the presence of explosive fumes.

9) Do not store foods in wine cooler as interior temperature may not be cool

enough to prevent spoilage.

SAVETHESEINSTRUCTIONS

ForFutureReference

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!iiiiii

DANGER

Risk of child entrapment. Before you throw away your old

wine cooler, take off the doors. Leave the shelves in place so

that children may not easily climb inside.

As per UL 250 Standards

Thank you for using our Haler

product. This easy-to-use manual will

guide you in getting the best use of

your wine cooler.

Remember to record the model and

serial number. They are on a label in

back of the wine cooler,

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

PAGE

Safety Precautions .......................................................................... 1

Parts And Features .......................................................................... 4

Installing Your Wine Cooler .......................................................... 5

Unpacking Your Wine Cooler .................................................................. 5

Leveling Your Wine Cooler ...................................................................... 5

Proper Air Circulation ............................................................................ 5

Electrical Requirements ............................................................................ 6

Wine Cooler Features And Use .......................................................... 7

Initial Set Up .......................................................................................... 7

Temperature Adjustment .......................................................................... 7

Shelving ................................................................................................ 8

Normal Operating Sounds ...................................................................... 8

Proper Wine Cooler Care and Cleaning ...................................... 9

Cleaning and Maintenance .................................................................... 9

Power Interruptions .............................................................................. 10

Vacation and Moving Care .................................................................. 10

Troubleshooting .............................................................................. 11

Warranty Information .................................................................. 12

Located Rear of Unit

Bottom Right

1. Recessed Door Handle

2. Temperature Control (see insert)

3. Adjustable Leveling Legs (not shown)

4, Slide-Out Basket

5, Slide-Out Shelves

Unpacking Your Win÷ Coo er

1, Remove all packaging material, This includes the foam base and all

adhesive tape holding the wine cooler accessories inside and outside,

Slide out and remove plastic or foam guard used to secure the

compressor from shipping damage due to vibration and shock.

2, Inspect and remove any remains of packing, tape or printed

materials before powering on the wine cooler.

Z÷v÷Hng Your Wine Ooo ÷r

• Your wine cooler has four leveling legs which are located in the

front and rear corners of your wine cooler. After properly placing your

wine cooler in its final position, you can level your wine cooler.

• Leveling legs can be adjusted by turning them clockwise to raise your

wine cooler or by turning them counterclockwise to lower

your wine cooler, The wine cooler door will close easier when the

leveling legs are extended.

Proper Air Circulation

• To assure your wine cooler works at the maximum efficiency it

was designed for, you should install it in a location where there

is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the wine cooler:

Sides ............... 2 "(50mm)

Top .................... 2" (50mm)

Back .................. 2" (50mm)

• Do not over fill your wine cooler for proper internal air circulation,

Dectrica_ Requirement

Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)

with proper grounding to power the wine cooler.

Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet. This is a dangerous practice

since it provides no effective grounding for the wine cooler and may

result in shock hazard,

Limitations

Do not install your wine cooler in any location not properly insulated or

heated e.g. garage etc, Your wine cooler was not designed to operate

in temperature settings below 55 ° Fahrenheit.

• Select a suitable location for the wine cooler on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc, Any floor unevenness

should be corrected with the leveling legs located on the front and rear

bottom corners of the wine cooler.

• Your wine cooler is designed for free-standing installation only. It is not

designed for built-in application.

Initial Setup

• The control for this is on the back of the unit. There are 6 settings

plus 0 (OFF), Initially set the temperature setting to 3, Let the unit run for

at least 30 minutes to acclimate itself before making any adjustments,

T÷mperatur÷ Adjustment (Seer_g.# 1)

• Your wine cooler has a temperature control knob on the back of the

unit, There are 6 settings: 1 being the warmest and 6 being the coolest,

You can set the temperature of your wine cooler at any setting you

desire, The wine cooler is designed to maintain a temperature between

39°F to 65°F.

fig. # 1

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii

• The shelves are designed for flexibility and easy cleaning.

To accommodate different sized bottles the shelves slide out

and can be moved up or down into any of the tracks molded

into the cooler cabinet. Larger bottles or Magnums can be more easily

accommodated on the cross shelves of the bottom basket of the cooler,

You will notice that the shelves are designed so the bottles do

not line-up directly over one another. This allows free air

movement and provides more space.

Norma_ Op÷rating Sounds You May H÷ar

• Boiling water, gurgling sounds or slight vibrations that are the result of

the refrigerant circulating through the cooling coils,

• The thermostat control will click when it cycles on and off,

CMeaning and Maintenana÷

Warning: To avoid electric shock always unplug your

wine cooler before cleaning. Ignoring this warning

may result in death or injury.

Caution: Before using cleaning products, always read and

follow manufacturer's instructions and warnings to

avoid personal injury or product damage,

General:

• Prepare a cleaning solution of 3-4 tablespoons of

baking soda mixed with warm water. Use sponge or

soft cloth, dampened with the cleaning solution, to

wipe down your wine cooler.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia,

chlorine bleach,concentrated detergents, solvents or

metal scouring pads. SOME of these chemicals may

dissolve, damage and/or discolor your wine cooler.

Door Gaskets: Clean door gaskets every three months according to

general instructions, Gaskets must be kept clean and

pliable to assure a proper seal,

• Petroleum jelly applied lightly on the hinge side of

gaskets will keep the gasket pliable and assure a

good seal.

Tabla de contenidos

Idiomas:

Otros manuales de Enfriador de vino de Haier

Haier

Haier HVD060E-4S Manual de usuario

Haier

Haier AWCE50ARS Manual de usuario

Haier

Haier JC-160GD Manual de usuario

Haier

Haier JC-110GD Diagrama de cableado

Haier

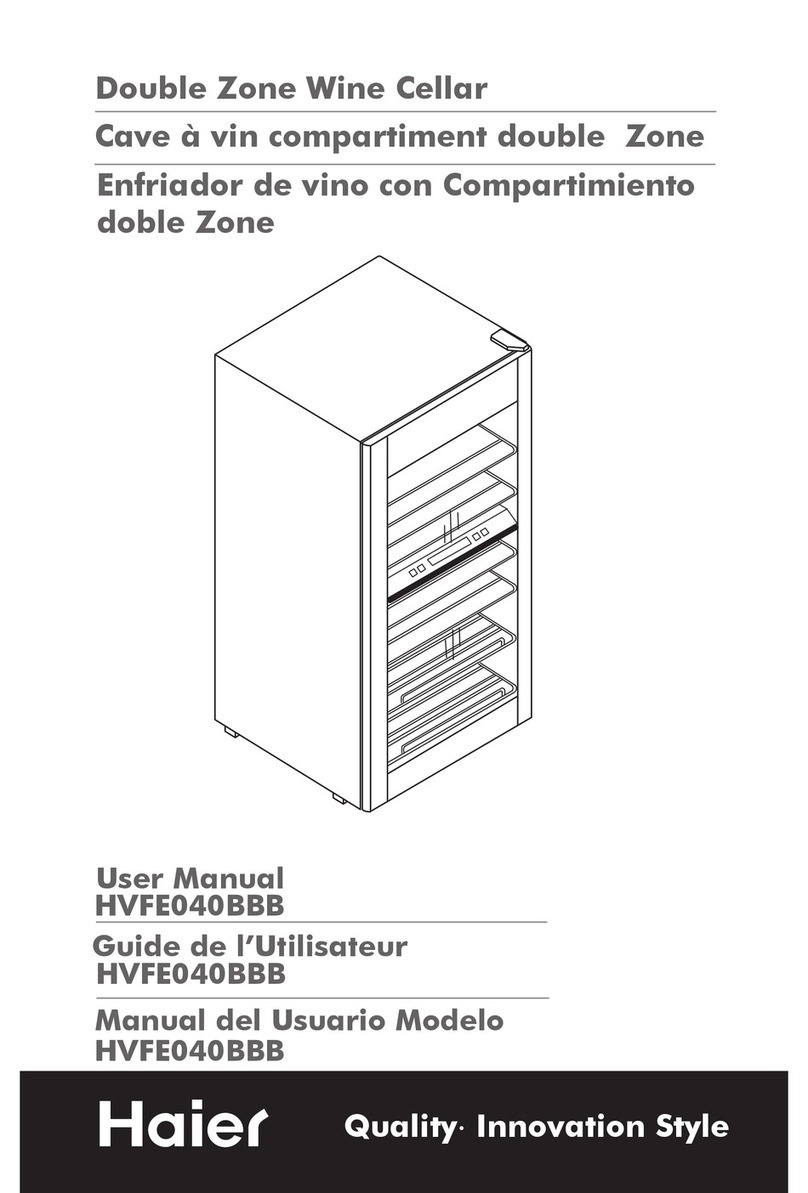

Haier HVFE040BBB Manual de usuario
