Haier RF-8888-395 Manual de usuario

HAIER

WINE COOLER

Service Manual

PART # RF-8888-395

HAIER AMERICA TRADING, LLC

www.haieramerica.com

ManualNo.:JC-A(A) Edition:20030108

JC-A(A)

Wine Cooler

Service Manual

●Features

●Optimized for Preservation of Wine Flavors.

●Temperature adjustable,electrical control .

●Temperature range:A-3～A+3℃(A=7～15).

●Interior lights.

●wine rack. Haier Group

HVF020ABB

HVF020ABL

HVF030ABB

HVF046ABB

HVF042ABL

HVFM020ABB

HVFM030ABB

１

CONTENTS

Contents

1. Contents…………………………………………………… ………….……. 1

2. Product Code illustration and Series Introduction…………………… . …2

3. Features ……………………………………………………………………...3

4. Specifications…………………………………………………………………4

5. Safety Precautions(including Warning and Cautions)…………………....5

6. Net Dimension……………………………………………………..………....7

7. Installation and Accessory Parts…………………… ……………..…….…8

8. Parts and Functions………………………………… ………….….………13

9. System Flow Chart………………………………………………....………14

10. Function Schedule…………………………………………….. …….…15

11. Circuit Diagram………………………………………………..….….….16

12. Maintenance Service and Trouble Shooting…………………..…..….17

13. Exlpoded View and List of Parts…………...………... ...……………20

２

PRODUCT CODE ILLUMINNATION AND SERIES INTRODUCTION

Product Code illustration and Series Introduction

HVF□□□AB□

A B C D E FG H

A:The abbreviation of “Haier”

B:Stands for the “wine”

C: The first letter of “Freezer”

D:If it is “M”,it stands for “Mechanical thermostat control” ;Or else “0” stands

for”macrocomputer control”.

E: The most of the bottles which may hold in the cabinet.

F:It means the first improvement of technology.

G:The color of the cabinet is Black.

H:”B” stands for the color of the door and the shelves are Black; “L” stands for the

the color of the door and the shelves are “Silver”.

Examples:

HVF020ABB

-It represents wine cooler with 20 bottles,controlled by Control

Panel,with the black cabinet,black door and black shelves.

HVFM20ABB

-It represents wine cooler with 20 bottles,controlled by mechanical

thermostat,with the black cabinet,black door and black shelves

３

FEATURES

Features

1. Optimized for Preservation of Wine Flavors

The wine cooler can be set to any temperature you desire to accommodate your

wine storage requirements.

2. Temperature adjustable.

The wine cooler can be set to any temperature you desire to accommodate your

wine storage requirements.

3. Temperature range:A-3～A+3℃(A=7～15).

4.Interior lights.

To complement the look of your wine collection, soft light has been built into the

wine cooler. Simply push the “Light/Set” button on the electronic controlled unit,

and the light comes on, push again for off. On the mechanical control units ,the

light switch is on the front for your convenience. For maximum energy efficiency,

leave light off when not viewing your collection.

5.wine rack.

The shelves are designed for flexibility and easy cleaning. To accommodate

different sized bottles the shelves slide out and can be moved up or down into

any of the tracks molded into the cooler cabinet. Larger bottles or Magnums can

be more easily accommodated on the cross shelves of the bottom basket of the

cooler, You will notice that the shelves are designed so the bottles do not line-up

directly over one another, This allows free air movement and provides more

space.

４

SPECIFICATIONS

Specifications

Model HVF020ABB/

HVFM20ABB

HVF030ABB/HV

FM30ABB/HVF0

42ABL

HVF046ABB/HV

F060ABL

Capacity(Cubic Feet) 2.9 4.0 5.37

Power Supply(V/Hz) 220-230V~/50Hz 220-230V~/50H

z 220-230V~/50Hz

Power

Consumption(kW.h/year) 251.9 270.1 288.3

Unit Dimersion(W*D*H) 506*550*780 506*550*980 506*550*1280

Unit Weight(Lbs.) 34 45 49

Box Dimensions(W*D*H) 586*616*810 586*616*1010 586*616*1310

Box Weight(Lbs) 37 50 54

Container Quantity(40HC’) 234 156 156

５

SAFETY PRECAUTIONS

Safety Precautions

Read all of the instructions before using this appliance. When using this

appliance ,always exercise basic safety precautions, including the

following:

1. Use this appliance only for its intended purpose as described in this use

and care guide.

2. This wine cooler must be properly installed in accordance with the

installation section. instructions before it is used ,See grounding

instructions in the installation section.

3. Never unplug your wine cooler by puling on the power cord, Always

grasp the plug firmly and pull straight out from the outlet.

4. Repair or replace immediately, all electric service cords that have

become frayed or otherwise damaged ,Do not sue a cord that shows

cracks or abrasion damage along its length, the plug or the connector

end.

5. Unplug your wine cooler before cleaning or before making any repairs,

Note: If for any reason this product requires service ,we strongly,

recommend that a certified technician performs the service.

6. If your old wine cooler is not being used, we recommend that you

remove the door and leave the shelves in place ,This will reduce the

possibility of danger to children.

7. This wine cooler should not be recessed or built-in an enclosed

６

SAFETY PRECAUTIONS

cabinet ,It is designed for freestanding installation only

8. Do not operate your wine cooler in the presence of explosive fumes.

9. Do not store foods in wine cooler as interior temperature may not be

cool enough to prevent spoilage.

７

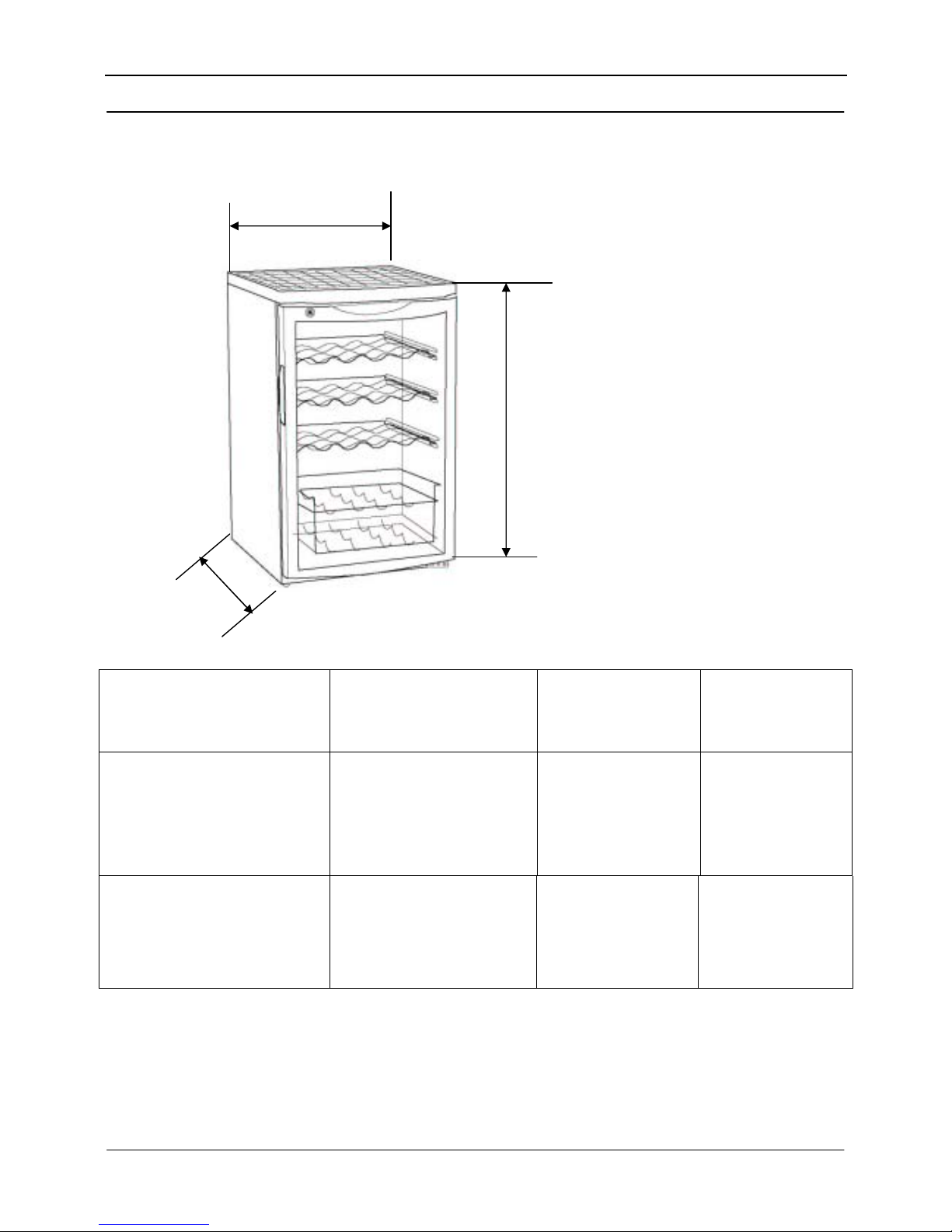

NET DIMENSION

Net Dimesion

Model HVF020ABB/

HVFM20ABB

HVF030ABB/HVF

M30ABB/HVF042

ABL

HVF046ABB/HV

F060ABL

Unit Dimersion(W*D*H) 506*550*780 506*550*980 506*550*1280

Dimersion

(Opening door:1350) 506*950*780 506*950*980 506*950*1280

８

INSTALLATION AND ACCESSORY PARTS

Unpacking Your Wine Cooler

1.Remove all packaging material, This includes the foam base and all adhesive

tape holding the wine cooler accessories inside and outside ,compressor from

shipping damage due to vibration and shock.

2.Inspect and remove any remains of packing ,tape or printed materials before

powering on the wine cooler.

Leveling Your Wine Cooler

Your wine cooler has four leveling legs which are located in the front and rear

Corners of your wine cooler . After properly placing your wine cooler in its final

position ,you can level your wine cooler.

Leveling cooler or by turning them clockwise to lower your wine cooler, The wine

cooler door will close easier when the leveling legs are extended.

Proper Air Circulation

zTo assure your wine cooler works at the maximum efficiency it was designed

for ,you should install it in a location where there is proper air

circulation ,plumbing and electrical connections.

zThe following are recommended clearances around the wine cooler:

Sides…………..2”(50mm)

Top ……….……2”(50mm)

Back…………..2”(50mm)

zDo not over fill your wine cooler for proper internal air circulation.
