TT-W2454SZ 24" Single Zone Single Door Wine Cooler
Table of Contents
Intro
Safety and Warning
Installation
1
2
Instructions Before Using
Important Safety Instructions2
4
5
6
7
8
9
10
11
12
13
14
Environmental Requirements
Electrical
Cutout Dimensions
Installation Clearance Requirements
Product Dimensions
Product Storage
Product Specifications
General Installation
Types of Installation
Handle&Shelf Installation
Shelf Installation
Door Swing Installation
Operation Instructions
Control Operation
Sounds
Defrosting
Maintenance
Cleaning
Troubleshooting
Warranty
15
15
19
19
20
22
23
USER GUIDE & SERVICE MANUAL
www.titan-appliances.com
1
Welcome To Titan Appliances
Congratulations on purchasing your Titan appliance! We at Titan offer quality products that compliment your
lifestyle. To learn more about our products please visit our website at www.titan-appliances.com.
This manual contains information on how to install, use and maintain your appliance to perform at its peak efficiency.
To safely transport your appliance in future, please save the original product packaging.
Before contacting customer service, please ensure that you have done the following:
Proof of Purchase:
For future reference, please write down the model number and serial number below.
Model Number:
Serial Number:
Date of Purchase:
Both the model number and the serial number are located on the product label on the back of your unit and are
needed for service under warranty. We suggest stapling your receipt to this manual as it serves as the proof of your
purchase and will be needed for service under your warranty.
Before contacting customer service, please ensure that you have done the following：
1. If the unit is damaged upon receipt, please contact the retailer or dealer that sold you the appliance right
away.
2. Please read this owner’s manual and follow the instructions and recommendations to properly install, operate
and maintain the unit.
3. Always refer to the trouble-shooting section of this owner’s manual as it contains valuable information and
suggestions on how to solve common issues.
4. For the latest information on this product and additional troubleshooting suggestions please visit our website
at www.titan-appliances.com
5. Should you need any help on the warranty service please contact our customer services at service@titan-
appliances.com
Contacts:
Titan Products, LLC
USER GUIDE
www.titan-appliances.com
Use this appliance for its intended purpose only and
follow these general precautions with those listed
throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning or Caution based on the risk types:
SAFETY AND WARNING
Instructions Before Using Your Appliance.
Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep
track of all included parts and pieces before discarding packaging materials. It is advised that you
keep the original box and packaging materials in case you are ever to move or ship the appliance in
the future.
Clean the interior surface with a clean soft cloth. Allow the unit to stand for at least 24 hours before
use; this allows the cooling system time to settle from transit.
This owner’s manual is provided for reference use only. Specifications may change without prior
notice. Refer to the product label on the back of your unit for the latest technical information.
Important Safety Instructions
Improper handling can cause serious damage to the Titan appliance and/or injury to the user. This
appliance is designed for domestic indoor use only. Use of the unit for industrial or commercial or any
other purposes will void the warranty.
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
USER GUIDE
www.titan-appliances.com
2

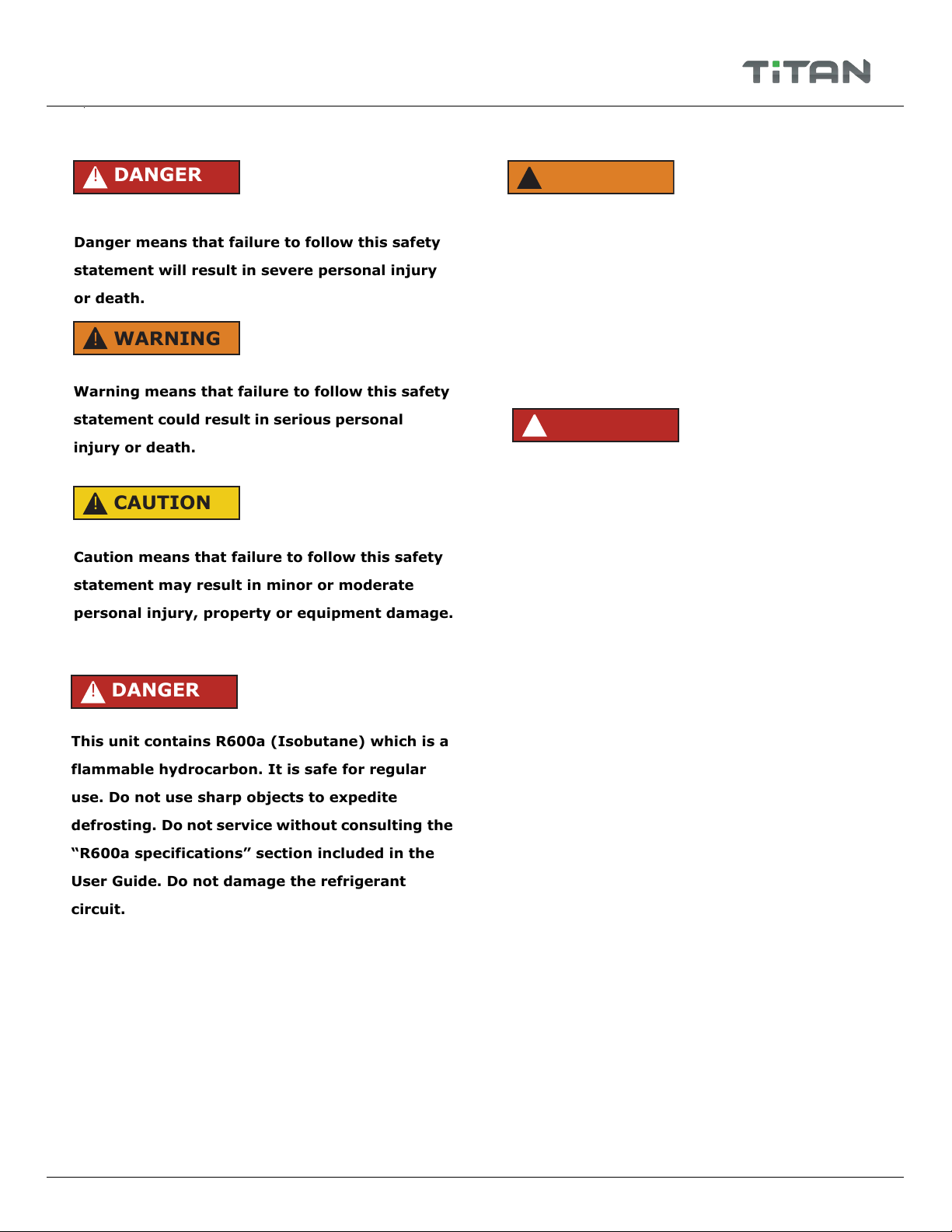

!DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury
or death.
!WARNING
Warning means that failure to follow this safety
statement could result in serious personal
injury or death.
!CAUTION
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
!DANGER
This unit contains R600a (Isobutane) which is a
flammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specifications” section included in the
User Guide. Do not damage the refrigerant
circuit.
!DANGER
RISK OF CHILD ENTRAPMENT. Before you
throw away your old refrigerator or freezer,
take off the doors and leave shelves in place so
children may not easily climb inside.
If the unit is being removed from service for
disposal, check and obey all federal, state and local
regulations regarding the disposal and recycling of
refrigeration appliances, and follow these steps
completely:
1.Remove all consumable contents from the unit.
2.Unplug the electrical cord from its socket.
3.Remove the door(s) and shelves(s).
USER GUIDE
www.titan-appliances.com
!WARNING
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
3
!CAUTION
Damages caused by ambient temperatures of 40°
F (4°C) or below are not covered by the warranty.
INSTALLATION
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F and 95°F.
Higher ambient temperatures may reduce the unit’s
ability to reach low temperatures and/or reduce ice
production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipments.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal and does not affect the
appliance's performance. The condensation will evaporate
when the humidity drops.
USER GUIDE
www.titan-appliances.com
4

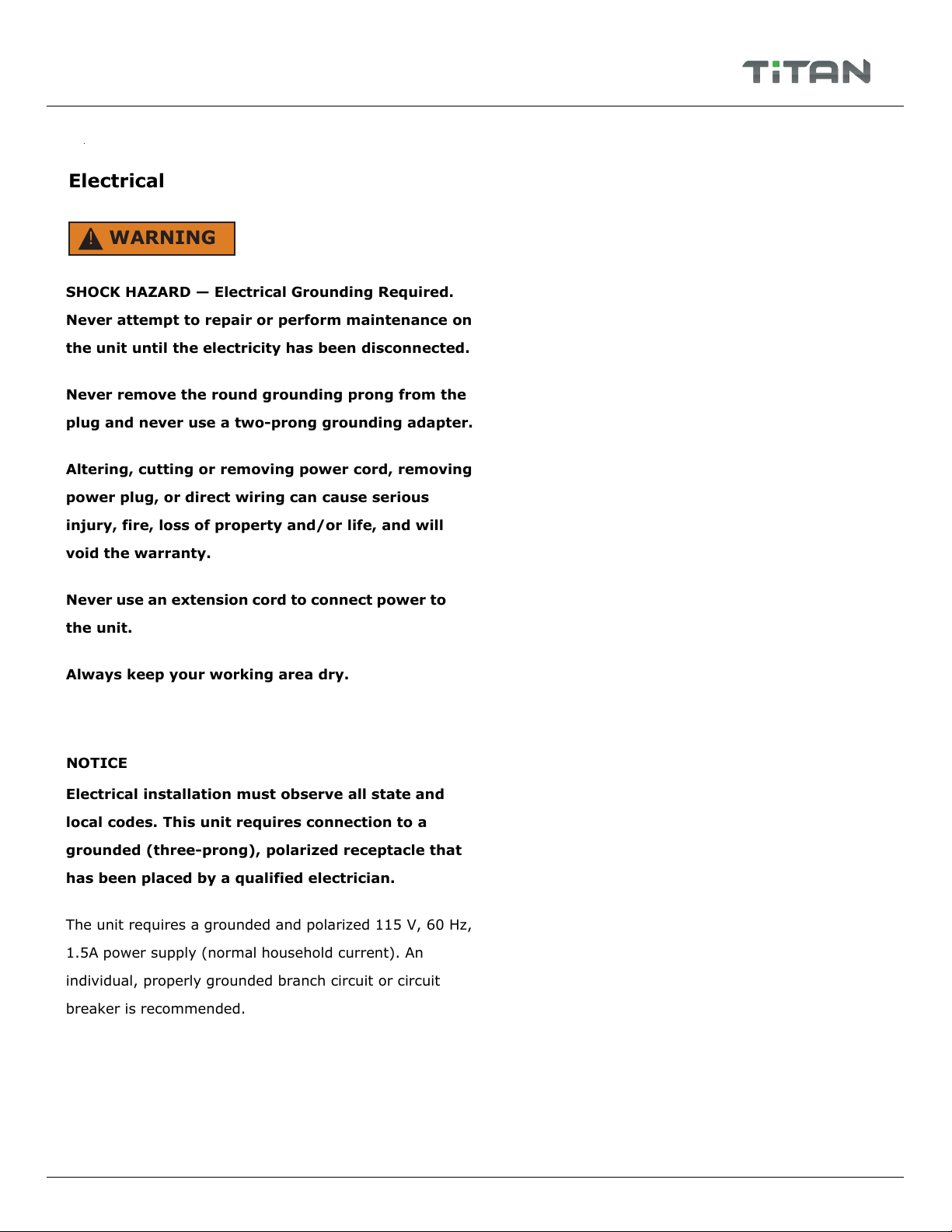

Electrical
!WARNING
SHOCK HAZARD — Electrical Grounding Required.
Never attempt to repair or perform maintenance on
the unit until the electricity has been disconnected.
Never remove the round grounding prong from the
plug and never use a two-prong grounding adapter.
Altering, cutting or removing power cord, removing
power plug, or direct wiring can cause serious
injury, fire, loss of property and/or life, and will
void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle that
has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 V, 60 Hz,
1.5A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended.
USER GUIDE
www.titan-appliances.com
5
!CAUTION
Unit can NOT be installed behind a closed cabinet
door.
When installing the cooler under a counter, follow the
recommended spacing dimensions shown.
•The cabinet should allow at least 24” for the width
and 34” for the height to accommodate the
beverage cooler.
•Once you are ready to install the unit, you must
adjust the feet to level the cooler.
Cutout Dimensions
PREPARE SITE
Your Titan product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
USER GUIDE
www.titan-appliances.com
6
34 Min"
24 Min"
⚫To ensure proper service access and ventilation, allow at least 2-3” of clearance at the back as shown in
the diagram.
⚫The installation should allow the unit to be pulled forward for servicing, if necessary.
⚫The power cable is located on the back right of the unit and has a length of 72” to accommodate multiple
outlet locations.
⚫An installation next to a wall will require a minimum 2-1/4" door clearance to accommodate the handle

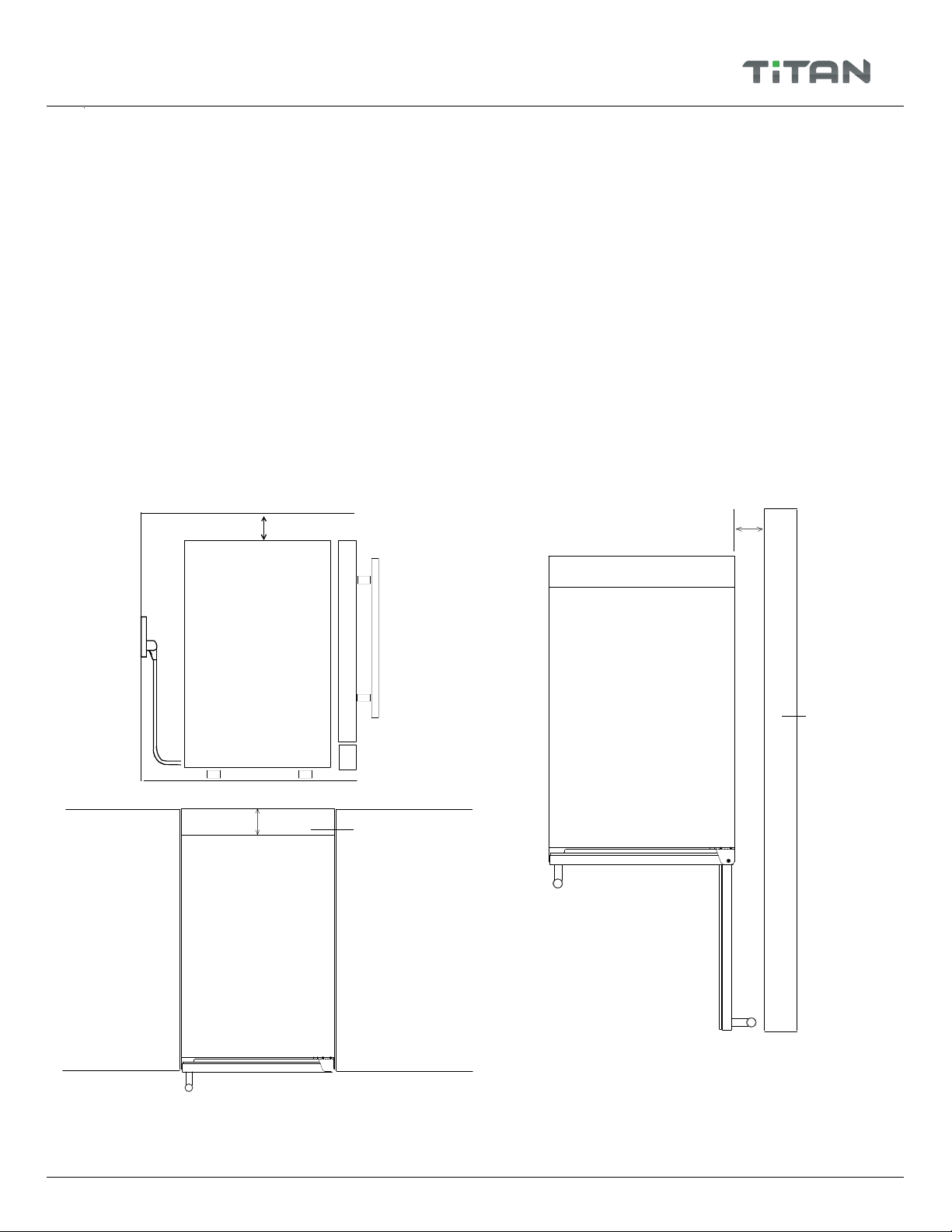

Installation Clearance Requirements
When installing the cooler under a counter, follow the recommended spacing dimensions shown.
Units have a zero clearance for the door to open 90°, when installed adjacent to cabinets.
2 1/4 Min"
Top View
2-3"
Top View
Wall
Side View
1/5"
Back of Unit
Cabinet
Cabinet
USER GUIDE
www.titan-appliances.com
7
