Gtech Pro2 Manual de usuario

OPERATING MANUALOPERATING MANUAL

Model number: ATF307

3977_Gtech_Pro_ATF307_Manual_aw.indd 13977_Gtech_Pro_ATF307_Manual_aw.indd 1 14/07/2020 09:5214/07/2020 09:52

What’s in the box

Extension tube (x2)

4Power ﬂoor head

Battery (ﬁtted)

Main unit (1 bag ﬁtted)

1Dusting brush

Spare bags

Charger

Crevice tool

Thank you for choosing Gtech

“I started Gtech to create sensible, easy to use products that do a great

job. Your opinion is important to us and we’ll use your feedback to

improve our products and services, and to let other people know what

it’s like to be part of the Gtech family.”

Nick Grey – Inventor, owner of Gtech

Hair removal tool

x1 scented

cartridge

(ﬁtted to lid)

3977_Gtech_Pro_ATF307_Manual_aw.indd 43977_Gtech_Pro_ATF307_Manual_aw.indd 4 14/07/2020 09:5214/07/2020 09:52

Tool conﬁgurations

3977_Gtech_Pro_ATF307_Manual_aw.indd 53977_Gtech_Pro_ATF307_Manual_aw.indd 5 14/07/2020 09:5214/07/2020 09:52

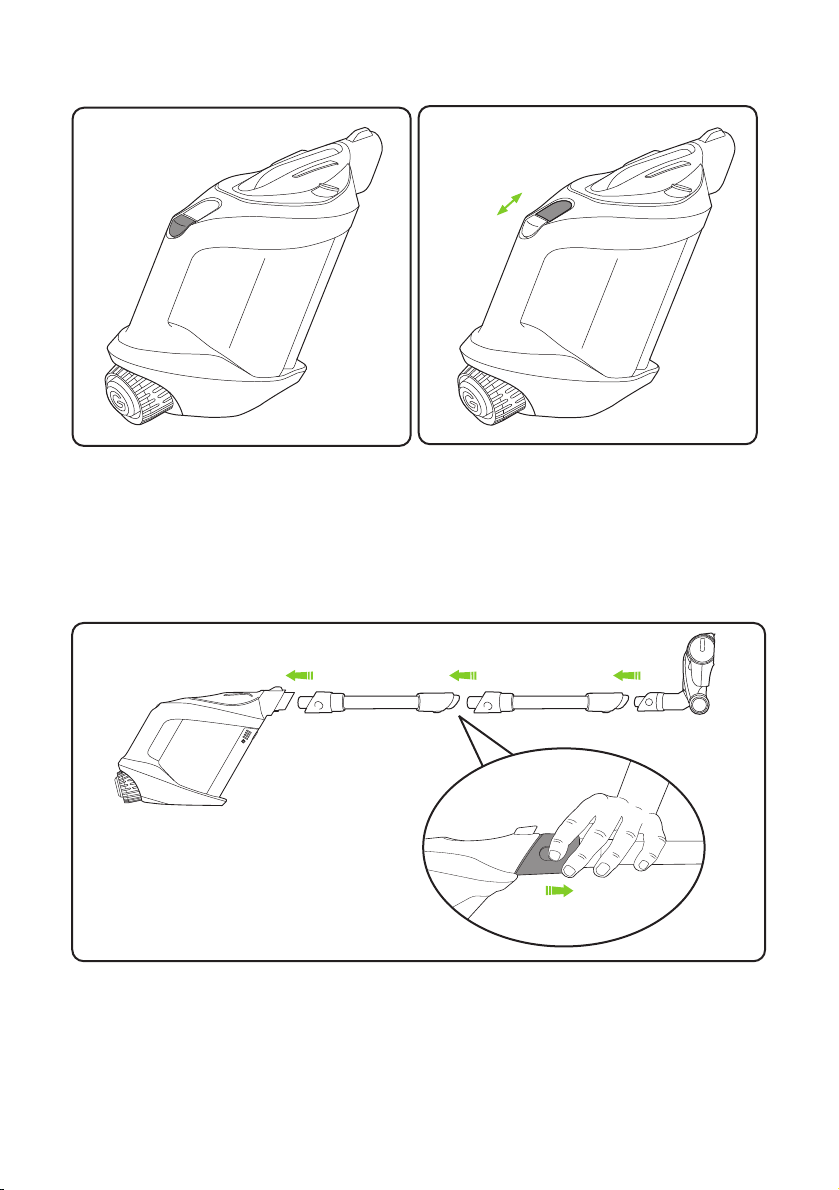

Power ﬂoor head assembly

To use the product in ﬂoor cleaning mode, join the 2 sections of the extension tube and ﬁt the

power ﬂoor head at the end. Ensure all parts are correctly lined up and push them into place.

Ensure the product is switched oﬀ before removing or ﬁtting attachments.

To disassemble, place your ﬁngers in the indents of the tube, grip and pull the sections apart.

Disassembly:

Assembly:

Operation

Press the large button above the handle to turn

the product on and oﬀ.

The product has 2 power settings: Max mode

(higher suction power and shorter runtime) and

Eco mode (lower suction power and longer

runtime). Change modes by sliding the switch

located in front of the On/Oﬀ button. The

product will turn on in the mode it was last

used.

Eco

Max

3977_Gtech_Pro_ATF307_Manual_aw.indd 63977_Gtech_Pro_ATF307_Manual_aw.indd 6 14/07/2020 09:5214/07/2020 09:52

Removing and cleaning the brush bar

Before you remove the brush bar, you will

need to remove the power ﬂoor head from

the extension tube. Rotate the latch on the

side of the powered ﬂoor head to the ‘unlock’

position and pull out the brush bar.

A forward motion will pick up

larger pieces of debris.

Pulling the vacuum back

towards you activates the

AirLOC and picks up

ﬁner particles.

Place your foot gently on the

head of the vacuum and pull

the body back towards you.

You will hear a click.

To remove hair from the brush bar, use the

hair removal tool to cut the hair before pulling

it out. Never operate the power ﬂoor head

without the brush bar in place.

3977_Gtech_Pro_ATF307_Manual_aw.indd 73977_Gtech_Pro_ATF307_Manual_aw.indd 7 14/07/2020 09:5314/07/2020 09:53

State of charge

LED headlight

The battery state of charge indicator shows

how much charge the product has. As you use

the product, the green lights will turn oﬀ in a

downwards direction.

There is a headlight on top of the product to

illuminate the area being cleaned.

While the battery is on charge, the LEDs will

pulsate and illuminate in turn. When the battery is

fully charged, all of the LEDs will be solid green.

100% - 75% 74% - 50%

49% - 25% 24% - 1%

Above the ﬂoor cleaning

For above the ﬂoor cleaning, you can ﬁt the

crevice tool or dusting brush for reachable areas

or ﬁt the extension tube with an accessory for

high up cleaning

3977_Gtech_Pro_ATF307_Manual_aw.indd 83977_Gtech_Pro_ATF307_Manual_aw.indd 8 14/07/2020 09:5314/07/2020 09:53

Plug the charger in and connect it to the

charging port on the side of the battery.

Battery charging

Aer 4 hours, all 4 LEDs will show solid green

and charging is complete.

You can also charge the product for 1 hour for

a burst of cleaning.

When a single green light ﬂashes, recharge

the battery.

hours

hour

boost

3977_Gtech_Pro_ATF307_Manual_aw.indd 93977_Gtech_Pro_ATF307_Manual_aw.indd 9 14/07/2020 09:5314/07/2020 09:53

Pull the latch at the top of the battery to remove.

To replace the battery, slot it into the front of

the product from the bottom ﬁrst, with the

latch facing outwards.

The battery can be charged on or oﬀ the main

unit.

Push the battery into the slot until it clicks into

place. If you want to buy a spare battery, go to

www.gtech.co.uk or call 08081 685 028.

Removing the battery

Reﬁtting the battery

3977_Gtech_Pro_ATF307_Manual_aw.indd 103977_Gtech_Pro_ATF307_Manual_aw.indd 10 14/07/2020 09:5314/07/2020 09:53

Bag installation

Remove the lid by pulling gently upwards. Fit the bag collar onto the tube underneath

the lid and push it up ﬁrmly.

New bags have a tendency to sit ﬂat when ﬁrst

attached. Pull the bag down to sit vertically.

To get maximum eﬃciency from the bag, it is

important to expand the bag before insertion.

Do not use the vacuum without a bag: it

may damage the motor and will invalidate

your warranty.

3977_Gtech_Pro_ATF307_Manual_aw.indd 113977_Gtech_Pro_ATF307_Manual_aw.indd 11 14/07/2020 09:5314/07/2020 09:53

Bag removal

Once the bag is attached and straightened,

place the lid back onto the main body, making

sure the bag cap is also inserted.

Carefully remove the bag from the product lid

to avoid squashing contents. Insert the bag

cap to secure contents.

When the bag is full, li the lid and remove it

from the product with bag attached.

Dispose of the bag and replace with a new one.

(You can get more bags at www.gtech.co.uk or

by calling 08081 685 028).

Do not reuse bags as this could damage and

reduce the performance of the product.

3977_Gtech_Pro_ATF307_Manual_aw.indd 123977_Gtech_Pro_ATF307_Manual_aw.indd 12 14/07/2020 09:5314/07/2020 09:53
