OPERATING MANUAL

Lithium Power Sweeper

Model number: SW22

Thank you for choosing a Gtech Power Sweeper

“I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is

important to us. Please take the time to write a review of the Sweeper either on the website of

the store you bought it from or by emailing us at support@greytechnology.co.uk. We will use

your feedback to improve our products and services and let other people know what it’s like to

be part of the Gtech family.” Nick Grey – Inventor, Owner of Gtech

www.gtech.co.uk/warrantyregistration or call 08000 518353

Keep your receipt with this manual. You will need it if you ever have a warranty claim.

What’s in

the box

Sweeper

Upper Handle

Telescopic Handle Tubes

Lower Handle

Fast Charge Stand

Duster

Duster clip

The three parts of the telescopic handle

also click into place. The duster can be

clipped onto the back of the handle.

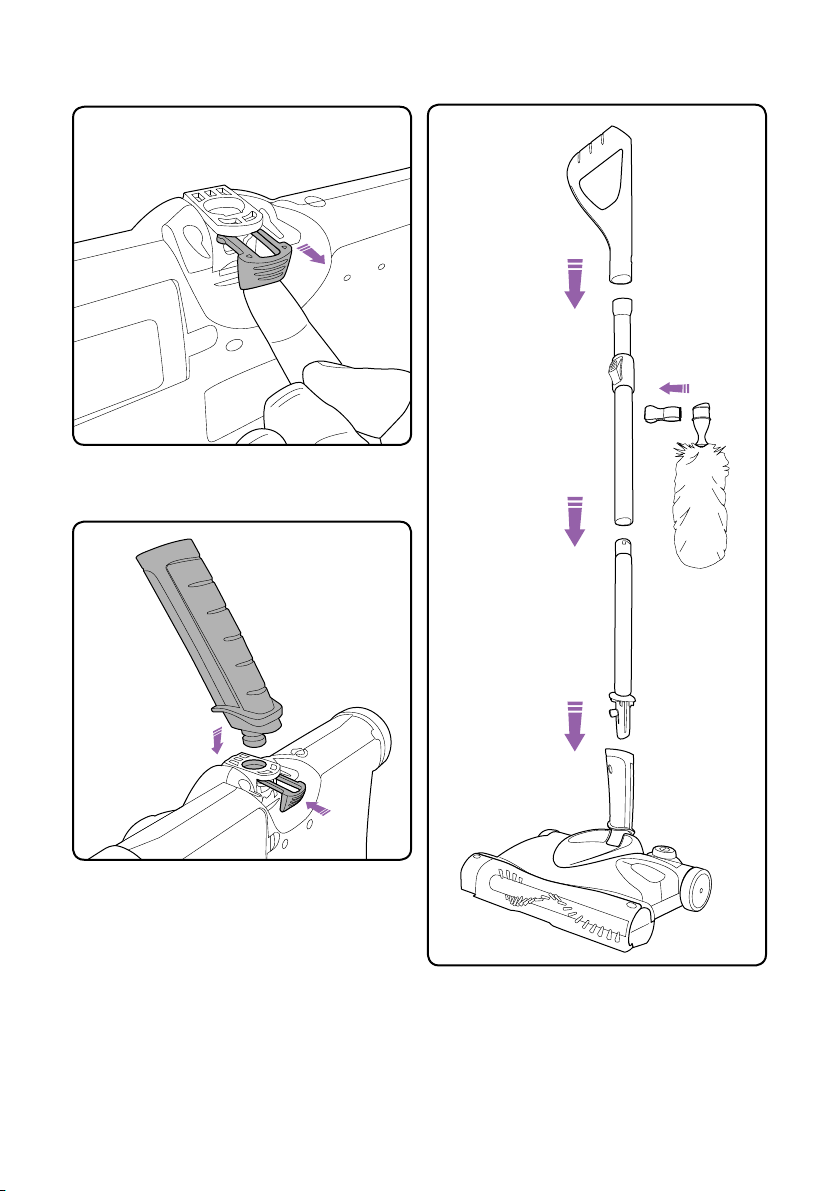

Assembly

Place the lower handle into the socket.

Push the locking clip back into place.

Push handle forward.

To assemble the lower handle

Pull out the locking clip.

Pull back the handle and press the “on”

button with your foot. When running, the

light shows green for a full charge, orange

for 20% charge and red for 10%. When

the sweeper needs recharging the light will

ash red and the sweeper will stop.

Remove the dust tray by pinching the

window slightly and pulling it out.

Normal operation

Push at over the oor.

Deeper cleaning

Lift the handle to lower the

brush bar into the carpet.

Tip the dirt into the bin. If you need to you

can wipe the tray clean with a dry cloth.

Operation

Emptying the bin

Remove the telescopic handle by pressing

the button at the front of the lower handle

and pulling the tube out.

The telescopic handle can now be

attached to the duster.

Remove the visor by unclipping the bottom

outer edges at the same time then lifting off.

Push lower handle fully forward.

Use on stairs, starting at the top and

front of each step then moving down and

towards you.

Removing telescopic handle and using duster

Handheld use and stair cleaning

Recharging

From time to time you may need to remove

hair and thread from the brush bar. Take off

visor and use a pair of scissors to remove

the hair.

Try to avoid carrying the sweeper ‘nose

down’ as you risk spilling dirt from the

dust tray.

Plug in the charge stand

and lower the sweeper onto it so that the

terminals connect at the back.

Clearing the brush bar Carrying

The 3 colour LED shows red when

charging starts, yellow when partially

charged and green when fully charged.

This will only take around 3 hours.

Product Care

Troubleshooting

Your Gtech sweeper doesn’t need much maintenance: empty the dust tray, remove hair

and bre from the brush bar and edge wheel and charge the battery. Wipe it with a dry

cloth if it gets dirty, including in and around the bin. Never wash it with liquid or run it

under a tap. Avoid cleaning over rug tassels or frayed carpets as this will tangle the brush

bar. The battery, drive belt, brush bar and side brush are all replaceable items.

If you nd you ever need to replace these items there is an FAQ section on our website at

www.gtech.co.uk

Sweeper is not cleaning well 1. Empty the bin.

2. Remove any build-up of hair from

brush bar and edge wheel.

Sweeper has stopped

or won’t work

1. Fully recharge for 3 hours.

If this doesn’t solve your problem don’t worry, we will help.

Go to www.gtech.co.uk or call 01905 345 891

The ecocharge stand has an efcient standby function to top up the battery when

needed. If not being used the product can be left on the charging stand so it will always

be fully charged until it is needed for use.

The symbol indicates that this product

is covered by legislation for waste electrical

and electronic products (EN2002/96/EC)

When the sweeper has reached the end of

its life, it and the Li-ion battery it contains

should not be disposed of with general

household waste. The battery should be

removed from the sweeper and both should

then be disposed of properly at a recognised

recycling facility.

Call your local council, civic amenity site,

or recycling centre for information on the

disposal and recycling of electrical products.

Alternatively visit

www.recycle-more.co.uk

for advice on recycling and to nd your

nearest recycling facilities.

WARNING: Only use the charger supplied

with the product.

Using another charger may damage the

product and the battery and will invalidate

your guarantee.

FOR HOUSEHOLD USE ONLY

SW22 TECHNICAL SPECIFICATION

Unit operating cycle

with full battery

up to 120 mins

(dependent on oor surface)

Battery type Lithium-ion

Battery voltage 7.4V

Charging period for fully

discharged battery

3 hours

Battery charger output 10V DC, 1000mA

Battery charger model GTECH-100100

Sound Level 75db (A)

Weight 1.4kg
