OPERATING MANUAL
Model number:
AR29
4092_AR29_UK_manual_aw.indd 14092_AR29_UK_manual_aw.indd 1 10/02/2020 14:3010/02/2020 14:30
4
Make a note of your product serial number code for future reference. You can find this on
the underside of item
_ - _ _ - _ _ _ ~
_ _ _ _ _ ~
_ _ _ _ ~
_ _ ~ _ _ _ _ _ _ _
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
1
What’s in the box
Thank you for choosing a Gtech AirRAM
“I started Gtech to create sensible, easy to use products that do a great
job. Your opinion is important to us and we’ll use your feedback to
improve our products and services, and to let other people know what
it’s like to be part of the Gtech family.”
Nick Grey – Inventor, owner of Gtech
2
11
3
4
5
5
6
7
Head full assembly
Lower Handle
X 2 components
Upper Handle
X 2 components
Battery
Charger
Bin
Filter
4
2
7
(Filter, battery and bin
are already in place)
6
3
4092_AR29_UK_manual_aw.indd 44092_AR29_UK_manual_aw.indd 4 10/02/2020 14:3010/02/2020 14:30
5
Ensure the lower handle is sitting completely
flush against the yoke. Then push the green
locking clip into the back of the head.
Assembly
To attach the lower handle to the head
assembly, insert the metal pin on the lower
handle into the hole located on the pivot yoke.
Make sure the green locking clip is unlocked to
allow the lower handle to fit.
Fit the two components of the Upper Handle
together in the orientation shown in the image
above. They will only fit together one way.
The components will click into place and will
remain permanently fixed.
Fit the two components of the lower handle
together in the orientation shown in the image
above. They will only fit together one way.
The components will click into place and will
remain permanently fixed.
4092_AR29_UK_manual_aw.indd 54092_AR29_UK_manual_aw.indd 5 10/02/2020 14:3010/02/2020 14:30
6
To stow or extend the upper handle simply
press the button on the lower handle to
unlock the upper handle.
The upper handle will now slide up or down
depending on required position.
The green locking clip, when correctly fitted,
will click and hold the lower handle in place.
Should the handle assembly need to be
removed the clip can be pulled out to unlock
the lower handle.
The green locking clip remains permanently
attached to the head assembly.
Assembly (continued)
Storage
Insert the upper handle into the lower handle.
You will need to press the button on the upper
handle to fit it in.
Once it slides down you will hear it click into
place.
The upper handle can be set in two positions:
Lowered for storage and raised for use. To
lower the handle, release the upper button.
To raise the handle from the stored position,
release the lower button.
Upper Button
Lower Button
4092_AR29_UK_manual_aw.indd 64092_AR29_UK_manual_aw.indd 6 10/02/2020 14:3010/02/2020 14:30
7
Operation
Without pressing the power button, place
your foot on the le side of the AirRAM head
and pull the handle back.
Press the power button with your foot to turn
the AirRAM on.
The power button is located on the le hand
side of the AirRAM head assembly.
4092_AR29_UK_manual_aw.indd 74092_AR29_UK_manual_aw.indd 7 10/02/2020 14:3010/02/2020 14:30
When the state of charge indicator starts to
flash one green LED, recharge the battery.
Plug the charger into the mains and connect it
to the battery. Switch on at the mains.
The battery can be charged from flat in 4
hours. The state of charge indicator will show
4 solid green lights when it is charged. It is
OK to charge for 1 hour for a burst of cleaning.
Replace the battery by sliding it down into the
head assembly. It will click into place.
The battery can be charged whilst it’s in the
AirRAM, or when it’s off the product.
To remove the battery, squeeze the latch
underneath and pull upwards.
Battery charging
8
4
hours
4092_AR29_UK_manual_aw.indd 84092_AR29_UK_manual_aw.indd 8 10/02/2020 14:3010/02/2020 14:30
9

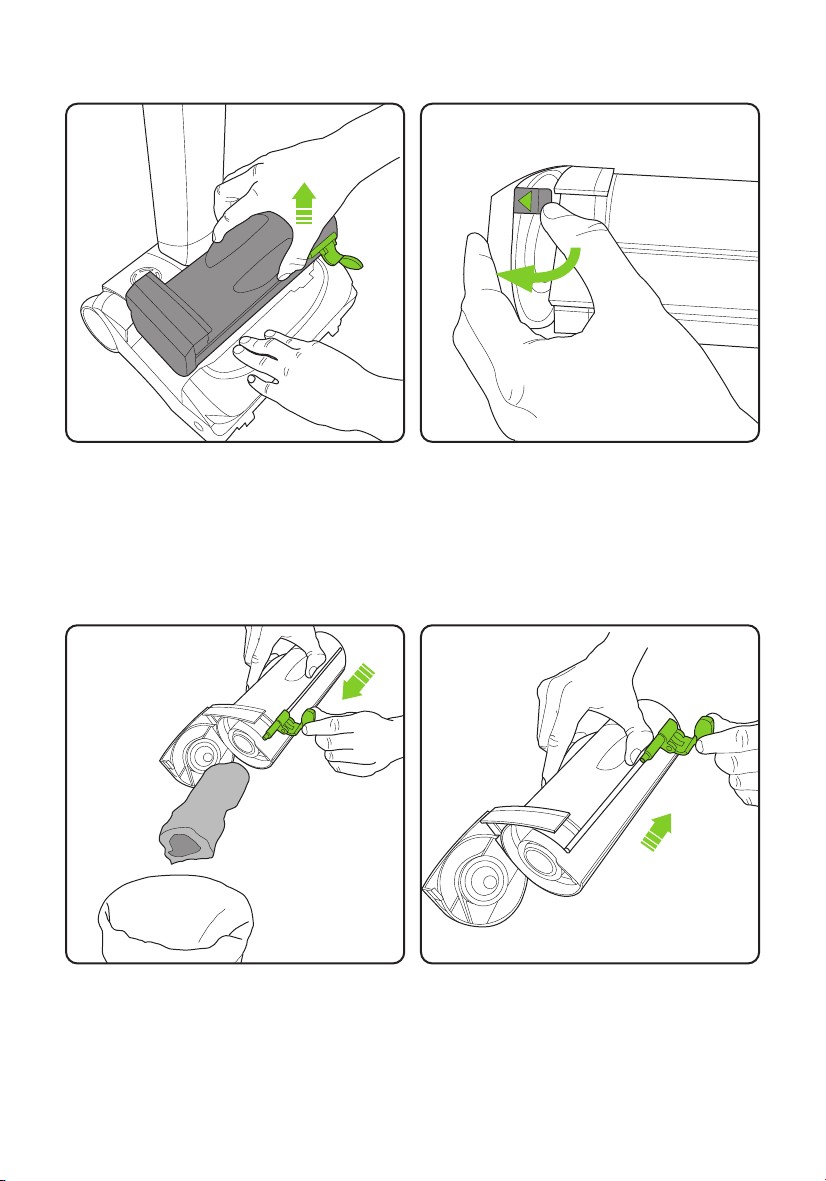

Holding onto the AirRAM with one hand, pull
the bin handle and li the bin out of
the AirRAM.
Hold the AirRAM’s bin over a rubbish bin
and push the green lever towards the lid to
empty the dirt.
Pull the green lever back towards the bottom
of the bin. Close the bin lid and reinsert the bin
into the AirRAM.
Li and release the latch marked with the green
arrow to pull open the lid.
Emptying the bin
4092_AR29_UK_manual_aw.indd 94092_AR29_UK_manual_aw.indd 9 10/02/2020 14:3010/02/2020 14:30
10
Holding onto the AirRAM with one hand, pull
the bin handle and li the bin out of
the AirRAM.
Remove the filter from the inner shroud,
by twisting and pulling.
Tap the inner shroud over a bin to remove any
excess dirt.
Wash the filter under a tap. Squeeze out any
excess water then let it dry completely before
reinserting into the AirRAM. Recommended
water temperature 40°C. Do not use
detergent or soaps. Never put bin back
without filter inside. You could damage
the motor.
Pull the filter out of the filter housing.
Tap the dirt from the filter and tip any
dirt from the filter housing.
Wash the filter if necessary.
Cleaning the filters - do this once a month or more frequently depending on use.
4092_AR29_UK_manual_aw.indd 104092_AR29_UK_manual_aw.indd 10 10/02/2020 14:3010/02/2020 14:30
11
Slide the filter onto the inner shroud. Slide the filter and inner shroud into the filter
housing.
If the brush bar jams during use, the AirRAM
will stop and the LEDs will appear red. Before
checking for a blockage, remove the battery.
Rest the AirRAM on its side and locate
the brush bar button on the right hand side.
Press the button inwards and then pull
the brush bar out from the bottom of
the AirRAM.
Replacing the filters
Removing and cleaning the brush bar
4092_AR29_UK_manual_aw.indd 114092_AR29_UK_manual_aw.indd 11 10/02/2020 14:3010/02/2020 14:30
12
The brush bar can now be removed, starting at
the button end.
To remove hair from the brush bar, run an
open pair of scissors down the groove to cut
the hair, then pull it out.
Re-insert the brush bar, starting by the end
furthest away from the button. Then line up
and push the brush bar into the AirRAM until it
clicks into place.
Replace the battery by sliding it down into the
head assembly.
It will click into place.
4092_AR29_UK_manual_aw.indd 124092_AR29_UK_manual_aw.indd 12 10/02/2020 14:3010/02/2020 14:30
