EDIUS SP Series

Outstanding Real-Time Editing System

for Analog, DV, and HDV

KEY FEATURES

The Grass Valley™EDIUS®SP Series

system supports the real-time editing of

all popular standard-deﬁnition (SD) and

high-deﬁnition (HD) formats, including

Canopus®HQ, Canopus Lossless,

DV, DVCAM, HDV, MPEG-2, and

uncompressed video.

Outstanding Real-Time Editing for

Analog, DV and HDV

The EDIUS SP Series solution is a

software/hardware system that is the

most advanced professional nonlinear

editing system in its class, one that

seamlessly integrates into existing

studio environments.

On the software side, the system uses

EDIUS nonlinear editing software to

deliver true real-time editing and full-

quality, full-resolution output of HD and

SD materials—as well as multi-track,

mixed-format editing, compositing,

chroma keying, titling, and timeline

output capabilities. In addition to the

standard formats of the EDIUS family,

the software supports Inﬁnity™JPEG

2000, P2, DVCPRO HD, AVC-Intra,

VariCam, XDCAM, and GFCAM video. It

also supports all DV and HDV cameras

and decks.

On the hardware side, the EDIUS

SP Series system features hardware-

based video overlay and high-quality

video I/O circuitry. It interfaces with

professional and consumer video

equipment including HDV, DV, and

all analog cameras and decks. And it

supports professional video equipment

with component video and XLR balanced

audio I/O, as well as frame-accurate

RS-422 VTR control and external

reference sync input connections.

A 19-inch 1 RU breakout box is also

available as an option (sold separately).

Ready For HD When You Are

With EDIUS nonlinear editing software,

you can move from SD to HD whenever

you’re ready. It can edit DV content in

HD resolutions, providing automatic,

real-time upscale conversion from SD to

HD—and apply all project titles, graphics,

and effects in HD resolution. Ensuring

a painless transition to the world of HD,

you can work in and output HDV content

to hard disks or DVD-R drives without

the need for an HDV camera or deck.

Real-time, mixed-format editing of•

analog, DV, HDV, and SD-SDI input/

output for connectivity with a broad

range of devices, and real-time

monitoring from the EDIUS editing

software (included)

Real-time SD/HD resolution, aspect•

ratio, and frame-rate conversion

and output, including 16:9 to 4:3 and

NTSC to PAL

Real-time HD/SD effects, keyers,•

transitions, and titles

High-quality proprietary software•

codecs, including award-winning

Canopus HQ software codec

Extensive analog and digital video•

equipment inputs/outputs, including

RS-422 control and external reference

sync input

Hardware-based line scaling for•

pristine HD video output

Real-time, full-resolution, full-quality•

component HD and SD video output

Filtering and noise-reduction•

technology for analog input

High-speed HDV timeline export,•

built for multi-core and multi-CPU

technology

Supports newer ﬁle-based formats,•

including Inﬁnity JPEG 2000, XDCAM

and XDCAM EX, P2 (DVCPRO and

AVC-Intra), and GFCAM

Bi-directional analog/DV conversion•

from any Windows NLE

Compatible with Windows XP and•

Windows Vista operating systems

PRODUCT DATA SHEET

desktop.grassvalley.com

Player/Recorder Monitor View

Player side controls capture and source

trimming. Recorder side controls

timeline operation and trimming.

Jog/Shuttle Control

Jog/shuttle control via slider, mouse

scroll-wheel, or mouse motion.

Unlimited Video, Audio, and TitleTracks

Edit with unlimited video, audio, and title tracks.

Real-Time Color Correction

Use real-time color correction with

an interactive split-screen display and

secondary controls. Stack multiple ﬁlters

for even greater control.

Keyframeable Color Correction

Color correction ﬁlters are keyframeable

for precise, subtle changes over time.

Unsurpassed Image Quality and Performance

EDIUS software features the revolutionary Canopus HQ codec. Designed

with scalable technology, this innovative codec offers the highest

image quality and performance available in any HD editing platform. The

Canopus HQ codec not only provides superior luma and chroma sampling

of HD video, but features an adjustable bit rate for increased video

quality when capturing and encoding on high-performance systems.

PRODUCT DATA SHEET

Flexible Bin Structure

Organize, search, and manage assets

with folders and dynamic search results.

Real-Time Audio Mixer and

Waveform/Vectorscope

Use the real-time audio mixer for audio

adjustments and the real-time waveform/

vectorscope to ensure legal output.

Superior Integration forTapeless Workﬂows

EDIUS software provides excellent support for today’s tapeless

digital workﬂows including those that use Grass Valley K2

media server/media client systems, as well as Panasonic P2

and VariCam, Sony XDCAM, Ikegami GigaFlash, and popular

direct-to-edit (DTE) devices. It doesn’t matter whether assets

come from tape, disk, network, or a mixture of them all, with

EDIUS software, you spend less time worrying—and less time

editing, too.

Tapeless Workﬂow Support

Support for tapeless workﬂows with

metadata preservation for modern

ﬁle-based production.

GPU-Accelerated 3DTransitions

Harness the power of your graphics card to create

real-time, stunning quality transition effects in SD and

HD , featuring uniquely native YUV 4:2:2 processing for

improved image quality and performance. Using the

GPU as an additional, parallel source of computation

means that the CPU does not become a bottleneck.

PRODUCT DATA SHEET

To ﬁnd your local reseller or dealer for Grass Valley professional audio

video products, please visit professional.grassvalley.com/sales/.

DEAlERS/RESEllERS

1-year (hardware) and 90-day (software) limited warranties with service

provided through local resellers. Additional support available on a

contractual basis.

SERvIcE & SUPPoRT

PCI-X Version:

EDIUS SP (SHX-E1) PCI-X bus card•

HD/SD component output PCI bus•

card

1 x FireWire (IEEE 1394) cable (4-pin•

to 4-pin)

1 x multi-I/O cable•

1 x 6-pin connector cable for HD•

component card

1 x 4-pin internal video connector•

cable

1 x 4-pin internal audio connector•

cable

EDIUS installation (DVD-ROM)•

EDIUS bonus disk (DVD-ROM)•

TitleMotion Pro installation disk•

(CD-ROM)

USB security dongle•

EDIUS QuickStart guide•

EDIUS hardware setting guide•

PCI-e Version:

EDIUS SP (SHX-E2) PCI Express x1•

bus card

HD/SD component output PCI bus•

card

SDI I/O bracket and cables (SP-SDI•

version only)

1 x FireWire (IEEE 1394) cable (4-pin•

to 4-pin)

1 x multi-I/O cable•

1 x 6-pin connector cable for HD•

component card

1 x 4-pin internal video connector•

cable

1 x 4-pin internal audio connector•

cable

EDIUS installation (DVD-ROM)•

EDIUS bonus disk (DVD-ROM)•

TitleMotion Pro installation disk•

(CD-ROM)

USB security dongle•

EDIUS QuickStart guide•

EDIUS hardware setting guide•

SPEcIFIcATIonS

PAcKAgE conTEnTS

Video Capture Formats

Canopus DV: 720x480/59.94i (NTSC),•

720x576/50i (PAL)

YUY2 (uncompressed):•

720x486/59.94i (NTSC), 720x576/50i

(PAL)

Canopus Lossless: 720x486/59.94i•

(NTSC), 720x576/50i (PAL)

HDV/Canopus HQ: 1080/59.94i,•

1080/50i, 1080/30p, 1080/25p,

1080/24p, 720/30p, 720/25p,

720/24p, 720x480/60p, 720x576/25p,

720x576/50p

Canopus HD: 1280x1080/59.94i,•

1280x1080/60i, 1280x1080/50i,

1280x720/59.94p, 1280x720/50p

Video Output Formats

DV/DVCAM: 720x480/59.94i (NTSC),•

720x576/50i (PAL)

HDV: 1080/59.94i, 1080/50i,•

1080/30p, 1080/25p, 1080/24p,

720/30p, 720/25p, 720/24p,

720x480/60p, 720x576/25p,

720x576/50p

S-Video, composite: 720x480/59.94i•

(NTSC), 720x576/50i (PAL)

BNC component: 1080/59.94i (NTSC),•

1080/50i (PAL), 720x480/59.94i

(NTSC), 720x576/50i (PAL)

Digital Video I/O

1 x 4-pin FireWire (IEEE 1394)•

1 x SDI (BNC) input (SP-SDI only)•

2 x SDI (BNC) output (SP-SDI only)•

Analog Video Input

1 x component (BNC Y, Pb, Pr)•

1 x S-Video (4-pin miniDIN)•

1 x composite (BNC)•

1 x ref input (BNC)•

Analog Video Output

2 x component (BNC Y, Pb, Pr)•

1 x S-Video (4-pin miniDIN)•

1 x composite (BNC)•

Analog Audio Input

2 x XLR-3-31 female (1-gnd 2-hot•

3-cold, balanced)

1 x stereo (RCA, unbalanced)•

Analog Audio Output

2 x XLR-3-32 male (1-gnd 2-hot•

3-cold, balanced)

2 x stereo (RCA) (unbalanced)•

Device Control

9-pin D-sub RS-422A•

FireWire (IEEE 1394)•

Options

19-inch 1 RU breakout box

Minimum System Requirements

EDIUS SP-SDI is capable of editing SD

and HD content in real time. However,

the system requirements for real-time

HD editing are significantly higher than

for SD editing. The PC components

listed here assume a real-time HD editor

requirement.

Dual Intel Xeon 2.8 GHz processors•

or faster

1 GB RAM•

800 MB free disk space•

DVD-ROM drive for software•

installation

ATA100/7200 RPM or faster hard•

disk, capable of sustaining at least

20 MB/s data transfer. A RAID stripe

set of two or more hard disk drives

is required for multiple HD stream

output

Graphics card with at least 128 MB•

of video RAM and hardware-based

DirectDraw overlay and 32-bit color

display at a 1024x768 resolution

Windows XP Home or Windows XP•

Professional (Service Pack 2 or later)

DirectX 9.0 or later•

One free USB (1.1 or higher) port for•

security key

Sound card•

PCI-X Version:

One free PCI 64-bit/66 MHz slot (rev.•

2.2)*

One free PCI 64-bit or 32-bit/66 MHz•

slot (rev. 2.2)

PCI-e Version:

One free PCIe x1 slot•

One free PCI 64-bit or 32-bit/66 MHz•

slot (rev. 2.2)

* The EDIUS SP-SDI baseboard can also be

used in a 32-bit PCI slot for editing in SD

resolution; however, in this conﬁguration,

HD hardware acceleration and HD

component output will be disabled.

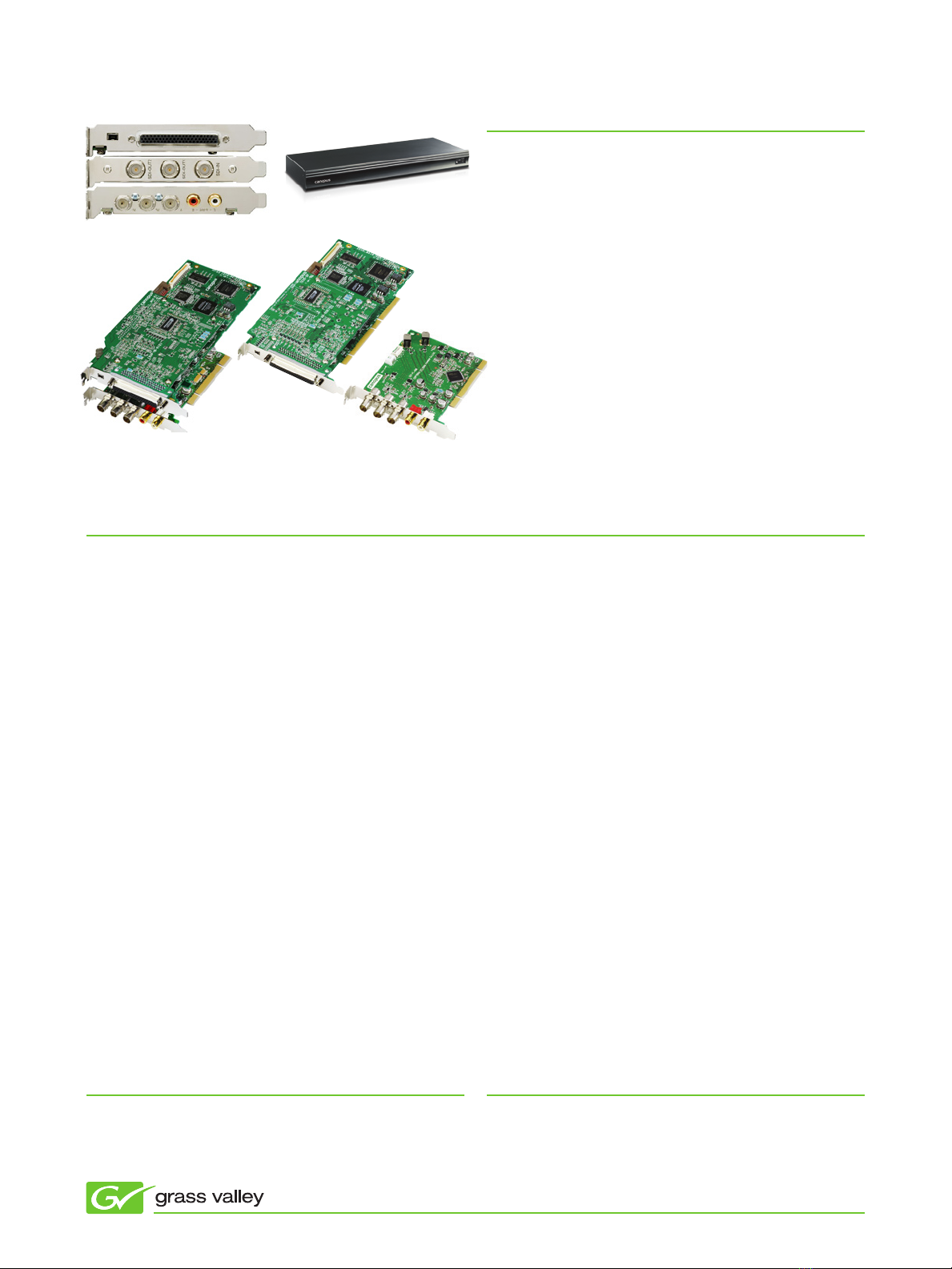

PCI-e Version (showing main

board and HD component output

board in a stacked orientation)

PCI-X Version (showing main

board and HD component

output board in a side-by-sde

orientation)

GVBB Holdings S.a.r.l. All other tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. Speciﬁcations

subject to change without notice. PRV-4017D-4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de GRASS VALLEY

GRASS VALLEY

GRASS VALLEY K2 DYNO PA - V1.5 Manual de usuario

GRASS VALLEY

GRASS VALLEY MAESTRO 1.5 RELEASE NOTES Manual de instrucciones

GRASS VALLEY

GRASS VALLEY EDIUS EDIT STATION - DATASHEET 2 Manual de usuario

GRASS VALLEY

GRASS VALLEY AURORA BROWSE 7 Manual de usuario

GRASS VALLEY

GRASS VALLEY MAESTRO 1.4 RELEASE NOTES Manual de instrucciones

GRASS VALLEY

GRASS VALLEY T2 Instrucciones generales

GRASS VALLEY

GRASS VALLEY EDIUS 6 Manual de instrucciones

GRASS VALLEY

GRASS VALLEY EDIUS 6 Manual de usuario

GRASS VALLEY

GRASS VALLEY KAYENNE - S V3.0 Manual de instrucciones

GRASS VALLEY

GRASS VALLEY AURORA PLAYOUT 7 Manual de usuario

GRASS VALLEY

GRASS VALLEY AURORA INGEST 7 Manual de usuario

GRASS VALLEY

GRASS VALLEY GV BROWSE - V2.0 Manual de usuario

GRASS VALLEY

GRASS VALLEY AURORA EDIT - INSTALLATION V7.1 Manual de usuario

GRASS VALLEY

GRASS VALLEY Aurora Edit Security Instrucciones de instalación y funcionamiento

GRASS VALLEY

GRASS VALLEY HDSTORM Manual de usuario

GRASS VALLEY

GRASS VALLEY GECKOFLEX Manual de usuario

GRASS VALLEY

GRASS VALLEY KAYAK HD-SD Manual de usuario

GRASS VALLEY

GRASS VALLEY K2 BASECAMP EXPRESS Manual de usuario

GRASS VALLEY

GRASS VALLEY EDIUS 6 Manual de instrucciones

GRASS VALLEY

GRASS VALLEY MEDIAEDGE-SWT4 Manual de usuario

GRASS VALLEY

GRASS VALLEY EDIUS Instrucciones de instalación y funcionamiento

GRASS VALLEY

GRASS VALLEY EDIUS 4 LICENSE MANAGER - APPLICATION NOTE... Instrucciones de instalación y funcionamiento

GRASS VALLEY

GRASS VALLEY 8947RDA-D-FR - V1.3.1 Manual de usuario

GRASS VALLEY

GRASS VALLEY JUPITER VSD Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario
