PRODUCT DATA SHEET

www.grassvalley.com

K2 Summit

Production Client

K 2 M ULT I - F OR M AT M ED I A CL IE N T

W I TH U P TO 4 H D/S D BI - D IR EC T IO N AL

CHANNELS

The K2 Summit Production Client

is optimized for a broad range of

production and broadcast applications.

K2 Summit is the only server that

supports end-to-end SD/HD workﬂows

in DVCPRO, MPEG-2, and AVC-Intra

formats.

KEY FEATURES

The K2 Summit™Production Client is a

major enhancement to the K2 family.

It is optimized for production and live

event workﬂows as well as broadcast

applications. Teamed with the K2 Dyno™

replay controller, it offers an ideal

solution for live events such as sports,

concerts, and any application that

requires quick access to recorded media.

As with all K2 media clients, you can

conﬁgure a K2 Summit as part of a SAN

solution comprised of multiple media

clients, K2 media server, and K2 RAID

storage—or deploy a standalone client

with internal or external storage and

built-in server for use in a distributed

environment. Both the SAN and

standalone systems are optimized to

work in a ﬁle-based environment.

K2 Platform – Overview

The K2 platform is comprised of one or

more K2 media clients connected to one

or more K2 media servers and K2 RAID-

protected storage. The K2 media client

performs all video and audio I/O using

built-in encoders and decoders. You

can attach more than 100 media client

channels to the K2 media servers and

RAID system.

For its part, the K2 media server

manages the ﬁle system and controls

ﬁle transfer protocol (FTP) operations. K2

storage offers options for internal drives

or external RAID systems that can scale

to more than 50 terabytes.

K2 Summit Production Client

The K2 Summit Production Client

is a 2 RU platform with redundant

hot-swappable power supplies, and

redundant Ethernet ports. It includes

an Embedded OS that runs off of a

CompactFlash system drive providing

fast and reliable operation. To provide a

cost-effective design with no single point

of failure, each K2 Summit SAN client

offers two iSCSI or Fibre Channel ports

to provide a backup data path in case of

a failure.

To this architecture we’ve added our

Emmy®Award-winning core video

technology. Each channel is built around

a high-performance RISC processor, an

embedded real-time operating system,

and performs video/audio processing in

the robust and secure manner needed

for a 24/7, frame-accurate environment.

K2 Production Features

The K2 Summit Production Client has

been speciﬁcally designed for the

needs of live event productions such as

sporting events where instant replays

need to be available immediately at the

push of a button.

All channels are bi-directional and can

easily and quickly switch between record

and play.

Two- or four-channel conﬁgurations:•

SD: DV, IMX, and MPEG-2 I-Frame &—

Long GOP

HD: DV, XDCAM HD, XDCAM EX,—

MPEG-2 I-Frame & Long GOP, and

AVC-Intra

Play different formats back-to-back:•

SD and HD clips—

720p/1080i—

DV/MPEG/AVC-Intra—

Instant replay capability•

ChannelFlex• ™-compatible with

AppCenterElite:

Multicam mode—

Super SloMo mode—

3D mode—

Video + key mode—

HD/SD-SDI monitor output with•

timecode burn-in and custom text

overlays

Multiviewer monitor mode with•

custom text overlays

iSCSI or Fibre Channel connection to•

K2-SAN shared storage

Built-in mix effects on each channel:•

Video dissolves and audio cross—

fades supported via APIs and

AppCenterPro playlist

Fast boot times with embedded OS•

on CompactFlash

Up to 8 internal hard disk drives or•

solid state drives (SSD)

Import/export all formats as MXF•

OP1a, SMPTE 360M (GXF), or

QuickTime

File system enables edit-in-place of•

QuickTime ﬁles

™

NOW WITH

PRODUCT DATA SHEET

www.grassvalley.com

ChannelFlex-Compatible

ChannelFlex*1 doubles K2 Summit’s

capability from four bi-directional channels

to application-speciﬁc conﬁgurations

equivalent to eight channels:

Record up to 8 camera feeds•

Record up to two 2X/3X super slo-mo•

cameras

Record up to four 3D cameras or•

video+key pairs

Play up to four 3D ﬁles or video+key•

pairs

Flexible Monitoring Options

With the built-in VGA multiviewer*2,

all four channels can be monitored in

normal mode or up to eight channels

when ChannelFlex*1 is in operation. An

SDI monitor output is available with

timecode burn-in for each channel.

A user-deﬁnable text overlay option*2 is

available for both monitor displays that

enables various information such as

channel/clip name, transport controls, play

speed, audio meters etc. to be displayed

in any location with various text sizes and

colors.

Built-in Mix Effects

For generating quick highlight packages,

often all that is required is simple

dissolves or fades between two clips.

Each channel has this capability built-in

(most servers require two channels to

do a mix effect). An integrated mixer

dissolves between two clips or to a

matte color. The color and transition

times are user-deﬁnable.

Multiple Format Capabilities

The K2 Summit Production Client is the

only server that provides agile codecs

enabling playback of SD or HD content

seamlessly on the same timeline with

any supported format (DV/DVCPRO,

MPEG-2, or AVC-Intra). It automatically

up-, down-, or crossconverts a clip to

the desired output resolution providing

full support for all SD and HD formats.

The K2 Summit Production Client also

supports the industry AFD standard for

aspect ratio conversion. As a result,

you only need to store a single-format

version of a clip in order to play it out in

the appropriate SD or HD format.

Advanced Video Playback Features

The K2 Summit Production Client

features smooth, high-quality, bi-

directional, slow-motion playback, and

enhanced jog/shuttle control for all

formats including MPEG-2 Long GOP.

Playback trails recording by a fraction

of a second so replay is virtually

instantaneous*2. Slo-mo playback and

freeze frames are jitter-free at even the

slowest speeds due to the use of line

interpolation technology.

*1 – requires AppCenterElite

*2 – requires AppCenterPro

Internal multiviewer output on VGA provides a quad split display of the

all channels in real time (Requires optional AppCenterPro).

Automatic upconversion and downconversion, user-deﬁnable•

aspect ratio conversion, and closed caption preservation

Conﬁgurable as SAN or standalone solution•

ANC data preserved and full AFD processing•

Standard redundant power supplies, cooling, and Ethernet•

ports

Embedded operating system on ﬂash memory•

Scales from two to four channels to more than one hundred•

channels in a SAN conﬁguration

Open-system design enables interoperability with other•

devices via standard protocols

Full multi-channel audio support – 16 SDI audio tracks per•

video channel (32 audio tracks per clip on disk)

Remote SNMP monitoring via NetCentral• ™SNMP-based

facility-monitoring software

Security options enable protection from accidental on-air•

channel mistakes

K2 SUMMIT PRODUCTION CLIENT STANDARD FEATURES

The K2 Dyno replay controller is a

powerful and cost-effective system to

address sports replay and other live

events. The K2 Dyno controller offers a

highly intuitive control panel and user

interface, high-quality T-bar and jog knob,

touchscreen display, and the ability to

attach an optional VGA monitor for dual-

screen operation. All of the advanced

features of the K2 Summit Production

Client are available through the K2 Dyno

control panel including the built-in mix

effects on each of the four channels,

smooth slo-mo playback, and instant

replay at the push of a button.

The K2 Dyno application has been

optimized for a typical live event

workﬂow and includes:

Pre-production features for easy setup•

and import of previous highlights,

material, setups, and graphics

On-air features for instant replay,•

highlights (shotbox) creation with

metadata, and playlist package with

mix effects

Post-production features for quick•

“melt” and take-away on a standard

USB disk for editing

K2 SUMMIT AND K2 DYNO REPLAY SYSTEM

PRODUCT DATA SHEET

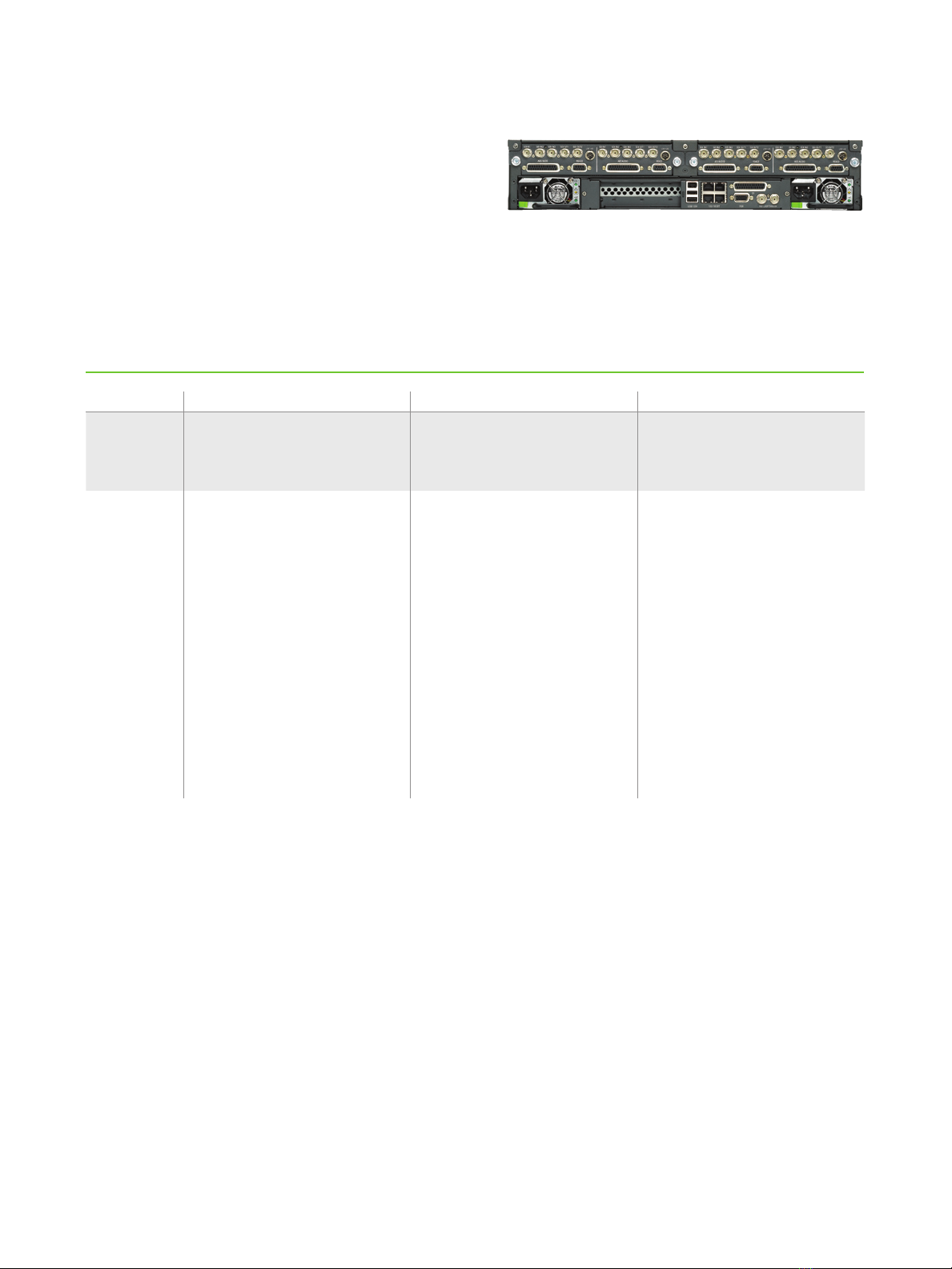

Rear View – K2 Summit Production Client

SPECIFICATIONS

Description

2 or 4 SD/HD channels•

All channels are bi-directional•

Video Channels

2 or 4 bi-directional HD/SD-SDI•

record/play channels

BNC, 75Ω•

SD SDI: SMPTE 259M, ITU-R601,•

525/625 line component, 10-bit

HD-SDI: SMPTE 292M, 10-bit•

ChannelFlex Modes (with

AppCenter Elite)

Multicam (up to 4 channels)•

Super slo-mo (1 or 2 channels)•

3D (up to 4 channels)•

Video+key (up to 4 channels)•

Monitor Modes

SDI monitor out with timecode burn-in•

VGA multiviewer (AppCenterPro)•

Definable text overlay for above•

displays including channel name,

clip name, transport status, play

speed, audio meters, and other status

(AppCenterPro)

Video Playback Output

Any supported format can be played•

seamlessly back-to-back

Output can be delayed at pixel•

resolution within a range of one frame

Freeze mode – frame or field•

Off-speed play – line interpolation•

provides jitter free slow-motion

playback in both directions

Video Mix Effects (w/AppCenterPro)

Dissolves between two video tracks•

on same channel

Fade up/down to matte color (default•

is black)

Max duration per transition –•

user selectable

Up/Down/Crossconversion and

Aspect Ratio

525• ↔1080i, 525↔720p, 625↔1080i,

625↔720p

720p• ↔1080i crossconversion

AFD support for 4:3-16:9 aspect ratio•

conversion with format specified

on a channel basis with clip by clip

override capability

Bar, half-bar, crop and stretch options•

configurable via UI, AMP protocol or

K2.net (native protocol)

E-to-E Mode

Less than one frame delay•

No re-timing applied•

Audio

Record or play up to 16 tracks•

per channel

32 audio tracks per clip stored on disk•

Embedded Audio Tracks (per video

channel)

16 tracks embedded

Discrete AES/EBU Audio Tracks (per

video channel)

8 input and 8 output tracks (4 AES•

pairs) audio

DB25 pin connector (optional) –•

Yamaha AES D-sub pinout (CD8AES

& MY8AE)

Audio Speciﬁcations

Input: 48 kHz, 16-, or 24-bit digital•

audio PCM

Sample rate conversion on inputs•

(32 kHz to 96 kHz) to 48 kHz

Output: 48 kHz clock derived from•

video reference, 16- or 24-bit

Compliant with SD-SMPTE 259M,•

HD-SMPTE 292M

Compressed audio types: AC-3 and•

Dolby E pass-through

Audio delay adjustable ±200 ms•

relative to output video

Speciﬁcation K2-XDP K2-XDP-xxx-AVC K2-XDP-xxx-MPG

Channels 2 or 4 independent bi-directional channels:

• Record DV

• Play DV and MPEG-2

• Any channel can be any format

2 or 4 independent bi-directional channels:

• Record DV and AVC-Intra

• Play DV, AVC-Intra and MPEG-2

• Any channel can be any format

2 or 4 independent bi-directional channels:

• Record DV and MPEG-2

• Play DV and MPEG-2

• Any channel can be any format

Formats SD:

• DV, DVCAM, DV25, DV50

• MPEG-2@ML 4:2:0, I-Frame & Long GOP,

2-15 Mb/s

• MPEG-2@ML 4:2:2, I-Frame & Long GOP,

4-50 Mb/s

• D10/IMX30/40/50

HD:

• MPEG-2@HL 4:2:0, I-Frame & Long GOP,

12-80 Mb/s

• MPEG-2@HL 4:2:2, I-Frame & Long GOP,

20-100 Mb/s

• XDCAM HD (18, 25, 35 Mb/s)

• XDCAM HD 4:2:2 (50 Mb/s)

• HDV playout

• XDCAM EX

SD:

• DV, DVCAM, DV25, DV50

• MPEG-2@ML 4:2:0, I-Frame & Long GOP,

2-15 Mb/s

• MPEG-2 @ ML 4:2:2, I-Frame & Long GOP,

4-50 Mb/s

• D10/IMX30/40/50

HD:

• MPEG-2@HL 4:2:0, I-Frame & Long GOP,

12-80 Mb/s

• MPEG-2@HL 4:2:2, I-Frame & Long GOP,

20-100 Mb/s

• XDCAM HD (18, 25, 35 Mb/s)

• XDCAM HD 4:2:2 (50 Mb/s)

• HDV playout

• XDCAM EX

• AVC-Intra 50/100

SD:

• DV, DVCAM, DV25, DV50

• MPEG-2@ML 4:2:0, I-Frame & Long GOP,

2-15 Mb/s

• MPEG-2 @ ML 4:2:2, I-Frame & Long GOP,

4-50 Mb/s

• D10/IMX30/40/50

HD:

• MPEG-2@HL 4:2:0, I-Frame & Long GOP,

12-80 Mb/s

• MPEG-2@HL 4:2:2, I-Frame & Long GOP,

20-100 Mb/s

• XDCAM HD (18, 25, 35 Mb/s)

• XDCAM HD 4:2:2 (50 Mb/s)

• HDV playout

• XDCAM EX

Audio and Closed Caption/Teletext Multilingual Support

Each video channel has up to 8 AES/EBU or 16 embedded channels

of PCM or compressed audio. For easy track management, each

audio track can be identiﬁed with a language descriptor*2.

Additional audio features include scrub audio up to 2X, audio

meters for each channel, an internal audio delay capability, and

the ability to adjust levels during recording or playback. It also

performs an audio ramp down/ramp up between clips to eliminate

audio clicks and/or pops.

Additional audio tracks can be imported into a clip*2 to easily

add additional languages. In addition multiple closed captions or

teletext ﬁles can be imported from third-party captioning editors

for additional language support.

*2 – requires AppCenterPro

PRODUCT DATA SHEET

Our customer support and services offerings ensure optimal system performance and maximize uptime. These services include call centers staffed around the clock, commissioning,

professional training courses, and technical maintenance programs and service agreements.

www.grassvalley.com/support

CUSTOMER SUPPORT & SERVICES

ORDERING INFORMATION

K2-XDP-2SD/K2-XDP-4SD

2/4 SD channels with DV25/50 &

MPEG-2 SD playout and DV25/50 record

K2-XDP-2HD/K2-XDP-4HD

2/4 SD/HD channels with DV25/50,

DVCPRO HD & MPEG-2 SD/HD playout

and DV25/50, DVCPRO HD record

K2-XDP-2SD-MPEG/

K2-XDP-4SD-MPEG

2/4 SD channels with DV25/50 & MPEG-

2 SD playout and record

K2-XDP-2HD-MPEG/

K2-XDP-4HD-MPEG

2/4 SD/HD channels with DV25/50,

DVCPRO HD & MPEG-2 SD/HD playout

and record

K2-XDP-2HD-AVCI/

K2-XDP-4HD-AVCI

2/4 SD/HD channels with DV25/50,

DVCPRO HD & AVC-Intra playout and

record

Options

K2-XDP-80600R0

Eight 600 GB 15K SAS drives for internal

storage configured as 8 data and no

parity drives

K2-XDP-80600R1

Eight 600 GB 15K SAS drives for internal

storage configured as 4 data and 4 parity

drives

K2-XDP-8045R0

Eight 450 GB 15K SAS drives for internal

storage configured as 8 data drives

K2-XDP-80450R1

Eight 450 GB 15K SAS drives for internal

storage configured as 4 data and 4 parity

K2-APP-PRO

K2 AppCenterPro for advanced features

K2-APPCENTER-ELITE

Adds ChannelFlex capability

K2-XDP-AES-CABLES

AES DB25 to XLR break-out cables (2).

Each cable provides 8 input and 8 output

AES XLR connectors for one channel

K2-XDP-SSD2200R0

Two 200 GB SSD drives configured as

RAID-0 for internal storage

K2-XDP-SSD4200R0

Four 200 GB SSD drives configured as

RAID-0 for internal storage

K2-XDP-SSD8200R0

Eight 200 GB SSD drives configured as

RAID-0 for internal storage

K2-XDP-SSD8200R1

Eight 200 GB SSD drives configured as

RAID-1 for internal storage

Other upgrade kits, spare parts, external

storage, SAN configurations, and service

options are available.

SPECIFICATIONS (CONT.)

Audio Special Features

Scrub audio support (±2X)•

Audio click elimination•

Agile playback of clips with different•

supported audio formats

Audio tagging and audio mapping•

(with K2 AppCenterPro)

Audio mix effects (PCM only):•

Cross fade between tracks—

Fade up/down—

Power Requirements

Dual redundant 500W maximum,•

300W typical

Auto-sensing, hot-swap•

100-240VAC, 50-60 Hz•

Dimensions

Height: 9 cm (3.5 in.) – 2 RU•

Width: 44.5 cm (17.5 in.)•

Depth: 61.6 cm (24.3 in.)•

Weight: 24 kg (52.9 lbs.) maximum•

Environmental Characteristics

Operating temperature: 10° to +40°C•

(50° to 104°F)

Non-operating temperature:-40° to•

+60°C (-40° to 140°F)

Operating relative humidity: 20% to•

80% from -5° to +45°C (23° to 113°F)

Non-operating relative humidity: 10%•

to 80% from -30° to +60°C (-22° to

140°F)

Redundancy

Redundant power supplies (hot-swap)•

Redundant cooling•

GPI

12 in, 12 out – 25-pin D connector (DB25)

Reference Genlock

NTSC/PAL black composite analog•

Two BNC, 75Ω passive loop through•

Burst frequency lock: PAL, +10 Hz at•

subcarrier NTSC, +20 Hz at subcarrier

Timecode

LTC SMPTE 12M one per channel•

One mini-XLR per input and one mini-•

XLR with input and output

1 kΩ input, 50Ω output impedance•

One VITC reader/writer per video:•

Lines 10-21 on 525 configurations,—

lines 6-23 on 625 configurations

Ancillary timecode•

Control

Interconnects:

Four RS-422 serial ports•

100/1000Base-T Ethernet port•

Protocols:

BVW (RS-422) (w/o insert edit)•

Odetics (RS-422)•

VDCP (RS-422)•

AMP (RS-422 and Ethernet)•

K2.net native API•

Media Exchange

MXF Op1a, GXF (SMPTE 360M), AVI, and

QuickTime

Ports

Four 100/1000Base-T Ethernet ports•

One USB 2.0 front, two USB 2.0 rear•

One RS-422 serial port per channel•

15-pin SVGA•

USB keyboard•

USB mouse•

Remote Monitoring

Grass Valley™NetCentral SNMP-based

remote facility-monitoring software

Certiﬁcations

UL 60950, FCC Class A, EMC Class A, CE,

C-Tick, CSA 60950, IEC 950, EN 60950

Included in Package

Power cords (2)•

LTC cables (4)•

Documentation CD•

QuickStart guide•

USB stick with recover image•

K2 Summit Production Clients With Internal Storage (in hours*)

Format

Data Drives

Drive Type DVCPRO 25 DVCPRO 50

AVC-INTRA 50

DVCPRO HD

AVC-INTRA 100

IMX 30 XDCAM HD XDCAM HD 50

600 GB RAID-1 (4/4) HDD 160 80 40 138 122 88

600 GB RAID-0 (8/0) HDD 320 160 80 272 244 176

450 GB RAID-1 (4/4) HDD 120 60 30 103 91 66

450 GB RAID-0 (8/0) HDD 240 120 60 204 182 132

200 GB RAID-0 (2/0) SSD 27 13 723 20 15

200 GB RAID-0 (4/0) SSD 53 27 13 46 41 29

200 GB RAID-1 (4/4) SSD 53 27 13 46 41 29

200 GB RAID-0 (8/0) SSD 107 53 27 91 81 59

RAID-1 = 4 data drives and 4 parity drives. RAID-0 = 8 data drives

*Time for video with four 16-bit audio channels, no ancillary data. Times are estimated and can vary up to ±10%.

Holdings S.a.r.l. All other tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. Speciﬁcations

subject to change without notice. SDP-4013D-1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de GRASS VALLEY

GRASS VALLEY

GRASS VALLEY K2 FCP CONNECT 2.0 - RELEASE NOTES Manual de instrucciones

GRASS VALLEY

GRASS VALLEY EDIUS 6 Manual de usuario

GRASS VALLEY

GRASS VALLEY K2 7.3.8 - S AND Manual de usuario

GRASS VALLEY

GRASS VALLEY 8947RDA-FR - Manual de instrucciones

GRASS VALLEY

GRASS VALLEY KAYENNE 2.0 - S 10-2010 Manual de instrucciones

GRASS VALLEY

GRASS VALLEY AURORA EDIT - S AND UPGRADE INSTRUCTIONS... Guía de inicio rápido

GRASS VALLEY

GRASS VALLEY T2 Instrucciones generales

GRASS VALLEY

GRASS VALLEY EDIUS EDIT STATION - DATASHEET 2 Manual de usuario

GRASS VALLEY

GRASS VALLEY K2-AVID TRANSFER MANAGER Manual de usuario

GRASS VALLEY

GRASS VALLEY K2 DYNO PA - CONFIGURATION V1.5 Hoja de instrucciones

GRASS VALLEY

GRASS VALLEY GECKOFLEX Manual de usuario

GRASS VALLEY

GRASS VALLEY EDIUS - INSTALLATION V6.0 Manual de usuario

GRASS VALLEY

GRASS VALLEY EDIUS FOR AVID EDITORS - Instrucciones de instalación y funcionamiento

GRASS VALLEY

GRASS VALLEY JUPITER VSD Manual de usuario

GRASS VALLEY

GRASS VALLEY EDIUS EDIT STATION Manual de usuario

GRASS VALLEY

GRASS VALLEY JUPITER SOFT PANELS Manual de usuario

GRASS VALLEY

GRASS VALLEY EDIUS 4 LICENSE MANAGER - APPLICATION NOTE... Instrucciones de instalación y funcionamiento

GRASS VALLEY

GRASS VALLEY K2 FCP CONNECT 2.0 - S Manual de usuario

GRASS VALLEY

GRASS VALLEY KAYAK HD Manual de usuario

GRASS VALLEY

GRASS VALLEY EDIUS 6 Manual de instrucciones

GRASS VALLEY

GRASS VALLEY AURORA EDIT 7 Manual de usuario

GRASS VALLEY

GRASS VALLEY MAESTRO 1.5 RELEASE NOTES Manual de instrucciones

GRASS VALLEY

GRASS VALLEY Aurora Edit Security Instrucciones de instalación y funcionamiento

GRASS VALLEY

GRASS VALLEY EDIUS 6 Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario
