Grandstream Networks GRP2616 Manual de usuario

In all EU member states, operation of 5150

- 5350 MHz is restricted to indoor use only.

Grandstream Networks, Inc.

126 Brookline Ave, 3rd Floor

Boston, MA 02215 USA

Voice: (617) 566-9300

Fax: (617) 249-1987

www.grandstream.com

For Warranty and RMA information, please visit

www.grandstream.com

GRP2616

Quick Installation Guide

Carrier-Grade HD IP Phone

Content

English...............................................................................1

~1~ ~2~

The GRP2616 is not pre-congured to support or

carry emergency calls to any type of hospital, law

enforcement agency, medical care unit (“Emergency

Service(s)”) or any other kind of Emergency Service.

You must make additional arrangements to access

Emergency Services. It is Your responsibility to

purchase SIP-compliant Internet telephone service,

properly congure the GRP2616 to use that service,

and periodically test Your conguration to conrm

that it works as You expect. If You don’t do so, it

is Your responsibility to purchase traditional wireless

or landline telephone services to access Emergency

Services.

GRANDSTREAM DOES NOT PROVIDE CON-

NECTIONS TO EMERGENCY SERVICES VIA THE

GRP2616. NEITHER GRANDSTREAM NOR ITS

OFFICERS, EMPLOYEES OR AFFILIATES MAY

BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR

LOSS, AND YOU HEREBY WAIVE ANY AND ALL

SUCH CLAIMS OR CAUSES OF ACTION ARISING

FROM OR RELATING TO YOUR INABILITY TO

USE THE GRP2616 TO CONTACT EMERGENCY

SERVICES, AND YOUR FAILURE TO MAKE AD-

DITIONAL ARRANGEMENTS TO ACCESS EMER-

GENCY SERVICES IN ACCORDANCE WITH THE

IMMEDIATELY PRECEDING PARAGRAPH.

GRP2616 is a next generation enterprise IP Phone featuring 6

dual-color line keys (can be digitally programmed as up to 24 pro-

visionable BLF/fast-dial keys), 4.3” (480x242) TFT color LCD, 5

programmable context-sensitive soft keys, 2.4” (320x240) addi-

tional screen dedicated to up to 24 multi-purpose keys, USB port,

1000M network ports, integrated PoE, Wi-Fi and Bluetooth sup-

port, 3-way conference and Electronic Hook Switch (EHS). The

GRP2616 delivers superior HD audio quality, rich and leading-

edge telephony features, protection for privacy, and broad interop-

erability with most 3rd party SIP devices and leading SIP/NGN/

IMS platforms. GRP2616 is the perfect choice for enterprise users

looking for a high quality, feature rich multi-line executive IP phone

with advanced functionalities and performance.

PACKAGE CONTENTS:

OVERVIEW:

WARNING: Please DO NOT power cycle the GRP2616 during system

boot up or rmware upgrade. You may corrupt rmware images and

cause the unit to malfunction.

1x Phone Main Case 1x Handset

1x Phone Cord

1x Ethernet Cable

1x Phone Stand 1x 12V Power

adapter

1x Quick Installation Guide

1x GPL license

PRECAUTIONS:

WARNING: Use only the power adapter included in the GRP2616 pack-

age. Using an alternative non-qualied power adapter may possibly

damage the unit.

12V

~3~ ~4~

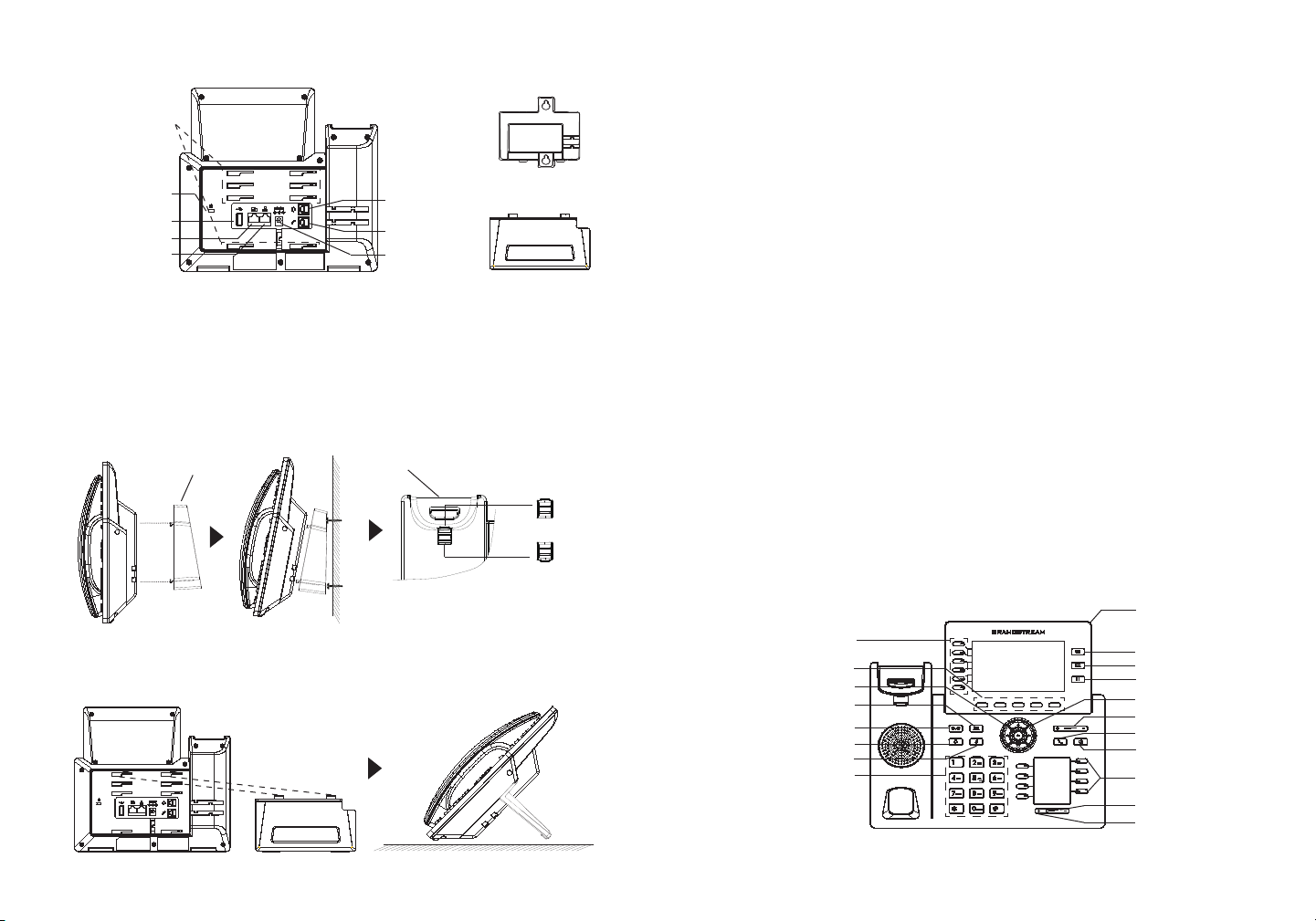

PHONE SETUP:

Installing the phone (Wall Mount *sold separately):

1. Attach the wall mount spacers to the slot for wall mount spacers on the back

of the phone.

2. Attach the phone to the wall via the wall mount hole.

3. Pull out the tab from the handset cradle (See gure below).

4. Rotate the tab and plug it back into the slot with the extension up to hold the

handset while the phone is mounted on the wall (See gure below).

Tab with exten-

sion up

Handset Rest

Tab with exten-

sion down

Slot for the wall

mount spacers

and phone

stand

To setup the GRP2616, follow the steps below:

1. Connect the handset and main phone case with the phone cord.

2. Connect the 12V DC output plug to the power jack on the phone; plug the

power adapter into an electrical outlet. If PoE switch is used in step 3, this

step could be skipped.

3. Network connection is possible via two methods which are described below:

• Using Ethernet:

Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a

router (LAN side of the router) using the Ethernet cable.

• Using WiFi:

- On LCD menu, navigate to “System→WiFi settings” and enable WiFi.

- Select “Scan” and GRP2616 will automatically start scanning within the

range.

- A list of WiFi networks will be displayed. Select the desired network, and if

required, enter the correct password to connect.

4. The LCD will display provisioning or rmware upgrade information. Before

continuing, please wait for the date/time display to show up.

5. Using the phone embedded web server or keypad conguration menu, you

can further congure the phone using either a static IP or DHCP.

For installing the phone on the table with the phone stand, attach the phone stand

to the bottom of the phone where there is a slot for the phone stand. (Upper half,

bottom part).

Installing the phone (Phone Stand):

USB Port

Power

Headset Port

Handset Port

CONNECTING THE PHONE:

Wall mount

Phone Stand

PHONE DESCRIPTION:

Kensington

Lock

PC Port

LAN Port

Soft keys

Navigation keys

Message

Hold

Transfer

Headset

Mute

Volume

Speaker

Send

Standard keypad

Line keys

MENU/OK key

Conference

Left Key

Right Key

Multi-Purpose

Key

Phonebook

Message Waiting

Indicator

~5~ ~6~

1. Ensure your phone is powered up and connected to the Internet.

2. Press and hold the “UP” button for 3 seconds to see the IP address.

3. Type the phone’s IP address in your PC browser.

4. Enter admin’s username and password to access the conguration menu.

(The factory default username is “admin” while the default random password

can be found on the sticker at the back of the unit).

1. Make sure the phone is idle.

2. Press the MENU key to access the keypad MENU to congure the phone.

3. Select MENU → Phone → SIP → Account to congure settings for SIP Proxy,

Outbound Proxy, SIP User ID, SIP Auth ID and SIP Password.

4. Follow MENU options to congure the basic features of the phone. For ex-

ample: the IP address if using a static IP. For details, please check GRP2600

series User Manual.

5. Please contact your ITSP for additional settings that may be necessary to

congure the phone.

Congure the GRP2616 using the Keypad:

PHONE CONFIGURATION:

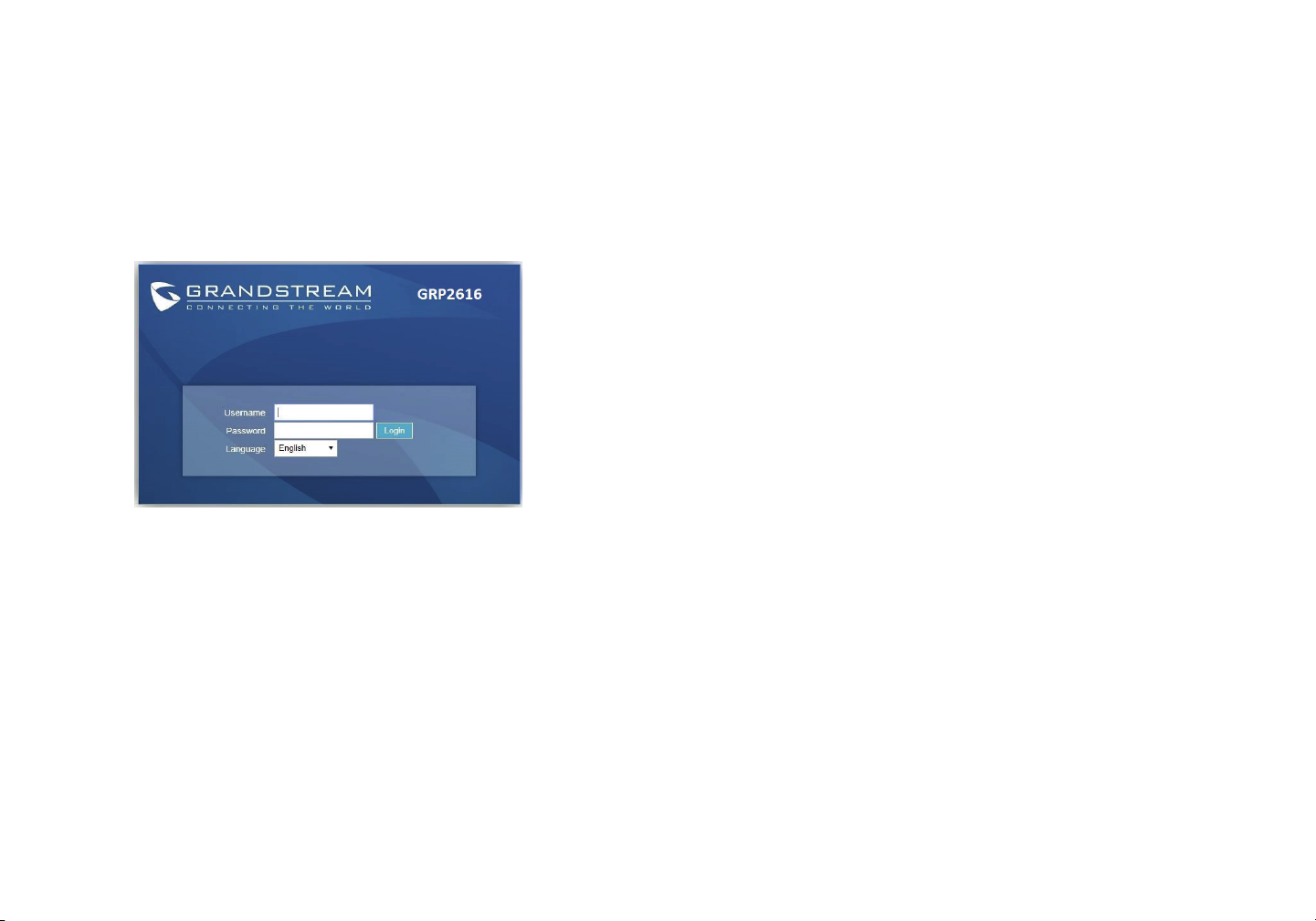

Congure the GRP2616 using a Web Browser:

Refer to online documents and FAQ for more detailed information:

http://www.grandstream.com/our-products

This product is covered by one or more of the U.S. patents (and any foreign patent

counterparts thereto) identied at www.cmspatents.com.

The information is available at the following internet address: www.grandstream.com

Common part：

This equipment complies with radiation exposure limits set forth for an uncontrolled

environment. This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.This equipment should be installed and operated with minimum

distance 20cm between the radiator& your body.

U.S. FCC Part 68 Regulatory Information

This equipment complies with Part 68 of the FCC rules. Located on the equipment is a label

that contains, among other information, the ACTA registration number and ringer equivalence

number (REN.) If requested, this information must be provided to the telephone company.

The REN is used to determine the quantity of devices which may be connected to the

telephone line. Excessive REN’s on the telephone line may result in the devices not ringing in

response to an incoming call. In most, but not all areas, the sum of the REN’s should not

exceed five (5.0). To be certain of the number of devices that may be connected to the line, as

determined by the total REN’s contact the telephone company to determine the maximum

REN for the calling area.

This equipment cannot be used on the telephone company-provided coin service. Connection

to Party Line Service is subject to State Tariffs.

If this equipment causes harm to the telephone network, the telephone company will notify you

in advance that temporary discontinuance of service may be required. If advance notice isn’t

practical, the telephone company will notify the customer as soon as possible. Also, you will

be advised of your right the file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or

procedures that could affect the operation of the equipment. If this happens, the telephone

company will provide advance notice in order for you to make the necessary modifications in

order to maintain uninterrupted service.

If the trouble is causing harm to the telephone network, the telephone company may request

you to remove the equipment from the network until the problem is resolved.

This equipment uses the following USOC jacks: RJ45C.

It is recommended that the customer install an AC surge arrester in the AC outlet to which this

device is connected. This is to avoid damaging the equipment caused by local lightening

strikes and other electrical surges.

Since this device has the HAC function, the earpiece is easy to absorb small, please take care

to avoid scratching.

If trouble is experienced with this equipment, please contact (Agent in the US):

Company Name: Grandstream Networks, Inc.

Address: 126 Brookline Ave, 3rd Floor Boston, MA 02215, USA

Tel: 1-617-5669300

Fax: 1-617-2491987

U.S. FCC Part 15 Regulatory Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—Consult the dealer or an experienced radio/TV technician for help.

Canada Regulatory Information

Radio equipment

Operation of 5150-5250 MHz is restricted to indoor use only.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,

Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject

to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired

operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux

CNR d’Innovation, Sciences et Développement économique Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions

suivantes :

1) L’appareil ne doit pas produire de brouillage;

2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d’en compromettre le fonctionnement.

CAN ICES-3 (B)/NMB-3(B)

Terminal equipment

This product meets the applicable Innovation, Science and Economic Development Canada

technical specifications.

The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to

be connected to a telephone interface. The termination of an interface may consist of any

combination of devices subject only to the requirement that the sum of the RENs of all the

devices not exceed five.

Ce produit répond à la innovation, des sciences et de Développement économique Canada

spécifications techniques applicables.

Le nombre équivalent de sonneries (REN) indique le nombre maximal de terminaux qui

peuvent être raccordés à une interface téléphonique. La terminaison d'une interface peut

consister en une combinaison de dispositifs, à la seule condition que la somme des REN de

tous les dispositifs ne dépasse pas cinq.

EU Regulatory Information

Support Frequency Bands and Power:

WLAN/BT 2.4 GHz < 20 dBm;

WLAN 5.2 GHz < 23 dBm;

WLAN 5.3/ 5.6 GHz < 20 dBm;

The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as

follows:

Hereby, [Grandstream Networks, Inc.] declares that the radio equipment type [GRP2616]is in

compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

www.grandstream.com

Otros manuales para GRP2616

Tabla de contenidos

Otros manuales de Teléfono IP de Grandstream Networks

Grandstream Networks

Grandstream Networks GXP1628 Manual de instrucciones

Grandstream Networks

Grandstream Networks Grandstream GXP-1200 Manual de usuario

Grandstream Networks

Grandstream Networks WP810 Manual de usuario

Grandstream Networks

Grandstream Networks GXP1610 Manual de instrucciones

Grandstream Networks

Grandstream Networks GXV-3000 Manual de usuario

Grandstream Networks

Grandstream Networks GXP2130 Series Manual de instrucciones

Grandstream Networks

Grandstream Networks GRP261 Series Manual de usuario

Grandstream Networks

Grandstream Networks GXP2124v2 Manual de usuario

Grandstream Networks

Grandstream Networks GXP2130 Series Manual de instrucciones

Grandstream Networks

Grandstream Networks GXP1760 Manual de usuario

Grandstream Networks

Grandstream Networks GXP2130 Series Manual de usuario

Grandstream Networks

Grandstream Networks GXV-3140 Manual de usuario

Grandstream Networks

Grandstream Networks GXP-1100 Manual de usuario

Grandstream Networks

Grandstream Networks GRP2612W Manual de usuario

Grandstream Networks

Grandstream Networks GXP2130 Series Manual de usuario

Grandstream Networks

Grandstream Networks GXP-280 Manual de usuario

Grandstream Networks

Grandstream Networks WP822 Manual de usuario

Grandstream Networks

Grandstream Networks DP720 Manual de usuario

Grandstream Networks

Grandstream Networks GXV 3140 Manual

Grandstream Networks

Grandstream Networks GXV3240 Manual de instrucciones

Grandstream Networks

Grandstream Networks GRP2634 Manual de usuario

Grandstream Networks

Grandstream Networks GXP1160 Manual de usuario

Grandstream Networks

Grandstream Networks GXP-2020 Manual de usuario

Grandstream Networks

Grandstream Networks DP715 Manual de usuario

Manuales populares de Teléfono IP de otras marcas

Alcatel

Alcatel 4028 Manual de usuario

Polycom

Polycom Polycom VVX 600 Manual de usuario

Polycom

Polycom SoundPoint IP 450 Manual de usuario

Cisco

Cisco SPA-500 Series Manual de usuario

Polycom

Polycom SoundPoint IP 650 Manual de usuario

Proximus

Proximus Maestro 3016 IP Manual de usuario

Fanvil

Fanvil X4 Manual de usuario

Cisco

Cisco 7962 Manual de usuario

Snom

Snom 320 Manual de usuario

Yealink

Yealink Yealink SIP-T46G Manual de usuario

Avaya

Avaya 4625SW Manual de usuario

Yealink

Yealink SIP-T52S Manual de usuario

Nortel

Nortel 1140E Manual de usuario

Nexotek

Nexotek NT-P500 Manual de usuario

Avaya

Avaya Integral 5 R3.0 Manual de usuario

GE 28320EE2 - Dect 6.0 InfoLink 2 Manual de usuario

Avaya

Avaya 4600 Series Manual de servicio

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manual de usuario
