Operating Instructions

Oil Column Heater

Model: GOC125, GOC127, GOC1211

CAUTION: In order to avoid a hazard due to inadvertent resetting of the

thermal cut-out, this appliance must not be supplied through an external

switching device, such as a timer, or connected to a circuit that is regularly

switched on and off by the utility.

•This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities or lack of experience and

knowledge, unless they are supervised or have been given instruction

concerning the use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the

appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

WARNING: You must not cover this appliance. Covering this appliance

presents fire risk and will activate the safety fuse; permanently disabling the

unit.

WARNING: Do not use this appliance in small rooms when they are

occupied by persons not capable of leaving the room on their own, unless

constant supervision is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any

flammable material a minimum distance of 1 metre from the air outlet.

General Care and Safety Guide

•Use only the voltage specified on the rating label of the appliance.

•Keep all objects at least 1 metre from the front, sides and rear of the

appliance.

•This appliance is intended for household use only and not for commercial or

industrial use.

•Indoor use only.

•Use this appliance only as described in this manual. Any other use is not

recommended by the manufacturer and may cause fire, electric shock or

injury.

•Do not use the appliance if it has been dropped or damaged.

•The common cause of overheating is deposits of dust or fluff in the appliance.

Ensure these deposits are removed regularly by unplugging the appliance and

vacuum cleaning the air vents and grills.

YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE

INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

•Never use the appliance to dry clothes.

•Always unplug appliance when not in use.

•When the appliance has been unpacked, check it for transport damage and

ensure all parts have been delivered. If parts are missing or the appliance has

been damaged, contact the Customer Services Team.

•Do not use if there are visible signs of damage to the appliance.

•Do not connect the appliance to mains supply until completely assembled and

adjusted.

•Ensure hands are dry before handling the plug or main unit.

•Ensure appliance is on a flat, stable, heat-resistant surface.

•Do not operate with cord set coiled up as a heat build up is likely, which could

be sufficient to become a hazard.

•Carry out regular checks of the supply cord to ensure no damage is evident

•Do not operate this appliance with a damaged cord, plug or after the appliance

malfunctions or has been dropped or damaged in any manner. Take to a

qualified electrical person for examination, electrical service or repair.

•Do not twist, kink or wrap the cord around the appliance, as this may cause the

insulation to weaken and split. Always ensure that all cord has been removed

from any cord storage area and is unrolled before use.

•It is recommended that this appliance is plugged directly into the wall socket.

Power boards are not rated to supply power to high wattage appliances.

•A correctly specified, undamaged extension cord may be used with this

appliance provided it is used in a safe manner.

•Do not remove plug from power socket until the appliance has been switched

off.

•Do not remove plug from power socket by pulling cord; always grip plug.

•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord

so it cannot be tripped over.

•Don’t place appliance on bedding or on thick & long carpet where the openings

may get blocked.

•Switch off and use handle provided when moving

•Do not place appliance close to radiant heat source.

•Do not insert or allow foreign objects to enter any ventilation or exhaust

opening, as this may cause an electric shock, fire or damage to the appliance.

•Do not sit on the appliance.

•Do not use abrasive cleaning products on this appliance. Clean with a damp

cloth (not wet) rinsed in hot soapy water only. Always remove plug from the

mains supply before cleaning.

•Do not operate in areas where petrol, paint or other flammable liquids are used

or stored.

•Do not use this appliance in the immediate surrounds of a bath, a shower, or a

swimming pool or other liquids.

General Care and Safety Guide

•The appliance must not be immersed in any liquids.

•There are no user serviceable parts installed in the unit.

•Do not place the unit in wardrobes or other enclosed spaces as this may cause

fire hazards.

•This unit is not supposed to be used in or around locations where foodstuffs,

works of art or delicate articles of science, etc. are stored.

•If your appliance does not work, or is not working properly, contact the place of

purchase or the Customer Services Team.

General Care and Safety Guide

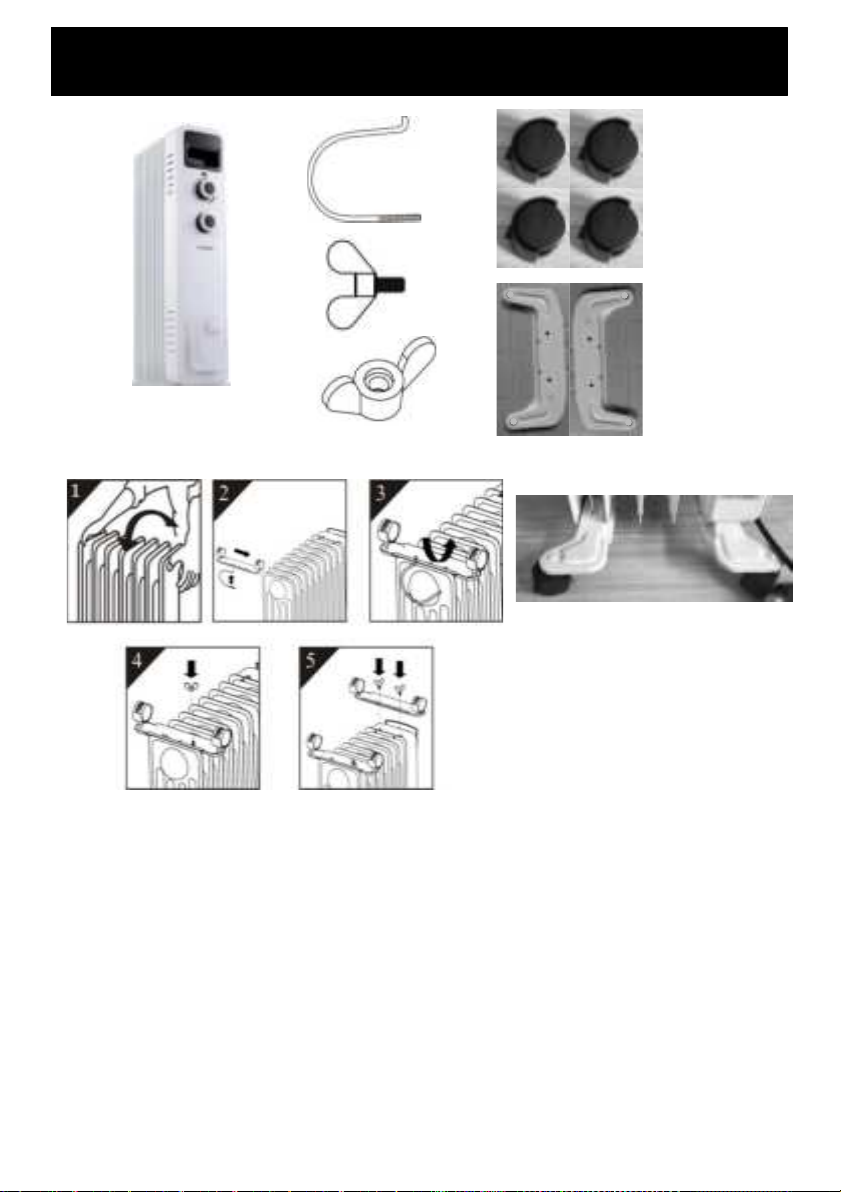

IMPORTANT: Please fit the wheel assemblies as per the diagram. Any other position may affect

the stability of the heater.

1. Carefully turn the heater upside-down on a non-scratching and stable surface to prevent

damage to the paint finish or your floor surfacing.

2. Fit the castors to the castor plates by placing each castor onto the spindle and pressing in

until it clicks into place. This will require quite a lot of force.

3. Fit the castors plates onto the heater by placing the U-shaped bolt between the outermost

fin away from the control side of the heater. Place one of the castor plates with the castors

pointing to the outside of the heater onto the U-Bolt and secure with the wing nut.

4. Attach the second castor plate (right angle version) to the bottom of the control panel with

the castors pointing forwards to the outside of the heater, then securely fasten the castor

plate onto the heater with the two screws.

Main Body x1

Wing Nut x1

U-shape Bolt x1

Assembling GOC125

5 Fin Castor Plates

Screw x2

Castors x4

5 Fin Castor Plates

Wing Nut

x1 (7 Fin), x2 (11Fin)

U-shape Bolt

x1 (7 Fin), x2 (11 Fin)

Assembling GOC127, GOC1211

Main Body x1

Castor Plates

7 Fin Castor Plates

11 Fin Castor Plates

Screw x2

Castors x4

IMPORTANT: Please fit the wheel assemblies as per the diagram. Any other position may affect

the stability of the heater.

1. Carefully turn the heater upside-down on a non-scratching and stable surface to prevent

damage to the paint finish or your floor surfacing.

2. Fit the castors to the castor plates by placing each castor onto the spindle and pressing in

until it clicks into place. This will require quite a lot of force.

3. 7 Fin - Fit the castors plates onto the heater by placing a U-shaped bolt between the outer

most fin away from the control side of the heater. Place one of the castor plates onto the U-

Bolt and secure with the wing nut. Attach the second castor plate to the bottom of the

control panel then securely fasten the castor plate onto the heater with the two screws.

4. 11 Fin - Fit the castors plates onto the heater by placing a U-shaped bolt between the outer

most fin away from the control side of the heater. Place one of the castor plates onto the U-

Bolt and secure with the wing nut. Repeat for the other castor plate by placing between the

control panel and the second fin.

Operating Your Heater

HEATER CONTROL SWITCH

The control switch positions are:

O Off

●Minimum heating

●● Medium heating

●●● Maximum heating

THERMOSTATIC CONTROL

1. Rotate thermostat knob clockwise until you

reach the maximum position.

2. When the room reaches a temperature that is

comfortable for you, slowly turn the knob anti-

clockwise until the heater just turns off (you will

hear a click).

3. The heater will now cycle on and off to maintain

the comfort level you have set.

4. Take note of this setting position for future use.

WARNING: In order to avoid overheating or fire, do not cover the heater.

WARNING: Keep all objects at least 1 metre from the front, sides and rear of

the appliance.

WARNING: Do not use this heater with a programmer, separate timer,

remote-control system or any other device that switches the heater on

automatically, since a fire risk exists if the heater is covered or positioned

incorrectly.

WARNING:Never leave this heater unattended when in use.

Ensure heater is on a flat, stable, heat-resistant surface.

Once the heater is in a safe operating position and all switches are in the off

position, insert the power plug into the mains outlet and switch on.

CAUTION: Ensure the power cord is not tight because if pulled it may

partially pull the plug from the socket. A partially inserted plug will overheat the

plug and socket and could result in fire.

Always choose a safe location for the heater, keeping in mind the safety precautions

outlined. Ensure all packaging has been removed from the unit before use.

Please follow the below instructions.

SUPPORT AND TECHNICAL ADVICE

Goldair –New Zealand

Monday –Friday 8am-5pm

Phone +64 (0)9 917 4000

Phone 0800 232 633

[email protected]

Goldair –Australia

Monday –Friday 8am-5pm

Phone +61 (0)3 9365 5100

Phone 1300 465 324

[email protected]

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase.

Operating Your Heater

SAFETY DEVICES

This appliance has three protection devices:

•Tilt Switch - this will automatically turn the appliance off if the appliance is not in

the correct operating position.

•Resettable Thermal Link - this will automatically disconnect the power to the

appliance at a pre-set overheat temperature. After cooling down it will reset and

power on again. If this occurs, investigate what is causing the appliance to overheat.

•Thermal Fuse - this disconnects the appliance permanently in case of overheating.

(It is non resettable).

CAUTION: The appliance generates heat during use. Precautions must be

taken to prevent the risk of burns, scalds, fires or other damage to persons.

CARE AND CLEANING

The heater requires regular cleaning to ensure trouble free operation:

•Unplug the heater from the mains supply before cleaning.

•Ensure that the heater has been allowed to cool down completely before cleaning.

•The common cause of overheating is deposits of dust or fluff in the appliance.

Ensure these deposits are removed regularly by unplugging the appliance and

vacuum cleaning the air vents and grills.

•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and

dirt.

•Never use solutions such as petrol, thinners or polishing agents.

•Ensure the heater is dry before plugging back into the mains supply.

This appliance cannot be serviced. Do not attempt to dismantle.

There are no user serviceable parts. For service or repair, contact an authorised

electrical service technician.

When disposing of the appliance, follow the regulations concerning disposal of oil.

Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal

domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty to three months.

Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the

warranty period.

This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone

other than a qualified electrical service technician.

PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.

The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the

goods or services to which this warranty relates.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a

replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also

entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a

major failure.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

Two Year Warranty

Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)

Name

Address

Place Of Purchase Date Of Purchase

Name Of Product Model Number

Attach a copy of the purchase receipt to this warranty card

Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.

Goldair –New Zealand

CDB Goldair

PO Box 100-707

N.S.M.C

Auckland

Phone +64 (0)9 917 4000

Phone 0800 232 633

www.goldair.co.nz

Goldair –Australia

CDB Goldair Australia Pty

PO Box 574

South Morang

Victoria, 3752

Phone +61 (0)3 9365 5100

Phone 1300 GOLDAIR (1300 465 324)

www.goldair.com.au

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de Goldair

Goldair

Goldair GOC215 Manual de usuario

Goldair

Goldair GCW220 Manual de usuario

Goldair

Goldair GPH110 Manual de usuario

Goldair

Goldair GCT340 Manual de usuario

Goldair

Goldair SELECT GSFH150 Manual de usuario

Goldair

Goldair PLATINUM GPCW100 Manual de usuario

Goldair

Goldair PLATINUM GPCH360 Manual de usuario

Goldair

Goldair GCH210 Manual de usuario

Goldair

Goldair GCV340 Manual de usuario

Goldair

Goldair GCT360 Manual de usuario

Goldair

Goldair GECO200 Ecosave Manual de usuario

Goldair

Goldair GFH225 Manual de usuario

Goldair

Goldair GFH240 Manual de usuario

Goldair

Goldair PLATINUM GPCV330 Manual de usuario

Goldair

Goldair GCT250 Manual de usuario

Goldair

Goldair GECO200 Manual de usuario

Goldair

Goldair Platinum GPPH220 Manual de usuario

Goldair

Goldair GFE340 Manual de usuario

Goldair

Goldair PLATINUM GPCW100 Manual de usuario

Goldair

Goldair SFH7000 Manual

Goldair

Goldair GMH150 Manual de usuario

Goldair

Goldair 3508W Manual de usuario

Goldair

Goldair GCT330 Manual de usuario

Goldair

Goldair GMH225 Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
