Global Sat TR-600 Manual de usuario
AVL Tracking System
TR-600
V 1.2
Globalsat Technology Corporation
16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan
USGlobalSat Incorporated
14740 Yorba Court , Chino, CA 91710
Tel: 888.323.8720 /Fax: 909.597.8532
www.usglobalsat.com
2
CONTENT
1. Introduction .......................................................................................................................................3
1.1 Introduction.............................................................................................................................3
1.2 Features ....................................................................................................................................3
1.3 Hardware Architecture ........................................................................................................4
1.4 Hardware specification ........................................................................................................5
1.5 Appearance..............................................................................................................................6
1.6 LED indicator...........................................................................................................................7
1.7 able description ...................................................................................................................8
1.8 Accessories ............................................................................................................................10
2 Operation............................................................................................................................................11
2.1 Install the SIM card............................................................................................................11
2.2 Install the GPS and GSM antenna ................................................................................12
2.3 Installing the Emergency button...................................................................................13
3
1. Introduction
1.1 Introduction
The TR-600 is a multi-functional and economically feasible communication platform for mobile
positioning applications. It integrates highly sensitive GPS module and quad-band GSM
communication module with a powerful microcontroller that fits into a compact enclosure. The
TR-600 has a solid and rigid housing, for simple installation. It provides real-time GPS positions
anytime and anywhere with an open view to the sky, and offers precise positioning, and reports
vehicle status to the server with necessary information shown on the map. Benefits such as
enhanced fleet management, improved vehicle safety, emergency response, are all
accomplished through the implementation of the TR-600 system.
1.2 Features
Build in Quad-band 850/900/1800/1900 MHz GSM system
Build in high sensitivity GPS system
SupportsAT command via SMS/ TCP/UDP
Remote control via SMS/GPRS command
Real-time GPS position feedback and vehicle status monitoring
Built-in in digital outputs (3), digital inputs (3), an ACC input, 1 analog input, and 1 serial
port
Power supply for Li-ion battery and lead-acid battery
Supports multi geo-fence function
OTA (Over the air) firmware updates
Data logger for 50,000 points
Ignition/ Power Low/ Power Lost / Speed Limit detection alarm
3 LED indicators for GSM, GPS, power status
External panic button for emergency SOS (Optional)
4
1.3 Hardware Architecture
GPS antenna GSM antenna
Speaker
Microphone
CPU
GPS
GSM
MODEM
Analog
Input
Digital
output
Digital
input
Li backup
Battery
USART/
RS-232
Motion
Sensor
SOS
5
1.4 Hardware specification
Item Description
Dimension 98 mm X 65 mm X 22 mm
CPU High performance line ARM-base 32-bit MCU
GPS receiver SiRF Star III high performance GPS chipset
Temperature Operation -30℃ ~ + 80℃
Storage -40℃ ~ + 85℃
GPS Antenna SMA Type connector
Active antenna ( 3.3~3.8V)
GSM Antenna SMA Type connector
Communication Telit (GE865) Quad-band GSM 850/900/1800/1900 MHz
Protocol Voice/SMS/GPRS (TCP/UDP)
Built-in Memory 32 Mb
GPS logging capacity 50,000 points
Emergency Input Negative trigger 1
Ignition (ACC) Input Positive trigger 1
Digital Input Port Negative trigger 2
Positive trigger 1
Digital Output Port Negative trigger 3 (300 mA)
Analog Input Port Analog Input 1( 0~28V)
Serial Port 115200 bps
Backup battery (Option)
Internal 800 mAh Lion battery
Support external Lead-acid battery (12V/24V)
Hands-free Kit (Option) Support external speaker and microphone
Sensor Motion sensor
6
1.5 Appearance
1 Peripheral interface port
2 I/O port
3 Power Status LED
4 GPS LED
5 GSM LED
6 For fixing device with screws
7 GSM antenna connector
8 For fixing device with belt
9 GPS antenna connector
10 SIM card holder
1 2
3
4
5
6 6
7
8
9
10
8
6 6
7
1.6 LED indicator
Power Status LED (Red)
LED Permanently On
State Main power on, device on
GPS LED (Yellow)
LED Permanently off Fast blinking (Once
every 1 second) Slow blinking (Once
every 3 seconds)
State GPS off GPS not fix GPS fix
GSM LED (Green)
LED Permanently off Fast blinking (Once
every 1 second) Slow blinking (Once
every 3 seconds)
State GSM off 1. TR-600 is
searching GSM
network
2. SIM card is
registering to GSM
network
TR-600 is registered
full service
8
1.7 Cable description
14 Pin I/O Cable
Wire Color Description
Green/ White Analog Input_1
White Digital Output 3 (Negative Trigger)
Gray Digital Output 1 (Negative Trigger)
Purple Digital Input 3 (Positive Trigger)
Blue Digital Input 1 (Negative Trigger)
Black Ground
Red Main Power
X
Green Digital Output 2 (Negative Trigger)
Yellow ACC (Positive Trigger)
Orange Digital Input 2 (Negative Trigger)
Brown SOS (Negative Trigger)
Pink 12V/24V Backup Battery
Black Ground
9
8 Pin Cable
Wire Color Description
Pink Audio_5V
Blue Speaker 1(Positive)
Red Serial-1_5V
White Receiver 1
White Microphone 1 P
Black (3 Pieces) Ground
Orange Speaker 1(Negative)
Green Transmission 1
10

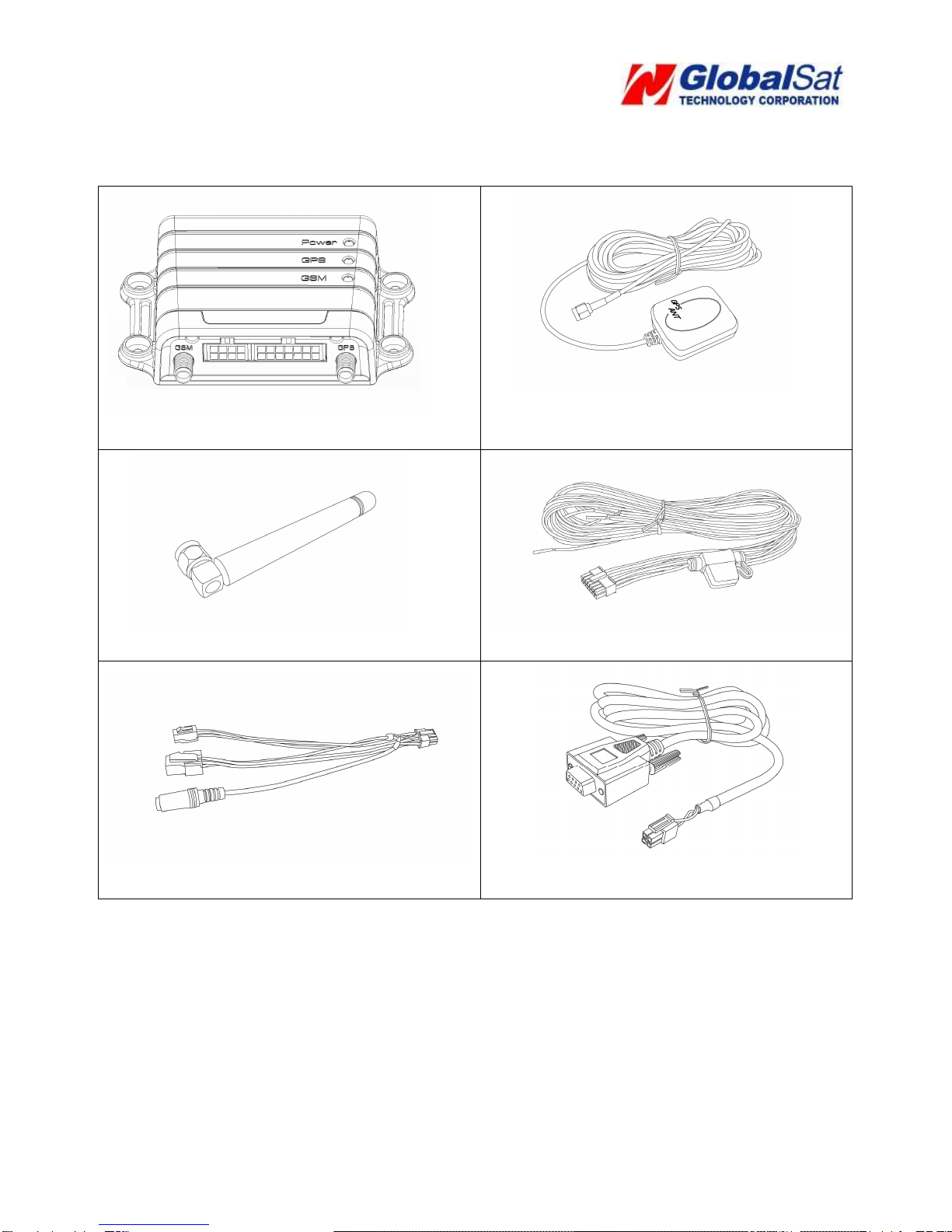

1.8 Accessories
Main Unit
GPS Antenna
GSM Antenna
14 Pin I/O Cable
8 Pin Cable
RS-232 Cable (Option)
