Global Sat GPS Director YE-GD101 Manual de usuario
GPS Director
YE-GD101 Quick Start Guide
Version 1.1
2
Accessories
YE-GD101 Main Unit
Quick Guide
Hang tape
CD
NOTE：
If any accessory is not included or damaged, please contact the local dealer.

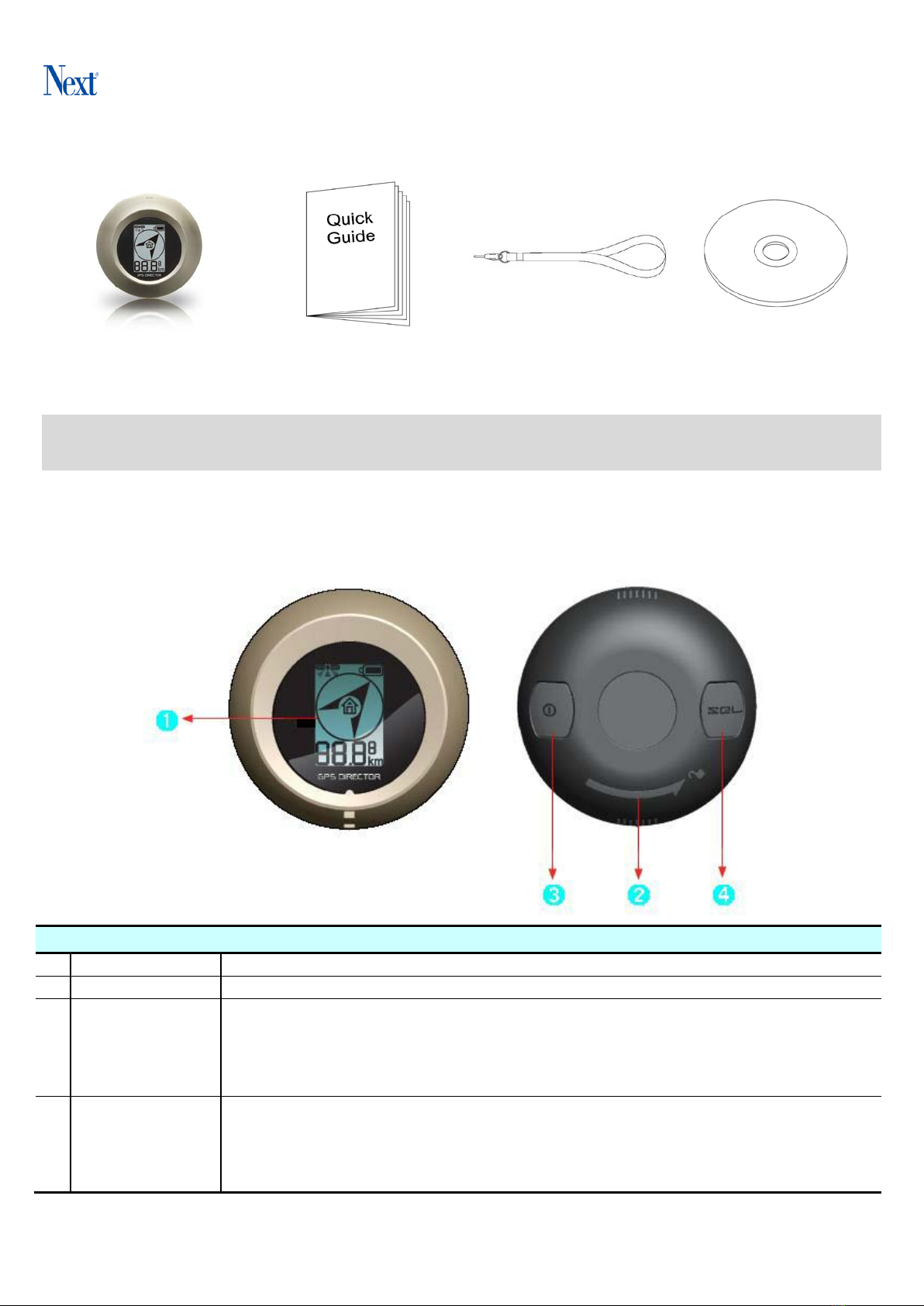

Appearance
Front view and Back view
➊
Display
Shows the GPS fix status, power level, destination direction and distance
➋
Battery Cover
Open the battery cover by rotating it according to the arrow.
➌Power/Backlight
Button
Short-click (1sec): Turn on backlight.
Long-click (2sec):
1. Power off device under main screen.
2. Return to last page under each setting screen.
➍Selection/
Setting Button
Short-click (1sec): To select.
Long-click (2sec): To set.
Make YE-GD101 enter main screen by long clicking Power/Backlight Button
and Selection/ Setting Button at the same time.
3
START TO USE
Install Battery Magnetic North Adjustment
Close the battery cover
YE-GD101 in the battery cover
on the triangle mark position,
when the battery cover marked
with the YE-GD101 Charm
hole mark at the bottom, and
then in accordance with the
battery GD-101 direction of the
arrow for rotation in the
opposite direction, then can
close the battery cover.
1. When using YE-GD101 for the first time, it
will automatically perform the
magnetic-north adjustment as seen in the
screenshot below.
2. For the method of adjustment, please refer
to User Manual Chapter 3-2.
3. If YE-GD101 shows the incorrect or
inaccurate direction, please perform the
magnetic adjustment by operating the
function button.
Open the battery cover
YE-GD101 in accordance with
the battery rotation direction of
the arrow to open the battery
cover and put in the battery.
MAIN Screen
Icon Explanation
The GPS fix indication
will keep ON when
device gets a GPS fix. GPS fix indicator will flash
when device does not have GPS fix.
The distance between YE-GD101 and destination
will only be shown/ displayed when device has
GPS fix.
The direction of the setting destination of
YE-GD101. The arrow will direct to the destination
after YE-GD101 has GPS fix and has performed
the magnetic-north adjustment.
What is shown on upper right corner is the battery
power level
4
Automatic Setting the Destination
Description
1.
Under direction indication screen, click Selection/ Setting button
to select and set the following 5 destination’s coordinates.
2. After Ye-GD101 has
GPS fix, long click Selection/ Setting button
will
save the present coordinates as the selected destination’s
coordinates.
While YE-GD101 is saving coordinates, YE-GD101 will display as
seen in the screen shot to the left
and then return to the direction
indication screen.
If you try to save the present coordinates under no GPS fix status,
YE-GD101 will display as seen in the screenshot to the left and then
return to the direction indication screen.
Manual Setting Destination’s Coordinate
In the direction indication screen, you could make YE-GD101 enter main screen by long clicking
Power/Backlight Button and Selection/ Setting Button at the same time.
ICON Function Operation
Manual Set
Destination’s
Coordinate
Long click Selection/Setting button to enter
setting screen.
You could set the following 5 destination’s
coordinates.
5

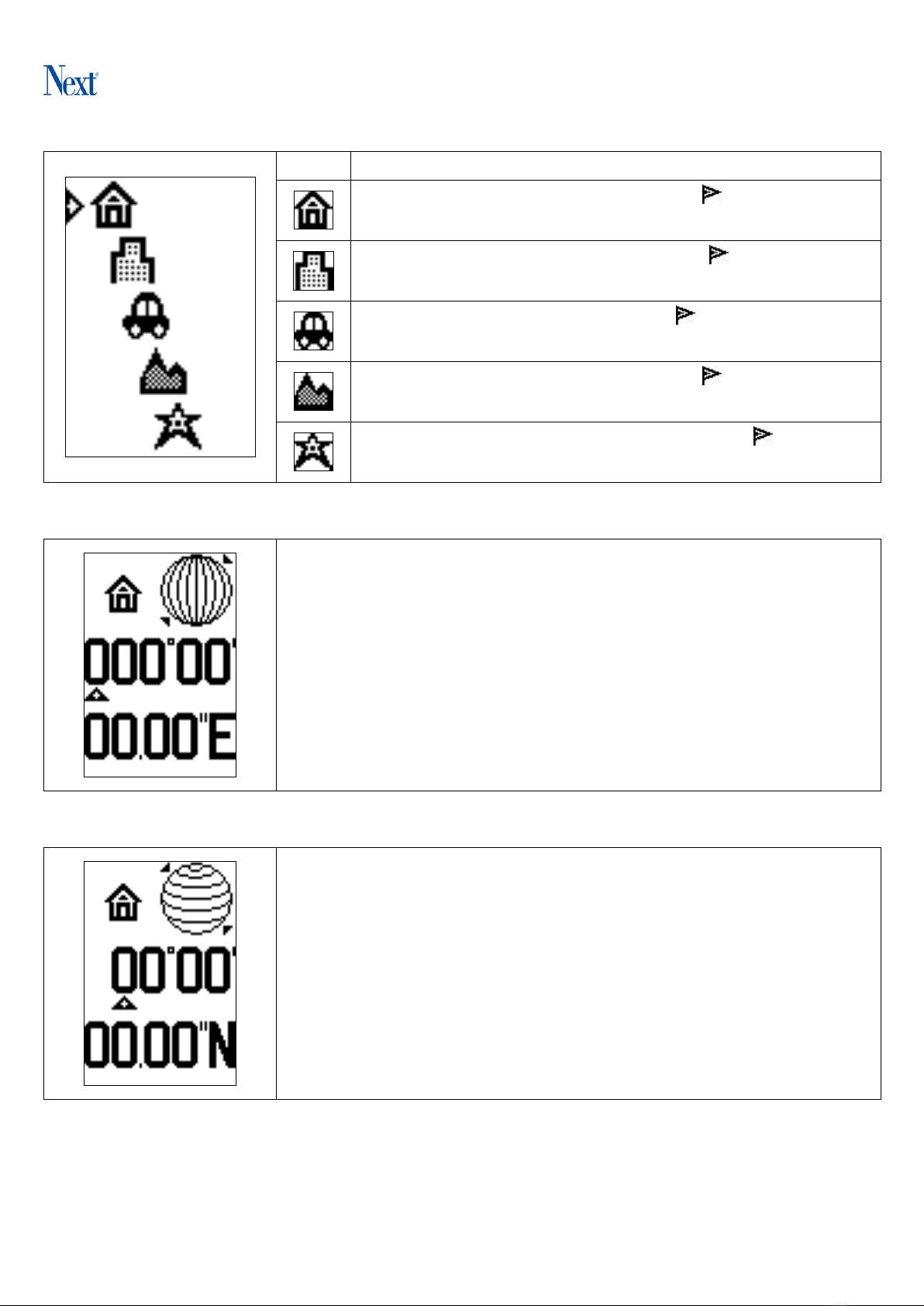

Setting Destination’s Coordinate
ICON
Explanation
Set Home’s coordinates. The indication will be ON when
the destination’s coordinates are set.
Set Building’s coordinates. The indication will be ON when
the destination’s coordinates are set.
Set Car’s coordinates. The indication will be ON when the
destination’s coordinates are set.
Set Travel’s coordinates. The indication will be ON when
the destination’s coordinates are set.
Set My Favorite’s coordinates. The indication will be ON
when the destination’s coordinates are set.
Setting Destination’s Longitude
1.
The upper left corner is the selected destination. The number is the
setting longitude (East or West). An arrow will be indicated to the
number on the initial screen.
2. Short click Selection/Setting button to select the number. Long
click Selection/Setting button to enter the selected value and move
to the next digit for setting.
3. The maximum setting is 180 ° 00 ’00 . 00 ”
Setting Destination’s Latitude
1.
The upper left corner is the selected destination. The number is the
setting longitude (North or South). An arrow will be indicated to the
number on the initial screen.
2. Short click Selection/Setting button to select the number. Long
click Selection/Setting button to enter the selected value and move
to the next digit for setting.
3. The maximum setting is 90 ° 00 ’00 . 00 ”
