TR-151A /TR-151E

Vehicle/Asset Tracker

Quick Start Guide

Version 0.1

Install SIM card and Battery

zUse a coin or screwdriver to loosen the screw on back cover.

zLift up the back cover and remove it as the direction shown.

TR-151 page 2

zPush forward the cover of SIM card slot to the position marked with “OPEN”. Then

lift up the cover

zInsert the SIM card with its metal contacts facing down and the cut corner at the

top left.

Note: Before installing the SIM card, please disable the SIM PIN protection function

(asks SIM PIN entry while turn on the device) by your cellular phone.

zPlug the battery connector into socket. Be aware that the red wire must be

plugged on the top side.

zSet DIP switch 2 and 3 to ON position.

TR-151 page 3

Install the USB driver

Insert the Driver CD into your CD-ROM driver. AutoRun installation window will

appear. Click “Install USB Driver” button to install the USB driver.

TR-151

TR-151 page 4

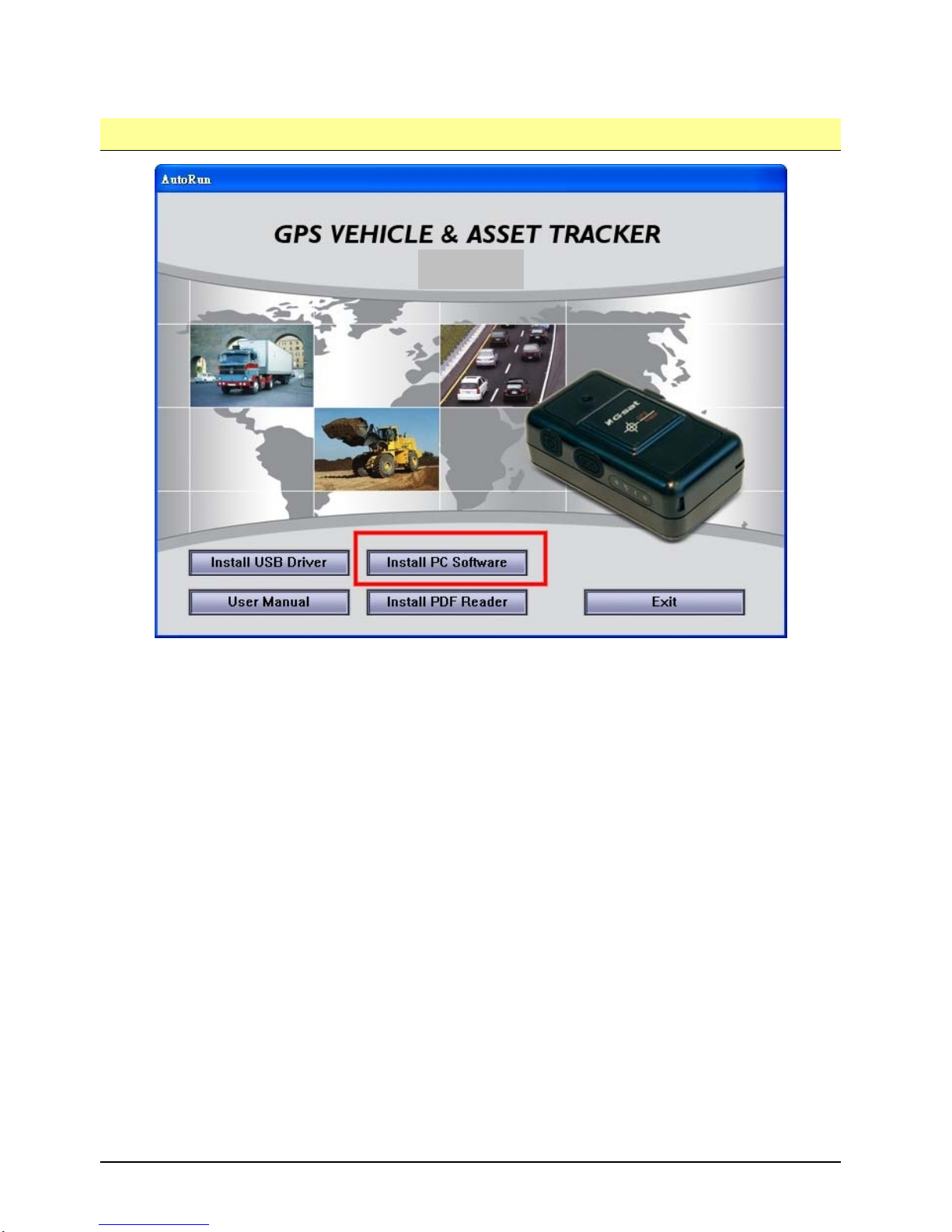

Install the Call Center program

Click “Install PC Software” button to install the Call Center program. Follow the

instruction to complete the installation process.

TR-151

TR-151 page 5

TR-151 Setup

1.) Connect the USB cable to TR-151 and the USB port on your PC.

2.) Press power button 3~4 seconds to turn on the power of TR-151. The status

LED will emit red light indicating it has already entered the setup mode.

3.) Start Call Center program.

4.) Click Device > TR151 Setup to select the COM port. If you are not sure about

which COM port to use, please click “Scan COM Port” button to automatically

scan it. Then click “Setup” button to enter setup window.

TR-151 page 6

5.) Write down the Module IMEI of your TR-151, you may need it later. Enter the

information in “User Name”, “Phone Number”, and “SOS Number” fields.

6.) Press “OK” button and then unplug the USB cable from PC and TR-151.

7.) Press power button to turn off TR-151.

8.) Set DIP switch 3 to OFF. (That is, set switch 2 to ON, switch 1,3,4 to OFF)

TR-151 page 7

Getting Started

SOS function

Step 1 Power on Red Status LED will flash 2 times.

GSM LED begins to flash once per

second. After TR-151 finish

registration process in a few

second, the LED will flash once per

3 second. (Note 1) (Note 2)

GPS begins to get position fixed.

GPS LED will be on.

Step 2 Press SOS button for 3

seconds. Red Status LED will flash 3 times.

If GPS has fixed its position,

you will receive a message in

the format shown on right

indicating the position is

fixed. If the position can not

be fixed within 3 minutes,

you will also receive a “GPS

not fixed” message.

Position report

Name

2006/9/15 10:20:39

N2459.8915,E12129.2186

GPS fixed

(Note 1): If error occurs during power on stage, the red status LED will flash 4 times quickly and then shut down.

This might result from:

Configuration file error or setup not completed.

Solution ÆPlease repeat the setup processes described above.

(Note 2): If error occurs during power on stage, the GSM blue LED continually flashes once per second. This might

result from:

Need to enter SIM PIN.

Solution ÆPlease turn off the power, disable the SIM PIN entry function by hand phone and restart it

again.

TR-151 page 8

Send command to TR-151

Step 1 Power on Red Status LED will flash 2 times.

GSM LED begins to flash.

GPS begins to get position fixed. GPS

LED will be on.

Step 2 We will have a “Period Report”

example here. (Note 3) Edit a

short message command in

your mobile phone. Suppose

your mobile phone number is

626123456, the IMEI you just

write down is

355632002593292, you

require a 60 interval

continuous report by

format1.Then you should

compose a short message as

shown on right table.

Press “Send” to send out the

short message from your

mobile phone.

?1,355632002593292,60,0,1,626123456!

Step 3 When TR-151 receives the

short message command, it

will send back a confirmation

message. (See example on

right table). TR-151 starts to fix

its position.

?1,355632002593292,OK!

GPS green LED will be on.

Step 4 If position is fixed, you will

receive position information

from TR-151 in about 10

seconds later.

?355632002593292,1,1,280807,

035825,E12129.2616,N2459.7918,

97.2,0.13,142.31,04,2.4!

If position is not fixed, you will

receive “not fixed” information

from TR-151 in about 10

seconds later.

?355632002593292,1,1,000000,

000000,E0,N0,0,0,0,0,0!

Step 5 If position is fixed, you will

receive position information

from TR-151 every 10 seconds

interval.

?355632002593292,1,1,280807,

035825,E12129.2616,N2459.7918,

97.2,0.13,142.31,04,2.4!

If position is not fixed, you will

receive “not fixed” information

from TR-151 every 60 seconds

interval.

?355632002593292,1,1,000000,

000000,E0,N0,0,0,0,0,0!

(Note 3): This example is for “Period Report”, if you want to use other type of report, please refer to user manual.
