Gigabyte GA-K8VT800 Manual de usuario

GA-K8VT800(Pro)

User's Manual

AMD Socket 754 Processor Motherboard

Rev. 1005

12ME-K8VT800P-1005

without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on motherboard, this may void the warranty of this motherboard.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a

commitment to update the information ontained herein.

Mother Board

GA-K8VT800 / GA-K8VT800 Pro

September 2, 2003

Motherboard

GA-K8VT800 / GA-K8VT800 Pro

September 2 ,2003

- 4 -GA-K8VT800(Pro) Motherboard

English

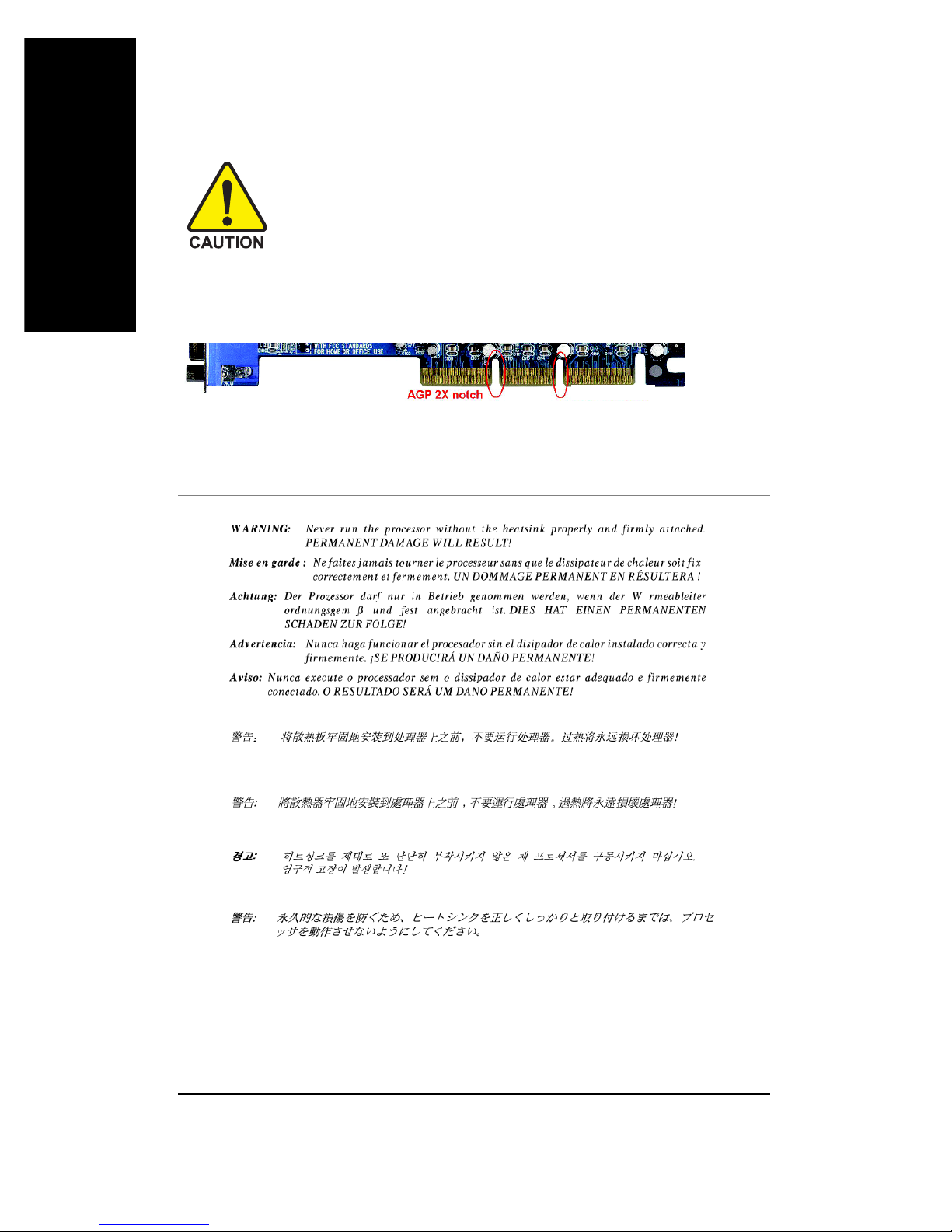

When you installing AGP card, please make sure the following notice is fully understood and

practiced. If your AGP card has "AGP 4X/8X(1.5V) notch" (show below), please make sure your

AGP card is AGP 4X/8X(1.5V).

AGP 2X(3.3V) card is not supported by VIA K8T800 chipset. You might experience system unable

to boot up normally. Please insert an AGP 4X/8X(1.5V) card.

Read Me First !

AGP 4X/8X notch

5 Read Me First

English

Installing the motherboard to the chassis…

If the motherboard has mounting holes, but they don't line up with the holes on the base and there

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off,

so be careful of your hands). In this way you can still attach the motherboard to the base without

worrying about short circuits. Sometimes you may need to use the plastic springs to isolate the

screw from the motherboard PCB surface, because the circuit wire may be near by the hole. Be

careful, don't let the screw contact any printed circuit write or parts on the PCB that are near the

fixing hole, otherwise it may damage the board or cause board malfunctioning.

Preparing Your Computer

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever

you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

other components.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper

installation of any comfortable performing the installation, consult a qualified computer technician.

Damage to system components, and injury to yourself may result if power is applied during

installation.

- 6 -GA-K8VT800(Pro) Motherboard

English

Table of Content

Read Me First ! ....................................................................................... 4

Chapter 1 Introduction ............................................................................ 8

1-1 Item Check List ............................................................................ 8

1-2 Features Summary ................................................................................ 8

1-3 GA-K8VT800(Pro) Motherboard Layout ............................................. 11

1-4 Block Diagram - GA-K8VT800(Pro).................................................... 12

Chapter 2 Hardware Installation Process ............................................. 15

Step 1: Installing Processor and CPU Cooling Fan.................................. 16

Step 2: Installing Memory Modules ........................................................... 18

Step 3: Installing expansion cards ............................................................ 20

Step 3-1: AGP Card Installation..................................................................................... 20

Step 4: Connect ribbon cables, cabinet wires and power supply ............ 21

Step 4-1: I/O Back Panel Introduction........................................................................... 21

Step 4-2: Connectors Introduction ................................................................................. 23

Chapter 3 BIOS Setup ......................................................................... 39

The Main Menu (For example: BIOS Ver. : F1a) ...................................... 40

Standard CMOS Features......................................................................... 42

Advanced BIOS Features .......................................................................... 45

Integrated Peripherals .............................................................................. 47

Power Management Setup ....................................................................... 52

PnP/PCI Configurations ............................................................................. 55

PC Health Status........................................................................................ 56

Table of Content

English

- 7 -

Frequency/Voltage Control ........................................................................ 58

Load Fail-Safe Defaults ............................................................................. 60

Load Optimized Defaults ........................................................................... 61

Set Supervisor/User Password .................................................................. 62

Save & Exit Setup ....................................................................................... 63

Exit Without Saving ................................................................................... 64

Chapter 4 Technical Reference ........................................................... 67

@BIOS™Introduction ................................................................................. 67

EasyTune™4 Introduction ......................................................................... 68

Flash BIOS Method Introduction ............................................................... 69

2- / 4- / 6-Channel Audio Function Introduction ........................................ 79

Jack-Sensing Introduction......................................................................... 85

UAJ Introduction ........................................................................................ 87

Xpress Recovery Introduction ................................................................... 89

Chapter 5 Appendix ............................................................................. 97

- 8 -GA-K8VT800(Pro) Motherboard

English

1-1 Item Checklist

TheGA-K8VT800(Pro)motherboard

CD for motherboard driver & utility

The GA-K8VT800(Pro) user's manual

Quick PC Installation Guide

GigaRAID manual(1)

GC-SATA Card (optional)

(Manual; SATA cable x 1; Power cable x 1)

IDE cable x 3 / Floppy cable x 1(1)

IDE cable x 1 / Floppy cable x 1(2)

Serial ATA cable x 2

USB & IEEE 1394 Cable x 1(1)

USB Cable x 1(2)

SPDIF Out Kit x 1(1)

I/O Shield

Motherboard Settings Label

Chapter 1 Introduction

Form Factor 30.5cm x 23.0cm ATX size form factor, 4 layers PCB

CPU Socket 754 for AMD AlthlonTM 64 processor (K8)

128K L1& 256K / 512K / 1M L2 cache on die

800MHz FSB

Support core frequencies in excess of 1.6 GHz(2800+) and faster

Chipset VIA K8T800 AGP/PCI Controller (PAC)

VIA VT8237 Integrated Peripheral Controller (PSIPC)

Memory 3 184-pin DDR DIMM sockets

Supports DDR400/DDR333/DDR266 DIMM

Supports unbuffered DIMMs with a 64-bit data bus with optional 8

bits of Error Correcting Code (ECC)

Supports 128MB/256MB/512MB/1GB DRAM

Supports up to 3GB DRAM (Max)

I/O Control ITE8705

Slots 1 AGP slot supports 8X/4X mode,

AGP3.0 8X interface at 533MHz

5 PCI slots support 33MHz & PCI 2.3 compliant

1-2 Features Summary

to be continued......

(1)For GA-K8VT800 Pro only (2)For GA-K8VT800 only

Introduction

English

- 9 -

On-Board IDE 2 IDE controllers provides IDE HDD/CD-ROM (IDE1, IDE2) with

PIO, Bus Master (Ultra DMA33/ATA66/ATA100/ATA133) operation

modes

IDE3 and IDE4 compatible with RAID, Ultra ATA133/100, IDE

Hardware Monitor CPU/System fan revolution detect

CPU/System temperature detect

CPU warning temperature

System voltage detect

CPU/System fan fail warning

CPU Smart Fan control (1)

Thermal shutdown function

On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes

1 Parallel port supports Normal/EPP/ECP mode

2 Serial ports (COMA & COMB)

8 USB 2.0/1.1 ports (4 x Front by cable)

3 IEEE1394 ports (by cable) (1)

1 IrDA connector for IR

1 FrontAudio connector

On-Board LAN RTL Gigabit LAN (RTL8110S)(1)

RTL 10/100 LAN (RTL8100C)(2)

1 RJ45 ports

On-Board Sound Realtek ALC658 CODEC (UAJ)

Supports Jack Sensing function

Line Out / 2 front speaker

Line In / 2 rear speaker (by s/w switch)

Mic In / center & subwoofer (by s/w switch)

SPDIF In / Out

CD In / AUX In / Game port

On-Board SATA RAID '*' Built-in VT8237

Supports Disk striping (RAID0) or DISK Mirroring (RAID1)

Supports UDMA up to 150 MB/sec.

Up to 2 SATA devices(Note)

to be continued......

(1)For GA-K8VT800 Pro only (2)For GA-K8VT800 only

'*' If you want to find the detailed information for SATA RAID setup installation,

please download the VT8237 SATA Manual from GIGABYTE’s website.

(Note) It is recommended to use SATA (1.5Gb/s) hard disks.

- 10 -GA-K8VT800(Pro) Motherboard

English

On-Board IDE RAID(1)Onboard GigaRAID IT8212F chipset

Supports data striping (RAID 0) or mirroring (RAID 1) or

striping+mirroring (RAID 0 + RAID 1)

Supports JBOD function

Supports concurrent dualATA133 IDE controller operation

Support ATAPI mode for HDD

Supports IDE bus master operation

Support ATA133/RAID mode switch by BIOS

Displays status and error checking messages during boot-up

Mirroring supports automatic background rebuilds

Features LBA and Extended Interrupt 13 drive translation in

controller onboard BIOS

On-Board IEEE1394 (1)Built-in Ti TSB43AB23

PS/2 Connector PS/2 Keyboard interface and PS/2 Mouse interface

BIOS Licensed AWARD BIOS

Supports Dual BIOS (1)

Supports Face Wizard (1)

Supports Q-Flash

Additional Features PS/2 Keyboard power on by password

PS/2 Mouse power on

External Modem wake up

STR(Suspend-To-RAM)

Wake on LAN (WOL)

AC Recovery

Poly fuse for keyboard over-current protection

USB KB/Mouse wake up from S3

Supports Thermal Shutdown function

Supports Easy Tune4

Supports @BIOS

Overclocking Over Voltage (CPU/DDR/AGP) by BIOS

Over Clock (CPU/DDR/AGP) by BIOS

Please set the CPU host frequency in accordance with your processor's specifications.

We don't recommend you to set the system bus frequency over the CPU's specification because

these specific bus frequencies are not the standard specifications for CPU, chipset and most of the

peripherals. Whether your system can run under these specific bus frequencies properly will

depend on your hardware configurations, including CPU, Chipsets, SDRAM, Cards…etc.

(1)For GA-K8VT800 Pro only

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte H410M HD3P Manual de usuario

Gigabyte

Gigabyte GA-6CXB7 Manual de usuario

Gigabyte

Gigabyte GA-PH67A-UD3 Manual de usuario

Gigabyte

Gigabyte GA-6RX Manual de usuario

Gigabyte

Gigabyte GA-K8NF-9 Manual de usuario

Gigabyte

Gigabyte GA-Z77P-D3 Manual de usuario

Gigabyte

Gigabyte GA-8 SMML Manual de usuario

Gigabyte

Gigabyte GA-8IG1000 Pro-G Manual de usuario

Gigabyte

Gigabyte GA-8ICXT Manual de usuario

Gigabyte

Gigabyte GA-H110M-S2HP Manual de usuario

Gigabyte

Gigabyte B650 GAMING X AX Manual de usuario

Gigabyte

Gigabyte GA-X48-DS4 Manual de usuario

Gigabyte

Gigabyte GA-8GE667 Pro Manual de usuario

Gigabyte

Gigabyte GA-8IG1000 Pro-G Manual de usuario

Gigabyte

Gigabyte GA-8IPE1000 Series Manual de usuario

Gigabyte

Gigabyte GA-K8N Ultra-9 Manual de usuario

Gigabyte

Gigabyte GA-H170-D3HP Manual de usuario

Gigabyte

Gigabyte GA-7ZMMH Manual de usuario

Gigabyte

Gigabyte GA-8S661FXM-775 Manual de usuario

Gigabyte

Gigabyte Z790 A ELITE AX DDR4 Manual de usuario

Gigabyte

Gigabyte H470M DS3H Manual de usuario

Gigabyte

Gigabyte GA-A75M-DS2 Manual de usuario

Gigabyte

Gigabyte B550 AORUS ELITE AX V2 Manual de usuario

Gigabyte

Gigabyte GA-6VXE+ Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
