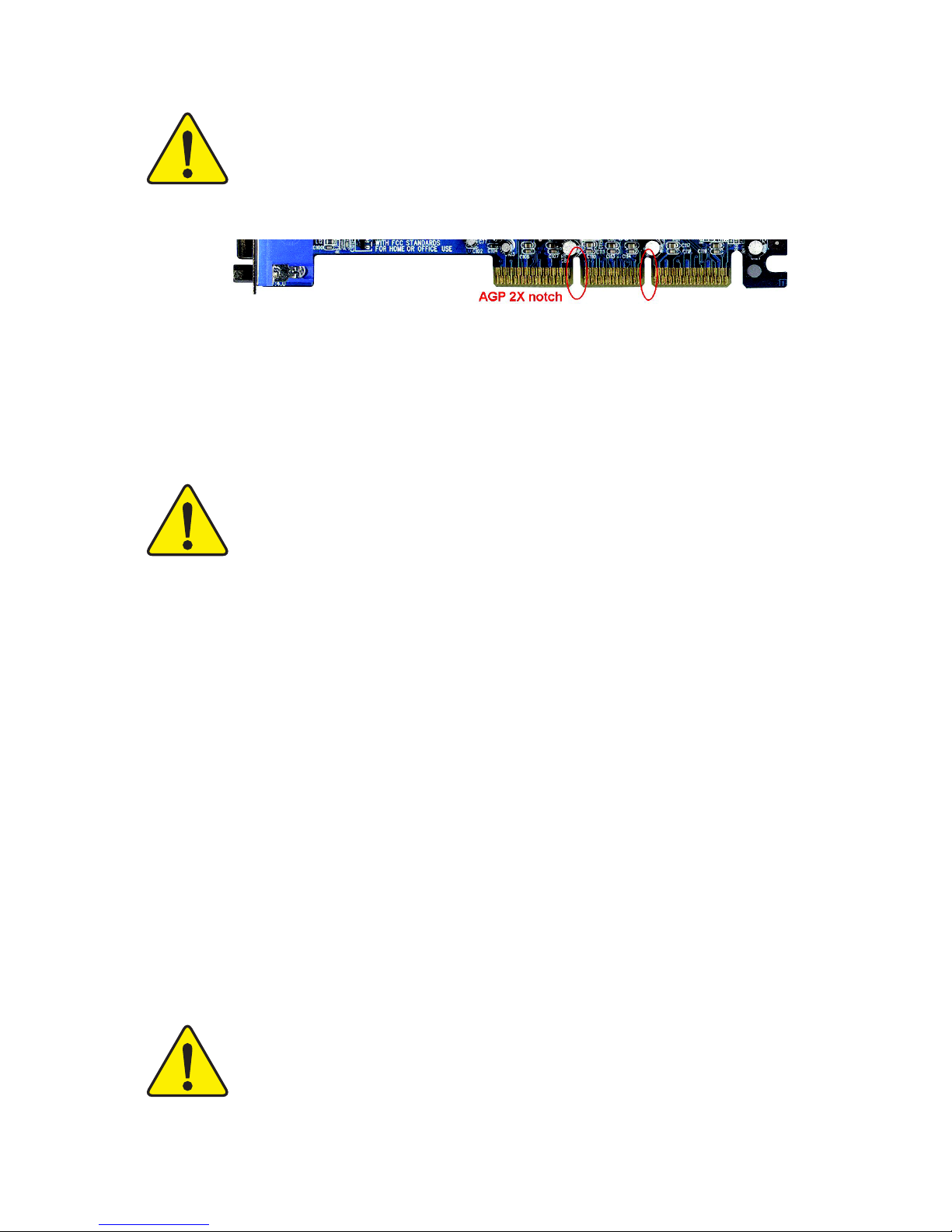

When you installing AGP card, please make sure the following notice

is fully understood and practiced. If your AGP card has "AGP 4X/8X

(1.5V) notch"(show below), please make sure your AGP card is AGP

4X/8X (1.5V).

Caution: AGP 2X card is not supported by Intel®845(GE/PE) / 845(E/G)

/ 850(E) / E7205 / 865(G/PE/P) / 875P. You might experience system

unable to boot up normally. Please insert an AGP 4X/8X card.

Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X

mode AGP slot. It can be switched betweenAGP 2X(3.3V) or 4X(1.5V) mode

by adjusting the jumper. The factory default for this card is 2X(3.3V). The

GA-8IG1000 Series (or any AGP 4X/8X only) motherboards might not

function properly, if you install this card without switching the jumper to 4X

(1.5V) mode in it.

Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",

the graphics card manufacturer & some SiS 305 cards, their golden finger is

compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but they support 2X

(3.3V) only. The GA-8IG1000 Series (or any AGP 4X/8X only) motherboards

might not function properly, If you install this card in it.

Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage

128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)

specification. Therefore, AG32S(G) will work fine with Intel®845(GE/PE) /

845(E/G) / 850(E) / E7205 / 865(G/PE/P) / 875P based motherboards.

Before you install PCI cards, please remove the Dual BIOS label from PCI

slots if there is one.

AGP 4X/8X notch

0The author assumes no responsibility for any errors

or omissions that may appear in this document nor

does the author make a commitment to update the

information contained herein.

0Third-party brands and names are the property of

their respective owners.

0Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

0Due to rapid change in technology, some of the

specifications might be out of date before publication

of this booklet.

Jan. 15, 2004

Mother Board

GA-8IG1000 Pro-G/GA-8IG1000-G/GA-8IG1000

Motherboard

Jan. 15, 2004

GA-8IG1000 Pro-G/GA-8IG1000-G/

GA-8IG1000

USER'S MANUAL

GA-8IG1000 Series

P4 Titan Series Motherboard

Pentium®4 Processor Motherboard

Rev. 3004

12ME-8IG1KG-3004

- 2 -GA-8IG1000 Series Motherboard

English

Table of Contents

Warning ................................................................................................... 4

Chapter 1 Introduction ............................................................................ 5

Features Summary ....................................................................................... 5

GA-8IG1000 Series Motherboard Layout ..................................................... 8

Block Diagram .............................................................................................. 9

Chapter 2 Hardware Installation Process ............................................. 11

Step 1: Install the Central Processing Unit (CPU) ...................................... 12

Step 1-1: CPU Installation ........................................................................................................ 12

Step 1-2 : CPU Cooling Fan Installation .................................................................................. 13

Step 2: Install Memory Modules ................................................................. 14

Step 3: Install Expansion Cards ................................................................. 17

Step 4: Connect Ribbon Cables, Cabinet Wires, and Power Supply ......... 18

Step 4-1: I/O Back Panel Introduction ...................................................................................... 18

Step 4-2: Connectors & Jumpers Setting Introduction ............................................................. 20

Chapter 3 BIOS Setup ......................................................................... 35

The Main Menu (For example: BIOS Ver. : E2) .......................................... 36

Standard CMOS Features .......................................................................... 38

Advanced BIOS Features ........................................................................... 41

Integrated Peripherals ................................................................................ 43

Power Management Setup ......................................................................... 48

PnP/PCI Configurations ............................................................................. 50

PC Health Status ........................................................................................ 51

Frequency/Voltage Control ......................................................................... 53

Table of Content

English

- 3 -

(*)For GA-8IG1000 Pro-G only.

Select Language (*).................................................................................................................................................... 56

Load Fail-Safe Defaults .............................................................................. 57

Load Optimized Defaults ............................................................................ 58

Set Supervisor/User Password .................................................................. 59

Save & Exit Setup ...................................................................................... 60

Exit Without Saving .................................................................................... 61

Chapter 4 Technical Reference ............................................................63

@BIOS™Introduction ................................................................................. 63

EasyTune™4 Introduction .......................................................................... 64

Flash BIOS Method Introduction ................................................................ 65

2- / 4- / 6- / 8-Channel Audio Function Introduction.................................... 75

Jack-Sensing(UAJ) Introduction ................................................................. 81

Xpress Recovery2 Introduction ................................................................. 83

Chapter 5 Appendix.............................................................................. 87

- 4 -GA-8IG1000 Series Motherboard

English

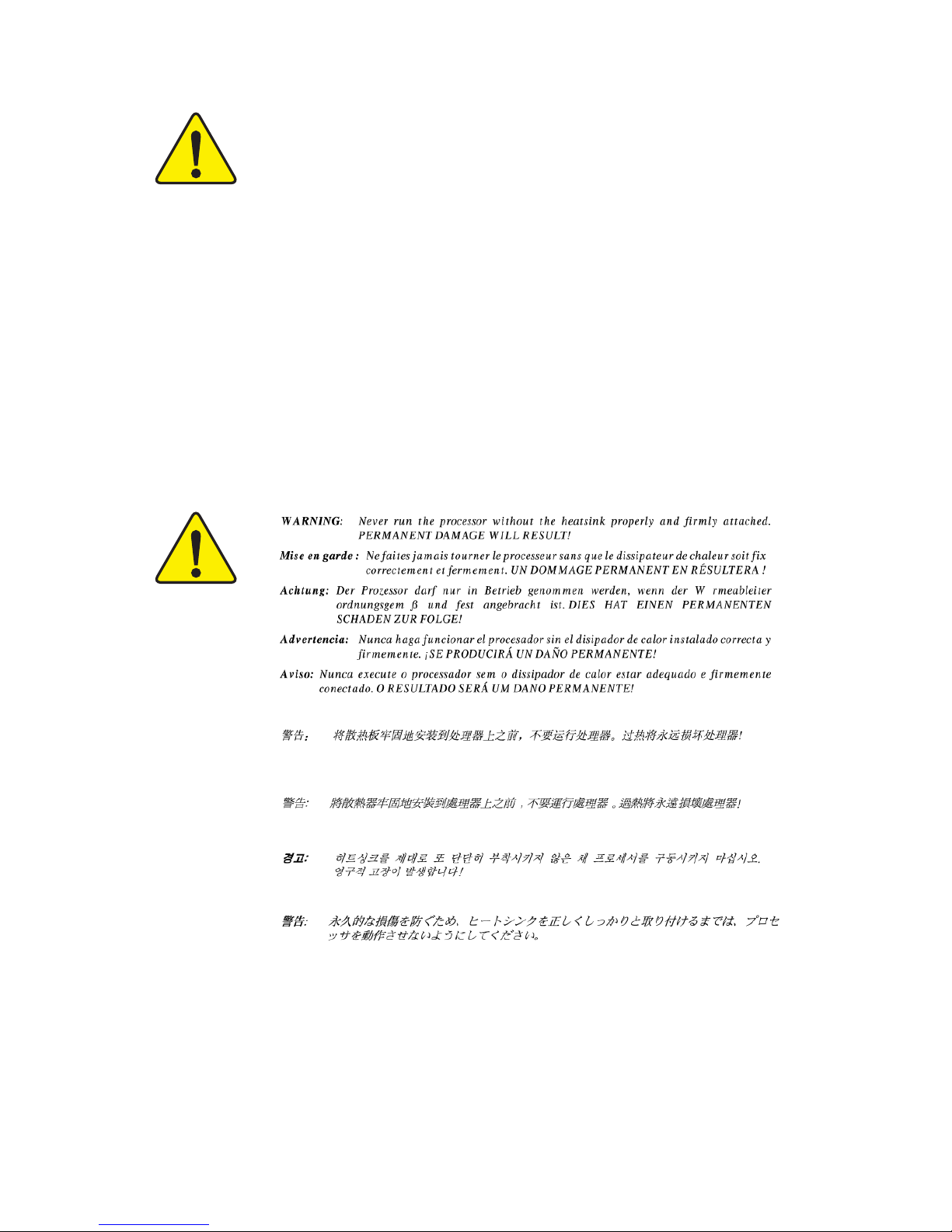

Warning

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

other components.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

ower connector on the motherboard.

If the motherboard has mounting holes, but they don't line up with the holes on the base and there

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so

be careful of your hands). In this way you can still attach the motherboard to the base without worrying

about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the

motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the

screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may

damage the board or cause board malfunctioning.

Installing the motherboard to the chassis…

Introduction- 5 -

English

Form Factor y30.5cm x 23.0cm ATX size form factor, 4 layers PCB

Motherboard yGA-8IG1000 Series Motherboard:

GA-8IG1000 Pro-G/ GA-8IG1000-G/ GA-8IG1000

CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

ySupport Intel®Pentium®4 (Northwood, Prescott) processor

ySupport Intel®Pentium®4 Processor with HT Technology

yIntel®Pentium®4 800/533/400MHz FSB

y2nd cache depends on CPU

Chipset yChipset Intel®865G HOST/AGP/Controller

yIntel®ICH5 I/O Controller Hub

Memory y4 184-pin DDR DIMM sockets

ySupports Dual channel DDR400/DDR333/DDR266 DIMM

ySupports 128MB/256MB/512MB/1GB unbuffered DRAM

ySupports up to 4GB DRAM (Max) (Note 1)

I/O Control yITE8712

Slots y1 AGP slot supports 8X/4X mode

y5 PCI slot supports 33MHz & PCI 2.3 compliant

On-Board IDE y2 IDE bus master (UDMA33/ATA66/ATA100) IDE ports for

up to 4 ATAPI devices

ySupports PIO mode3, 4 (UDMA 33/ATA66/ATA100) IDE &

ATAPI CD-ROM

On-Board Serial ATA yControlled by ICH5

y2 Serial ATA connectors in 150 MB/s operation mode

Chapter 1 Introduction

Features Summary

to be continued...

Due to chipset (Intel 875P/865G/865PE) architecture limitation, a FSB 800 Pentium 4 processor

will support DDR400/DDR333/DDR266 memory module. A FSB 533 Pentium 4 processor will

support DDR333 and DDR266 memory module. A FSB 400 Pentium 4 processor will only support

DDR 266 memory module.

(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage and

therefore the actual memory size is less than the stated amount. For example, 4 GB of memory size

will instead be shown as 3.xxGB memory during system startup.

- 6 -GA-8IG1000 Series Motherboard

English

to be continued...

(*)For GA-8IG1000 Pro-G only.

()For GA-8IG1000-G only.

On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes

y1 Parallel port supports Normal/EPP/ECP mode

y1 Serial port (COMA), 1 VGA port

y8 USB 2.0/1.1 ports (4 x Rear, 4 xFront by cable)

y1 Front Audio connector

y3 IEEE1394 (by cable) (*)

y1 IrDA connector for IR/CIR

Hardware Monitor yCPU/Power(*)/System fan revolution detect

yCPU/Power(*)/System fan fail warning

yCPU overheat warning

ySystem voltage detect

On-Board Sound yRealtek ALC850 UAJ CODEC

ySupport Jack-Sensing

yLine Out / 2 front speaker

yLine In / 2 rear speaker(by s/w switch)

yMic In / center & subwoofer(by s/w switch)

ySurround Back Speaker(by optional Surround-Kit)

ySPDIF Out / SPDIF In

yCD_In/ Game connector

On-Board LAN (*)yBuilt-in Marvell 8001 chipset

Data transfer rate 10/100/1000 supported

y1 RJ45 port

On-Board IEEE1394 (*)yTi TSB43AB23

PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interface

BIOS yLicensed AWARD BIOS

ySupports Dual BIOS(*)/Q-Flash

ySupports Multi-Language(*)

ySupports Face Wizard(*)
