H470M DS3H

User's Manual

Rev. 1001

12ME-H47MS3H-1001R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

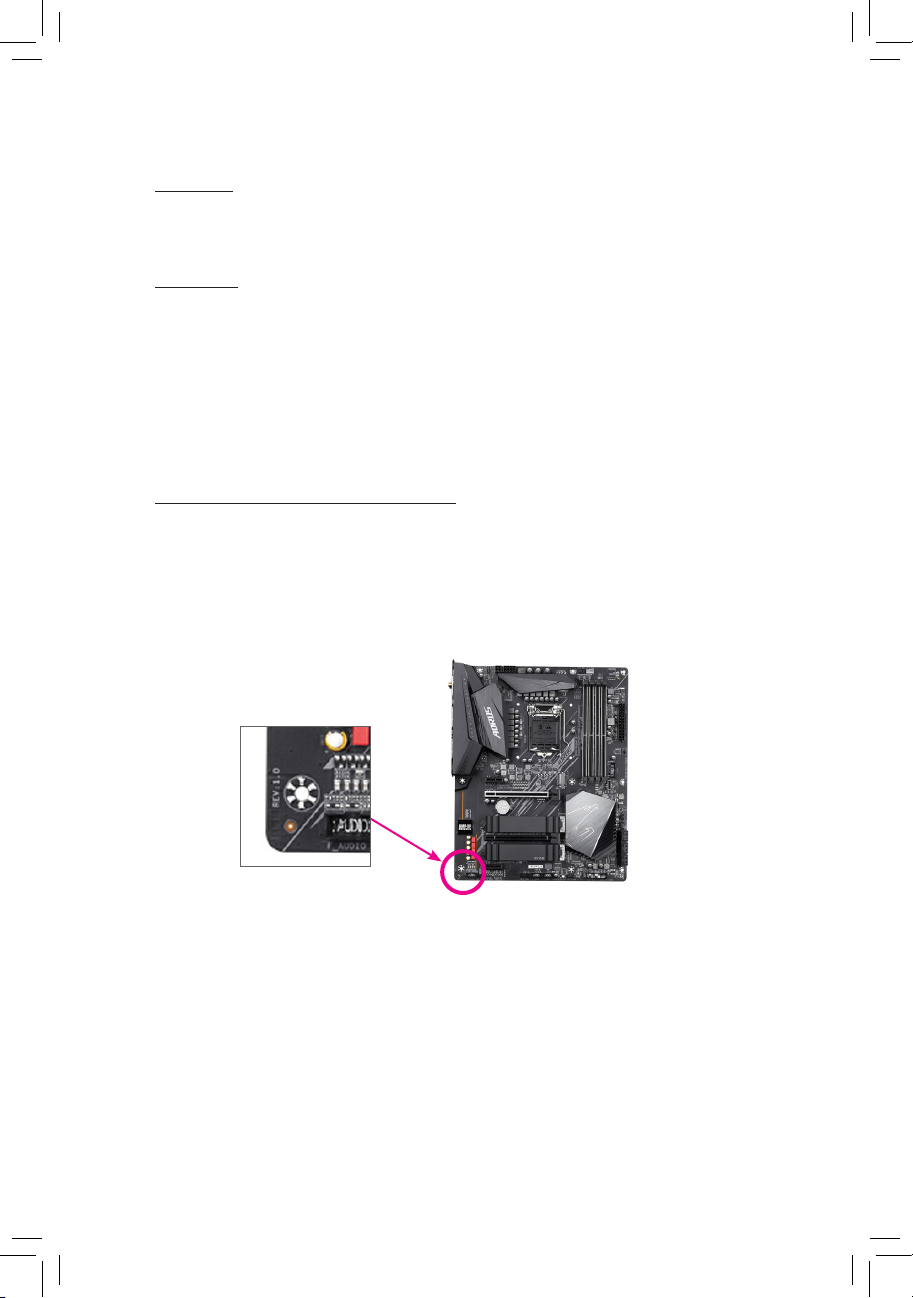

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

H470M DS3H Motherboard Layout .................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 Product Specications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................22

2-1 Startup Screen ............................................................................................... 22

2-2 The Main Menu .............................................................................................. 23

2-3 Favorites (F11) ............................................................................................... 24

2-4 Tweaker.......................................................................................................... 25

2-5 Settings .......................................................................................................... 30

2-6 System Info. ................................................................................................... 36

2-7 Boot................................................................................................................ 37

2-8 Save & Exit..................................................................................................... 40

Chapter 3 Appendix ......................................................................................................41

3-1 Conguring a RAID Set.................................................................................. 41

3-2 Installing an Intel®Optane™Memory.............................................................. 43

3-3 Drivers Installation.......................................................................................... 45

Regulatory Notices.................................................................................................... 46

Contact Us ................................................................................................................ 48

- 4 -

H470M DS3H Motherboard Layout

KB_MS_USB

DVI

VGA

HDMI

U32C

U32

U32_LAN

LGA1200

ATX

AUDIO

DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

ATX_12V_2X4

Intel®H470

CLR_CMOS

M_BIOS

PCIEX1_2

PCIEX1_1

PCIEX4

PCIEX16

F_U32

THB_C1

THB_C2

CODEC

H470M DS3H

F_PANELF_USB1LED_C1QFLASH_

PLUS

LPTCOM

F_AUDIO SPI_TPM

F_USB2 SYS_FAN3D_LED1

QFLED

SYS_FAN1

SYS_FAN2

CPU_FAN

iTE®

Super I/O

M2Q

426080110

M2P

426080

SATA3

1 3

0 2

BAT

Intel®

GbE LAN

Box Contents

5H470M DS3H motherboard 5Two SATA cables

5Motherboard driver disc 5I/O Shield

5User's Manual

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 10th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1200 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H470 Express Chipset

Memory Intel®Core™i9/i7 processors:

- Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel®Core™i5/i3/Pentium®/Celeron®processors:

- Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

- Support for up to 3 displays at the same time

Maximum shared memory of 512 MB

Audio Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you need to open the audio software and select Device

advanced settings > Playback Device to change the default setting rst. Please visit

GIGABYTE's website for details on conguring the audio software.

LAN Intel®GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics

Technology Support for AMD Quad-GPU CrossFire™and 2-WayAMD CrossFire™technologies

- 6 -

Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2

SSD support) (M2Q)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/

x2 SSD support) (M2P)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

Intel®Optane™Memory Ready

USB Chipset:

- 1 x USB Type-C™port on the back panel, with USB 3.2 Gen 1 support

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

1 x DisplayPort

1 x USB Type-C™port, with USB 3.2 Gen 1 support

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

- 7 -

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

cFosSpeed

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

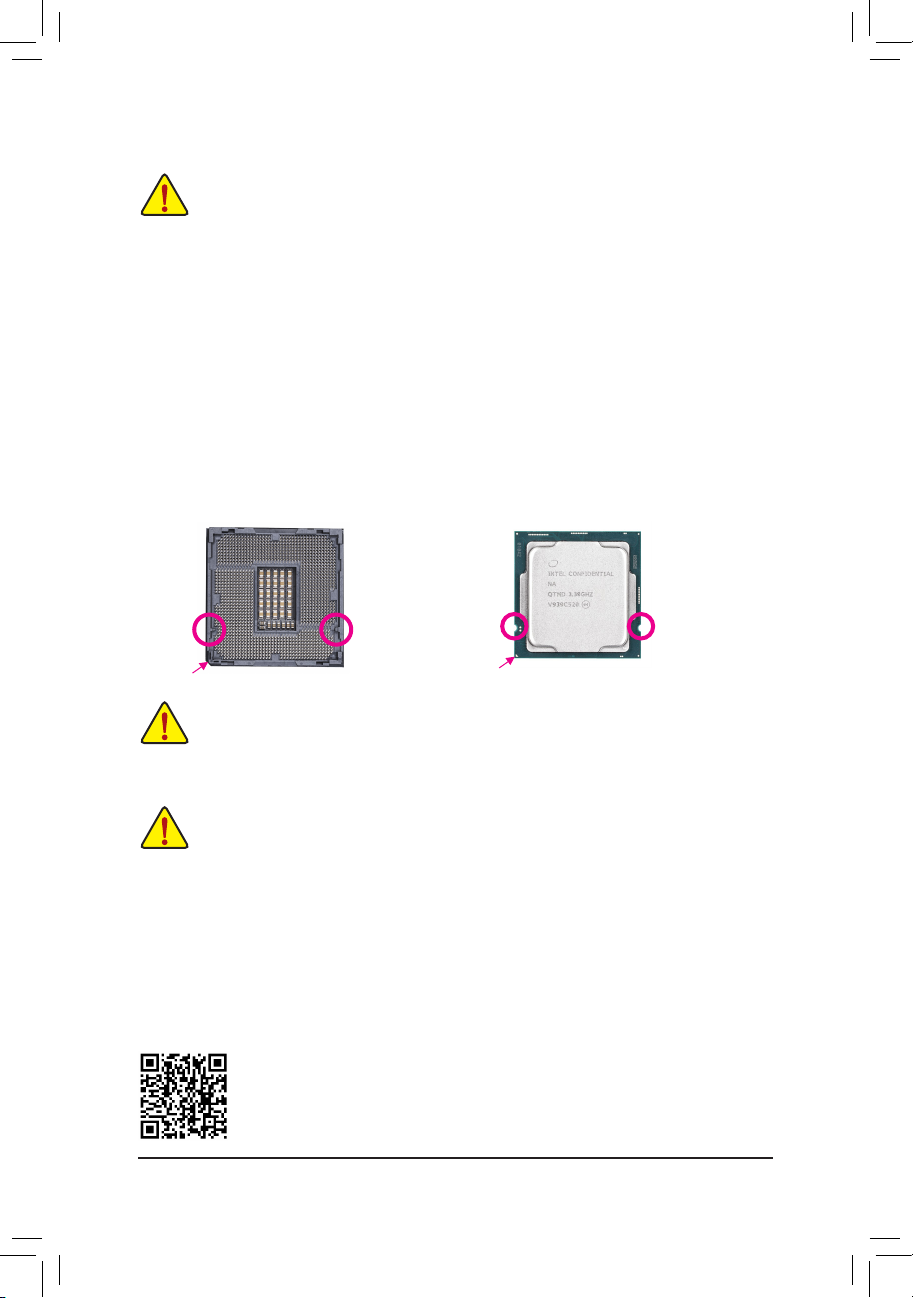

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Triangle Pin One Marking on the CPU

NotchNotch

LGA1200 CPU

Alignment

Key

Alignment

Key

LGA1200 CPU Socket

Pin One Corner of the CPU Socket

- 9 -

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_A1, DDR4_A2

Channel B: DDR4_B1, DDR4_B2

Recommanded Dual Channel Memory Conguration:

DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

2 Modules - - DS/SS - - DS/SS

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

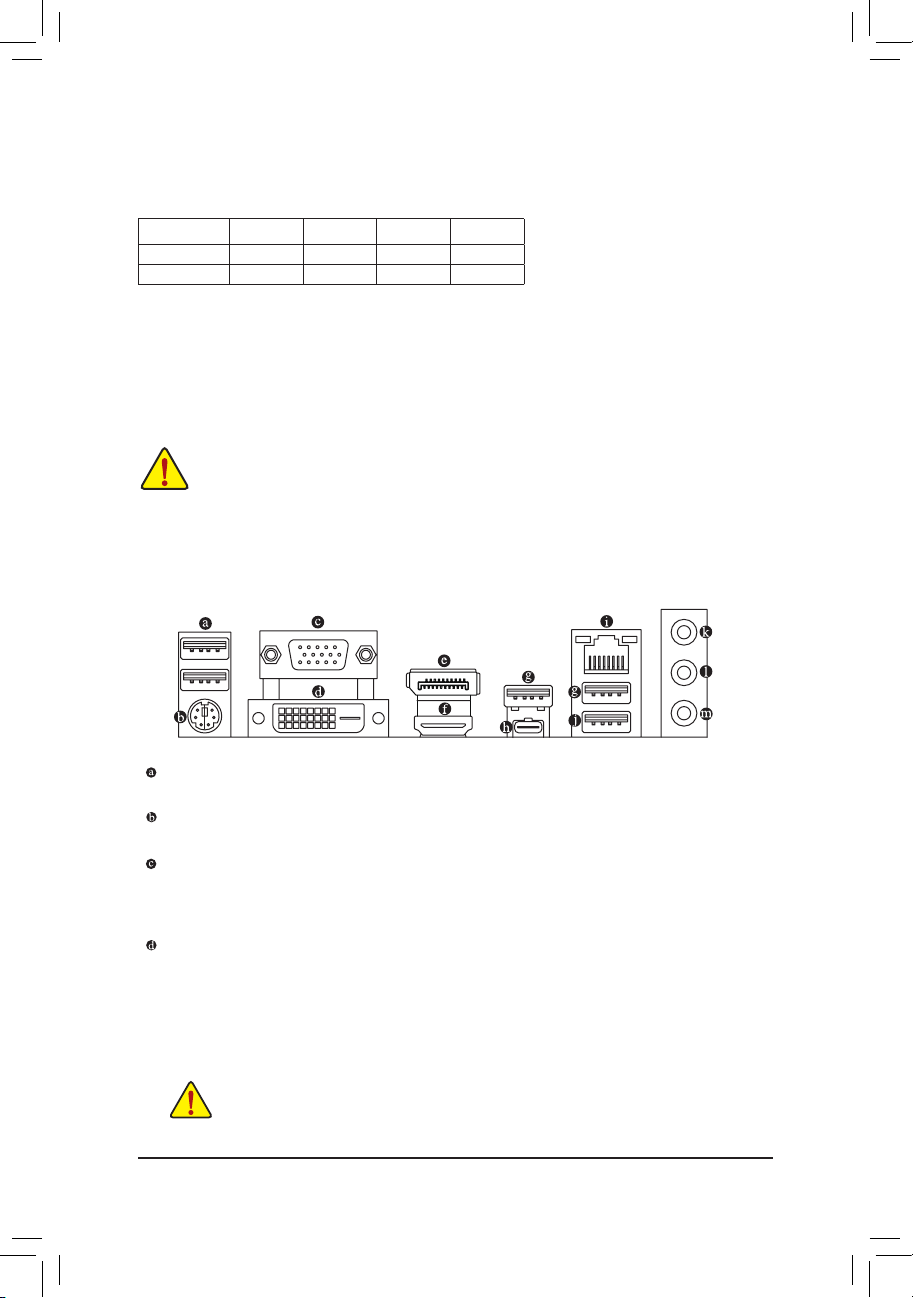

1-6 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

DVI-D Port (Note)

The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port.

(Note) The DVI-D port does not support D-Sub connection by adapter.

•When removing the cable connected to a back panel connector, rst remove the cable from

your device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

- 10 -

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte MVBAYAI Manual de usuario

Gigabyte

Gigabyte R281-3C0 Manual de usuario

Gigabyte

Gigabyte GA-945GM-DS2 Manual de usuario

Gigabyte

Gigabyte GA-7TCSV1 Manual de usuario

Gigabyte

Gigabyte B365M GAMING HD Manual de usuario

Gigabyte

Gigabyte GA-Z170X-UD5 Manual de usuario

Gigabyte

Gigabyte GA-MA790GP-DS4H Manual de usuario

Gigabyte

Gigabyte GA-F2A85X-UP4 Manual de usuario

Gigabyte

Gigabyte GA-B75M-D3V Manual de usuario

Gigabyte

Gigabyte Z790 AORUS MASTER Manual de usuario

Gigabyte

Gigabyte GA-8PE667 Pro Manual de usuario

Gigabyte

Gigabyte GA-Z68X-UD3-B3 Manual de usuario

Gigabyte

Gigabyte GA-Z270M-D3P Manual de usuario

Gigabyte

Gigabyte GA-H61N-USB3 Manual de usuario

Gigabyte

Gigabyte GA-P55A-UD5 Manual de usuario

Gigabyte

Gigabyte GA-H81.AMP-UP Manual de usuario

Gigabyte

Gigabyte GA-MA785GM-UD2H Manual de usuario

Gigabyte

Gigabyte GA-8IR533 Manual de usuario

Gigabyte

Gigabyte Z790 AORUS PRO X Manual de usuario

Gigabyte

Gigabyte GA-MA770-DS3 Manual

Gigabyte

Gigabyte GA-X38-DS5 Manual de usuario

Gigabyte

Gigabyte GA-VM800PMC Manual de usuario

Gigabyte

Gigabyte P310 D3 Manual de usuario

Gigabyte

Gigabyte GA-B75M-D2V Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
