Gigabyte Sil3112 Guía rápida

Table of Contents

Configuring SATA Hard Drive(s) (Controller: Silicon Image Sil3112) ............................................. 2

(1) Installing SATA hard drive(s) in your system ............................................................................. 2

(2) Configuring SATA controller mode and boot sequence in BIOS Setup .................................... 3

(3) Configuring RAID set in RAID BIOS ............................................................................................. 5

(4) Making a SATA controller driver disk .......................................................................................... 8

(5) Installing SATA controller driver during OS installation ............................................................ 10

SATA Hard Drive Configurations (Sil3112) - 2 -

Ác

Åé

¤¤

¤å

Configuring SATA Hard Drive(s) (Controller: Silicon Image Sil3112)

"*" Skip this step if you do not want to create RAID array on the SATA controller

To configure SATA hard drive(s), follow the steps below:

(1) Install SATA hard drive(s) in your system.

(2) Configure SATA controller mode and boot sequence in BIOS Setup.

(3)* Configure RAID set in RAID BIOS.

(4) Make a floppy disk containing the SATA controller driver.

(5) Install the SATA controller driver during OS installation.

Before you begin

Please prepare:

(a) Two SATA hard drives (to ensure optimal performance, it is recommended that you use two hard

drives with identical model and capacity). If you do not want to create RAID with the SATA

controller, you may prepare only one hard drive.

(b) An empty formatted floppy disk.

(d) Driver CD for your motherboard.

(1) Installing SATA hard drive(s) in your system

Attach one end of the SATA signal cable to the rear of the SATA hard drive and the other end to available

SATA port(s) on the motherboard (If there are more than one SATA controller on your motherboard, you

may check the name of the SATA connnector to identify the SATA controlller for the connector. For

example, SATA0_SII/SATA1_SII is controlled by the Sil3112 controller). Then connect the power

connector from your power supply to the hard drive.

SATA Hard Drive Configurations (Sil3112)- 3 -

Figure 1

Integrated Peripherals



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

(2) Configuring SATA controller mode and boot sequence in BIOS Setup

You have to make sure whether the SATA controller is configured correctly in system BIOS Setup and

set BIOS boot sequence for the SATA hard drive(s).

Step 1:

Turn on your computer and press Del to enter BIOS Setup during POST (Power-On Self Test). In BIOS

Setup menu, go to Integrated Peripherals and assure that Onboard H/W SATA is enabled. If you want

to create RAID, set the Serial ATA Function item to RAID (RAID by default) (Figure 1). Change the

Serial ATA Function item to BASE if you do not want to create RAID.

The BIOS Setup menus described in this section may not show the exact settings for your

motherboard. The actual BIOS Setup menu options you will see shall depend on the motherboard

you have and the BIOS version .

SATA Hard Drive Configurations (Sil3112) - 4 -

Ác

Åé

¤¤

¤å

Figure 2

Hard Disk Boot Priority





 

Advanced BIOS Features



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults



Figure 3

Step 2:

Select Hard Disk Boot Priority under the Advanced BIOS Features menu. In the Hard Disk Boot

Priority submenu, select the model of the SATA hard drive onto which you want to install Microsoft

Windows 2000/XP (Figure 2).

Step 3:

Set First Boot Device under the Advanced BIOS Features menu to CD-ROM to boot from CD-ROM

drive after system restarts (Figure 3).

Step 4:

Save and exit BIOS Setup.

SATA Hard Drive Configurations (Sil3112)- 5 -

Figure 4

Figure 5

Step 2:

After you enter the RAID Configuration Utility, a screen similar to that below will appear (Figure 5).

Main Menu: The Main Menu in the upper left corner allows you to use the UP or DOWN ARROW key

to highlight through choices. Highlight an item that you want to execute and press ENTER.

The Create RAID set selection allows user to create a new RAID Set. If there is a previously created

RAID set on the hard drives, it is recommended that you back up the data and remove the old RAID

set before creating a new RAID set.

The Delete RAID set selection allows users to delete an existing RAID set.

The Rebuild Mirrored set is used to initiate the copying of data from an existing drive to a replacement

drive that has been installed in a RAID 1 set after the failure of one of the members.

The Resolve Conflicts is used to automatically find the member drives of a RAID set which has

been disrupted (physical drives swapped around, for example) and restore the RAID set to proper

operation.

(3) Configuring RAID set in RAID BIOS

Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed to Section 4 if

you do not want to create RAID.

Step 1:

After the Power-On Self Test (POST) memory test begins and before the operating system boot begins,

look for a message which says "Press <Ctrl+S> or <F4> to enter RAID utility"(Figure 4). Hit the

CTRL+ S or F4 key(s) to enter the RAID BIOS setup utility. If you cannot enter the RAID BIOS correctly,

assure that your SATA drives are properly installed.





Main Menu

Hard Drives Properties

Function keys

Help Window

SATA Hard Drive Configurations (Sil3112) - 6 -

Ác

Åé

¤¤

¤å

Figure 7

KLKL

Step 3:

Create RAID set:

Select Create RAID set and press ENTER, and then the RAID type selection menu will appear (Figure

6). Use UP or DOWN ARROW key to select a RAID type that you want to create and press ENTER.

The options include Striped (RAID 0) and Mirrored (RAID 1).

Step 4:

After the selection of a RAID type, select Auto configuration or Manual configuration (Figure 7). If

Auto configuration is selected, BIOS will automatically assign RAID member drives and set the chunk

size of Striped Sets to 64KB. If Manual configuration is selected, you can manually change the chunk

size (from 4K to 128K) and then assign the drives to be used in the RAID array.

Figure 6

KLKL

SATA Hard Drive Configurations (Sil3112)- 7 -

Figure 9





Step 5:

After finishing all the settings of a RAID set and press ENTER, the prompt "Are You Sure?" will appear.

Press Y to confirm your selection. After the RAID array is created, the lower-left screen will list the RAID

set information, including RAID type, chunk size and toal array size (Figure 8).

If you want to remove one or more RAID sets, select Delete RAID set item (Figure 9) in Main Menu.

Press ENTER and follow the on-screen instructions to delete the RAID set.

After completing the configuration, press CTRL+E to exit the RAID Configuration Utility.

Now, you can proceed to the installation of the SATA driver and operating system.

Figure 8





SATA Hard Drive Configurations (Sil3112) - 8 -

Ác

Åé

¤¤

¤å

(4) Making a SATA controller driver disk

To install Windows 2000/XP onto a SATA hard disk on the Sil3112 controller successfully, you need

to install required driver for the SATA controller during OS installation. Without the driver, the hard drives

may not be recognized during the Windows setup process.

First of all, you need to copy the driver for the SATA controller from the motherboard driver CD to a

floppy disk. The instructions below explain how to copy the driver.

Step 1: Find an available system and insert the motherboard driver CD into the CD-ROM drive. The

installation utility will appear automatically. Quit the installation utility first.

Step 2: Go to My Computer and right-click the CD-ROM drive icon and select Open (Figure 10).

Figure 10

Figure 11

Step 3: Go to the BootDrv folder and look for an executable program named MENU.exe (Figure 11).

SATA Hard Drive Configurations (Sil3112)- 9 -

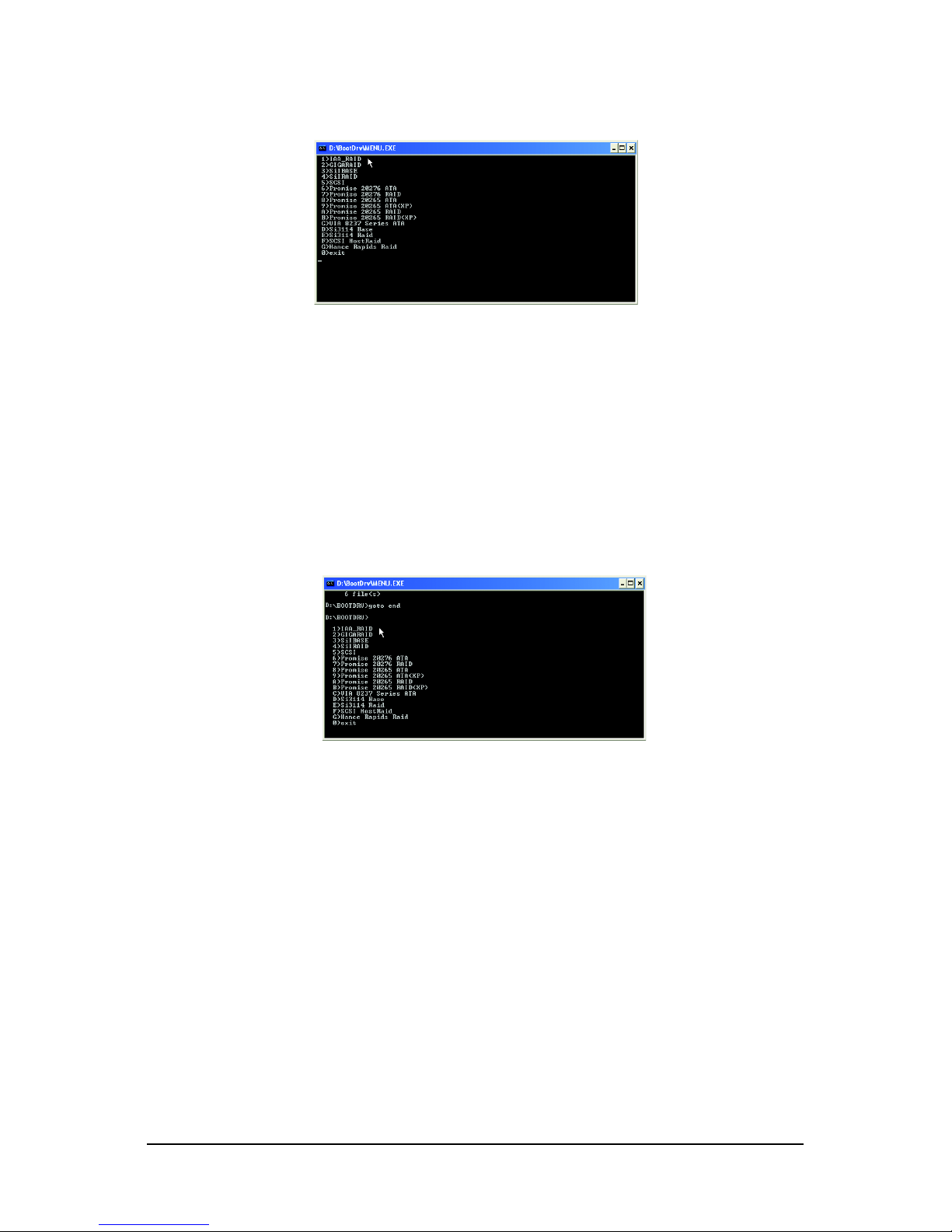

Figure 13

Step 4:

Double-click MENU.exe. An MS-DOS prompt screen similar to Figure 12 below will appear.

Figure 12

Step 5:

Insert an empty floppy disk. If you want to create RAID array(s), press 4 to select the 4)SilRAID item.

If you do not want to create RAID array, press 3 to select 3)SiIBASE. Then it will take about one minute

to copy the SATA driver from the motherboard driver CD to the floppy disk.

Step 6:

Press 0to exit when the procedure is complete (Figure 13). You have copied the SATA driver sucessfully.

SATA Hard Drive Configurations (Sil3112) - 10 -

Ác

Åé

¤¤

¤å

Figure 14

Figure 15

Step 2:

When a screen similar to that below appears (Figure 15), insert the floppy disk containing the SATA driver

and press S.

(5) Installing SATA controller driver during OS installation

Now that you have prepared a floppy disk with the SATA controller driver and configured BIOS settings,

you are ready to install Windows 2000/XP onto your SATA hard drive with the driver. The following is

an example of Windows XP installation.

Step 1: Restart your system to boot from the Windows 2000/XP Setup disk and press F6

as soon as you see the "Press F6 if you need to install a 3rd party SCSI or RAID driver" message

(Figure 20). After pressing F6, there will be a few moments of some files being loaded before you see

the next screen.
