Gigabyte NVIDIA N730D5-2GL Manual de usuario

NVIDIA®Graphics Accelerator

User's Manual

Rev. 105

mitted in any form without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the properties of their respective owners.

Notice

Please do not remove any labels on this graphics card. Doing so may void the warranty of this card.

Due to rapid change in technology, some of the speciﬁcations might be out of date before publication of this this

manual.The author assumes no responsibility for any errors or omissions that may appear in this document nor does

the author make a commitment to update the information contained herein.

Rovi Product Notice:

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual

property rights.Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended

for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering

or disassembly is prohibited.

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Gigabyte GV-

N730D5-2GL o cerca il tuo prodotto tra le migliori offerte di Schede Grafiche

- 2 -

Table of Contents

1. Introduction..................................................................................................................3

1.1. Minimum System Requirements.................................................................................... 3

2. Hardware Installation...................................................................................................5

2.1. SLI Technology .............................................................................................................. 5

3. Software Installation ....................................................................................................7

3.1. Driver and Utility Installation .......................................................................................... 7

3.1.1. Driver Installation..............................................................................................................7

3.1.2. GIGABYTE OC Guru II.....................................................................................................9

3.2. Display Properties Pages ........................................................................................ 19

3.3. Accessing NVIDIA Control Panel............................................................................. 20

4. Troubleshooting Tips .................................................................................................28

5. Appendix....................................................................................................................29

5.1. Regulatory Statements ................................................................................................ 29

- 3 - Introduction

1. Introduction

1.1. Minimum System Requirements

• Hardware

- Intel® Pentium® 4 or AMD AthlonTM XP class

- 2GB system memory (4GB recommended)

- Optical drive for software installation (CD-ROM or DVD-ROM drive)

• Operating System

- Windows®8

- Windows®7

- Windows® Vista

- 4 -

NVIDIA Series Graphics Accelerator

Expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow

some precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.

2. Use a grounded wrist strap before handling computer components. If you do not

have one, touch both of your hands to a safely grounded object or to a metal

object, such as the power supply case.

3. Place components on a grounded antistatic pad or on the bag that came with

the components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by

static electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The op-

erator should be wearing an anti-static wristband, grounded at the same point as the

anti-static mat.

Inspect the card carton for obvious damage. Shipping and handling may cause dam-

age to your card. Be sure there are no shipping and handling damages on the card

before proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD

IS DAMAGED.

In order to ensure that your graphics card can work correctly,

please use ofﬁcial GIGABYTE BIOS only. Using non-ofﬁcial

GIGABYTE BIOS might cause problem(s) on the graphics card.

- 5 - Hardware Installation

2.1. Hardware Installation

Now that you have prepared your computer, you are ready to install your graphics card.

Step 3.

Connect the appropriate cable to the card and the display.

To Flat Panel Display To Flat Panel Display To HDMI Monitor

To D-sub Monitor

To Mini HDMI Monitor

To Mini DisplayPort Monitor

Step 1.

Locate the PCI Express x16 slot. If necessary, remove the

metal cover from this slot; then align your graphics card

with the PCI Express x16 slot, and press it in ﬁrmly until the

card is fully seated.

Step 2.

Replace the screw to fasten the card in place, and replace

the computer cover.

Make sure that the gold edge connector of the graphics

card is securely inserted.

To Mini DisplayPort Monitor

- 6 -

NVIDIA Series Graphics Accelerator

How NVIDIA®SLI

(Scalable Link Interface) technology works:

SLI Conﬁguration:

3-Way SLI Conﬁguration:

SLI bridge connector

(provided by motherboard manufacturer)

3-Way SLI bridge connector

(provided by motherboard manufacturer)

Two SLI-ready graphics cards

of the same type.

(Example: GV-N28-1GH-B)

Three SLI-ready graphics cards

of the same type.

(Example: GV-N28-1GH-B)

If you are planning on using this graphics card as part of an SLI system, the following are required:

- An SLI certiﬁed motherboard with two/three PCIe x16 slots and correct chipset driver

- An SLI bridge connector or 3-way SLI bridge connector

In an SLI conﬁguration, two/three SLI-ready graphics cards of the same model and the same manufacturers

are connected together via SLI bridge connector in a system that provides two/three x16 PCI Express slots to

scale graphics performance. The picture below shows that two and three graphics cards are linked in parallel

in an SLI conﬁguration.

- 7 - Software Installation

3. Software Installation

Notice the following guidelines before installing the drivers:

1. First make sure your system has installed DirectX 9 or later version.

2. Make sure your system has installed the appropriate motherboard drivers

(for the motherboard drivers, please contact the motherboard manufacturer.)

Notice : The photos in this manual are for reference only and may not match what you exactly see on your screen

3.1. Driver and Utility Installation

3.1.1.Driver Installation

After installing the operating system, insert the driver disk into your optical drive. The driver Autorun screen

is automatically displayed which looks like that shown in the screen shot below. (If the driver Autorun screen

does not appear automatically, go to My Computer, double-click the optical drive and execute the setup.exe

program.)

For software MPEG support in Windows XP, you must install DirectX ﬁrst. Users who run Windows

XP with Service Pack 2 or above do not need to install DirectX separately.

Step 1:

Click the

Install Display Driver

item.

Step 2:

Click the

AGREE AND CONTINUE

button.

- 8 -

NVIDIA Series Graphics Accelerator

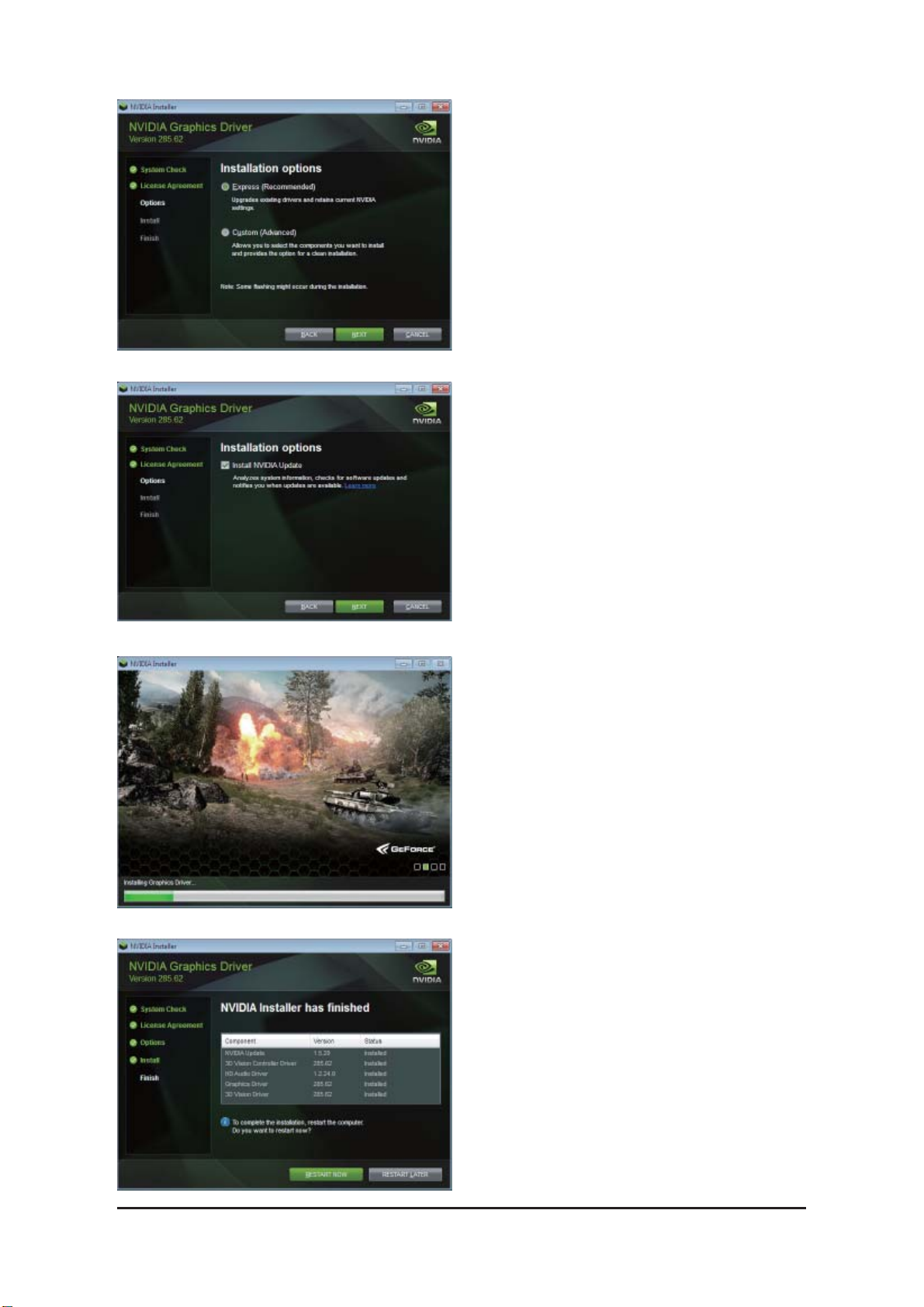

Step 4:

Check the Install NVIDIA Update then click the

button.

The system is installing the components.

Step 5:

Click the

RESTART NOW

button to restart the

computer. Then the driver installation is completed.

Step 3:

Check the Express then click the

button.

- 9 - Software Installation

3.1.2.GIGABYTE OC Guru II

Step 1:

Click the

GIGABYTE OC Guru II

item.

Step 2:

Choose the language for the installation and click the

button.

Step 3:

Choose the Typical and click the Next button

Step 4:

Click the Finish button. Then the installation of the

GIGABYTE OC Guru II is completed.

The system is installing the components.

- 10 -

NVIDIA Series Graphics Accelerator

OC GURU II: Proﬁles

Users have 5 Proﬁles, 1/ 2/ 3/ 4/ 5 , to set different proﬁles.

By clicking 1/ 2/ 3/ 4/ 5, users can switch around these proﬁles

This page indicates where users can set up MONITORING、GPU CLOCK、MEMORY CLOCK、FAN、

MINIMUM VOLTAGE、POWER TARGET、OSD、ONLINE SUPPORT.

Function: When it’s locked, GPU CLOCK/MEMORY CLOCK/MINIMUM VOLTAGE/POW-

ER TARGET can not be changed.

Function: When it’s unlocked, GPU CLOCK/MEMORY CLOCK/MINIMUM VOLTAGE/

POWER TARGET can be adjusted.

Function: Apply to what has just been setup.

Function: Return to the previous applied setup.

Function: Restore the default setup.
