Genius SLIM 310NB Manual de usuario

English

-1- www.geniusnet.com

1. Please install the driver first and then connect Slim 310NB

to the USB port.

2. Installing the Slim 310NB driver

Windows Environment

a. Insert the Slim 310NB Installation CD into the CD-ROM drive.

b. The Autorun screen will bring up the installation screen. Click on

“Driver” then simply follow the on-screen instructions.

c. Install “DirectX” from the CD.

1 Fixed Lens

You don’t have to adjust the focus. The

effective image distance is from 60cm

to 300cm

2 Move upwards and downwards to adjust

the view angel.

3 Clipping Base

The adjustable clipping base can be up

to 14mm.

4 USB Connector

Connect the mini-B connector to the

Slim 310NB

Slim 310NB Features

Installing the Slim 310NB

English

-2- www.geniusnet.com

Notice: If theAutorun screen doesn’t start, please follow these

steps:

zClick on “Start Menu”.

zType D：\SETUP.EXE , then click “Enter” key.

(Assume your CD-ROM is in Drive D)

Mac Environment

a. Insert the Slim 310NB Installation CD into the CD-ROM

drive.

b. Double click on the CD-ROM drive.

c. Click on the file folder of “Slim 310NB Driver OSX 1.0”.

d. Click on “Slim 310NB Driver Install” then simply follow the

on-screen instructions.

e. Restart the computer

Notice:

zThe Slim 310NB can work properly with any video chat

software supported video feature and USB web camera.

The iChat can’t be supported because it only support the

Apple’s web cameras or the IEEE 1394 web camera.

3. Insert the Slim 310NB’s USB cable to your desktop or

laptop’s USB port. Please follow the instructions to connect

the USB cable properly.

a. Mini-B Connector

Connect the mini-B connector to the Slim 310NB

b. Connect the USB connector as for the power supply

Connect the USB connector to the computer’s USB port.

4. Complete software and hardware installation. You can

install the software you would like to use for video

English

-3- www.geniusnet.com

conferencing or chat with your friends.

NOTE

To remove the driver installation:

Windows Environment:

Please go to the taskbar and follow “Start” Æ“Program” Æ“Slim

310NB”ÆClick “Uninstall”, then follow the on-screen instructions to

remove the driver.

MacOSXEnvironment:

Please go to the HDD of the operation systemÆ“Application”Æ“Slim

310NB”ÆClick “Uninstall”, then follow the on-screen instructions to

remove the driver.

You can use our software to capture the real-time image, record or

execute the simply security function.

To run the software, please go to the task bar and follow “Start”Æ

Click “Program”ÆChoose “Slim 310NB”ÆClick “Slim 310NB”. Or

you may execute the software by simply clicking the shortcut of “Slim

310NB”.

NOTE

After installing the driver of Slim 310NB, the system will automatically create

a file (C:\WINDOWS\Album or C:\WINNT\Album)to save the images you

take using the GeniusApplication.

Genius Application (Windows Only)

English

-4- www.geniusnet.com

1. Description for the major icon

Preview mode

Snapshot mode

Video Clip Mode

Security monitoring system

Exit the Genius UI

Camera Control

NOTE

In the “camera control section”, you can personalize your camera

settings for different circumstances.

English

-5- www.geniusnet.com

1-You can flip the image horizontally or vertically by choosing “Image Mirror” or

“Image Flip”.

-When the light is not sufficient, you may click on “Low Light” to get a clear

image.

2You can adjust different values for different circumstances and environment

3When you want a still image capture, you can drag the bar to select a resolution

size you want.

-VGA: 640 x 480;

-SVGA: 800 x 600

-XGA: 1024 x 768

-SXGA1280 x 960

4You may adjust values toward image appearance. Before adjusting values, you

have to unclick “Auto” to unlock.

5-Press “Reset” to return to the manufacturer’s settings.

-Press “Restore” to return to the previous settings.

-Press “Save” to save the values you set up.

English

-6- www.geniusnet.com

6Select the correct frequency according to the country where you are using the

web camera. (Before doing this, you will need to select “Indoor”.)

7-If your web camera is located in backlight position, you may click “Backlight

compensation” to get a sharper image.

-You can have a black-and-white photo effect by clicking on “B/W Mode”.

English

-7- www.geniusnet.com

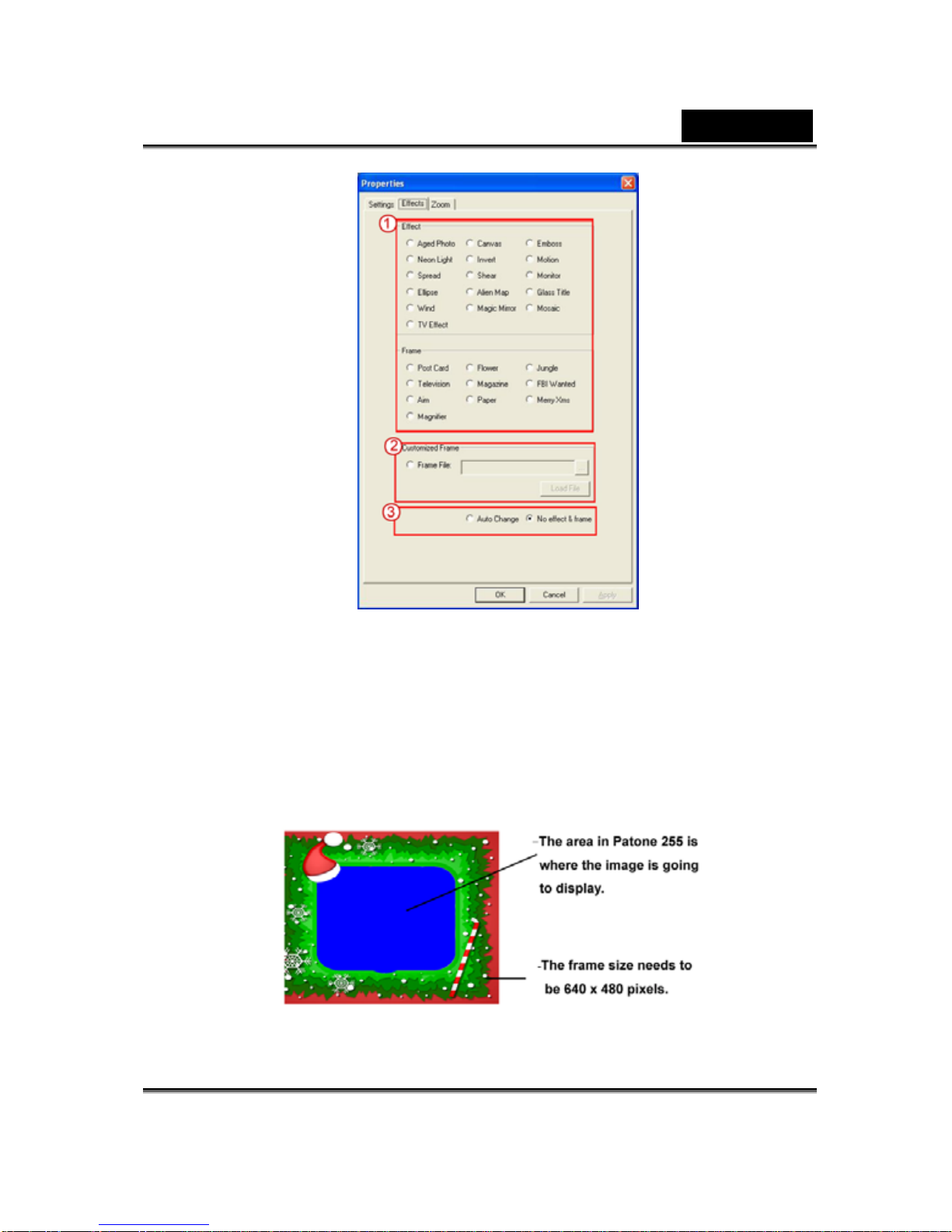

1There will be 27 different kinds of video effects/frames for you to select. The

effects can also be applied to the video chat software, like MSN Messenger.

You can directly connect to this effect page from the web camera settings in the

video chat software.

2Besides the 27 kinds of video effects/frames in section 1, you also can bring in

your customized frame. Please note that, in the customized frame, you must have

the color in Pantone 255 in the area, where you want your image show up.

English

-8- www.geniusnet.com

3Auto Change: Once you choose this, the 27 kinds of video effects will take turns

from the first one to the last one.

No effects & frame: Once you choose this, the video effects will be determinate.

In this section, you can enable the “Zoom” function. Please select “Enable

Zoom” before zooming.

-Scroll the bar to zoom in or zoom out

-Press the 4-direction button to move the image upward, downward,

leftward, and rightward.

English

-9- www.geniusnet.com

2. Preview Mode

You can use the function buttons on the control panel to zoom in/out and

move upward/downward/left/right.

Zoom in the image

Zoom out the image

Move the image upward

Move the image downward

Move the image to the left

English

-10- www.geniusnet.com

Move the image to the right

Resolution Selection

There are 2 categories of resolution: RGB24 and I420. You

can select 5 different image resolutions for each of them. The

file size of I420 will be smaller than RGB24. So, I420 may be

the better choice for transmission.

3. SnapShot Mode

You can press the Snapshot button in the right of the circle to take a

picture right away and share with your friends.

Send photo by e-mail

Shoot continuously
