Genius LOOK 1320 - V2 Manual de usuario
English
-1- www.geniusnet.com
1. Please install the driver first and then connect Look 1320 to
the USB port.
2. Installing the Look 1320 driver
Windows Environment
a. Insert the Look 1320 Installation CD into the CD-ROM drive.
b. The Autorun screen will bring up the installation screen. Click
on “Driver” then simply follow the on-screen instructions.
c. Install “DirectX” from the CD.
Notice: If the Autorun screen doesn’t start, please follow
these steps:
zClick on “Start Menu”.
zType D:\SETUP.EXE , then click “Enter” key.
(Assume your CD-ROM is in Drive D)
Mac Environment
a. Insert the Look 1320 Installation CD into the CD-ROM drive.
b. Double click on the CD-ROM drive.
c. Click on the file folder of “Look 1320 Driver OSX 1.0”.
d. Click on “Look 1320 Driver Install” then simply follow the
1
SnapShot Button
You can press the snapshot button to
take the images.
2
LED Indicator
When the Look 1320 connects to the
PC successfully, the LED will light
3 Lens
Adjust the focus by twisting the lens.
Look 1320 Features
Installing the Look 1320
English
-2- www.geniusnet.com
on-screen instructions.
e. Restart the computer
Notice:
zThe Look 1320 can work properly with any video chat
software that supports a video feature and USB web
camera. The iChat isn’t be supported because it only
supports Apple’s web cameras or the IEEE 1394 web
camera.
3. Insert the Look 1320’s USB cable to your desktop’s or
laptop’s USB port.
4. Complete software and hardware installation. You can install
the software you would like to use for video conferencing or
chat with your friends.
NOTE
To remove the driver installation:
Windows Environment:
Please go to the taskbar and follow “Start” Æ“Program” Æ“Look
1320”ÆClick “Uninstall”, then follow the on-screen instructions to
remove the driver.
Mac OS X Environment:
Please go to the HDD of the operation systemÆ“Application”Æ
“Look 1320”ÆClick “Uninstall”, then follow the on-screen
instructions to remove the driver.
English
-3- www.geniusnet.com
You can use our software to capture the real-time image, record
or execute the simply security function.
To run the software, please go to the task bar and follow
“Start”ÆClick “Program”ÆChoose “Look 1320”ÆClick “Look
1320”. Or you may execute the software by simply clicking the
shortcut of “Look 1320”.
NOTE
After installing the driver of Look 1320, the system will automatically
create a file (C:\WINDOWS\Album or C:\WINNT\Album)to save the
images you take using the Genius Application.
Genius Application (Windows Only)
English
-4- www.geniusnet.com
1. Main Menu
Item Mode Description
Picture Mode Still image capture mode.
Video Mode Video recording mode.
Monitor Mode Monitor mode.
Device
Selection Web camera device selection.
Resolution
Selection
Resolution selections according to device.
RGB24: 1280x1024, 1024x768, 800x600,
640x480, 352x288, 320x240, 176x144,
160x120
English
-5- www.geniusnet.com
Item Mode Description
I240: 1280x1024, 1024x768, 800x600,
640x480, 352x288, 320x240, 176x144,
160x120
Property page Preference setting to view your setting and
properties.
Exit Exit the Genius UI.
English
-6- www.geniusnet.com

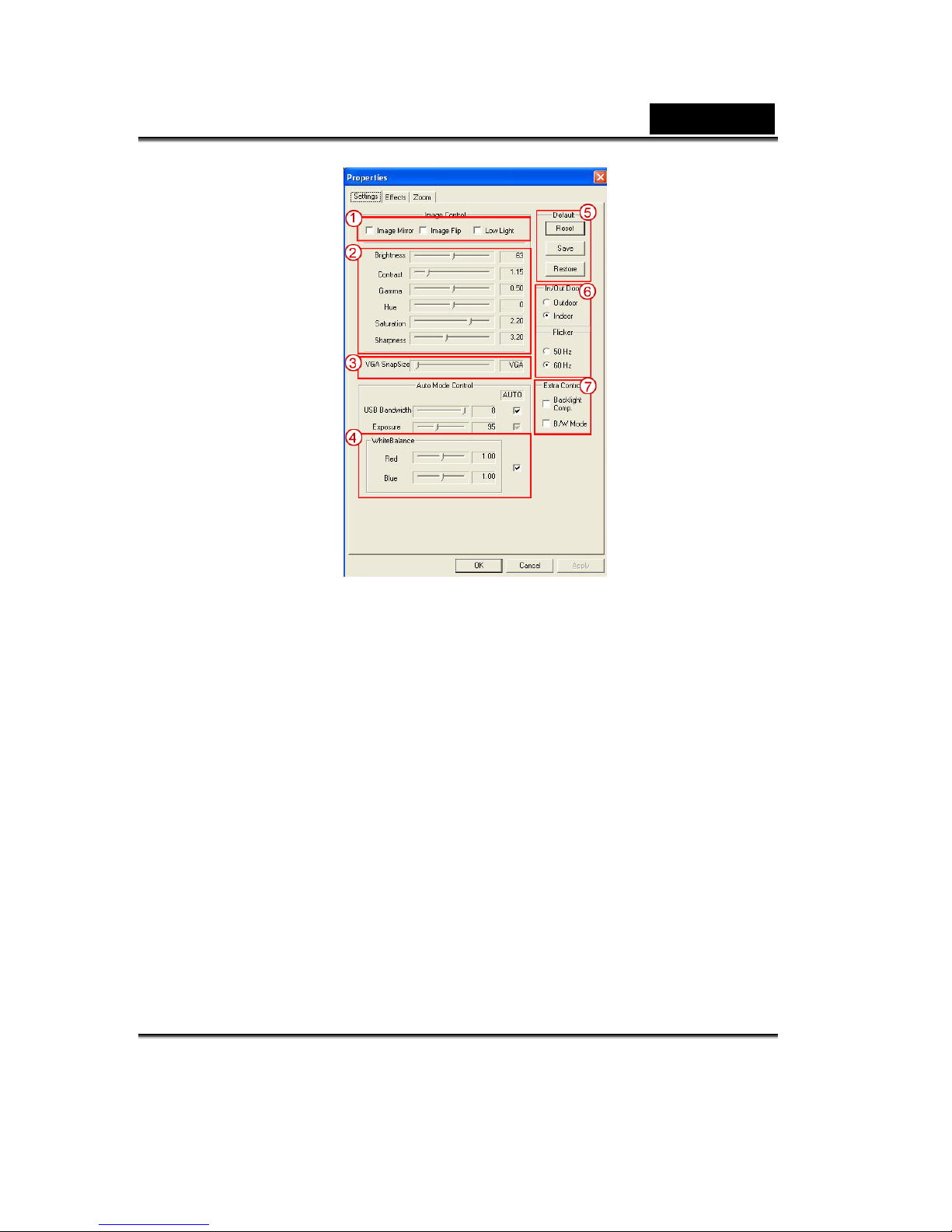

Property page
1-You can flip the image horizontally or vertically by choosing “Image
Mirror” or “Image Flip”.
-When the light is not sufficient, you may click on “Low Light” to get a clear
image.
2You can adjust different values for different circumstances and environment
3When you want a still image capture, you can drag the bar to select a
resolution size you want.
-VGA: 640 x 480;
-SVGA: 800 x 600
-XGA: 1024 x 768
-SXGA1280 x 960
4You may adjust values toward image appearance. Before adjusting values,
you have to unclick “Auto” to unlock.
5-Press “Reset” to return to the manufacturer’s settings.
-Press “Restore” to return to the previous settings.
-Press “Save” to save the values you set up.
English
-7- www.geniusnet.com
6Select the correct frequency according to the country where you are
using the web camera. (Before doing this, you will need to select
“Indoor”.)
7-If your web camera is located in backlight position, you may click
“Backlight compensation” to get a sharper image.
-You can have a black-and-white photo effect by clicking on “B/W Mode”.
1There will be 27 different kinds of video effects/frames for you to select.
The effects can also be applied to the video chat software, like MSN
Messenger.
You can directly connect to this effect page from the web camera settings
in the video chat software.
2Besides the 27 kinds of video effects/frames in section 1, you also can
bring in your customized frame. Please note that, in the customized
frame, you must have the color in Pantone 255 in the area, where you
want your image show up.
English
-8- www.geniusnet.com
In this section, you can enable the “Zoom” function. Please select
“Enable Zoom” before zooming.
-Scroll the bar to zoom in or zoom out
-Press the 4-direction button to move the image upward, downward,
leftward, and rightward.
English
-9- www.geniusnet.com
2. Picture Mode
Take a picture right away and share with your friends.
Item Mode Description
Shot Still image capture mode.
Multi-Snapshot Capture continuous still images based on
multi-snapshot number.
Mail Send photo by email.
Adding Frame Select photo frame to add inside still
image. (*1)
Tracking Face Click this button, and the screen will auto
appear in the center of the frame. When
English
-10- www.geniusnet.com
Item Mode Description
you are watching the display, your face
should appear in the acquired image. In
an auto stereoscopic display, the image
will auto digital zoom.
Rotate Rotate still image 45 degrees counter-
clockwise. (*)
Center Rotate still image to center. (*)
Rotate Rotate still image 45 degrees
anti-clockwise. (*)
Multi-shot
number Select multi-shot number from 2 to 10.
Full Screen
Mode
Display your web camera over the entire
screen. Press ESC to exit full screen
mode or click left mouse to return to
normal mode.
Refresh
Device
Refresh web camera.
Delete File Delete the selected files.
Rotate Image
Rotate the selected image file 90 degrees
in title list display.
Email file Attach the selected image file to an email.
Print Picture Print the selected image file.
Remark:
* This function must use the resolution of 640x480 or 320x240. Please make
sure the resolution is correct before executing this function.
