Gefen EXT-HDMI-241N Manual de usuario

HDMI Switcher

USER MANUAL

www.gefen.com

EXT-HDMI-241N

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday PST

Write To:

Gefen, LLC

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

HDMI Switcher is a trademark of Gefen, LLC

All trademarks are the property of their respective owners.

ASKING FOR ASSISTANCE

Rev X1

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the HDMI Switcher

RMT2-IR Installation

IR Conﬂict Codes

IR Extender Installation

Speciﬁcations

Warranty

Congratulations on your purchase of the Gefen HDMI Switcher. Your complete satis-

faction is very important to us.

About Gefen

Gefen’s line of HDMI switches, extenders, and splitters are designed to make your

A/V equipment use more comfortable, more productive and less expensive.

The HDMI Switcher allow access to multiple HDMI devices, using a single HDMI dis-

play while the HDTV extender product line can extend HD video signal up to 1640

feet (500 meters).

Gefen products offer solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included

in that price is a lifetime of support from a team of outstanding engineers.

The Gefen HDMI Switcher allows two HDMI devices to be switched easily in to one

HDMI compatible monitor or projector. The HDMI Switcher can also be placed at the

end of a long HDMI cable to regenerate the HDMI signal.

INTRODUCTION

FEATURES

Features

• Switches easily between any two HDMI sources

• Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions

• Extends any HDMI compliant device by regenerating the HDMI signal

• Maintains high resolution video—beautiful, sharp HDTV resolutions up to 1080P

are easily achieved. For computer users, the 2x1 HDMI Switcher conforms with

HDMI speciﬁcations for resolutions up to 1920 x 1200.

• Supports DDWG standard for HDMI compliant monitors

• Supports HDCP compliant devices

• Optional RMT-2 remote control

• Installs in seconds

Includes:

(1) HDMI Switcher

(2) 6’ HDMI cables (M-M)

(1) 5V DC Power Supply

(1) RMT2-IR

(1) Manual

PANEL DESCRIPTIONS

Connects to IR

extender IR eye Indicates if port 1 or

port 2 is selected Selects port 1

or port 2

Connects to

5VDC power

supply

HDMI In 2

HDMI In 1 HDMI Out

CONNECTING AND OPERATING THE HDMI SWITCHER

How to Connect the HDMI Switcher to your devices

1 Connect the supplied HDMI to HDMI cables from the HDMI sources into the HDMI

Switcher Input.

2Connect the cable from your display (monitor or projector) into the HDMI Out of

the HDMI Switcher.

3Plug the 5VDC power supply into the HDMI Switcher.

How to Operate the HDMI Switcher

1 Use the front panel push button to switch between sources.

2 Alternatively, use the RMT2-IR remote control port to remotely toggle between

sources.

Connection diagram for the 2x1 HDMI Switcher:

RMT2-IR INSTALLATION

1. Remove battery cover from the back of the RMT2-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up.

The side that is not marked must be facing down.

4. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator

light on the remote will ﬂash once each time you press a button. WARNING: Do not

press multiple buttons simultaneously and do NOT press buttons rapidly. These ac-

tions will cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT2-IR* ships with two batteries. One battery is required for operation,

the second battery is complimentary.

The optional IR extender allows you to

relocate your HDMI Switcher and still

have IR control of the HDMI Switcher.

This product is Gefen SKU# EXT-RMT-

EXTIR.

* The color of the product shown here may differ from the one you receive.

IR CODE CONFLICTS

How to Resolve IR Code Conﬂicts

There are matching pairs of dip switches underneath the Switcher unit (outlined below)

and under the remote battery cover. Each has two switches which need to be matched

for the remote to work. There are 4 possible sets of IR codes and at least one of these

sets should be able to resolve any IR conﬂicts with other home theater devices.

DIP Switch Banks

IR EXTENDER INSTALLATION

How to Connect the IR Extender

1 Plug the IR extender into the Remote port on the front of the Switcher Unit

2Flip the Dip Switch #1 underneath the unit from the set that is not outlined on the

previous page to the ON position

IR CODES

In the event of IR conﬂicts, please do the following:

1. Remove the battery cover from the back of the RMT4-IR remote.

2. Locate the Dip Switches above the batteries.

3. Switch the Dip Switches on the RMT4-IR to any of the combinations pictured

below.

4. Dip Switches 1 and 2 in the RMT4-IR correspond with Dip Switches 3 and 4 on

the bottom of the 4x1 DVI Switch respectively. Switch the switches on the bottom of

the 4x1 DVI Switch to match the dip switches on the RMT4-IR. The 4x1 DVI Switch-

er is now set to a new IR Code.

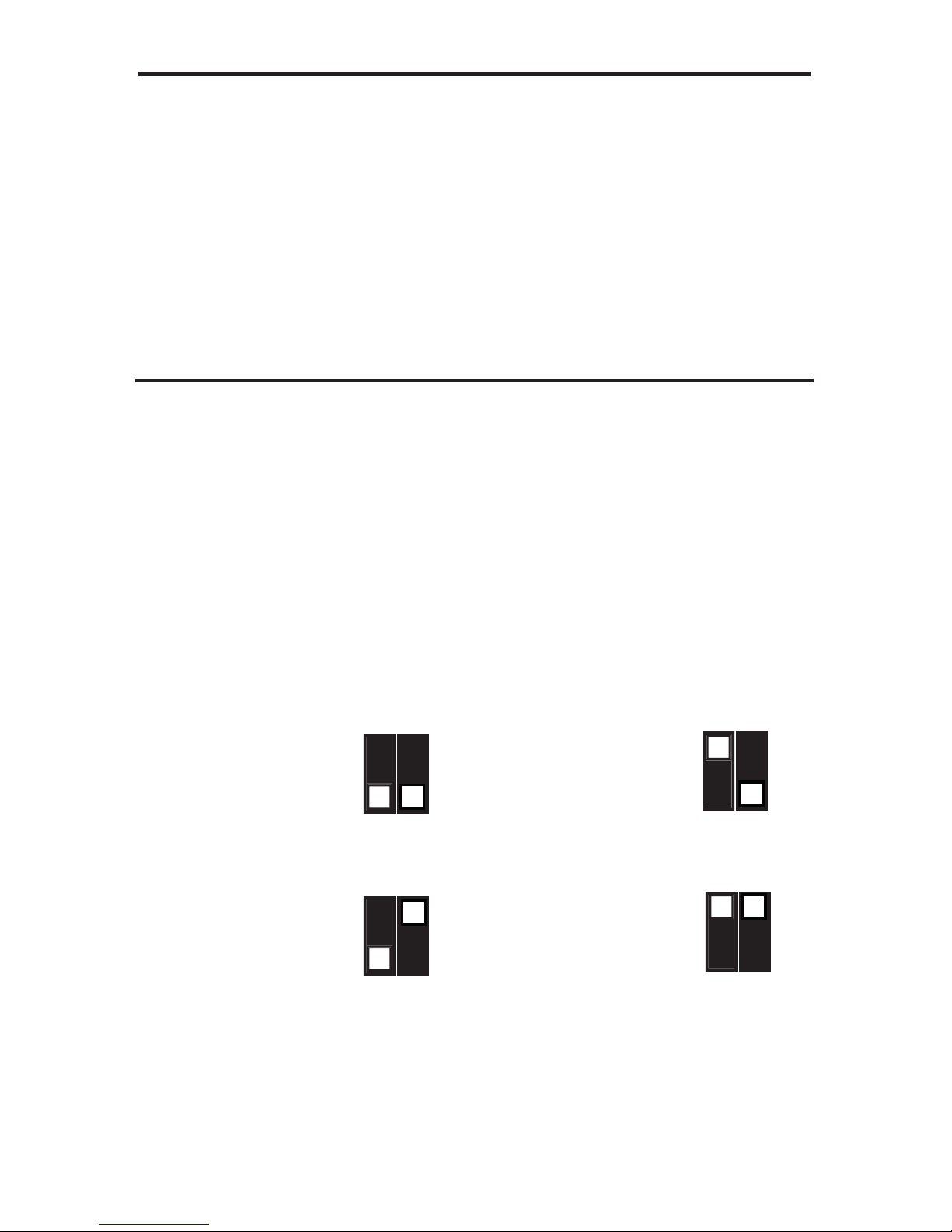

Remote Channel 0:

Remote Channel 1:

Remote Channel 2:

Remote Channel 3:
