8x8 DVI Matrix
EXT-DVI-848
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
8x8 DVI Matrix is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
Rev A
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 8x8 DVI Matrix Front Panel Layout
5 8x8 DVI Matrix Front Panel Descriptions
6 8x8 DVI Matrix Back Panel Layout
7 8x8 DVI Matrix Back Panel Descriptions
8 EXT-RMT-Matrix-848 Panel Layout
9 EXT-RMT-Matrix-848 Panel Descriptions
10 Connecting And Operating The 8x8 DVI Matrix
11 8x8 DVI Matrix Remote Description & Operation
12 RMT-848IR IR Channel Configuration
13 EXT-RMT-Matrix-848 Remote Operation
14 RMT-8-IR IR Channel Configuration
15 RS-232 Serial Control Interface
16 Network Cable Wiring Diagram
17 Appendix A
19 Appendix B
24 Specifications
25 Warranty
1
Congratulations on your purchase of the 8x8 DVI Matrix. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 8x8 DVI Matrix
Now you can easily combine eight cross-platform computers and eight digital
displays without networking. Our 8x8 DVI Matrix provides a simple, reliable and
highly effective method of creating multiple computer workstations, with each
workstation capable of accessing any one of the computers or sources at any
time by remote control. You also have the option of setting up the eight stations
locally or extending them with a Gefen extender.
How It Works
The 8x8 Matrix has eight DVI inputs and eight DVI outputs. You simply connect
your eight computer DVI ports to the 8x8 Matrix inputs, then connect your eight
DVI displays to the 8x8 Matrix outputs.
INTRODUCTION
2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 8X8 DVI MATRIX
• The 8x8 DVI Matrix is not HDCP compliant
• By default, EDID routing is based on the first connected display to a source.
For example, if monitor A is the first display to connect to source 1 its EDID
will be used. All other displays that connect to source 1 thereafter will have
its EDID ignored. If display 1 switches to another source a hot-plug will be
sent and the EDID from the next display that is connected, in numerical
order, will be used.
• The Status Output display will only list the current display/source routing.
• There is no internal scaling in the 8x8 DVI Matrix. All of the attached
monitors must be able to display the resolutions output by the source
devices. For maximum compatibility it is recommended that only one
compatible/common resolution be used by all of the source devices.
OPERATION NOTES
3
Features
• Increases your productivity by providing you with access to eight computers
from eight workstations
• Maintains beautiful, sharp HDTV resolutions up to 1080p, 2K, and
1920x1200
• Discrete IR remote control included
• Long-distance remote control at distances of up to 330 feet using optional
wired CAT5 cabled remotes
• Serial RS232 port for remote control via computer or a control automation
device such as Crestron
• Supports DDWG standards for DVI monitors
• Not HDCP compliant; for computer use only.
Package Includes
(1) 8x8 DVI Matrix
(1) RMT-848IR IR Remote Control
(1) 24V DC Power Supply
(8) 6-foot DVI cables
(1) Rack Ears
(1) User’s Manual
FEATURES
4
4
1
23
8X8 DVI MATRIX FRONT PANEL LAYOUT
5
1 LED Status Display
This display will list the current display/source routes.
Monitor (A~H)
Selected Source (1~8)
Monitor Output’s are labeled 1 through 8 on the rear panel of the 8x8 DVI
Matrix. These numbers correspond to the lettersAthrough H on the LED Status
Display. The top row of letters will remain static while each input number below
will represent which source each of the displays are currently viewing.
2 IR Receiver
Use the included RMT-848IR remote control to route video to the different
displays.
3 Power LED Indicator
This input indicator will become active once the included 24V DC power adapter
has been properly connected.
8X8 DVI MATRIX FRONT PANEL DESCRIPTIONS
6
12345678 9
10
18
11
19
12
20
13
21
14
22
15
23
16
24
17
2625

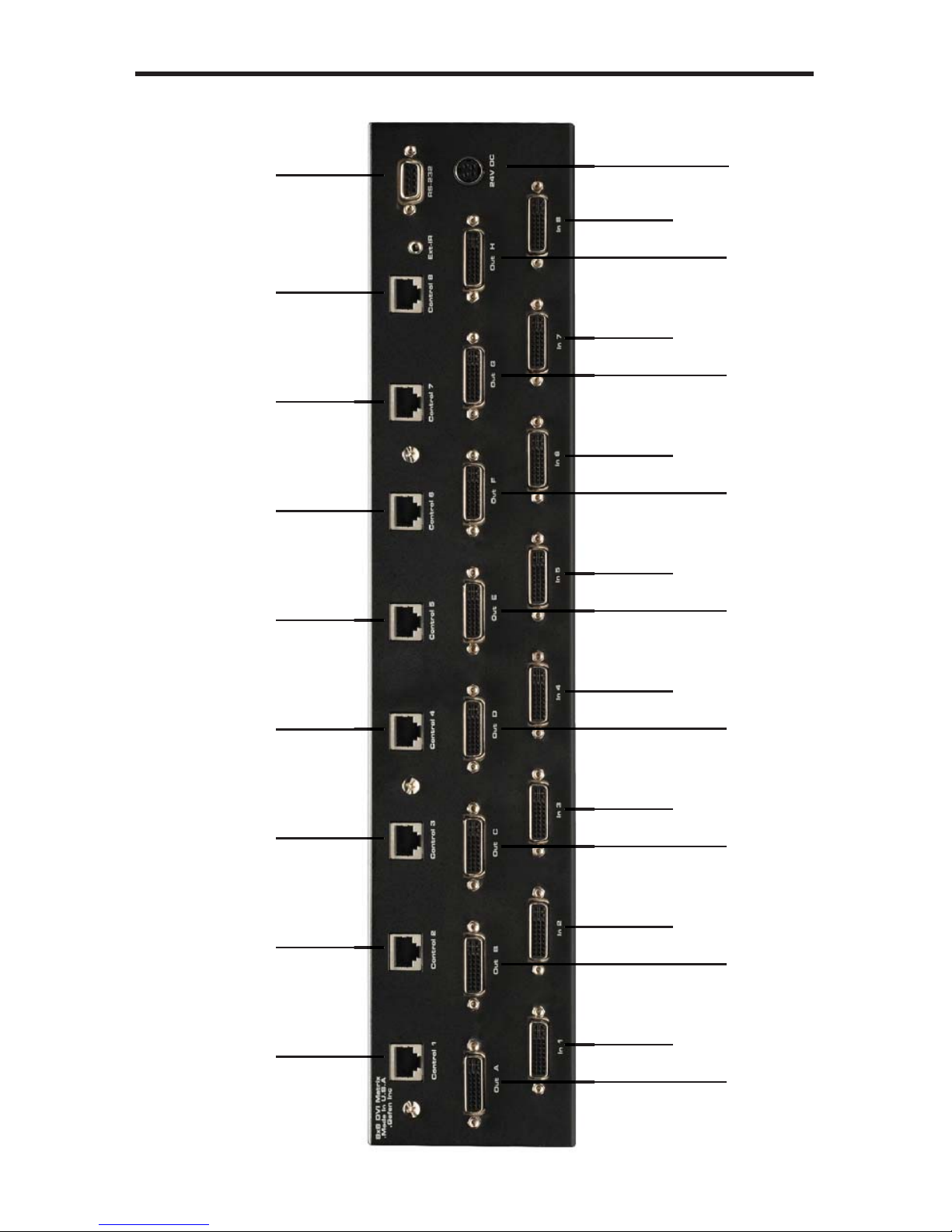

8X8 DVI MATRIX BACK PANEL LAYOUT
7
1-8 Optional Remote Switching Ports
Ports 1 through 8 are used for remote switching using the optional
component EXT-RMT-MATRIX-848.
9 RS-232 Serial Control Interface
This port is used for serial communication for multiple functions.Access to
certain features are only through the RS-232 interface.
10-17 DVI Input Ports
Connect up to 8 DVI sources to DVI Input Ports 1 through 8.
18-25 DVI Output Ports
Connect up to 8 DVI displays to DVI Output Ports 1 through 8. These
output ports correspond to Monitors Athrough Hon the LED Status
Display.
26 24V DC Power Input
Connect the included 24V DC power supply to this input.
8X8 DVI MATRIX BACK PANEL DESCRIPTIONS
