Gefen EXT-DVIKVM-441DL Manual de usuario

www.gefen.com

4x1 DVIKVM DL/SL

Switcher

EXT-DVIKVM-441DL

User Manual

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

4x1 DVI KVM DL/SL Switcher is a trademark of Gefen Inc.

All trademarks are the property of their respective companies

Rev A6

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting and Operating The 4x1 DVI KVM DL/SL Switcher

7 RMT-4IR Remote Control Description

8 4x1 DVI KVM DL/SL Switcher Remote Installation

9 RMT-4IR Remote and 4x1 KVM Switcher Conﬁguration

10 EDID Modes

12 DL (Dual Link) Only Modes

13 RS-232 Serial Control

14 RS-232 Serial Control Commands

14 EDID Management

20 Routing Commands

22 Rack Mount Installation

23 Speciﬁcations

24 Warranty

INTRODUCTION

Congratulations on your purchase of the 4x1 DVI-DL KVM DL/SL Switcher. Your

complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen 4x1 DVI KVM DL/SL Switcher

The rack-mountable Gefen 4x1 dual link/single link DVI KVM DL/SL Switcher

offers an economical solution by eliminating the need to purchase many displays

for each computer in a studio or lab situation. A plug-and-play solution that

supports both Macintosh and IBM-PC computers, the 4x1 DVI KVM DL/SL

Switcher shares one DVI display with up to four computers or other DVI video

sources. A single USB 2.0 port, keyboard & mouse ports, and an analog audio

jack are also switched. The switcher saves space on your desktop by eliminating

a crowded workspace full of DVI monitors, keyboards & mice, and USB and

audio cables. Switching of DVI sources is easy and reliable.

How It Works

The DVI monitor is connected to the 4x1 DVI KVM DL/SL Switcher’s output.

Up to four DVI video/USB/Audio sources connect to the switcher’s inputs using

included high quality DVI, USB and Audio cables. The included power supply is

connected to the switcher via the locking power plug and then to a power outlet.

The currently selected DVI video signal appears on the shared monitor. DVI

Video sources (and optionally keyboards & mice, USB and audio cables) are

selected/switched using the RMT-4IR remote control, RS-232 control, or the input

selector push button on the front panel of the switcher.

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE GEFEN 4X1 DVI KVM DL/SL SWITCHER

• The 4x1 DVI KVM DL/SL Switcher will take any of up to four (4) DVI dual-

link or single-link resolution inputs and switch them, one at a time, to a DVI

output device such as a display/monitor or projector. Resolutions can be up

to 3840x2400.

• The 4x1 DVI KVM DL/SL Switcher is housed in a metal box for better RF

shielding.

• By default, the EDID of the attached display is copied to all the local inputs.

Make sure that the display is connected to the switcher before applying

power.

FEATURES

Features

• Switches easily between any four DVI-SL or DVI-DL sources with USB 2.0

and audio.

• Switches USB 2.0, keyboard & mouse, and analog audio

• Maintains highest resolution dual link and single link DVI

• Supports either PC or Mac USB keyboard/mouse

• Supports resolutions up through 1920x1200 and 3840x2400

• Extends the range of DVI video up to 50 feet

• Discrete IR remote control included

• Serial RS-232 remote port for switching via automated control or PC

• Supports DDWG standards for DVI monitors

• Rack ears included

Package Includes

(1) 4x1 DVI KVM DL/SL Switcher

(4) 6 ft. Dual Link DVI cables

(4) 6 ft. USB cables

(4) 6 ft. 3.5mm jack analog audio cables

(1) IR Remote Control Unit

(1) 5V DC Locking Power Connector

(1) Set of rack ears

(1) User Manual

Back Panel

PANEL LAYOUT

Front Panel

4 521

11 13

7 10

6 8 9

PANEL DESCRIPTIONS

1 External IR Port

For connection of external IR extension device such as the Gefen IR Extender

(part # EXT-RMT-EXTIR).

2 IR Receiver

Receives IR signal from the handheld Infrared remote control unit included with

the 4x1 DVI KVM DL/SL Switcher.

3 DVI Signal Status LEDs 1-4

Provide visual conﬁrmation of the currently selected DVI input signal being

output to the DVI display device.

4 DVI Input Selector

Push-button switch cycles the next DVI input 1-4 in a forward sequence starting

again at 1.

5 Power Indicator LED

Indicates when the 4x1 DVI KVM DL/SL Switcher is receiving 5V DC power

from its included AC power supply.

6 3.5mm Analog Audio Inputs 1-4

Audio Sources 1-4 connect to the switcher here.

7 3.5mm Analog Audio Output

This audio output port connects to an external ampliﬁed audio device. The

selected audio input will be output through this port.

8 USB Type B Ports 1-4

USB devices (usually computers) one through four connect to the switcher here.

9 USB Type A Control Ports 1-2

The keyboard & mouse for controlling the selected remote computer or device

connects to the switcher here.

10 RS-232 Serial Communications Interface

Provided for external control of the 4x1 DVI KVM DL/SL Switcher.

11 5V Locking Power Receptacle

Supplies power to the 4x1 DVI KVM DL/SL Switcher from the included external

5V DC power supply. The 5V power supply has a locking power connector

which screws into this receptacle.

12 DVI Input Ports 1-4

DVI video sources 1-4 attach to the 4x1 DVI KVM DL/SL Switcher.

13 DVI Output Port

This DVI output port is connected to the display device (Monitor, Projector).

CONNECTINGANDOPERATINGTHE 4X1DVIKVM DL/SLSWITCHER

How to Connect the 4x1 DVI KVM DL/SL Switcher

1. Connect your computers’ DVI, USB, and Audio sources to the 4x1 DVI KVM

DL/SL Switcher inputs using user-supplied cables.

2. Connect your USB and audio devices to the USB and audio outputs using

user-supplied cables.

3. Connect your DVI display to the DVI output of the 4x1 DVI KVM DL/SL

Switcher using a user-supplied DVI cable.

4. Turn on the DVI display or projector ﬁrst, then the DVI video sources/

computers.

5. Connect the 5V DC power supply to the Switcher by by screwing its 5V DC

power supply tip into the receptacle in the rear of the unit, then plug it into the

wall.

Wiring Diagram for the 4x1 DVI KVM DL/SL Switcher

EXT-DVIKVM-441DL

Computer

Switcher

Speakers

USB Keyboard

USB Mouse

Dual Link DVI Display

DUAL LINK DVI CABLE

AUDIO CABLE

USB CABLE

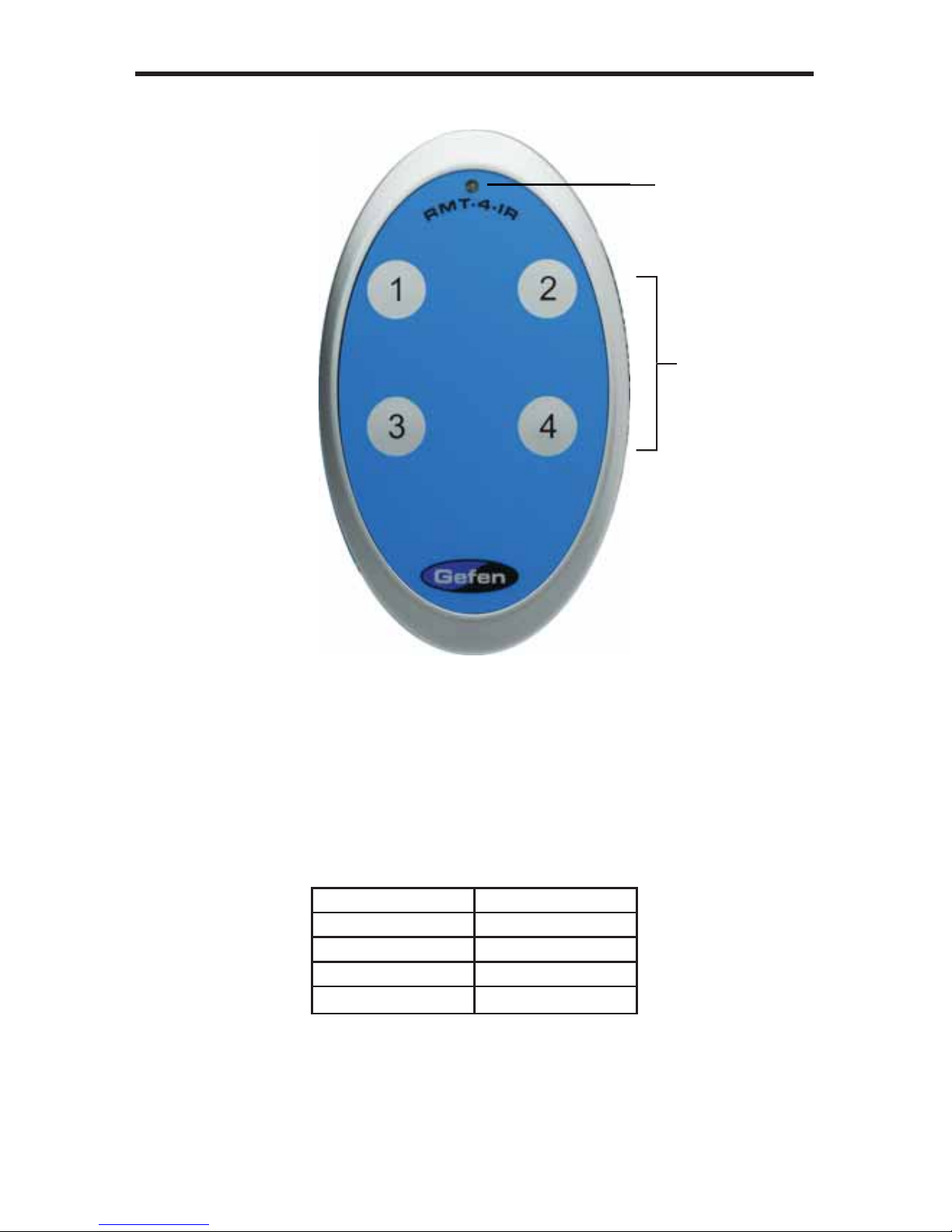

RMT-4IR REMOTE CONTROL DESCRIPTION

LED Indicator

Input

Selection

Buttons

The RMT-4IR remote control will allow the user to choose which of the 4 DVI sources

or computers will be selected. Please use the information below when selecting the

desired source:

RMT-4IR Button DVI Source
