Gefen 4x4 HDTV KVM Matrix Manual de usuario

4x4 HDTV KVM

Matrix

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The 4x4 HDTV KVM Matrix is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction / Operation Notes

Features

Panel Layout

Using the 4x4 HDTV KVM Matrix

RMT16-IR Installation

Dip Switch Guidelines

IR Codes

RS-232 Interface

4x4 HDTV KVM Matrix Rack Mount Diagram

Speciﬁcations

Terminology

Warranty

INTRODUCTION

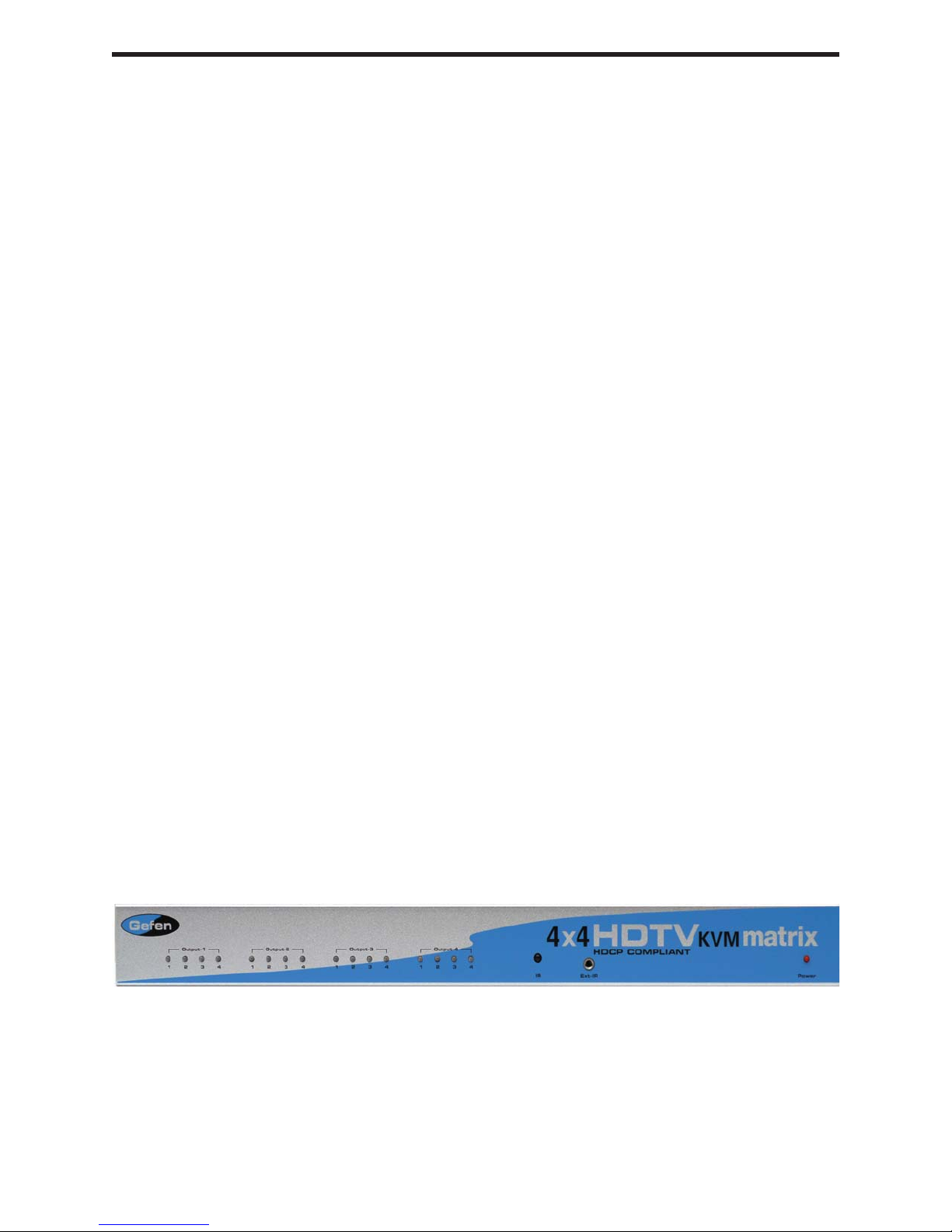

Thank you for purchasing the 4x4 HDTV KVM Matrix.

The 4x4 HDTV KVM Matrix switches four DVI sources to any four DVI displays.

Now you can easily switch four cross-platform computers to four digital displays. Our 4x4

HDTV KVM Matrix provides a simple, reliable and highly effective method of creating

multiple computer workstations, with each workstation capable of accessing any one of

the computers or sources at any time by remote control. You also have the option of

setting up the four stations locally or extending them with a Gefen extender. When used

with computers, USB and Audio Matrix control signals follow the DVI input for optimal

control. The 4x4 HDTV KVM Matrix also supports the connection of HDCP compliant

sources and displays.

Note: The switching is done by using either the RMT-16-IR remote control or through the

RS232 port. The 4x4 HDTV KVM Matrix is rack mountable.Any HDTV with HDMI

inputs can be connected to the DVI outputs of the matrix by using a DVI to HDMI adapter

if the cable used is HDMI.

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE 4X4 HDTV KVM MATRIX

• You should connect all the cables and power supplies prior to connecting power to the

HDTV sources and 4x4 HDTV KVM Matrix.

• When powering the sources, the display needs to point to the source input.

• The 4x4 HDTV KVM Matrix is housed in a metal box for better RF shielding.

• The 4x4 HDTV KVM Matrix works with all DVI and HDMI displays.

• The 4x4 HDTV KVM Matrix supports both AUDIO and VIDEO signals.

• The 4x4 HDTV KVM Matrix is fully HDCP compliant.

FEATURES

Features

• Increases your productivity by providing you with access to four computers from four

workstations

• Maintains highest resolution digital video with no loss of quality

• Supports either PC or Mac USB keyboards/mice

• USB 1.1 Matrix Switching capabilities

• Supports analog audio matrixing

• Discrete IR remote (included)

• Supports resolutions up to 1080p, 2K, and 1920 x 1200

• Supports DDWG standards for DVI monitors

• Includes rack ears

• HDCP Compliant

Includes:

(1) 4x4 HDTV KVM Matrix

(1) RMT-16IR

(1) 24V Power Supply

(1) 5V Power Supply

(4) 6ft Audio Cables

(4) 6ft DVI Cables

(4) 6ft USB Cables

(1) Set of Rack Ears

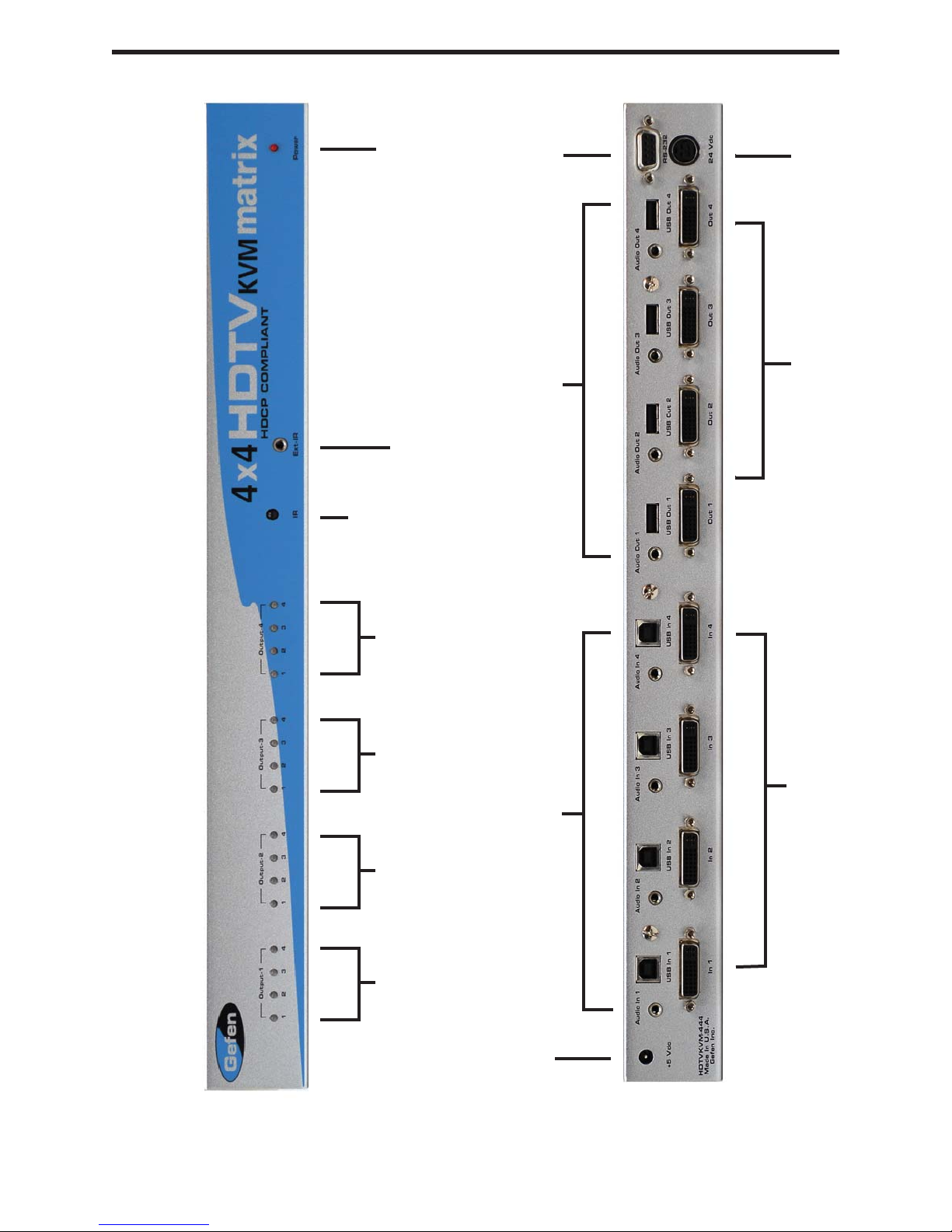

PANEL LAYOUT

Display 1

LED Indicator

Front Panel

RS232 Controller Port

Display 2

LED Indicator Display 3

LED Indicator Display 4

LED Indicator

IR Sensor

IR Extender Eye Port Power Indicator

Back Panel

Connects to 24VDC

Power Sup

ply

DVI Inputs DVI Outputs

USB & Audio

Inputs USB & Audio

Outputs

Connects to 5VDC

Power Sup

ply

Connect all the sources to the DVI inputs on the 4x4 HDTV KVM Matrix, using the

supplied cables.

Connect the HDMI/DVI displays to the outputs on the 4x4 HDTV KVM Matrix.

Connect the 24VDC power supply to the 4x4 HDTV KVM Matrix.

Connect the 5V DC power supply to the 4x4 HDTV KVM Matrix.

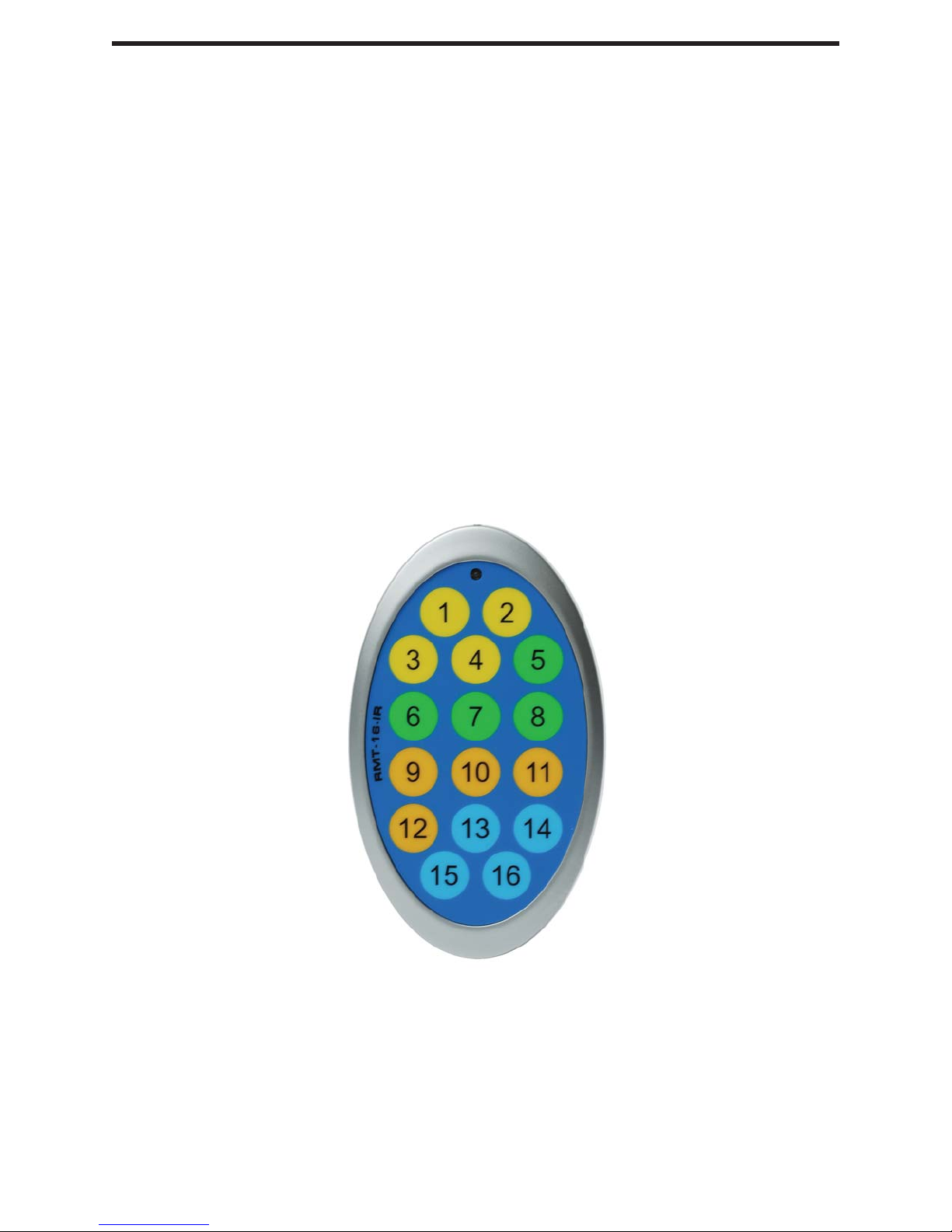

Controlling the 4x4 HDTV KVM Matrix using the RMT16-IR:

Pressing Buttons... Switches...

1-4 Display 1 to view Source 1, 2, 3, or 4

5-8 Display 2 to view Source 1, 2, 3, or 4

9-12 Display 3 to view Source 1, 2, 3, or 4

13-16 Display 4 to view Source 1, 2, 3, or 4

*Note for computers connected to the 4x4 HDTV KVM Matrix - When your

computer boots up, it looks for an EDID (extended display identiﬁcation data) from

the display to tell it what monitor is connected and what resolution to output. During

boot up of the computer you should have ONLY one output selected to one input

at a time so that the computer gets the EDID of the display that is selected. If you

have multiple outputs selected to one computer, the computer will read the EDID

of the last output selected to it. If all your displays are the same, or all displays are

capable of running at the same resolution then this step does not matter.

USING THE 4X4 HDTV KVM MATRIX

RMT16-IR INSTALLATION

1. Remove battery cover from the back of the RMT16-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT16-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT16-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

DIP SWITCH GUIDELINES

Extended display identiﬁcation data (EDID) is a data structure provided by a display to

describe its capabilities to any source that asks for it. The EDID includes manufacturer

name, product type, timings supported by the display, display size, luminance data, (for

digital displays only) pixel mapping data, supported audio channels and formats. This

information is used by the source to cater its output to resolutions and audio formats

that are supported by the display.

Additional EDID modes are available and conﬁgured using a combination of dip

switches 1, 2, and 5. Please refer below for the different EDID modes.

To access the Dip Switches, remove all screws from the bottom and sides of the

Gefen unit. Remove the hex screw heads from each side of the RS-232 and DVI ports.

Carefully slide the unit apart. The 8 Bank of Dip Switches are located on the main PCB.

Once adjustments are complete, slide the unit back together and replace all removed

screws.

EDID Mode 0 (Switch 1=OFF Switch2=OFF Switch5=ON)

-EDID is copied from the ﬁrst HDMI port

EDID Mode 1 (Switch 1=ON Switch2=OFF Switch5=ON)

-Same as Mode 0 and adds basic audio support

EDID Mode 2 (Switch 1=OFF Switch2=ON Switch5=ON)

-Same as Mode 0 and adds full audio support

EDID Mode 3 (Switch 1=ON Switch2=ON Switch5=OFF)

-EDID is generated based on the common video and audio features of all of the

connected devices

EDID Mode 4 (Switch 1=OFF Switch2=ON Switch5=OFF)

-Same as Mode 3 and adds basic audio support

EDID Mode 5 (Switch 1=ON Switch2=OFF Switch5=OFF)

-Same as Mode 3 and adds full audio support

EDID Mode 6 (Switch 1=OFF Switch2=OFF Switch5=OFF) DEFAULT

-EDID is generated based on the common video features of all of the connected

devices and the combined audio features of all of the connected devices

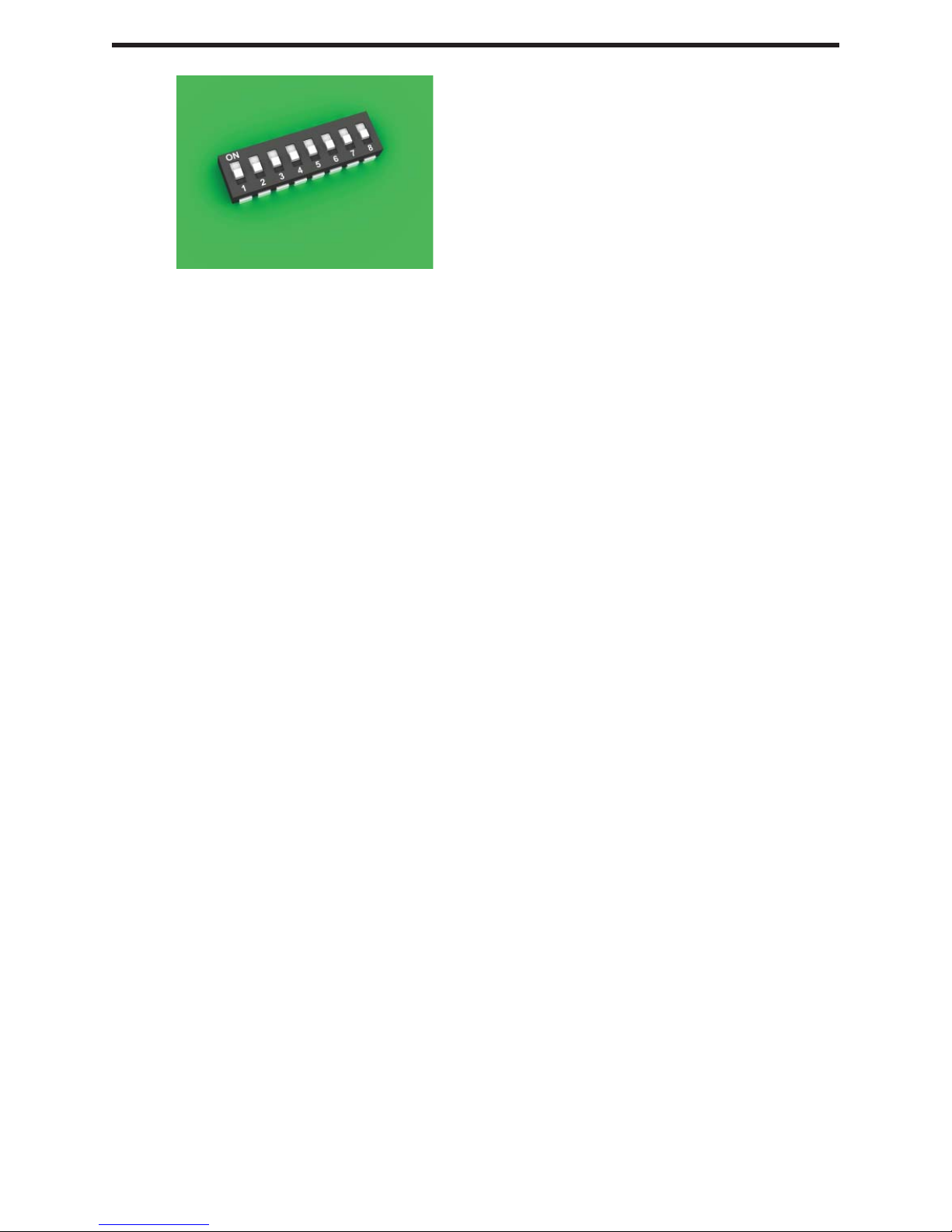

DIP SWITCH

EDID GUIDE

IR CODES

In the event of IR conﬂicts, please do the following:

1. Remove the battery cover from the back of the RMT16-IR remote.

2. Locate the Dip Switches above the batteries

3. Switch the Dip Switches on the RMT16-IR to any of the combinations pictured below.

4. Dip Switches 1 and 2 in the RMT16-IR correspond with Dip Switches 3 and 4 inside

the 4x4 HDTV KVM Matrix respectively. Switch the switches inside the 4x4 HDTV KVM

Matrix to match the same Remote Channel as the RMT16-IR. The 4x4 HDTV KVM

Matrix is now set to a new IR Code.

Remote Channel 0:

Remote Channel 1:

Remote Channel 2:

Remote Channel 3:
