Gefen DVIKVM-444N Manual de usuario
4x4 DVI KVM
Matrix
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff Street
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
The 4x4 DVI KVM Matrix is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction / Operation Notes
Features
Panel Layout
Using the 4x4 DVI Matrix
RMT16-IR Installation
IR Codes
RMT-MATRIX-444 Installation
RS-232 Interface
4x4 DVI Matrix Rack Mount Diagram
Specifications
Terminology
Troubleshooting
Troubleshooting Diagram
Warranty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
INTRODUCTION
Thank you for purchasing the 4x4 DVI KVM Matrix.
Now you can easily switch four cross-platform computers to four digital displays. Our 4x4
DVI KVM Matrix provides a simple, reliable and highly effective method of creating
multiple computer workstations, with each workstation capable of accessing any one of
the computers or sources at any time by remote control.
The 4x4 DVI KVM Matrix has four DVI inputs and four DVI outputs. You simply connect
your four computers’s DVI ports to the Switcher’s inputs, then connect your four DVI dis-
playstotheSwitcher’soutputs.USB keyboardand mousesignals andanalog audio,once
connected, follow the DVI switched input for each computer. .
Note: The switching is done by using either the RMT-16IR remote control, the RS232 port,
or the optional CAT5 Remote (EXT-RMT-MATRIX-444). The 4x4 DVI KVM Matrix is rack
mountable.
1
OPERATION NOTES
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE 4X4 DVI KVM MATRIX
• The 4x4 DVI KVM Matrix is housed in a metal box for better RF shielding.
• The 4x4 DVI KVM Matrix works with all DVI and HDMI displays.
• The 4x4 DVI KVM Matrix is not HDCP compliant.
2
FEATURES
Features
• Increases your productivity by providing you with access to four computers from four
workstations
• Maintains highest resolution digital video with no loss of quality
• Supports either PC or Mac USB keyboards/mice
• USB 1.1 Matrix Switching capabilities
• Supports analog audio matrixing
• Discrete IR remote (included)
• Supports resolutions up to 1080p, 2K, and 1920 x 1200
• Supports DDWG standards for DVI monitors
• Includes rack ears
Includes:
(1) 4x4 DVI KVM Matrix
(1) RMT-16IR
(1) 5V Power Supply
(4) 6ft DVI cables
(4) 6ft USB cables
(4) 6ft Audio cables
(1) Set of Rack Ears
PANEL LAYOUT
3
Front Panel
RS232 Controller Port
Display 2
Indicator Display 3
Indicator Display 4
Indicator
IR Sensor
IR Extender Eye Port Power Indicator
Back Panel
Connects to 5VDC
Power Supply
DVI Inputs DVI Outputs
USB/Audio
Outputs
USB/Au-
dio Inputs CAT-5 Outputs
Connect all the sources to the DVI inputs on the 4x4 DVIKVM Matrix, using the
supplied cables.
Connect the HDMI/DVI display and USB and audio to the outputs on the 4x4
DVIKVM Matrix.
Connect the 5VDC power supply to the 4x4 DVIKVM Matrix
Controlling the 4x4 DVIKVM Matrix using the RMT16-IR:
Pressing Buttons... Switches...
1-4 Display 1 to view Source 1, 2, 3, or 4
5-8 Display 2 to view Source 1, 2, 3, or 4
9-12 Display 3 to view Source 1, 2, 3, or 4
13-16 Display 4 to view Source 1, 2, 3, or 4
*Note for computers connected to the DVIKVM Matrix - When your computer
boots up, it looks for an EDID (extended display identification data) from the dis-
play to tell it what monitor is connected and what resolution to output. During boot
up of the computer you should have ONLY one output selected to one input at a
time so that the computer gets the EDID of the display that is selected. If you have
multiple outputs selected to one computer, the computer will read the EDID of the
last output selected to it. If all your displays are the same, or all displays are
capable of running at the same resolution then this step does not matter.
You can also use a DVI Detective to eliminate the need to have that matrix select-
ed to the computer during bootup.
USING THE 4X4 DVIKVM MATRIX
1
2
3
4
4
5
RMT16-IR INSTALLATION
1. Remove battery cover from the back of the RMT16-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up.
The side that is not marked must be facing down.
4. Test the RMT16-IR remote by pressing ONLY one button at a time. The indicator
light on the remote will flash once each time you press a button. WARNING: Do not
press multiple buttons simultaneously and do NOT press buttons rapidly. These
actions will cause the remote to reset and steps 1-4 will have to be repeated.
*Note: The RMT16-IR ships with two batteries. One battery is required for operation,
the second battery is complimentary.
6
IR CODES
In the event of IR conflicts, please do the following:
1. Remove the battery cover from the back of the RMT16-IR remote.
2. Locate the Dip Switches above the batteries
3. Switch the Dip Switches on the RMT16-IR to any of the combinations pictured below.
4. Dip Switches 1 and 2 in the RMT16-IR correspond with Dip Switches 1 and 2
(Hidden behind metallic tape) inside the 4x4 DVIKVM Matrix respectively. Switch the
switches inside the 4x4 DVIKVM Matrix to match the same Remote Channel as the
RMT16-IR
12
Remote Channel 0:
12
Remote Channel 1:
12
Remote Channel 2:
12
Remote Channel 3:
Dip switches 1 and 2
Remove Tape
Front
Bottom
18765432
7
RMT-MATRIX-444 INSTALLATION (OPTIONAL)
You can use up to 4 RMT-MATRIX-444 units to extend switching functionality to remote
locations. Each unit will allow the user to switch their one display between the 4 inputs
on the DVIKVM-444N. Follw these steps for each RMT-MATRIX-444 that will be used
in your setup.
1. Connect a CAT5/6 cable between the RMT-MATRIX-444 and one of the CAT5 ports
on the rear of the DVIKVM-444N. The ports are labeled as RMTA, B, C, and D and
correspond with DVI out ports 1, 2, 3, and 4.
2. Use the contact buttons on the RMT-MATRIX-444 to switch between the different
inputs connected to the DVIKVM-444N. Optionally, you can use a RMT-4IR (infrared
remote) in conjunction with the RMT-MATRIX-444 to switch inputs from a distance.

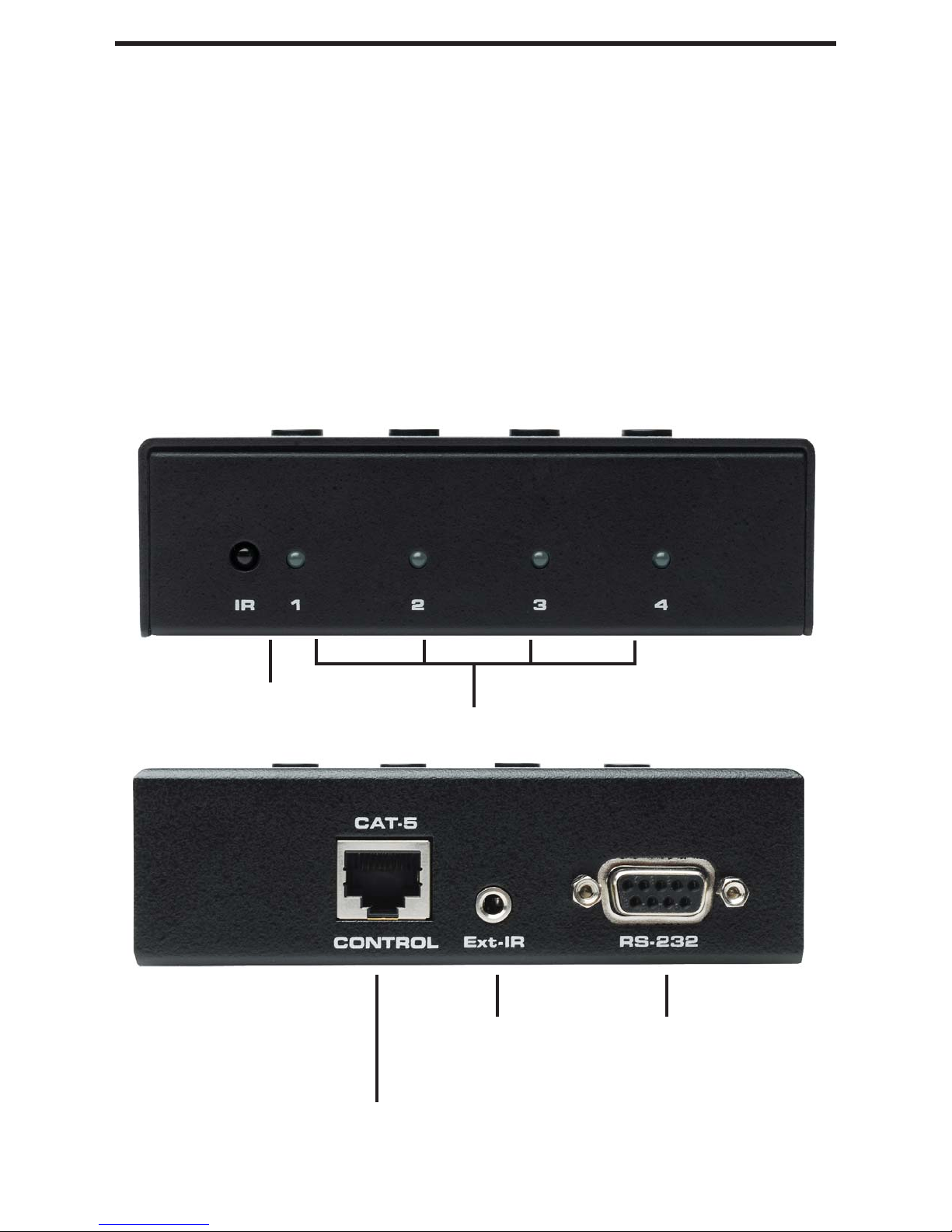

IR Sensor
(For use with optional IR
remote)
IR Sensor Extension Port
(Extension cable not
included)
RS-232 Port
CAT5/6 Port
Input Selection LED
Input Selection Buttons
