Gefen Toolbox GTB-HDMI-3DTV Manual de usuario

Gefen

Extender

for HDMI®3DTV

GTB-HDMI-3DTV

GTB-HDMI-3DTV-BLK

User Manual

ASKING FOR ASSISTANCE

Rev A5

29.6

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday, Paciﬁc Time

Write To:

Gefen, LLC.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefentoolbox.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

GefenToolBox Extender for HDMI 3DTV is a trademark of Gefen, LLC

HDMI, the logo, and High-Deﬁnition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing in the United States and

other countries.

All trademarks are the property of their respective owners

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Unit Layout

5 Sender Unit Descriptions

6 Receiver Unit Layout

7 Receiver Unit Descriptions

8 Connecting and Operating The Extender For HDMI 3DTV

9 DIP Switch Configuration

11 Network Cable Wiring Diagram

12 Wall Mounting Instructions

13 Specifications

14 Warranty

INTRODUCTION

Congratulations on your purchase of the Extender for HDMI®3DTV. Your

complete satisfaction is very important to us.

GefenToolbox

GefenToolbox is a unique product line catering to the growing needs for

innovative home theater solutions. We specialize in total integration for your

home theater, while also focusing on going above and beyond customer

expectations to ensure you get the most from your hardware. We invite you to

explore our distinct product line and hope you ﬁnd your solutions. Don’t see what

you are looking for here? Please call us so we can better assist you with your

particular needs.

The GefenToolbox Extender for HDMI 3DTV

The GefenToolbox Extender for HDMI 3DTV extends HDMI®and 3D content

including multi-channel digital audio at resolutions of up to 1080p Full HD up

to 330 feet (100 meters) from any Hi-Def source using one CAT-5 cable. This

product also provides an IR backchannel to control AV sources using the same

CAT-5 cable extension. Using this remote IR back-channel with an optional IR

Blaster, you can point to any one of the of the AV device sources, by pointing

towards the IR sensor to control Hi-Def sources as if they were located in the

same room or proximity to the display.

How It Works

Connect the GefenToolbox Extender for HDMI 3DTV sender unit to the 3D Hi-Def

source using the supplied HDMI cable. Connect the receiver unit to the 3DTV

Display. Use a single CAT-5 cable, up to 330 feet (100 meters) in length, to

connect the sender and the receiver units. Connect the locking power supplies

to both sender and receiver units and apply power to the 3D Hi-Def source and

3DTV Display. 3D content can now be displayed on the 3DTV Display along with

audio embedded in the HDMI signal.

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE EXTENDER FOR HDMI 3DTV

• CAT-5 or CAT-6 cables should not exceed 330 feet (100 meters).

• Shielded (STP) CAT-5 or CAT-6 is recommended. However, unshielded

(UTP) CAT-5 or CAT-6 is acceptable.

• NOTE: Shielded cable has an advantage by providing immunity to

Electromagnetic Interference (EMI) from cell phones and A/C motors.

• The Extender for HDMI 3DTV features the ability to generate compatible

EDID and Hot Plug signals for troubleshooting purposes when dealing with

difﬁcult interfacing issues between Source devices and Displays. See the

section on pages 9 - 10 for troubleshooting purposes.

• HDCP content is not supported when the unit is in DVI mode. See page 10

for details.

OPERATION NOTES

FEATURES

HDMI 1.3 Features

• 225 MHz (up to 12-bit YUV 4:4:4 @ 1080p60)

• Deep Color

• Dolby TrueHD and DTS-HD Master Audio

• Lip-Sync

• CEC Pass-Through

Features

• Extends HDMI at 1080p up to 330 ft (100 m).

• 3DTV Pass-Through.

• Supports high bit-rate multi-channel audio formats (Dolby TrueHD / DTS

Master Audio) embedded in the HDMI 1.3 signal.

• Internal / External EDID Management.

• Locking power connectors.

• Built-in IR backchannel allows IR remote control of Source devices.

• Metal enclosure improves RF shielding.

• All-digital signal transmission for zero signal loss.

• Optional IR Blaster allowing IR remote control of Hi-Def source devices from

the remote viewing location.

• This product is HDMI and HDCP-compliant.

Package Includes

(1) Extender for HDMI 3DTV Sender Unit

(1) Extender for HDMI 3DTV Receiver Unit

(1) 6 ft. HDMI cable (M-M)

(2) 5V DC Locking Power Supplies

(1) User Manual

SENDER UNIT LAYOUT

Left

Right

3 4

Top

1 CAT-5 Output Jack

Connects the Sender to the Receiver unit using CAT-5 cabling.

2 IR Blaster Port

Connect an IR Blaster cable from this port to the Hi-Def source to control the

source from the viewing location (IR Blaster not included).

3 5V DC Locking Power Connector

Connect the included 5V DC locking power supply to this connector. Only use

the power supply shipped with this unit.

4 Power Indicator

This LED will turn bright red once the included 5V DC locking power supply has

been properly connected to the unit and the locking power supply has been

connected to an available wall outlet.

5 Locking HDMI Port

Connect a 3D Hi-Def source device to this HDMI port. Please see the Features

section on page 3 for supported HDMI 1.3 features.

SENDER UNIT DESCRIPTIONS

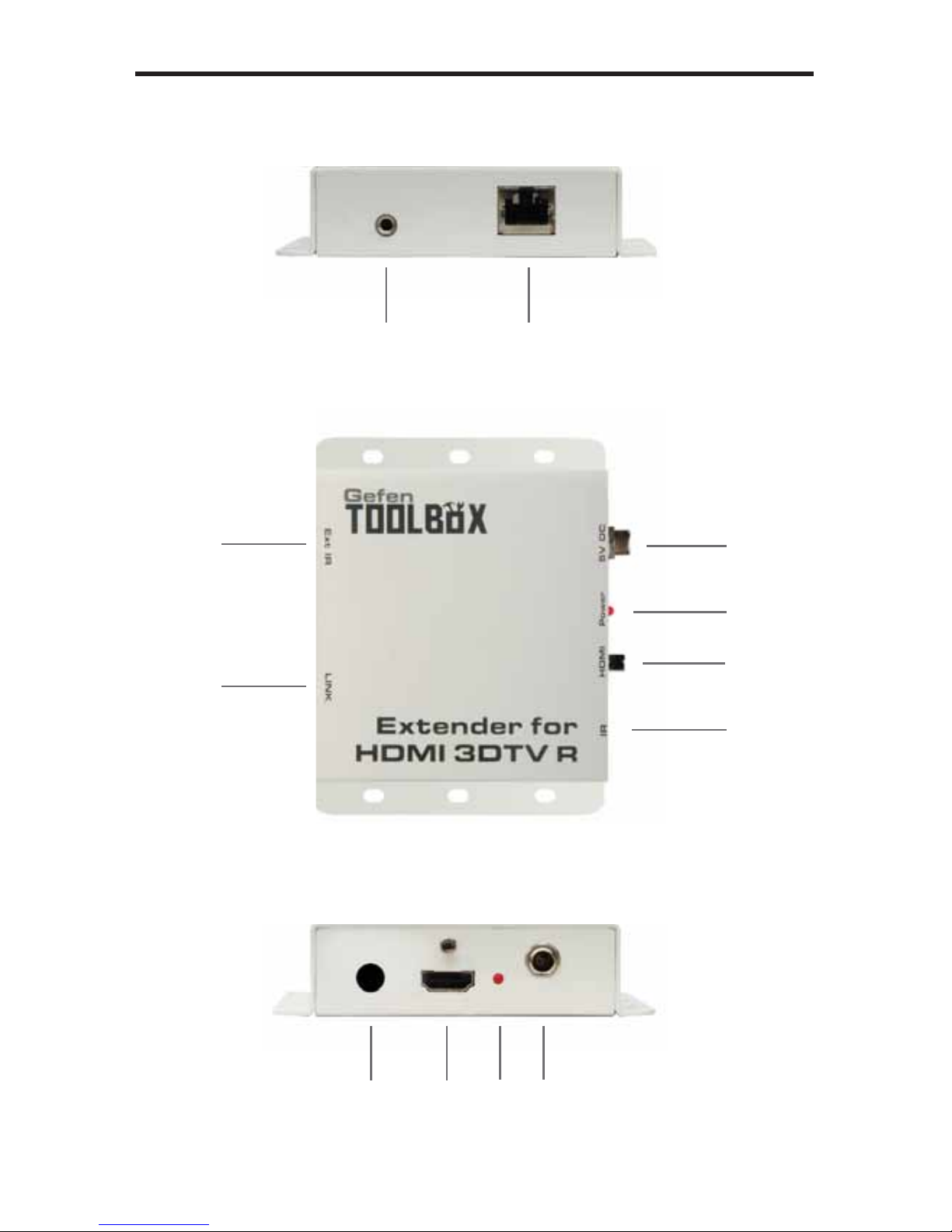

RECEIVER UNIT LAYOUT

Left

Right

3 4

Top

RECEIVER UNIT DESCRIPTIONS

1 IR Extender Port

Connect an IR extender to this port.

2 CAT-5 Input Port

Connects the Receiver to the Sender unit using CAT-5 cabling.

3 IR Sensor

Receives signals from the 3D source IR remote control. The IR signals are sent

back to the source device, when using an IR Blaster on the Sender.

4 Locking HDMI Port

Connect a 3D display to this HDMI port. Please see the Features section on

page 3 for supported HDMI 1.3 features.

5 Power Indicator

This LED will turn bright red once the included 5V DC locking power supply has

been properly connected to the unit and the locking power supply has been

connected to an available wall outlet.

6 5V DC Locking Power Connector

Connect the included 5V DC locking power supply to this connector. Only use

the power supply shipped with this unit.
