Congratulations on your purchase of the Dual-Link DVI over 2CAT6 Extender.

Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative and progressive computer and electronics add-

on solutions that harness integration, extension, distribution, and conversion

technologies. Gefen’s reliable, plug-and-play products supplement cross-platform

computer systems, professional audio/video environments, and HDTV systems

of all sizes with hard-working solutions that are easy to implement and simple to

operate.

The Gefen Dual-Link DVI over one CAT6 Extender

The Dual-Link DVI over 2CAT6 extends any dual-link DVI source, to a display up

to 200 feet (60 meters) away, at resolutions up to 3840x2400 using two CAT-6

cables. Extending dual-link resolutions over standard DVI cables have a limitation

of 15 feet. Exceeding this distance requires additional repeaters and/or boosters.

The Dual-Link DVI over 2CAT6 Extender provides an easy to install solution,

using CAT-6 cables. This product also extends RS-232 using the same CAT-6

cable, allowing access and control of devices using RS-232.

How It Works

Place the Dual-Link DVI over 2CAT6 Extender Sender unit next to the computer

source. Use the included dual-link DVI cable to connect the computer to the

Sender unit. Connect the Receiver unit to the display with dual-link DVI cable.

Connect an RS-232 serial cable from the RS-232 port on the Sender unit to the

RS-232 control device. Connect the RS-232 port on the Receiver unit to the

RS-232 device. Use two CAT-6 cables, up to 200 feet (60 meters), to connect the

Sender unit to the Receiver unit. Connect the included locking power supplies to

the Sender and Receiver Unit, and then connect both power cables to available

electrical outlets.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE DUAL-LINK DVI OVER 2CAT6 EXTENDER

• The Dual-Link DVI over 2CAT6 Extender was designed for use with high

quality CAT-6a (augmented) cabling. This unit will either not perform to

speciﬁcation or refuse to operate completely if cabling other than CAT-6a is

used.

• When ﬁeld terminating CAT-6a cabling please adhere to the TIA/EIA-568-B

speciﬁcation shown on page 13.

• The Dual-Link DVI over 2CAT6 has a maximum distance rating based on

the bandwidth (i.e. resolution and color) of the video being transmitted.

When used with high quality CAT-6a cabling, you may expect a maximum

extension range of 200 feet (60 meters) at 3840x2400 or 1080p resolution

up to a 60Hz refresh rate. Lower quality cabling or older standards such as

CAT-5 cables will shorten the maximum achievable extension distance.

• For CAT-5e cables, the maximum distance is 150 feet at 1080p Full HD or

2560 x 1600.

• This product features HDCP pass-through only when using single-link

resolutions.

OPERATION NOTES

Features

• Extends dual link DVI and RS-232 up to 200 feet (60 meters) over two

CAT-6a cables

• Supports HD resolutions up to 1080p Full HD

• Supports VESA resolutions up to 2560 x 1600

• EDID Management for Local and Pass-through modes

• Locking Power Supplies

• Rack-mountable

• Compatible with the Gefen Modular General Purpose Racktray

Application

• Computer Extension over CAT-6 up to 2560 x 1600

Package Includes

(1) Dual-Link DVI over 2CAT6 - Sender unit

(1) Dual-Link DVI over 2CAT6 - Receiver unit

(1) 6 ft. Dual-Link DVI Cable (M-M)

(2) 5V DC Power Supply

(1) User Manual

FEATURES

Front Panel

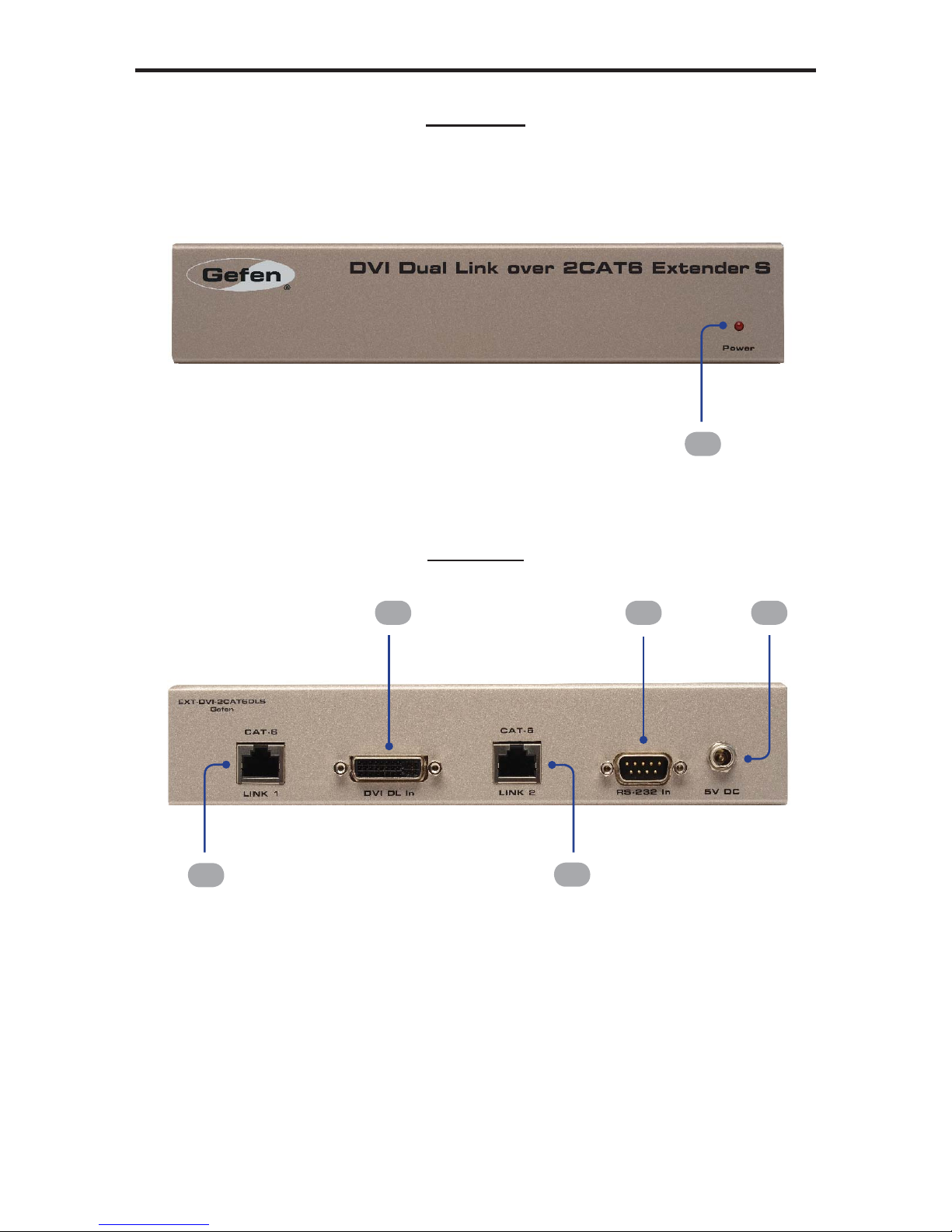

SENDER UNIT LAYOUT

Back Panel

5 6

1 Power

This LED indicator will glow bright red once the included 5V DC locking power

supply is properly connected between the unit and an open wall power socket.

2 Link 1

This port is used to connect the sending and receiving units together using a

CAT-6a cable.

3 DVI DL In

This input will accept a dual-link DVI-D (digital only) source for extension.Attach

the cable coming from your DVI source here.

4 Link 2

This port is used to connect the sending and receiving units together using a

CAT-6a cable.

5 RS-232

This port is for future ﬁrmware upgrades only.

6 5V DC

Connect the included 5V DC locking power supply to this receptacle.

SENDER PANEL DESCRIPTIONS

Front Panel

RECEIVER UNIT LAYOUT

Back Panel

1 2

6 7

1 EQ

The EQ adjustment or Trim Pot is used to equalize the signal to compensate for

the extension distance and the quality/skew variances that are found in different

CAT-6a cabling brands.

2 Power

The LED power indicator will become active once the included 5V DC power

supply is properly connected beten the unit and an open wall power socket.

3 Link 1

This port is used to connect the DVI Extender Sender and Receiver units

together using CAT-6a cable.

4 DVI DL Out

This connector hooks up the Receiver to a DVI-D compliant monitor at the

remote destination.

5 Link 2

This port is used to connect the DVI Extender Sender and Receiver units

together using CAT-6a cable.

6 RS-232

This port is for future ﬁrmware upgrades only.

7 5V DC

Connect the included 5V DC power supply between this input and an open wall

power socket.

RECEIVER PANEL DESCRIPTIONS
