Gefen ETH-2-PLC Manual de usuario

Ethernet Over PLC

User Manual

www.gefentv.com

GTV-ETH-2-PLC

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefentv.com

support@gefentv.com

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

GefenTV Ethernet Over PLC is a trademark of Gefen Inc.

All trademarks are the property of their respective companies

ASKING FOR ASSISTANCE

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Layout

5 Sender Panel Descriptions

6 Receiver Panel Layout

7 Receiver Panel Descriptions

8 GefenTV Ethernet Over PLC Software Installation

11 Connecting The GefenTV Ethernet Over PLC

17 Automatic Security Setup Feature

19 Advanced Conﬁguration

24 Web Conﬁguration

27 Firmware Update Procedure

28 Speciﬁcations

29 Warranty

Congratulations on your purchase of the GefenTV Ethernet Over PLC. Your

complete satisfaction is very important to us.

Gefen TV

Gefen TV is a unique product line catering to the growing needs for innovative

home theater solutions. We specialize in total integration for your home theater,

while also focusing on going above and beyond customer expectations to ensure

you get the most from your hardware. We invite you to explore our distinct

product line and hope you ﬁnd your solutions. Don’t see what you are looking for

here? Please call us so we can better assist you with your particular needs.

The Gefen Ethernet Over PLC

Send RJ-45 Ethernet signals over power lines in the walls of your home with the

GefenTV Ethernet Over Power Line Bridge. The Bridge’s sender and receiver

units send Ethernet through the walls of a building at a distance of up to 1000

feet.

Ideal for tough installations where running CAT5/CAT6 cable is not possible,

these devices breathe new life into remote network extensions.

How It Works

Connect your Ethernet network cables to the GefenTV Ethernet Over Power Line

Bridge Sender unit, then plug the Bridge’s Sender into a nearby power outlet.

At the desired reception area in another room, plug the Bridge’s Receiver into

a power outlet. Power cycle your equipment and you will now receive network

signals at your remote destination as if you had cabled the run with Ethernet

cables.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE GEFENTV ETHERNET OVER PLC

This device passes all 10/100BASE-T Ethernet network protocols (TCP/• IP, NETBUEI, Microsoft Networking, etc.) at speeds of up to 200Mbps (Full

duplex fast Ethernet).

All devices connected to the sending and receiving nodes must be on the• same power phase to communicate properly.

Multiple receiving nodes can be used on the same in-house power line• system to extend the network to multiple locations.

Performance of• GefenTV Ethernet Over PLC can be affected by “noisy”

devices on the power lines. This can be alleviated by using a PLC ﬁlter

(Part# GTV-PLC-FUS for US and GTV-PLC-FEU for Europe). Offending

devices need to be connected to the PLC ﬁlter before being connected to the

wall outlet.

OPERATION NOTES

Features

Supports up to 200 Mbps data transmission rate•

Extension of up to 200 feet (60 meters)•

Web conﬁguration for easy maintenance•

Features include IGMP multicast, VLAN, and QOS packet management•

3DES 168 bits encryption used for secure operation•

Four RJ-45 Ethernet ports•

Package Includes

(1) GefenTV Ethernet Over PLC sender

(1) GefenTV Ethernet Over PLC receiver

(1) 3 foot Ethernet Patch Cable

(2) Power Adapter Cables

FEATURES

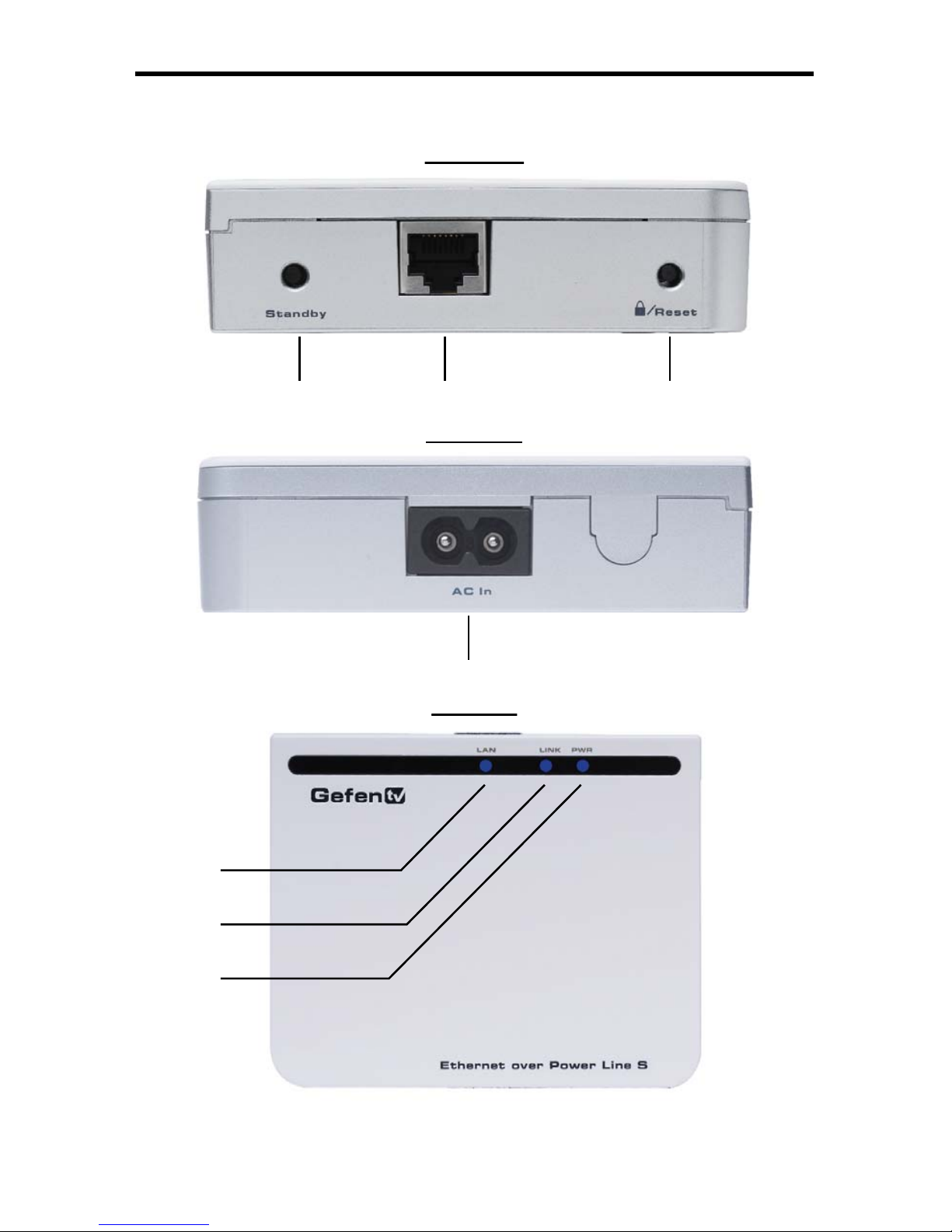

Front Panel

Back Panel

Top Panel

SENDER PANEL LAYOUT

SENDER PANEL DESCRIPTIONS

Standby Button1.

Pressing this will put the sending unit in standby mode. The unit will not

transfer any information to the receiving unit in this mode. To release

standby mode, simply press the button again.

Ethernet Input Port2.

Connects to the Ethernet source (i.e a router, computer, or Internet

connection) via a standard network cable.

Security/Reset Button3.

Pressing this button for 2 seconds will activate the Automatic Security

Conﬁguration (please see page 17). Pressing this button for more than 10

seconds will perform a factory reset.

AC Power Cable Input4.

Input for the supplied AC power cable.

LAN LED5.

This LED will activate when a connection to a valid Ethernet source is

established. It will blink when activity is detected to signify that data is

actively being trafﬁcked to and from the receiver.

Link LED6.

This LED will activate once a link has been established between the sending

and receiving units. It will blink when activity is detected to signify that data is

actively being trafﬁcked.

Power LED7.

This LED will activate once the included power supply is properly connected.

Front Panel

Back Panel

Top Panel

RECEIVER PANEL LAYOUT

RECEIVER PANEL DESCRIPTIONS

Standby Button1.

Pressing this will put the receiving unit in standby mode. The unit will not

transfer any information to the sending unit in this mode. To release standby

mode, simply press the button again.

Ethernet Input Port ( 1 through 4)2.

Connects to an Ethernet device (i.e a computer or gaming system) via a

standard network cable. 4 ports are available for 4 separate devices.

Security/Reset Button3.

Pressing this button for 2 seconds will activate the Automatic Security

Conﬁguration (please see page 17). Pressing this button for more than 10

seconds will perform a factory reset.

AC Power Cable Input4.

Input for the supplied AC power cable.

LAN 1 LED5.

This LED will activate when a connection from a valid Ethernet device to

Ethernet port 1 is established. It will blink when activity is detected to signify

that data is actively being trafﬁcked to and from this port.

LAN 2 LED6.

This LED will activate when a connection from a valid Ethernet device to

Ethernet port 2 is established. It will blink when activity is detected to signify

that data is actively being trafﬁcked to and from this port.

LAN 3 LED7.

This LED will activate when a connection from a valid Ethernet device to

Ethernet port 3 is established. It will blink when activity is detected to signify

that data is actively being trafﬁcked to and from this port.

LAN 4 LED8.

This LED will activate when a connection from a valid Ethernet device to

Ethernet port 4 is established. It will blink when activity is detected to signify

that data is actively being trafﬁcked to and from this port.

Link LED9.

This LED will activate once a link has been established between the sending

and receiving units. It will blink when activity is detected to signify that data is

actively being trafﬁcked to and from the sender.

Power LED10.

This LED will activate once the included power supply is properly connected.
