PRIMEQUEST 3800E2

System Configuration Guide

Contents

1. Overview

2. Base unit

3. System Board (SB)

4. CPU

05. Memory

16. MMB

27. I/O Unit

58. Disk Unit (DU)

79. HDD / SSD / PCIe-SSD

810. Power Supply Unit (PSU), Power Cords

911. PCI Box

10 12. PCI Card

11 13. Rack Installation

14. Maximum Quantity of PCIe Cards

12 15. Available OS

16 Restrictions

Change Report

July. 2019 Ver. 2.0

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

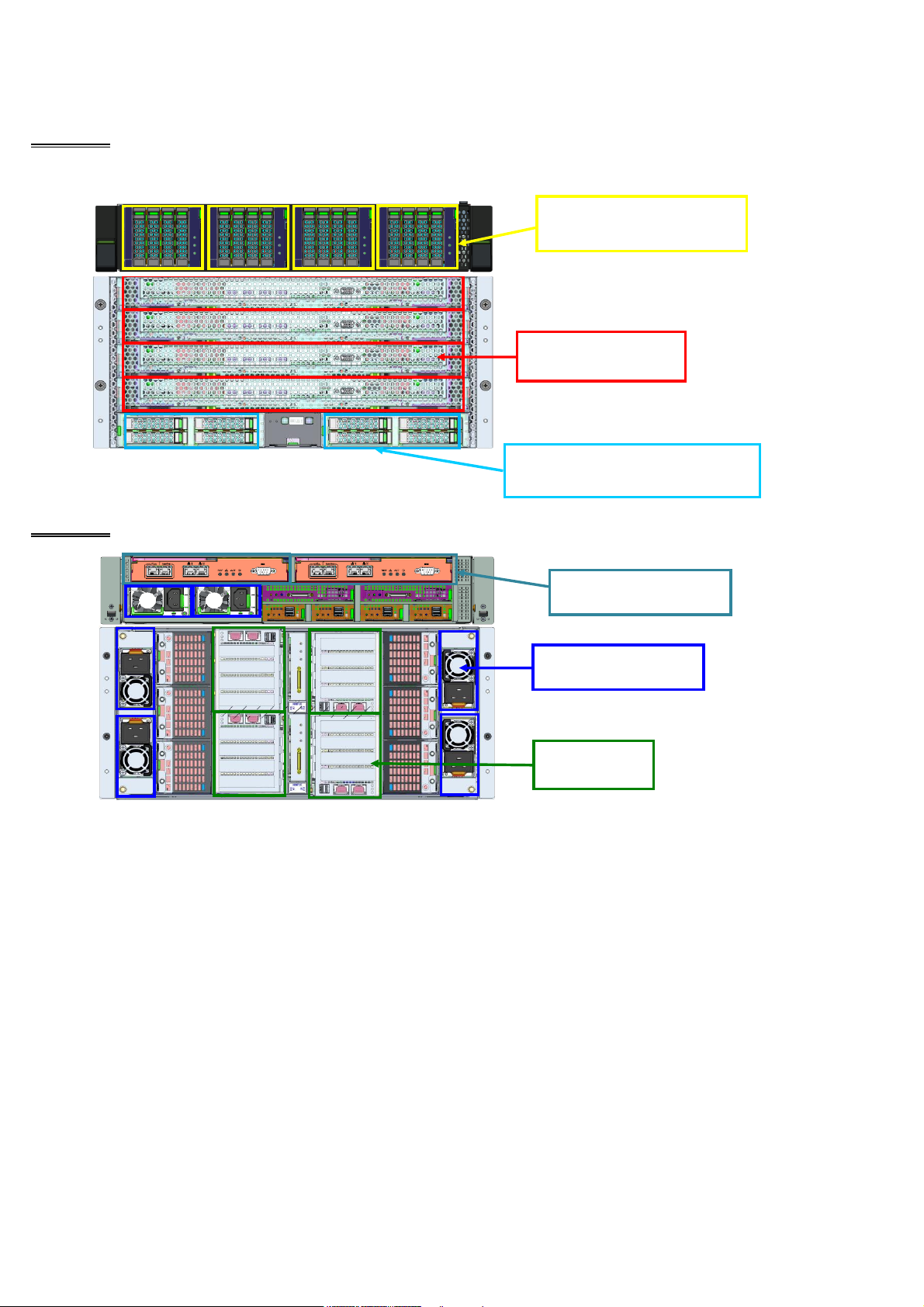

Front side

Rear side

1.Overview

July 2019, Ver.2.0

System Board

Disk Unit for SAS

Disk Unit for Disk/MMB Unit

(Disk Unit_M)

I/O Unit

Power Supply Unit

Management Board

2 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

Light gray color components Included in Base Unit.

Dark gray color components are optional.

Configuration Diagram

July 2019, Ver.2.0

PSU_M#0 PSU_M#1 MMB#0 MMB#1

Disk Unit_M #0

HDD/SSD

RAID

Card

FBU

Disk Unit_M #1

HDD/SSD

RAID

Card

FBU

Disk Unit _M#2

HDD/SSD

RAID

Card

FBU

Disk Unit_M #3

HDD/SSD

RAID

Card

FBU

PSU#0 PSU#1 PSU#2 PSU#3

I/O Unit #0

PCI Slot

LAN port

x8 Lane

x16 Lane

x8 Lane

Disk Unit #0

HDD/SSD

RAID

Card

FBU

Disk UNit #1

HDD/SSD

RAID

Card

SB #0

CPUCPU

Memory

DIMM

…

DIMM

…

DIMM

Memory

TPM M.2

eLCM

SB #1

CPUCPU

Memory

DIMM

…

DIMM

…

DIMM

Memory

TPM M.2

eLCM

SB #2

CPUCPU

Memory

DIMM

…

DIMM

…

DIMM

Memory

TPM M.2

eLCM

SB #3

CPUCPU

Memory

DIMM

…

DIMM

…

DIMM

Memory

TPM M.2

eLCM

I/O Unit #1

PCI Slot

LAN port

x8 Lane

x16 Lane

x8 Lane

I/O Unit #2

PCI Slot

LAN port

x8 Lane

x16 Lane

x8 Lane

I/O Unit #3

PCI Slot

LAN port

x8 Lane

x16 Lane

x8 Lane

3 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

Part Numbers Legend:

Part numbers:

MX-****** is a Build-to-Order (BTO) option to be assembled with Base Unit

MCX****** is an option to be shipped separately from Base Unit (Loose Delivery)

PRIMEQUEST 3800E2 Base Unit

MCK3AC111

- Rack mount type

- 1x System Board is included in the Base Unit, Max. 4x System Baords can be mounted.

- 1x I/O Unit is included in the Base Unit, Max. 4x I/O Units can be mounted.

- Max. 4 x PCI Boxes can be connected.

- 1 x MMB is included. An additional MMB can be mounted for redundancy.

- 2 x LAN ports per MMB

- PSUs need to be ordered, Max. 4x PSUs can be mounted.

- 1x PSU_M is included in the Base Unit, Max. 2x PSU_Ms can be mounted.

- Power cords need to be ordered. The quantityis equal to the quantityof PSUs and PSU_Ms.

- Rack space : 7U

Advanced Thermal Design Option

MC-0PTH2

Operating temperature of up to 40°C

System Board

2.Base Unit

July 2019, Ver.2.0

The following options are NOT included in the Base Unit.

- CPU, Memory, PSU, power cord

The following compoernents are included in the Base Unit.

- 1x System Board

- 1x I/O Unit

- 1x PSU_M

- 1x Rack Mount Kit

- 1x MMB

When this option

is selected,

CPUs exceeding 165W can not

be installed.

PSU_M

I/O Unit

I/O Unit #0

LAN

port

PCI Slots

MMB #0

Disk

Unit_M

PSU#3

PSU#2PSU#1

PSU#0

MMB #1

Disk Unit #0

HDD/SSD

RAID

Card

FBU

SB #0

Memory

x12 slots

CPU

Memory

x12 slots

CPU

SB #1

Disk Unit #1

Disk Unit_M #0

HDD/SSD

RAID

Card

FBU

Disk

Unit_M

Disk

Unit_M

I/O

Unit

I/O Unit

SB #2 SB #3

4 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

System Board

MC-3HSBD1 / MCX3HSBD1 (LD)

- Min. 1 x SB needs to be mounted. Max. 4 x SB can be mounted per Base Unit.

- The System Board doesnot include a security chip called TPM.

- Neither CPU nor memory module is included. CPU and memory need to be ordered separately.

Min. 2 x CPU and 2 x memory module need to be mounted on eachSystem Board.

Max. 12 x memory modules (24 x DIMMs) can be mounted.

eLCM Activation License (no load)

MC-6KMA11 / MCX6KMA11 (LD)

- For PRIMEQUEST 3800E2

- One License per system

TPM module V2.0

MC-6HTP31 / MCX6HTP31(LD)

- Available except for China

- One for System Board

USB Flash Device & M.2 Flash Device

3.System Board (SB)

July 2019, Ver.2.0

PSU_M

I/O Unit

I/O Unit #0

LAN

port

PCI Slots

MMB #0

Disk

Unit_M

PSU#3

PSU#2PSU#1

PSU#0

MMB #1

Disk Unit #0

HDD/SSD

RAID

Card

FBU

SB #0

Memory

x12 slots

CPU

Memory

x12 slots

CPU

SB #1

Disk Unit #1

Disk Unit_M #0

HDD/SSD

RAID

Card

FBU

Disk

Unit_M

Disk

Unit_M

I/O Unit

SB #2 SB #3

1x System Board is included in the Base Unit.

Max. 4x System Board can be mounted per Base Unit.

The

following functions are NOT available for the System Board with TPM.

Reserved SB

The following opitions can be installed only in System Board #0.

5 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

USB Flash Device & M.2 Flash Device

USB Flash Device 64GB Dual

MC-5FA411 / MCX5FA411(LD)

- 2x 64GB micro SD card, HW mirrored

- Cannot be mounted with MC*5FB751

M.2 Flash Device (VMware, 240GB)

MC-5FB741 / MCX5FB741 (LD)

- M.2 SATA 240GB for VMware boot only

- 1 x M.2 Flash Devices can be mounted.

- DWPD : 1.5

M.2 Flash Device 480GB

MC-5FB771 / MCX5FB771 (LD)

- M.2 SATA 480GB except VMware

- Max 2 x M.2 Flash Device can be mounted.

- DWPD : 1.5

- Cannot be mounted with MC*5FA411

M.2 Flash Device 240GB (except ESXI)

MC-5FB751 / MCX5FB751 (LD)

- M.2 SATA 240GB except VMware

- Max 2 x M.2 Flash Device can be mounted.

- DWPD : 1.5

- Cannot be mounted with MC*5FA411

CPU

July 2019, Ver.2.0

PSU_M

I/O Unit

I/O Unit #0

LAN

port

PCI Slots

MMB #0

Disk

Unit_M

PSU#3

PSU#2PSU#1

PSU#0

MMB #1

Disk Unit #0

HDD/SSD

RAID

Card

FBU

SB #0

Memory

x12 slots

CPU

Memory

x12 slots

CPU

SB #1

Disk Unit #1

Disk Unit_M #0

HDD/SSD

RAID

Card

FBU

Disk

Unit_M

Disk

Unit_M

I/O Unit

SB #2 SB #3

Only one type of the following options can be installed on

each System Board.

6 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

4.CPU

Intel Xeon Platinum 8280L Processor (28C/2.7GHz/4.5TB/205W)

MC-3BJA41 / MCX3BJA41 (LD)

Intel Xeon Platinum 8280M Processor (28C/2.7GHz/2TB/205W)

MC-3BJA21 / MCX3BJA21 (LD)

Intel Xeon Platinum 8280 Processor (28C/2.7GHz/1TB/205W)

MC-3BJA11 / MCX3BJA11 (LD)

Intel Xeon Platinum 8276L Processor (28C/2.2GHz/4.5TB/165W)

MC-3BKA41 / MCX3BKA41 (LD)

Intel Xeon Platinum 8276M Processor (28C/2.2GHz/2TB/165W)

MC-3BKA21 / MCX3BKA21 (LD)

Intel Xeon Platinum 8276 Processor (28C/2.2GHz/1TB/165W)

MC-3BKA11 / MCX3BKA11 (LD)

Intel Xeon Platinum 8270 Processor (26C/2.7GHz/1TB/205W)

MC-3BKB11 / MCX3BKB11 (LD)

Intel Xeon Platinum 8268 Processor (24C/2.9GHz/1TB/205W)

MC-3BJC11 / MCX3BJC11 (LD)

Intel Xeon Platinum 8260L Processor (24C/2.4GHz/4.5TB/165W)

MC-3BKC41 / MCX3BKC41 (LD)

Intel Xeon Platinum 8260M Processor (24C/2.4GHz/2TB/165W)

MC-3BKC21 / MCX3BKC21 (LD)

Intel Xeon Platinum 8260 Processor (24C/2.4GHz/1TB/165W)

MC-3BKC11 / MCX3BKC11 (LD)

Intel Xeon Platinum 8253 Processor (16C/2.2GHz/1TB/125W)

MC-3BKG11 / MCX3BKG11 (LD)

Intel Xeon Platinum 8256 Processor (4C/3.8GHz/1TB/105W)

MC-3BKN11 / MCX3BKN11 (LD)

- 1 CPU/SB can be configured PPAR that has 1SB only.

1CPU/PPAR can be connected IOU0 and/or IOU1 only.

- Only the same kind of CPU can be installed in the partition.

- Different types of CPUs can be installed in the different partitions.

CPU(2)

3SB

4SB

July 2019, Ver.2.0

# of SBs in one PPAR

# of CPUs in one PPAR

1SB

1 or 2

2SB

PSU_M

I/O Unit

I/O Unit #0

LAN

port

PCI Slots

MMB #0

Disk

Unit_M

PSU#3

PSU#2PSU#1

PSU#0

MMB #1

Disk Unit #0

HDD/SSD

RAID

Card

FBU

SB #0

Memory

x12 slots

CPU

Memory

x12 slots

CPU

SB #1

Disk Unit #1

Disk Unit_M #0

HDD/SSD

RAID

Card

FBU

Disk

Unit_M

Disk

Unit_M

I/O Unit

#2 I/O Unit

SB #2 SB #3

2x CPUs required for one System board except PPAR with 1SB.

Combinatios of PPAR is only "SB#0 and SB#1" or "SB#2 and SB#3"

when Gold 62xx is mounted on SB.

Can not mix different CPUs in one partition.

CPUs with number 'xxxxL' support up to 4.5TB of memory.

CPUs with number 'xxxxM' support up to 2TB of memory.

CPU mounting condition

Number of cores / Frequency/ Max. memory per CPU / TDP

)

7 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

4.CPU

Intel Xeon Gold 6262V Processor (24C/1.9GHz/1TB/135W)

MC-3BRC11 / MCX3BRC11 (LD)

Intel Xeon Gold 6254 Processor (18C/3.1GHz/1TB/200W)

MC-3BMF11 / MCX3BMF11 (LD)

Intel Xeon Gold 6252 Processor (24C/2.1GHz/1TB/150W)

MC-3BNC11 / MCX3BNC11 (LD)

Intel Xeon Gold 6248 Processor (20C/2.5GHz/1TB/150W)

MC-3BNE11 / MCX3BNE11 (LD)

Intel Xeon Gold 6246 Processor (12C/3.3GHz/1TB/165W)

MC-3BSJ11 / MCX3BSJ11 (LD)

Intel Xeon Gold 6244 Processor (8C/3.6GHz/1TB/150W)

MC-3BNL11 / MCX3BNL11 (LD)

Intel Xeon Gold 6242 Processor (16C/2.8GHz/1TB/150W)

MC-3BNG11 / MCX3BNG11 (LD)

Intel Xeon Gold 6240L Processor (18C/2.6GHz/4.5TB/150W)

MC-3BNF41 / MCX3BNF41 (LD)

Intel Xeon Gold 6240M Processor (18C/2.6GHz/2TB/150W)

MC-3BNF21 / MCX3BNF21 (LD)

Intel Xeon Gold 6240 Processor (18C/2.6GHz/1TB/150W)

MC-3BNF11 / MCX3BNF11 (LD)

Intel Xeon Gold 6238L Processor (22C/2.1GHz/4.5TB/140W)

MC-3BND41 / MCX3BND41 (LD)

Intel Xeon Gold 6238M Processor (22C/2.1GHz/2TB/140W)

MC-3BND21 / MCX3BND21 (LD)

Intel Xeon Gold 6238 Processor (22C/2.1GHz/1TB/140W)

MC-3BND11 / MCX3BND11 (LD)

Intel Xeon Gold 6234 Processor (8C/3.3GHz/1TB/130W)

MC-3BPL11 / MCX3BPL11 (LD)

Intel Xeon Gold 6230 Processor (20C/2.1GHz/1TB/125W)

- 1 CPU/SB can be configured PPAR that has 1SB only. MC-3BRE11 / MCX3BRE11 (LD)

1CPU/PPAR can be connected IOU0 and/or IOU1 only. Intel Xeon Gold 6226 Processor (12C/2.7GHz/1TB/125W)

- Only the same kind of CPU can be installed in the partition. MC-3BNJ11 / MCX3BNJ11 (LD)

- Different types of CPUs can be installed in the different partitions. Intel Xeon Gold 6222V Processor (20C/1.8GHz/1TB/115W)

MC-3BPE11 / MCX3BPE11 (LD)

Memory

3SB

4SB

July 2019, Ver.2.0

# of SBs in one PPAR

# of CPUs in one PPAR

1SB

1 or 2

2SB

PSU_M

I/O Unit

I/O Unit #0

LAN

port

PCI Slots

MMB #0

Disk

Unit_M

PSU#3

PSU#2PSU#1

PSU#0

MMB #1

Disk Unit #0

HDD/SSD

RAID

Card

FBU

SB #0

Memory

x12 slots

CPU

Memory

x12 slots

CPU

SB #1

Disk Unit #1

Disk Unit_M #0

HDD/SSD

RAID

Card

FBU

Disk

Unit_M

Disk

Unit_M

I/O Unit

#2 I/O Unit

SB #2 SB #3

2x CPUs required for one System board except PPAR with 1SB.

Combinatios of PPAR is only "SB#0 and SB#1" or "SB#2 and SB#3"

when Gold 62xx is mounted on SB.

Can not mix different CPUs in one partition.

CPUs with number 'xxxxL' support up to 4.5TB of memory.

CPUs with number 'xxxxM' support up to 2TB of memory.

CPU mounting condition

Number of cores / Frequency/ Max. memory per CPU / TDP

)

8 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

32GB Memory (16GB 1Rx4 DDR4 RDIMM x2)

MC-3CE611 / MCX3CE611 (LD)

64GB Memory (32GB 2Rx4 DDR4 RDIMM x2)

MC-3CE711 / MCX3CE711 (LD)

128GB Memory (64GB 2Rx4 DDR4 RDIMM x2)

MC-3CE811 / MCX3CE811 (LD)

128GB Memory (64GB 4Rx4 DDR4 LRDIMM x2)

MC-3CE821 / MCX3CE821 (LD)

256GB Memory (128GB 8Rx4 DDR4 LRDIMM 3DS x2)

MC-3CE911 / MCX3CE911 (LD)

512GB Memory (256GB 8Rx4 DDR4 LRDIMM 3DS x2)

MC-3CEA11 / MCX3CEA11 (LD)

128GB DDR-T DCPMM(NVM/LRDIMM)

Special Release

256GB DDR-T DCPMM(NVM/LRDIMM)

Special Release

512GB DDR-T DCPMM(NVM/LRDIMM)

Special Release

Memory Mounting

5.Memory

July 2019, Ver.2.0

* 256GB 8R LRDIMM can not be installed on a CPU with a

memory limit of 1TB.

PSU_M

I/O Unit

I/O Unit #0

LAN

port

PCI Slots

MMB #0

Disk

Unit_M

PSU#3

PSU#2PSU#1

PSU#0

MMB #1

Disk Unit #0

HDD/SSD

RAID

Card

FBU

SB #0

Memory

x12 slots

CPU

Memory

x12 slots

CPU

SB #1

Disk Unit #1

Disk Unit_M #0

HDD/SSD

RAID

Card

FBU

Disk

Unit_M

Disk

Unit_M

I/O Unit

#2 I/O Unit

SB #2 SB #3

At least one set of memory (2 DIMMs) must be installed for each CPU.

Max 6 sets of memory (12 DIMMs) can be installed for each CPU.

If configuration of PRIMEQUEST3800E2 includes a DCPMM, it is

necessary to check validity of DCPMM installation.

For request of configuration check, please submit request to the

contact point for PRIMEQUEST.

9 of 42

FUJITSU Server PRIMEQUEST 3800E2 System Configuration Guide

1. Memory and DIMM slots

(1) Memory module for PRIMEQUEST is composed of 2 x DIMMs.

(2) At least 2 DIMMs have to be installed in one CPU (4 DIMMs in one SB) in Normal mode and Spare mode,

4 DIMMs have to be installed in one CPU (8 DIMMs in one SB) in Mirror mode.

(3) Up to 12 DIMMs can be installed in each CPU.

(4) DIMM Slot Arrangement of SB is shown below.

DIMM#xx0 is farther Slots and DIMM#xx1 is nearer Slots among the six DIMM Slots connected to the iMC.

DIMM Slot Arrangement of SB

MSC : Memory Scale-up Controller on MSB

iMC : Memory Controller

2. Memory Mounting Conditions

(1) A mixture of different type of memory is not possible in the system.

The exception is a combination of 16GB RDIMM and 32GB RDIMM, which is possible to mix in the system.

(2) Units of memory expansions : One set (2 DIMMs) for one CPU in Normal Mode and Spare Mode, 2 sets (4 DIMMs) for one CPU in Mirror Mode.

3. Memory Support for Operating Systems of PRIMEQUEST 3800E2

Memory Mounting 2

SUSE® Linux Enterprise Server 15

VMware vSphere® 6.5

VMware vSphere® 6.7

Microsoft® Windows Server® 2019 (Standard / Datacenter)

Microsoft® Hyper-V Server 2019

Red Hat® Enterprise Linux® 7

SUSE® Linux Enterprise Server 12

Memory Mounting

July 2019, Ver.2.0

Operating System

Max. Memory Capacity

(TB)

Microsoft® Windows Server® 2016 (Standard / Datacenter)

Microsoft® Hyper-V Server 2016

iMC

CPU#0

DIMM#0F0

DIMM#0F1

DIMM#0E0

DIMM#0E1

DIMM#0D0

DIMM#0D1

DIMM#0A1

DIMM#0A0

DIMM#0B1

DIMM#0B0

DIMM#0C1

DIMM#0C0

iMC

DIMM#1A1

DIMM#1A0

DIMM#1B1

DIMM#1B0

DIMM#1C1

DIMM#1C0

DIMM#1F0

DIMM#1F1

DIMM#1E0

DIMM#1E1

DIMM#1D0

DIMM#1D1

CPU#1

10 of 42

Tabla de contenidos

Otros manuales de Servidor de Fujitsu

Fujitsu

Fujitsu BX630 - PRIMERGY - S2 Dual Manual del propietario

Fujitsu

Fujitsu PRIMERGY CX25 0 M4 Series Instrucciones de instalación

Fujitsu

Fujitsu PRIMERGY TX1330 M4 Manual de usuario

Fujitsu

Fujitsu PRIMERGY BX600 S3 Instrucciones de instalación

Fujitsu

Fujitsu SPARC M12 Manual de usuario

Fujitsu

Fujitsu PRIMERGY BX900 Manual de usuario

Fujitsu

Fujitsu SPARC Enterprise M8000 Manual de servicio

Fujitsu

Fujitsu PRIMERGY BX960 S1 Manual de usuario

Fujitsu

Fujitsu PRIMERGY TX150 S3 Manual de usuario

Fujitsu

Fujitsu SPARC Enterprise M5000 Guía de instalación

Fujitsu

Fujitsu PRIMERGY SX650 Instrucciones de instalación

Fujitsu

Fujitsu PRIMERGY RX200 S3 Guía

Fujitsu

Fujitsu Primergy RX300 S3 Manual de usuario

Fujitsu

Fujitsu PRIMERGY RX4770 M4 Manual de usuario

Fujitsu

Fujitsu PRIMERGY TX100 S2 Manual de usuario

Fujitsu

Fujitsu PRIMEQUEST 2400E3 Instrucciones de funcionamiento y mantenimiento

Fujitsu

Fujitsu PRIMERGY RX600 S5 Manual de usuario

Fujitsu

Fujitsu PRIMERGY SX980 S1 Manual del propietario

Fujitsu

Fujitsu PRIMERGY TX150 S6 Manual del propietario

Fujitsu

Fujitsu PRIMERGY TX200 S7 Guía del usuario

Fujitsu

Fujitsu PRIMERGY BX922 S2 Manual de usuario

Fujitsu

Fujitsu PRIMERGY TX300 S6 Manual de usuario

Fujitsu

Fujitsu PRIMERGY RX300 S6 Manual de usuario

Fujitsu

Fujitsu PRIMERGY TX600 S3 Manual del propietario

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
