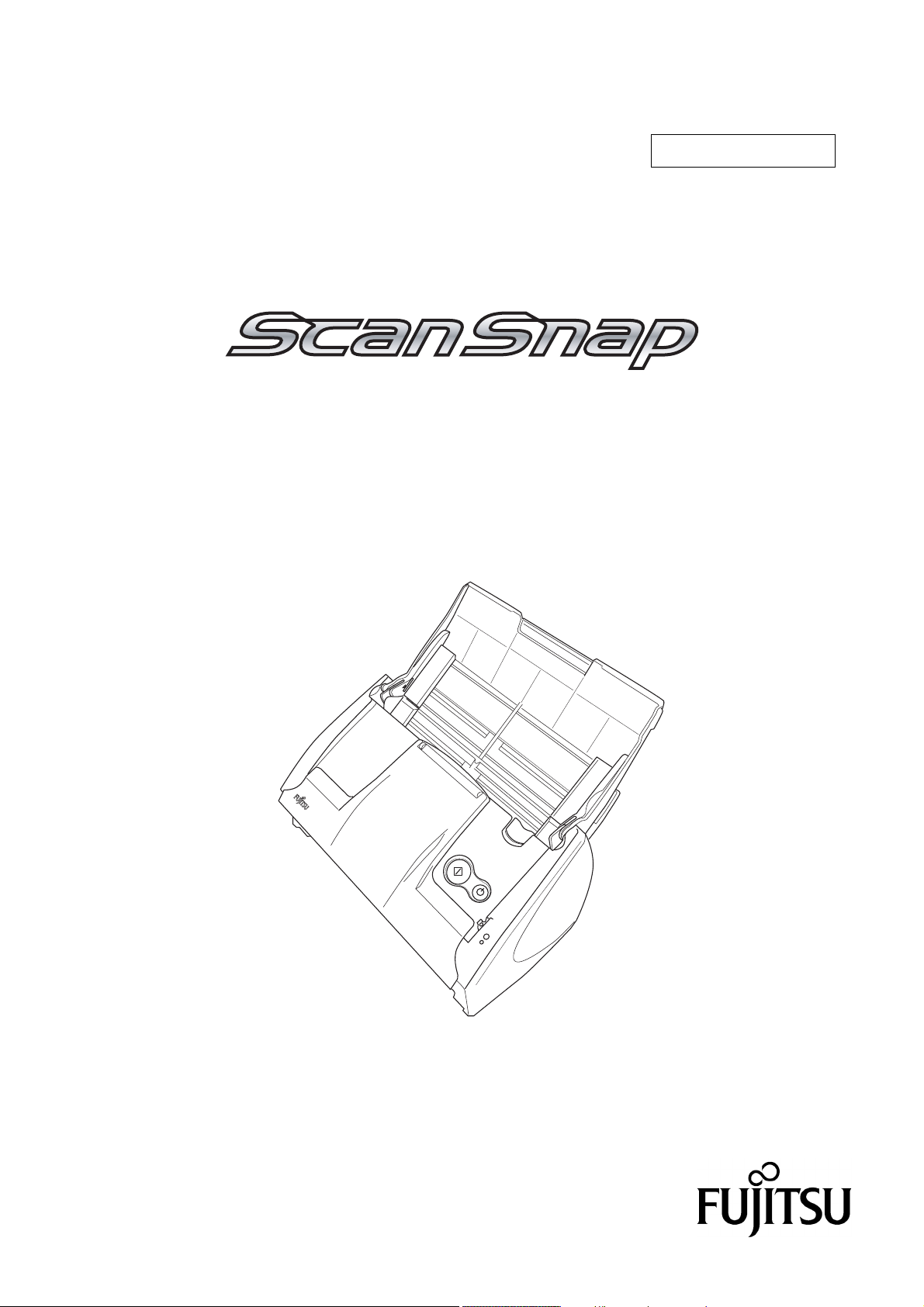

Fujitsu S510 - ScanSnap - Document Scanner Manual

P3PC-1792-03ENZ0

SCAN

POWER

Color Image Scanner

S510

Operator’s Guide

ScanSnap S510 Operator's Guide i

Introduction

Thank you for purchasing Color Image Scanner ScanSnap S510 (hereinafter referred to as the

"ScanSnap").

The ScanSnap is a scanner that is capable of double-sided scanning in both monochrome and color.

The ScanSnap has the following advantages:

■You can turn images on paper into PDF files and made PDF files searchable by just

pressing the [SCAN] button!

You can turn documents cluttering up your desk into PDF files for managing and

archiving them on your computer. By using Adobe® Acrobat®, which comes with the

ScanSnap, you can view, edit, and search PDF files right at your fingertips.

PDF files are easy to print and share scanned images by e-mail.

In addition to the advantages above, the ScanSnap can automatically recognize the type

of documents, color or black-and-white, so that the size of the scanned image file can

be reduced when documents containing both color and black-and-white pages are

scanned. (Moreover, the ScanSnap can automatically remove blank pages from the

document to further reduce the size of the file.)

■You can scan documents with speed and efficiency!

Double-sided color documents of A4 or letter size paper can be scanned up to a speed

of 18 sheets/minute (when Scan mode is set to Normal, Color mode is set to Auto, and

Compression rate is set to 3). (*1)

(*1) -Depending on the document, scanning speed may become slower in "B&W

(Black&White)" mode (due to process for converting data scanned in color to

monochrome data).

Example: Scanning color brochures in "B&W" mode

-When "Correct skewed character strings automatically," "Allow automatic image

rotation," and/or automatic text recognition is enabled, scanning speed may become

slower.

■You can eliminate the nuisance of a bulky device!

Smaller than a sheet of A4 or letter size paper, the ScanSnap can fit unobtrusively on

your desktop all the time.

■You can file business cards with ease!

With CardMinder™, which is supplied with the ScanSnap, business cards can be easily

filed and searched for using the OCR function.

■The Quick menu is newly added for beginners to operate the ScanSnap with

automatic ease!

When the [SCAN] button is pressed, the Quick menu is displayed. What you should do

is to select the action you want to perform on the Quick menu. The Quick menu is

simple enough for first-time use by completely neophytes. (Quick menu mode)

■You can send off the scanned image by e-mail or output the scanned image to the

printer immediately after scanning!

Without starting applications, you can attach the scanned image to e-mail or make

copies of the scanned image by outputting it to the printer.

■You can convert paper documents into Word/Excel/PowerPoint files!

With ABBYY FineReader for ScanSnap™, you can convert the scanned document

directly into the Word/Excel/PowerPoint file.

Note: The ScanSnap does not conform to TWAIN and ISIS standards.

This Operator’s Guide describes how to handle and operate the ScanSnap. Before using the

ScanSnap, be sure to read this document thoroughly for proper operation.

ScanSnap S510 Operator's Guide iii

Introduction ................................................................................... i

■Regulatory Information ........................................................ vi

■Liability ................................................................................ viii

■Trademarks ........................................................................... ix

■Safety Precautions ............................................................... xi

Chapter 1 Before You Start Using the ScanSnap ...................... 1

1.1 Checking the Contents of the Scanner Package ............. 2

1.2 Names and Functions of Components ............................. 3

Chapter 2 Connecting the ScanSnap .......................................... 5

2.1 Installing the Supplied Programs...................................... 6

2.2 Connecting the ScanSnap to your PC............................ 21

Chapter 3 Using the ScanSnap.................................................. 29

3.1 Flow of Operations .......................................................... 30

3.2 Paper Size of Documents to be Scanned ....................... 46

3.3 Loading Documents ......................................................... 49

Chapter 4 Setting the ScanSnap................................................ 63

4.1 About the ScanSnap Icon ................................................ 64

4.2 Changing Scanning Settings........................................... 67

4.3 Saving Scanning Settings................................................ 91

4.4 Using the ScanSnap Quick Menu ................................. 102

4.5 Changing Carrier Sheet Settings .................................. 105

4.6 About Automatic Interaction with Applications........... 110

Chapter 5 About Actions .......................................................... 113

5.1 About Actions in the Action List ................................... 114

5.2 Saving Data in the Specified Folder.............................. 115

5.3 Sending Files by E-Mail ................................................. 127

5.4 Using the ScanSnap as a Copy Machine...................... 143

5.5 Converting into Word / Excel / PowerPoint Files......... 155

Chapter 6 Using the ScanSnap in Various Ways ................... 171

6.1 Using ScanSnap Manager.............................................. 172

6.2 Using Adobe Acrobat ..................................................... 199

6.3 Scanning Business Cards ............................................. 204

6.4 Using ScanSnap Organizer............................................ 210

Chapter 7 Troubleshooting ...................................................... 223

7.1 Clearing Document Jams............................................... 224

7.2 Troubleshooting Checklist ............................................ 226

Chapter 8 Daily Care................................................................. 235

8.1 Cleaning Materials.......................................................... 236

8.2 Cleaning the Scanner Exterior ...................................... 237

8.3 Cleaning the Inside of the Scanner............................... 238

8.4 Cleaning Carrier Sheet ................................................... 241

ScanSnap S510 Operator's Guide v

Chapter 9 Replacing Consumables and Carrier Sheet.......... 243

9.1 Replacing Consumables ................................................ 244

9.2 Replacing the Pad ASSY................................................ 246

9.3 Replacing the Pick Roller............................................... 249

9.4 Purchasing the Carrier Sheet ........................................ 256

Appendix A Updating ScanSnap Manager ............................................ 257

Appendix B Uninstalling ScanSnap ....................................................... 259

Appendix C Quick Menu Mode / Left-Click Menu Mode ....................... 263

Appendix D Installation Specifications.................................................. 267

Repairs ..................................................................................................... 269

Index......................................................................................................... 271

■Regulatory Information

FCC declaration

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver

is located.

•Consult your dealer or an experienced radio/TV technician.

Canadian DOC Regulations

This digital apparatus does not exceed the Class B limit for radio noise emissions from

digital apparatus set out in the Radio interference Regulations of the Canadian Department

of Communications.

This Class B digital apparatus complies with Canadian ICES-003.

Le présent appareil numérique n'émet pas de parasites radioélectriques dépassant les limites

applicables aux appareils numériques de la classe B et prescrites dans le Règlement sur le

brouillage radioélectrique dictées par le Ministère des Communications du Canada.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

ATTENTION

•The use of a shielded interface cable is required to comply with the Class B

limits of Part 15 of FCC rules.

•The length of the AC cable must be 3 meters (10 feet) or less.

ScanSnap S510 Operator's Guide vii

Bescheinigung des Herstellers / Importeurs

Für den S510 wid folgendes bescheinigt:

•In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört

•Maschinenlärminformationsverordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt

70 dB (A) oder weniger, gemäß EN ISO 7779.

International ENERGY STAR®Program

As an ENERGY STAR®Partner, PFU LIMITED has determined that

this product meets the ENERGY STAR®guidelines for energy

efficiency.

The International ENERGY STAR®Office Equipment Program is an

international program that promotes energy saving through the

penetration of energy efficient computers and other office equipment.

The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors

can participate voluntarily. The targeted products are office equipment such as computers,

monitors, printers, facsimiles, copiers, scanners, and multifunction devices. Their standards

and logos are uniform among participating nations.

viii

■Liability

READ ALL OF THIS MANUAL CAREFULLY BEFORE USING THIS PRODUCT. IF

THIS PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY MAY BE

CAUSED TO USERS OR BYSTANDERS.

While all efforts have been made to ensure the accuracy of all information in this manual,

PFU assumes no liability to any party for any damage caused by errors or omissions or by

statements of any kind in this manual, its updates or supplements, whether such errors are

omissions or statements resulting from negligence, accidents, or any other cause. PFU

further assumes no liability arising from the application or use of any product or system

described herein; nor any liability for incidental or consequential damages arising from the

use of this manual. PFU disclaims all warranties regarding the information contained herein,

whether expressed, implied, or statutory.

Use in High-safety Applications

This product has been designed and manufactured on the assumption that it will be used in

office, personal, domestic, regular industrial, and general-purpose applications. It has not

been designed and manufactured for use in applications (simply called "high-safety

applications" from here on) that directly involve danger to life and health when a high degree

of safety is required, for example, in the control of nuclear reactions at nuclear power

facilities, automatic flight control of aircraft, air traffic control, operation control in mass-

transport systems, medical equipment for sustaining life, and missile firing control in

weapons systems, and when provisionally the safety in question is not ensured. The user

should use this product with adopting measures for ensuring safety in such high-safety

applications. PFU LIMITED assumes no liability whatsoever for damages arising from use

of this product by the user in high-safety applications, and for any claims or compensation

for damages by the user or a third party.

About the use of mercury

To avoid unexpected injury, read the following carefully.

Doing the following actions may result in serious personal injuries:

•Do not put the substance in the lamp in your mouth as it contains mercury.

•Do not incinerate, crush, or shred the scanner.

•Do not breathe the chemical liquid contained in the scanner parts.

Lamp(s) inside this product contain mercury and must be recycled or disposed of

according to local, state, or federal laws.

Otros manuales para S510 - ScanSnap - Document Scanner

Tabla de contenidos

Otros manuales de Escáner de Fujitsu

Fujitsu

Fujitsu fi-590PRB Manual

Fujitsu

Fujitsu fi-6130Z Manual de usuario

Fujitsu

Fujitsu fi-5650C Guía de configuración

Fujitsu

Fujitsu S1500 - ScanSnap Deluxe Bundle Instrucciones de funcionamiento

Fujitsu

Fujitsu PA03541-B105 Manual

Fujitsu

Fujitsu fi-6400 Manual de usuario

Fujitsu

Fujitsu fi-7300NX Guía de configuración

Fujitsu

Fujitsu S510 - ScanSnap - Document Scanner Manual de usuario

Fujitsu

Fujitsu FI-6670A Manual de usuario

Fujitsu

Fujitsu S510M - ScanSnap - Document Scanner Manual

Fujitsu

Fujitsu PA03360-B505 - ScanSnap S500 Manual

Fujitsu

Fujitsu M3097DG Manual de instalación y operación

Fujitsu

Fujitsu FI-6130 Guía de configuración

Fujitsu

Fujitsu FI-4120C Guía de referencia

Fujitsu

Fujitsu SNAPSNAP IX500 Manual de usuario

Fujitsu

Fujitsu PA03630-B055 Manual de usuario

Fujitsu

Fujitsu ScanSnap S500 Manual de usuario

Fujitsu

Fujitsu FI-6000NS Manual

Fujitsu

Fujitsu ScanSnap iX500 Manual

Fujitsu

Fujitsu ScanSnap S1300 Manual de usuario

Fujitsu

Fujitsu ScanPartner 3091DC Manual de usuario

Fujitsu

Fujitsu M4097D - Fb 50PPM SCSI A3 Dupl 100Sht Adf Guía de configuración

Fujitsu

Fujitsu fi-65F Manual

Fujitsu

Fujitsu M4099D Manual

Manuales populares de Escáner de otras marcas

Plustek

Plustek Scanner Manual de usuario

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manual de usuario

Renkforce

Renkforce DS100-5M Manual de usuario

Image Access

Image Access WideTEK A2 Manual de usuario

Canon

Canon imageFORMULA CR-120N Manual de usuario

GeoSlam

GeoSlam ZEB Horizon Instrucciones de instalación

Kodak

Kodak i5800 Scanner Manual de usuario

Kodak

Kodak i7300 Manual de usuario

Revopoint

Revopoint POP Manual de usuario

Eddyfi Technologies

Eddyfi Technologies Floormap X Manual de usuario

Faselase

Faselase F6 Manual de usuario

Uniden

Uniden BC340CRS Manual de usuario

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manual de usuario

Mustek

Mustek PageExpress 4800 Pro Manual de usuario

Optex

Optex 750830 Manual de usuario

Innova

Innova 5210 Manual de usuario

Visioneer

Visioneer CardReader 100 Guía de inicio rápido

Rohde & Schwarz

Rohde & Schwarz TSME6 Manual de usuario
